NSN 3110-01-119-2076 KA030XP6, KA030XP7, KA30XP7
Product Details | ANNULAR BALL BEARING
3110-01-119-2076 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: KA030XP6, KA030XP7, KA30XP7, 3110-01-119-2076, 01-119-2076, 3110011192076, 011192076
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 19 SEP 1981 | 01-119-2076 | 00014 ( BEARING, BALL, ANNULAR ) |

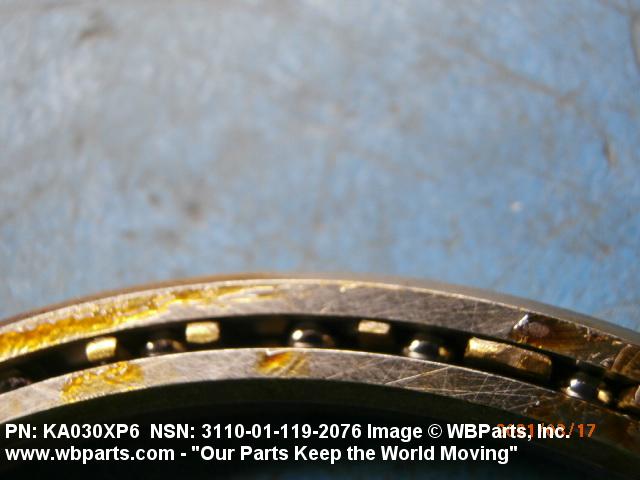

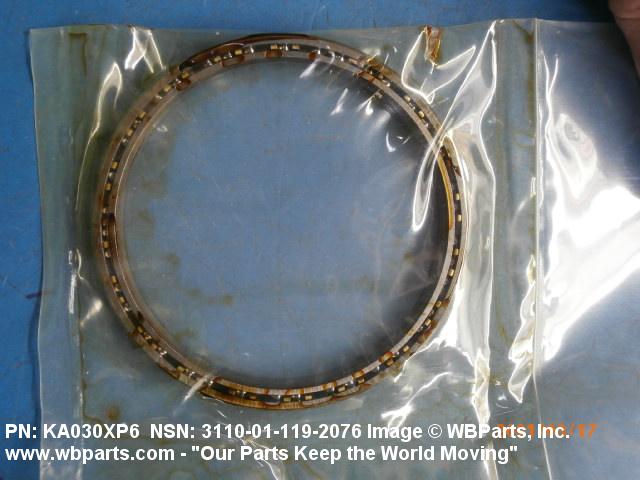

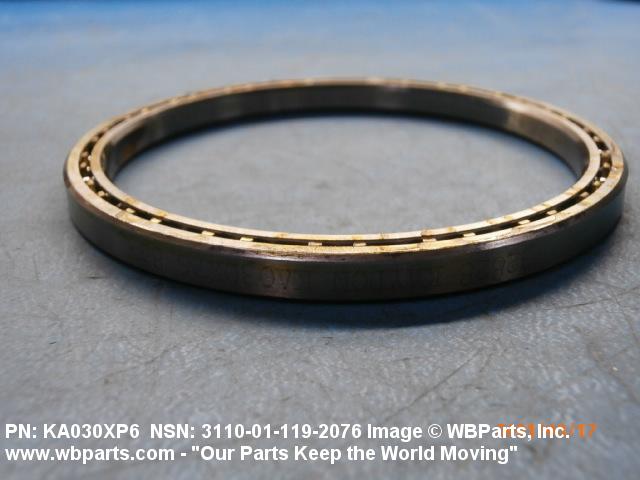

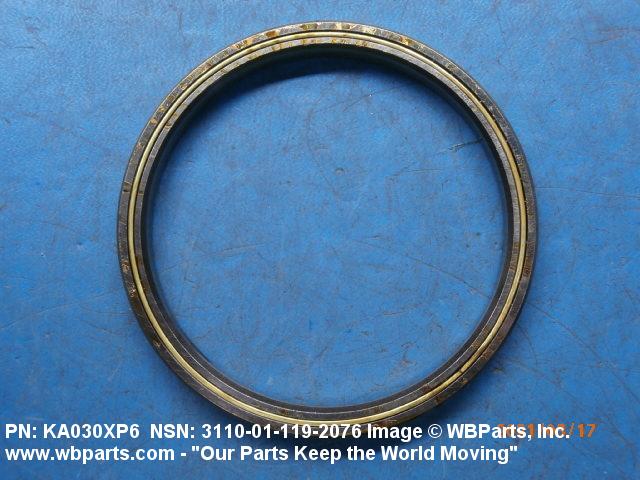

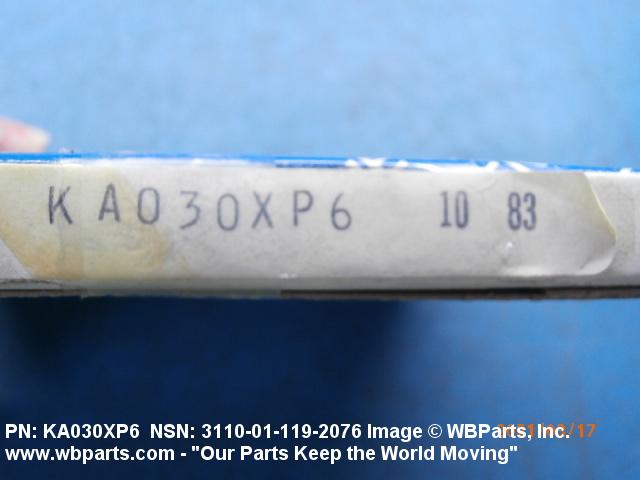

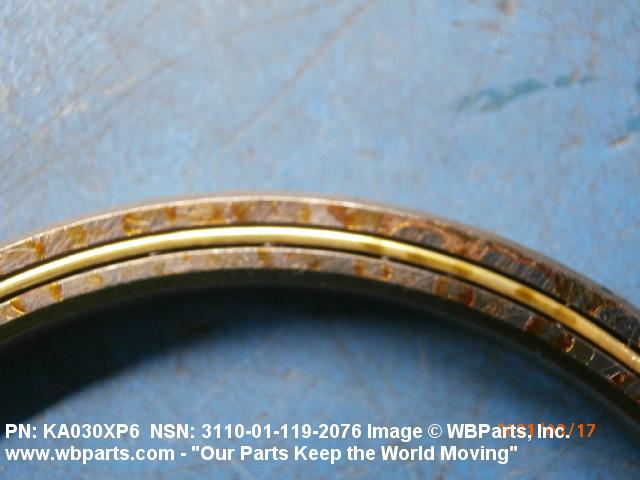

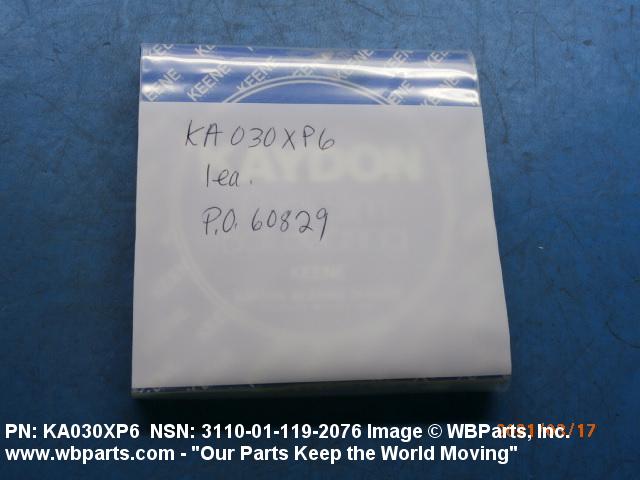

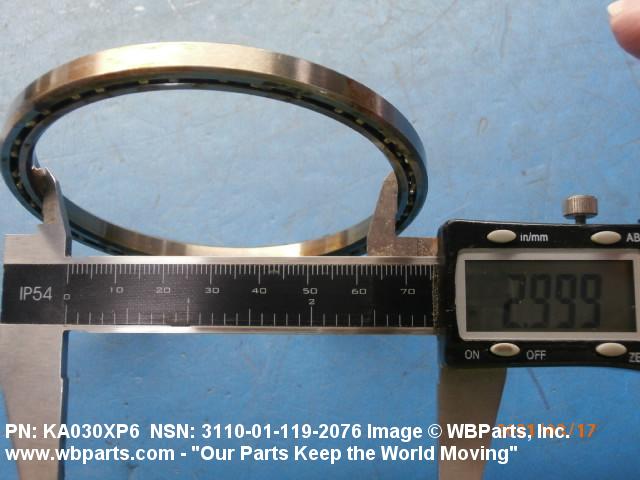

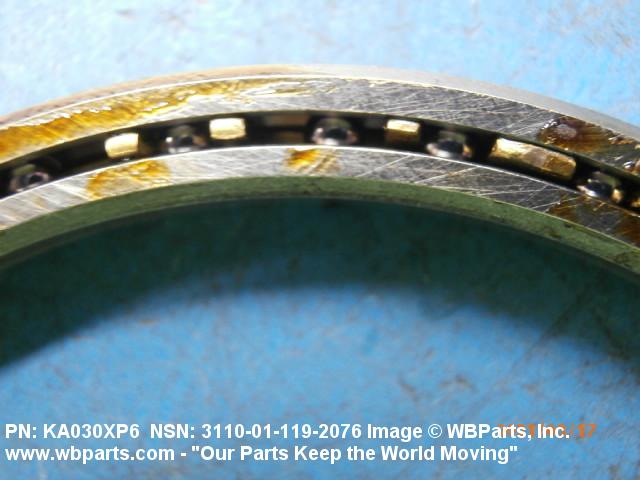

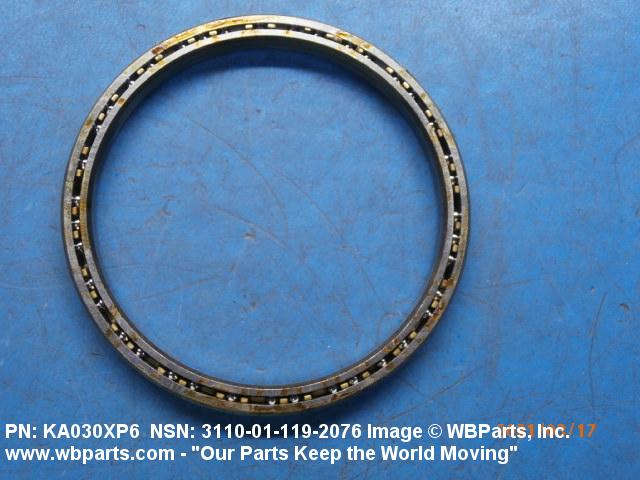

Drawings & Photos | NSN 3110-01-119-2076
Demand History | NSN 3110-01-119-2076
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-119-2076 | 2022-08-243 | 5 | US |
| 3110-01-119-2076 | 2021-09-244 | 2 | US |
| 3110-01-119-2076 | 2021-02-50 | 1 | United States |
| 3110-01-119-2076 | 2020-09-265 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-119-2076
Technical Data | NSN 3110-01-119-2076
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING COPPER ALLOY RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING |
| STYLE DESIGNATOR | 40A 4 POINT BALL CONTACT, SOLID INNER AND OUTER RINGS, NON-SEPARABLE |

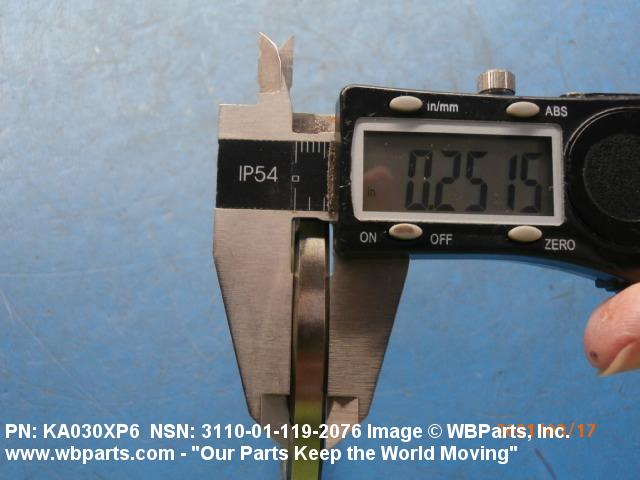

| OVERALL WIDTH | 0.2500 INCHES NOMINAL |
| BORE DIAMETER | 3.0000 INCHES NOMINAL |

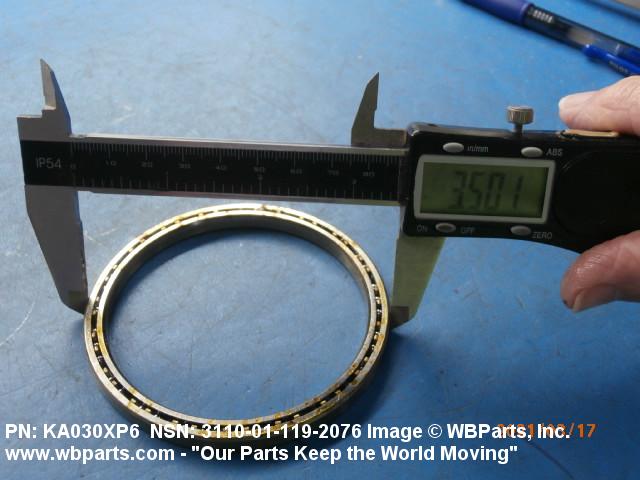

| OVERALL OUTSIDE DIAMETER | 3.5000 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.7 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOAD DIRECTION | ANGULAR |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| CONTACT ANGLE | 30.0 DEGREES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3110-01-119-2076
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3110-01-119-2076
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
