NSN 3110-01-121-1775 S5632FC3L0C4, S5632FC5P28L0C1, 01-121-1775
Product Details | ANNULAR BALL BEARING
3110-01-121-1775 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: S5632FC3L0C4, S5632FC5P28L0C1, 3110-01-121-1775, 01-121-1775, 3110011211775, 011211775
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 31 OCT 1981 | 01-121-1775 | 00014 ( BEARING, BALL, ANNULAR ) |

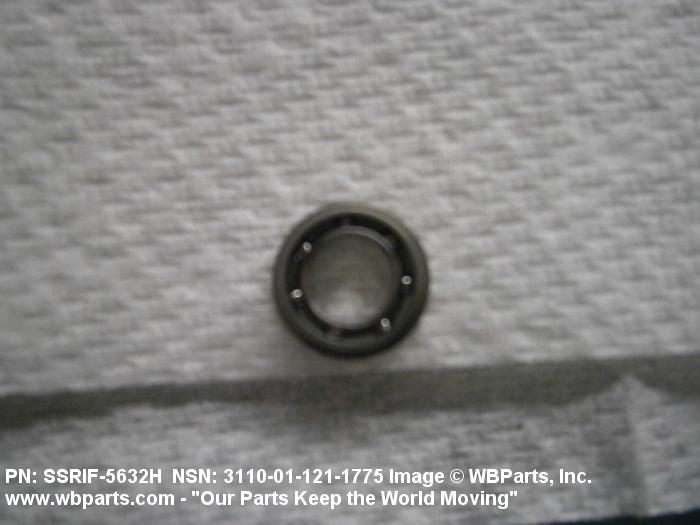

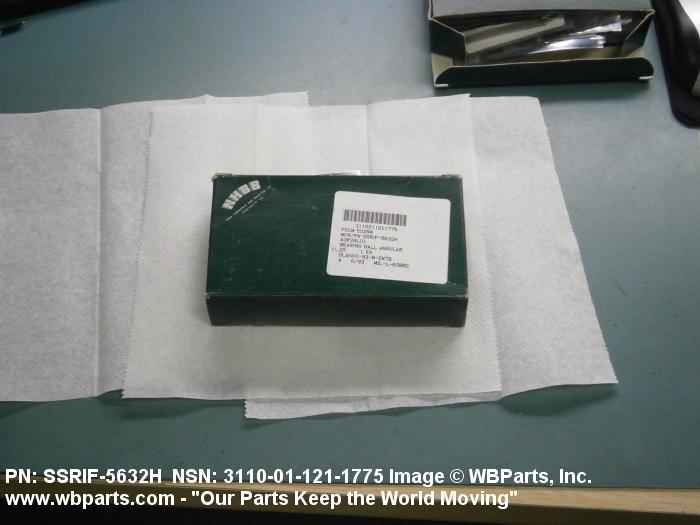

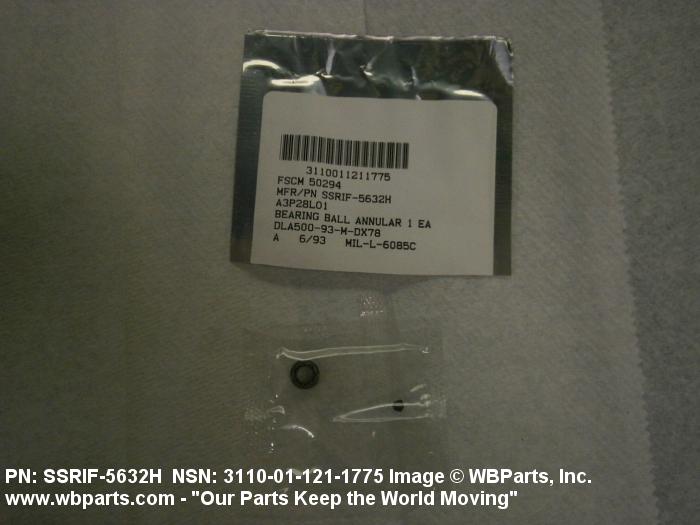

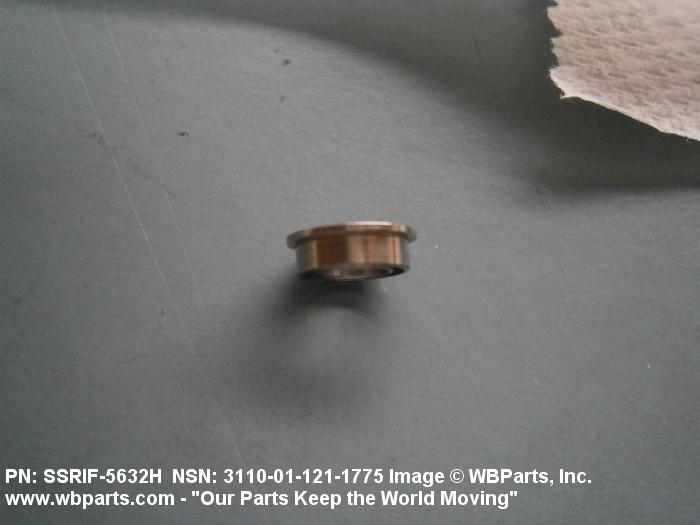

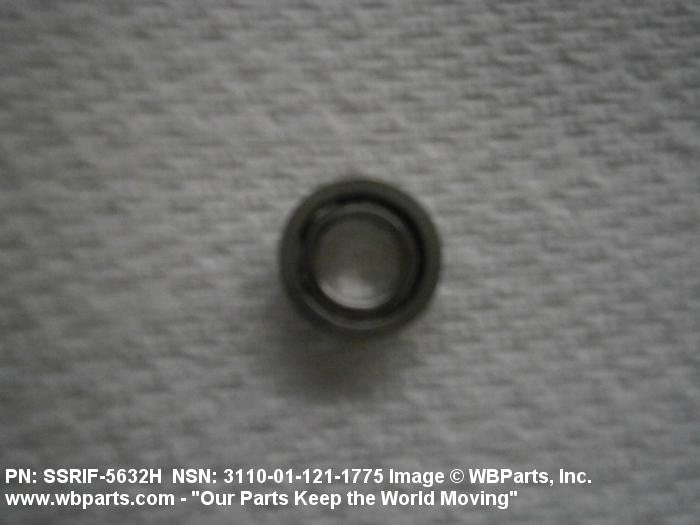

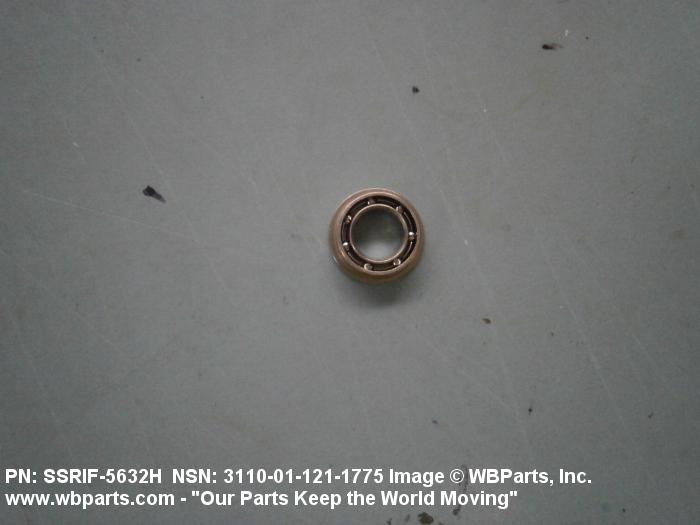

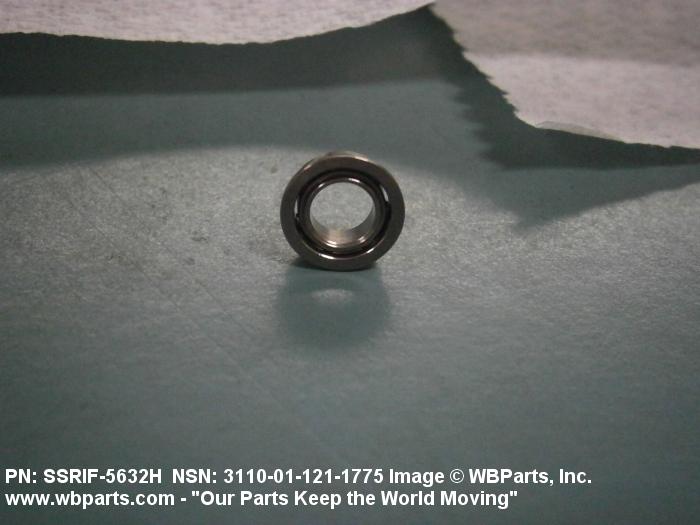

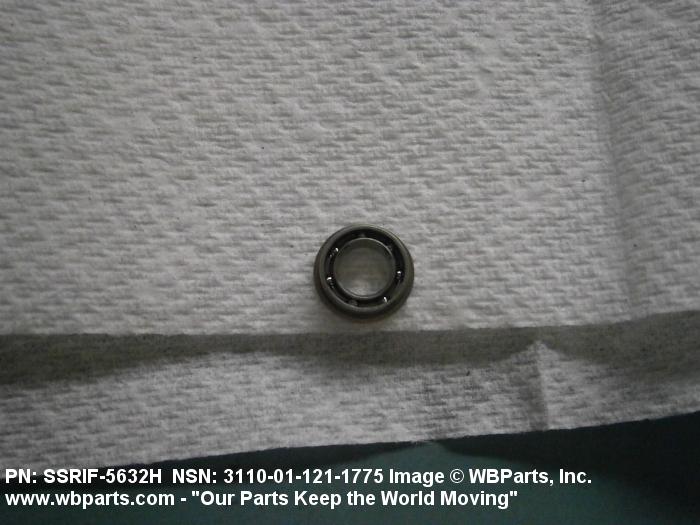

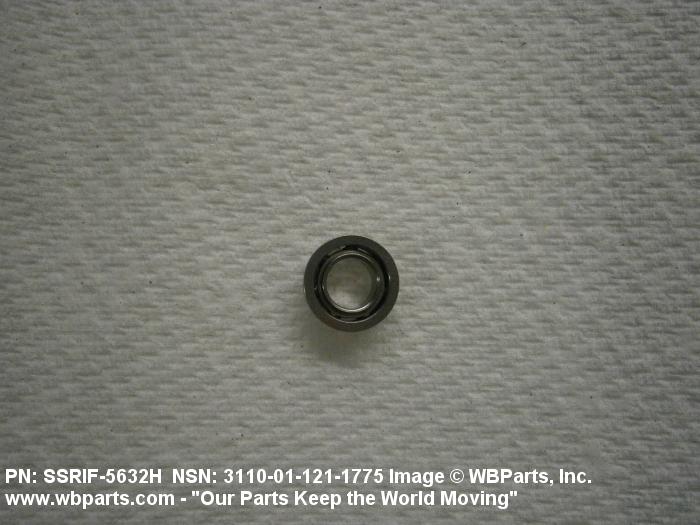

Drawings & Photos | NSN 3110-01-121-1775
Demand History | NSN 3110-01-121-1775
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-121-1775 | 2015-04-96 | 453 | DIBBS |
| 3110-01-121-1775 | 2013-08-224 | 935 | DIBBS |
| 3110-01-121-1775 | 2013-07-209 | 935 | DIBBS |
| 3110-01-121-1775 | 2013-07-207 | 1 | United States |
| 3110-01-121-1775 | 2013-06-162 | 50 | United States |
| 3110-01-121-1775 | 2013-04-109 | 5 | DIBBS |
| 3110-01-121-1775 | 2013-04-107 | 946 | DIBBS |
| 3110-01-121-1775 | 2013-04-94 | 5 | DIBBS |
| 3110-01-121-1775 | 2011-12-355 | 862 | DIBBS |
| 3110-01-121-1775 | 2011-10-300 | 754 | DIBBS |
| 3110-01-121-1775 | 2011-08-227 | 290 | DIBBS |
| 3110-01-121-1775 | 2007-11-311 | 634 | DIBBS |
| 3110-01-121-1775 | 2007-08-242 | 668 | DIBBS |
| 3110-01-121-1775 | 2007-07-208 | 120 | DIBBS |
| 3110-01-121-1775 | 2007-05-149 | 100 | DIBBS |
| 3110-01-121-1775 | 2007-05-149 | 120 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-121-1775
Related Products | NSN 3110-01-121-1775
Technical Data | NSN 3110-01-121-1775
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C BALL STEEL COMP 440C INNER RING STEEL COMP 440C OUTER RING STEEL CORROSION RESISTING RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING |
| STYLE DESIGNATOR | 14A NON-LOADING GROOVE, NON-SEPARABLE |

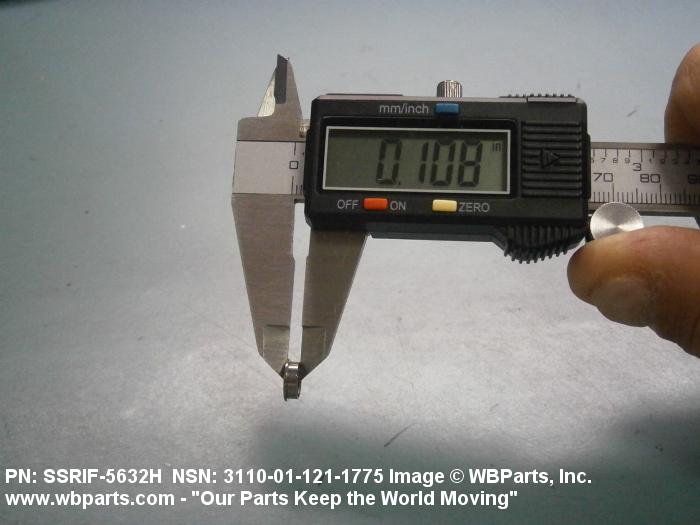

| OVERALL WIDTH | 0.1084 INCHES MINIMUM AND 0.1094 INCHES MAXIMUM |
| BORE DIAMETER | 0.1873 INCHES MINIMUM AND 0.1875 INCHES MAXIMUM |

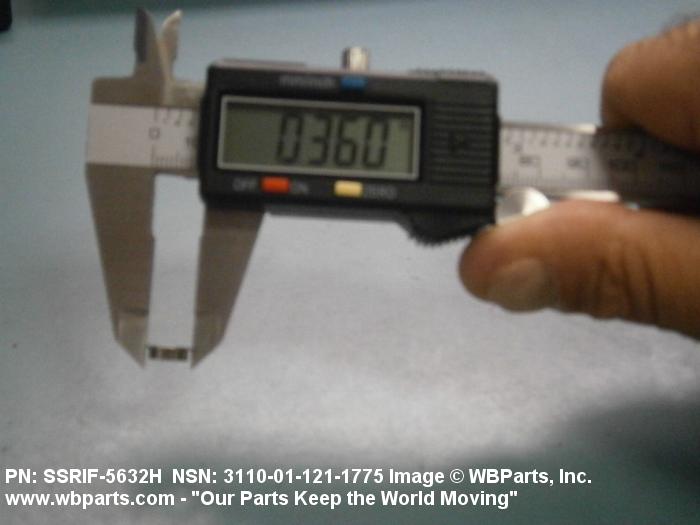

| FLANGE OUTSIDE DIAMETER | 0.3590 INCHES NOMINAL |
| FLANGE WIDTH | 0.0230 INCHES NOMINAL |

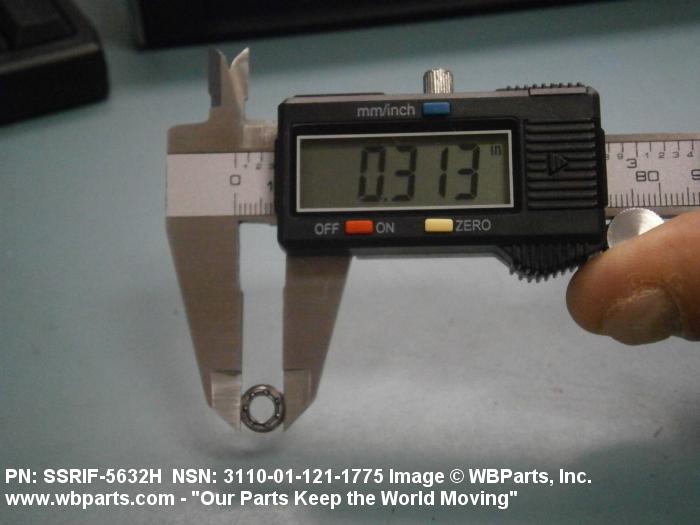

| OUTER RING OUTSIDE DIAMETER | 0.3123 INCHES MINIMUM AND 0.3125 INCHES MAXIMUM |
| LUBRICATION MATERIAL | OIL |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-L-6085 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.3 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| SPECIAL FEATURES | LUBRICATION OIL CENTRIFUGED |
Restrictions/Controls & Freight Information | NSN 3110-01-121-1775
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-121-1775
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
