NSN 3110-01-144-3959 SB1165101, SB1165-101, 207S400
Product Details | ANNULAR BALL BEARING
3110-01-144-3959 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: SB1165101, SB1165-101, 207S400, 207-S-400 , 207S514, 207-S-514, 3110-01-144-3959, 01-144-3959, 3110011443959, 011443959
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 20 DEC 1982 | 01-144-3959 | 00014 ( BEARING, BALL, ANNULAR ) |

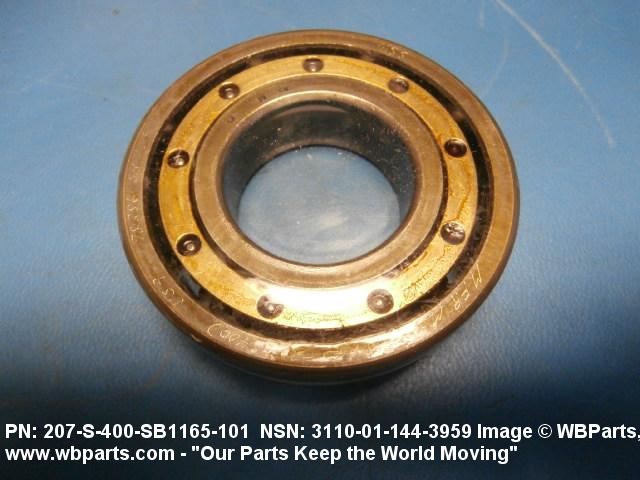

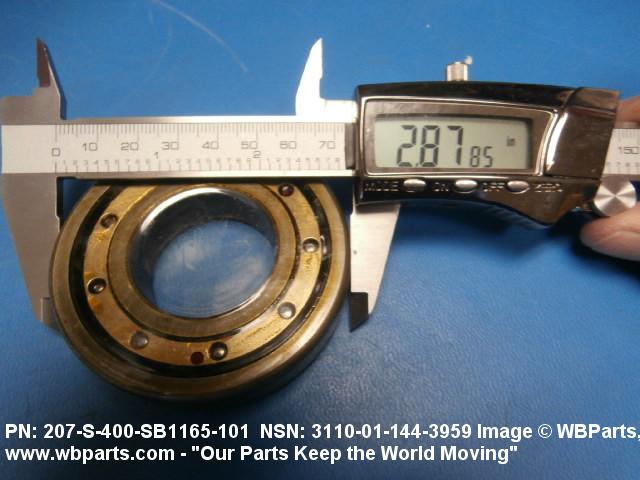

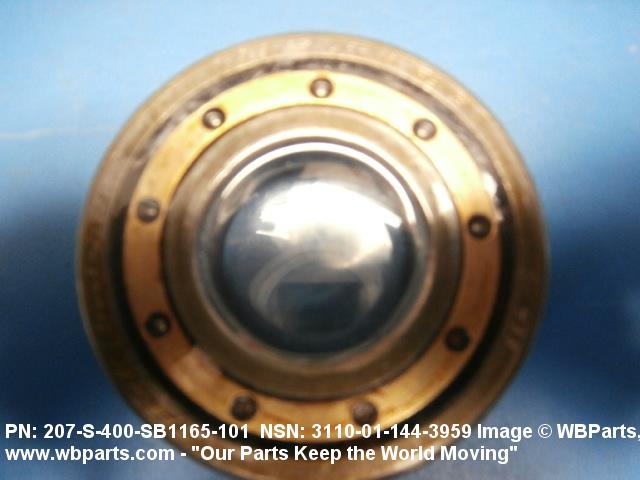

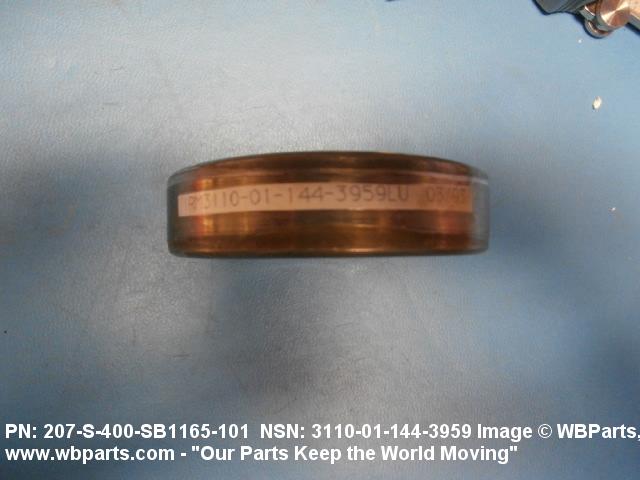

Drawings & Photos | NSN 3110-01-144-3959
Demand History | NSN 3110-01-144-3959
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-144-3959 | 2019-03-88 | 1 | DIBBS-RFPs |
| 3110-01-144-3959 | 2016-06-181 | 20 | United States |
| 3110-01-144-3959 | 2016-05-146 | 20 | DIBBS |
| 3110-01-144-3959 | 2016-05-138 | 25 | DIBBS |
| 3110-01-144-3959 | 2016-02-48 | 35 | DIBBS |
| 3110-01-144-3959 | 2016-02-40 | 35 | DIBBS |
| 3110-01-144-3959 | 2015-12-349 | 57 | DIBBS |
| 3110-01-144-3959 | 2015-12-341 | 57 | DIBBS |
| 3110-01-144-3959 | 2014-12-335 | 50 | DIBBS |
| 3110-01-144-3959 | 2014-11-327 | 50 | DIBBS |
| 3110-01-144-3959 | 2014-11-316 | 31 | DIBBS |
| 3110-01-144-3959 | 2014-10-300 | 17 | DIBBS |
| 3110-01-144-3959 | 2014-08-226 | 35 | DIBBS |
| 3110-01-144-3959 | 2014-08-218 | 35 | DIBBS |
| 3110-01-144-3959 | 2014-07-204 | 49 | DIBBS |
| 3110-01-144-3959 | 2014-07-195 | 49 | DIBBS |
| 3110-01-144-3959 | 2012-01-10 | 10 | United States |
| 3110-01-144-3959 | 2011-12-341 | 175 | DIBBS |
| 3110-01-144-3959 | 2011-07-187 | 225 | DIBBS |
| 3110-01-144-3959 | 2011-05-130 | 102 | DIBBS |
| 3110-01-144-3959 | 2010-05-132 | 111 | DIBBS |
| 3110-01-144-3959 | 2010-03-71 | 139 | DIBBS |
| 3110-01-144-3959 | 2010-02-55 | 153 | DIBBS |
| 3110-01-144-3959 | 2009-10-293 | 139 | DIBBS |
| 3110-01-144-3959 | 2007-04-95 | 220 | DIBBS |
Cross Reference | NSN 3110-01-144-3959
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-144-3959
Related Products | NSN 3110-01-144-3959
Technical Data | NSN 3110-01-144-3959
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 0.6643 INCHES MINIMUM AND 0.6693 INCHES MAXIMUM |
| BORE DIAMETER | 1.3777 INCHES MINIMUM AND 1.3780 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.8342 INCHES MINIMUM AND 2.8346 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.3 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOAD DIRECTION | RADIAL |
| INTERNAL CLEARANCE | 0.0011 INCHES MINIMUM RADIAL AND 0.0018 INCHES MAXIMUM RADIAL |
| MANUFACTURERS CODE | 78286 |
| MFR SOURCE CONTROLLING REFERENCE | SB1165-101 |
Restrictions/Controls & Freight Information | NSN 3110-01-144-3959
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-144-3959
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
