NSN 3110-01-147-4490 AAV912611MSRA2569, AAV9126-11-MSR-A2569, AAV912611MSRC1A2569

Product Details | ANNULAR BALL BEARING

3110-01-147-4490 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: AAV912611MSRA2569, AAV9126-11-MSR-A2569, AAV912611MSRC1A2569, AAV9126-11MSRC1A2569, 552398, 9126UK106, 9126-UK-106, 9732M10, 9732M10P12, 9732M10P16, 9732M10P17, 9732M10P20, 3110-01-147-4490, 01-147-4490, 3110011474490, 011474490

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	16 FEB 1983	01-147-4490	00014 ( BEARING, BALL, ANNULAR )

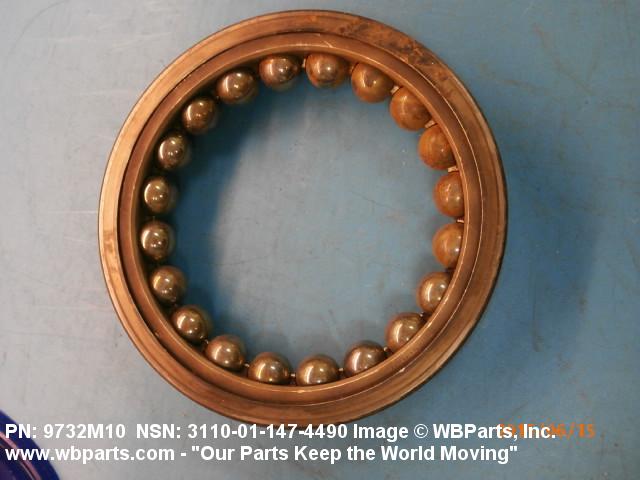

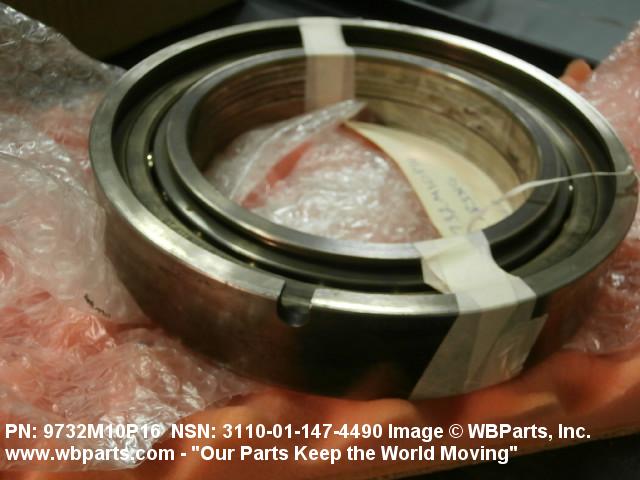

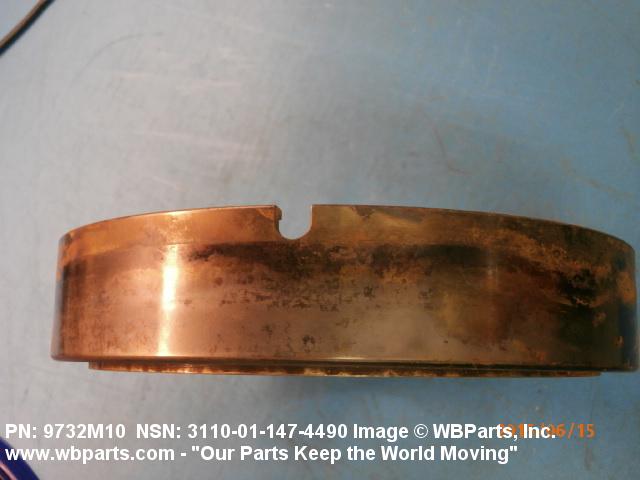

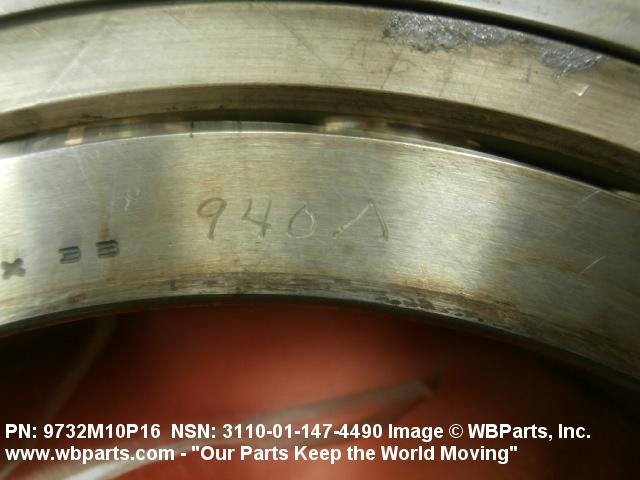

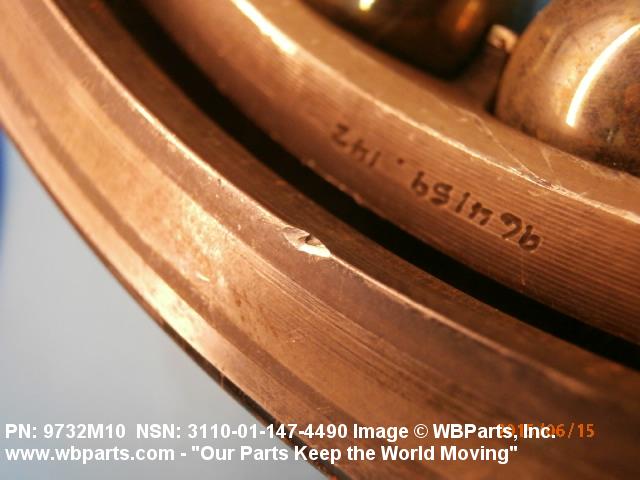

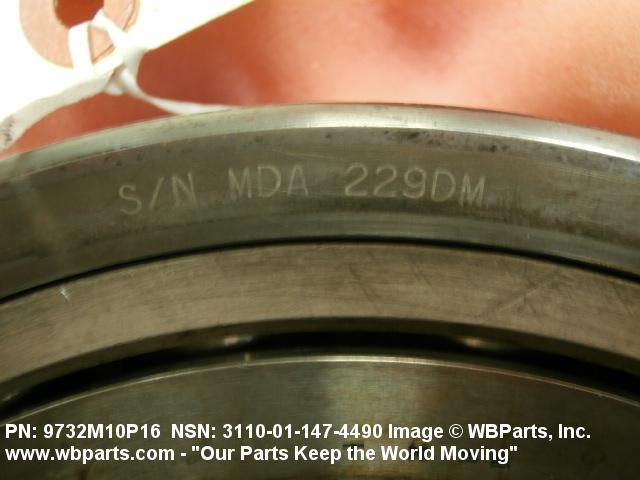

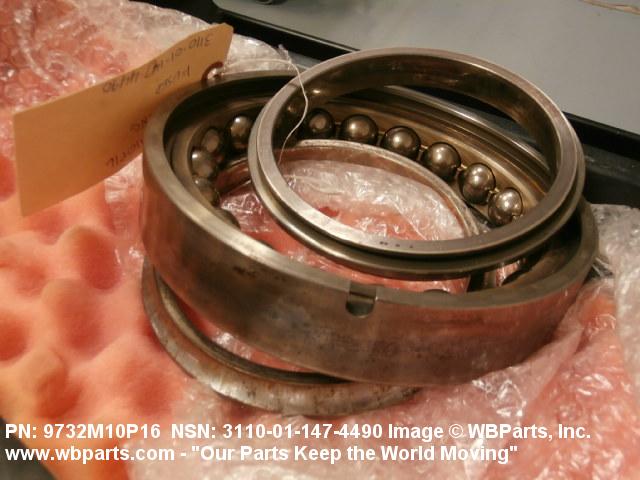

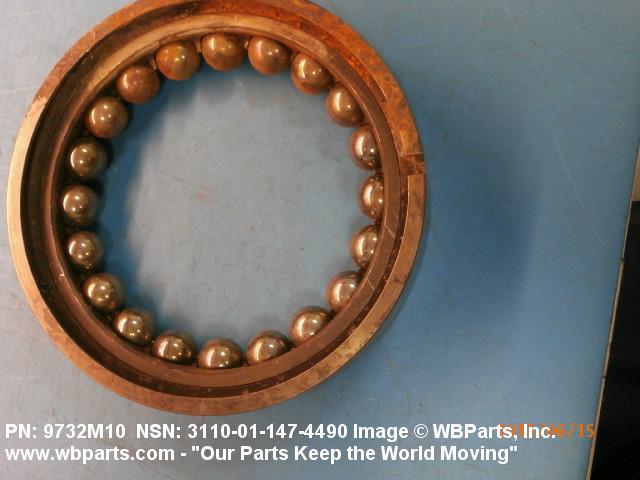

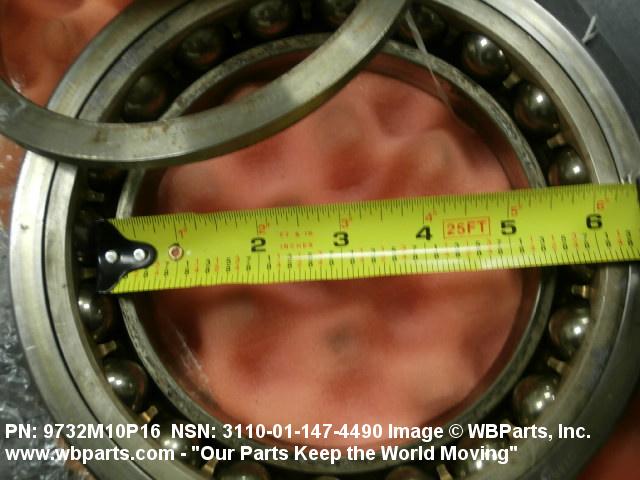

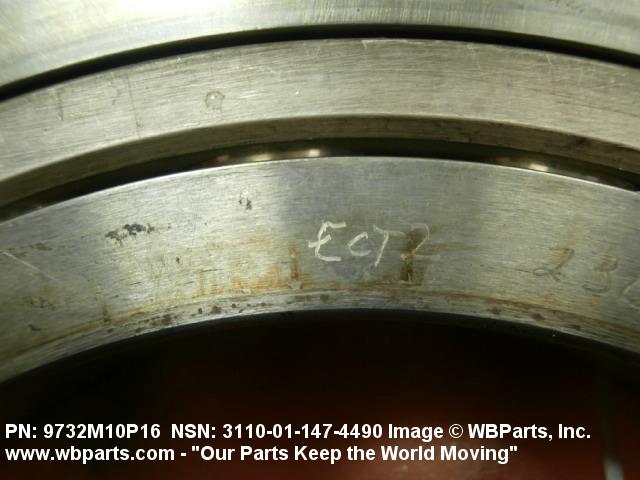

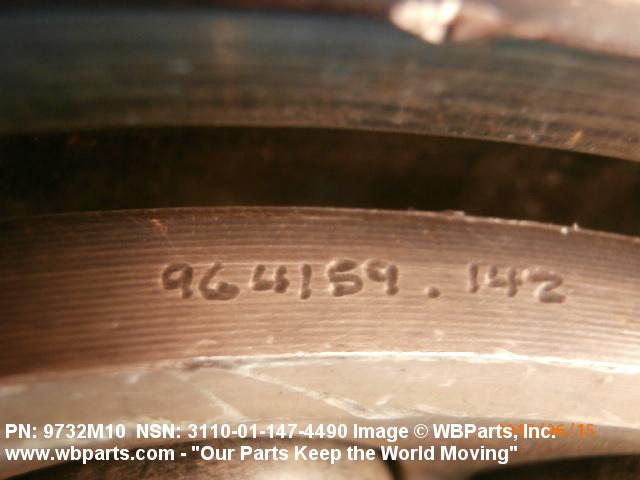

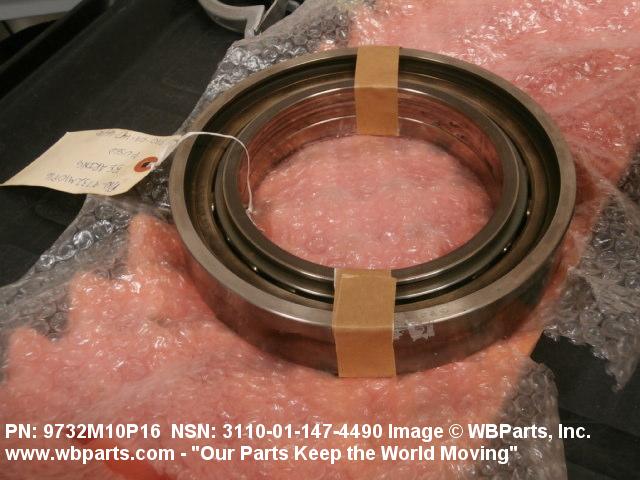

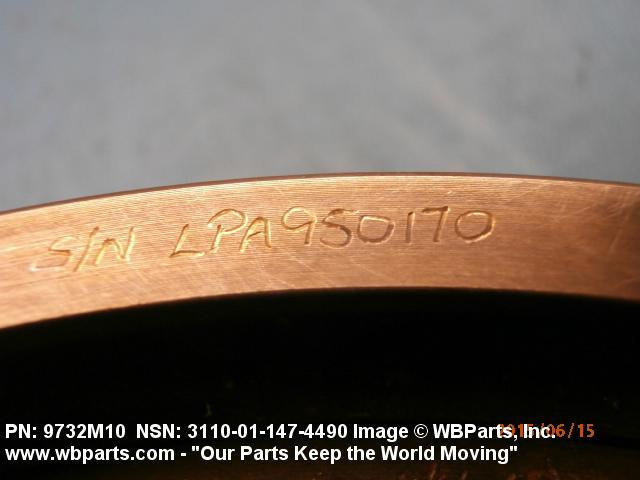

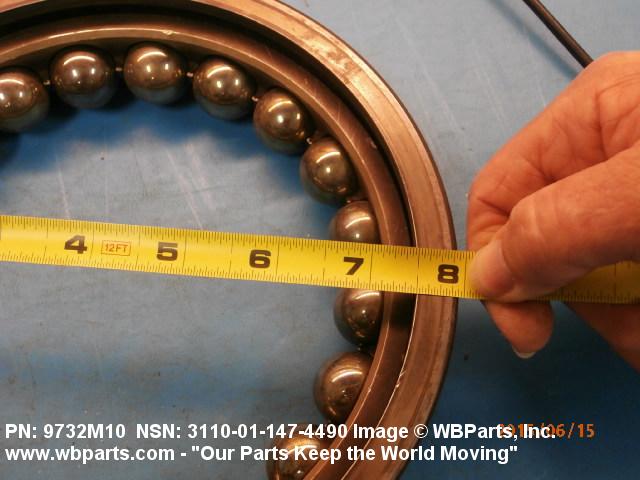

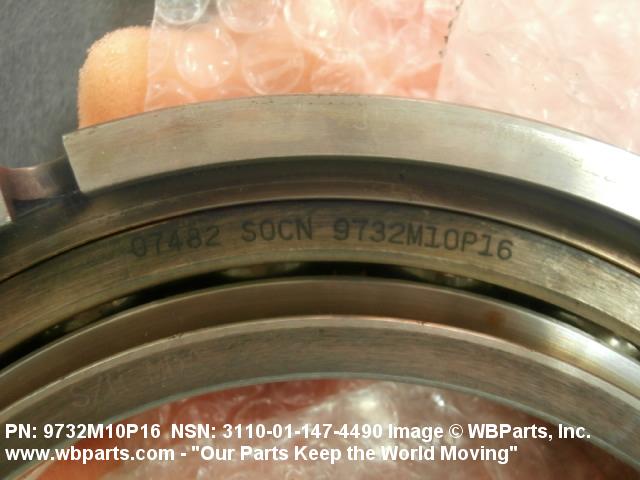

Drawings & Photos | NSN 3110-01-147-4490

Part Number	Request Date	QTY	Origin
3110-01-147-4490	2025-11-321	1	AE
3110-01-147-4490	2024-02-45	1	MX
3110-01-147-4490	2024-02-33	1	FR
3110-01-147-4490	2023-02-53	2	US
3110-01-147-4490	2022-10-300	1	US
3110-01-147-4490	2017-03-88	1	US
3110-01-147-4490	2015-06-161	1	United Kingdom
9732M10	2011-03-89	6	United States
9732M10P12	2011-01-04	1	United States
9732M10P16	2011-01-04	1	United States
9732M10P17	2011-01-04	1	United States
9732M10P20	2011-01-04	1	United States
3110-01-147-4490	2009-05-146	23	DIBBS
9732M10P20	2009-01-27	1	Singapore
3110-01-147-4490	2007-05-141	1	US

Cross Reference | NSN 3110-01-147-4490

Part Number	Cage Code	Manufacturer
552398	D2456	SCHAEFFLER TECHNOLOGIES GMBH & CO.KG
9126-UK-106	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
9732M10	07482	GENERAL ELECTRIC COMPANY DBA GE
9732M10	09697	JKS BOYLES INTL
9732M10	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
9732M10	36069	FAG AEROSPACE INC
9732M10	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
9732M10	D2456	SCHAEFFLER TECHNOLOGIES GMBH & CO.KG
9732M10P12	07482	GENERAL ELECTRIC COMPANY DBA GE
9732M10P12	09697	JKS BOYLES INTL
9732M10P16	07482	GENERAL ELECTRIC COMPANY DBA GE
9732M10P17	07482	GENERAL ELECTRIC COMPANY DBA GE
9732M10P20	07482	GENERAL ELECTRIC COMPANY DBA GE
AAV9126-11-MSR-A2569	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
AAV9126-11MSRC1A2569	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-01-147-4490

Compare

Related Products | NSN 3110-01-147-4490

3110-01-147-4491, 3110-01-147-4945, 3110-01-147-4946, 3110-01-147-4947, 3110-01-147-4948

Technical Data | NSN 3110-01-147-4490

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 OVERALL
STYLE DESIGNATOR	40B 4 POINT BALL CONTACT, SPLIT INNER RING, SEPARABLE
OVERALL WIDTH	1.4050 INCHES MINIMUM AND 1.4100 INCHES MAXIMUM
BORE DIAMETER	5.2496 INCHES MINIMUM AND 5.2500 INCHES MAXIMUM
OVERALL OUTSIDE DIAMETER	7.9415 INCHES MINIMUM AND 7.9420 INCHES MAXIMUM
STANDARD TOLERANCE DESIGNATION	ABEC NO.5
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
LOAD DIRECTION	ANGULAR
SPECIAL FEATURES	SPLIT INNER RACE
III END ITEM IDENTIFICATION	F101-GE-102 ENGINE
III PRECIOUS MATERIAL	SILVER
MANUFACTURERS CODE	07482
MFR SOURCE CONTROLLING REFERENCE	9732M10

Restrictions/Controls & Freight Information | NSN 3110-01-147-4490

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	SX	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	Z	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-01-147-4490

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	PR	SX:F11O GE 100 ENGINE
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
