Product Details | ANNULAR BALL BEARING
3110-01-215-7371 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: KC080XP0, 953F887 ITEM 20, 953F887ITEM20, 3110-01-215-7371, 01-215-7371, 3110012157371, 012157371
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 30 AUG 1985 | 01-215-7371 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-01-215-7371
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3110-01-215-7371
3110-01-215-7372, 3110-01-215-7373, 3110-01-215-7374, 3110-01-215-7375, 3110-01-215-7475
Technical Data | NSN 3110-01-215-7371
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 8.0000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 8.7500 INCHES NOMINAL |
| SURFACE FINISH | GROUND |

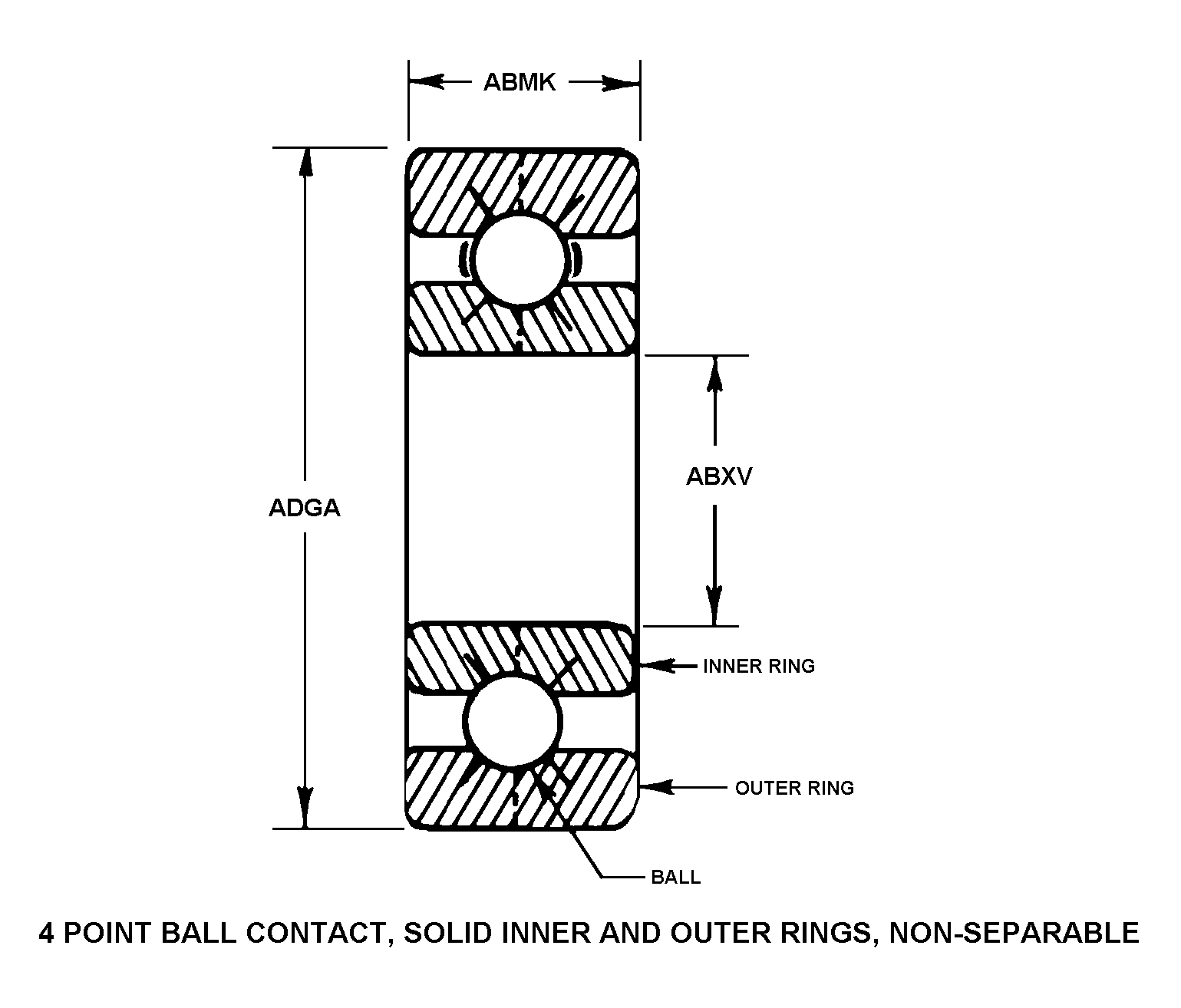

| STYLE DESIGNATOR | 40A 4 POINT BALL CONTACT, SOLID INNER AND OUTER RINGS, NON-SEPARABLE |
| MATERIAL | COPPER ALLOY RETAINER |
| MATERIAL | STEEL INNER RING |
| MATERIAL | STEEL OUTER RING |
| BORE SHAPE | STRAIGHT |
| OVERALL WIDTH | 0.3750 INCHES NOMINAL |
| LOAD DIRECTION | RADIAL |
| MATERIAL | STEEL BALL |
| RETAINER FABRICATION METHOD | MACHINED |
| SPECIAL FEATURES | PRECISION CLASS 1 |
Restrictions/Controls & Freight Information | NSN 3110-01-215-7371
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-215-7371
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
