NSN 3110-01-303-2871 30023016, 3002301-6, 01-303-2871
Product Details | ROD END ROLLER BEARING
3110-01-303-2871 A special single or multiple-row roller bearing, rigid or self-aligning, and constructed with either inside threaded, plain hollow, maile threaded, or solid shank.
Part Alternates: 30023016, 3002301-6, 3110-01-303-2871, 01-303-2871, 3110013032871, 013032871
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 28 JUN 1989 | 01-303-2871 | 00050 ( BEARING, ROLLER, ROD END ) |
Drawings & Photos | NSN 3110-01-303-2871
Cross Reference | NSN 3110-01-303-2871
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3002301-6 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-303-2871
Related Products | NSN 3110-01-303-2871
Technical Data | NSN 3110-01-303-2871
| Characteristic | Specifications |
|---|---|

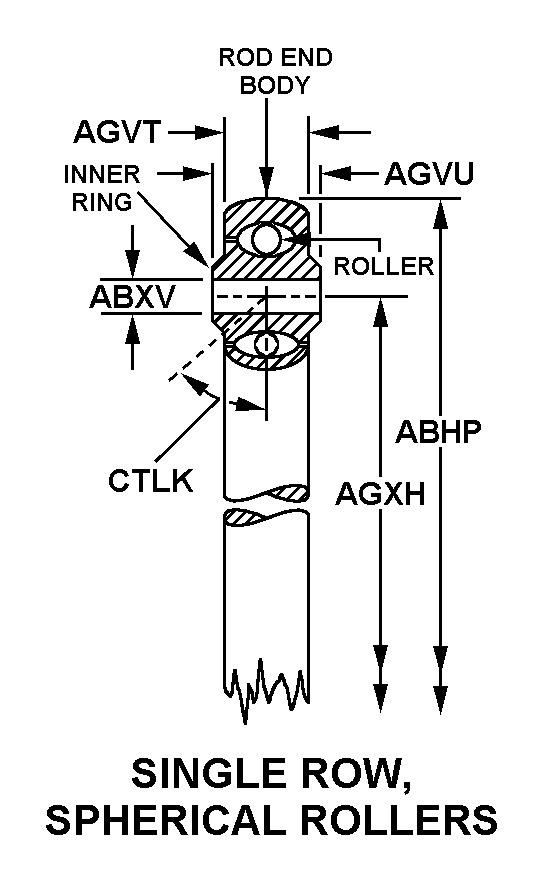

| STYLE DESIGNATOR | 472 SINGLE ROW, SPHERICAL ROLLERS |
| OVERALL LENGTH | 7.5000 INCHES NOMINAL |
| BORE DIAMETER | 0.1815 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.8615 INCHES NOMINAL |
| OUTER RING WIDTH | 0.2315 INCHES NOMINAL |
| INNER RING WIDTH | 0.2785 INCHES NOMINAL |
| LENGTH FROM BORE CENTER TO SHANK END | 6.7500 INCHES NOMINAL |
| SHANK STYLE | 661 SOLID |
| SHANK DIAMETER | 0.5020 INCHES NOMINAL |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SPECIAL FEATURES | ITEM HAS ONE ROLLER BEARING ON EACH END OF ROD |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 3002301-6 |
Restrictions/Controls & Freight Information | NSN 3110-01-303-2871
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3110-01-303-2871
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
