NSN 3110-01-340-3522 BACB10CH40, 01-340-3522, 013403522
Product Details | ANNULAR BALL BEARING
3110-01-340-3522 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: BACB10CH40, 3110-01-340-3522, 01-340-3522, 3110013403522, 013403522
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01-340-3522 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-01-340-3522
Demand History | NSN 3110-01-340-3522
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-340-3522 | 2022-04-112 | 7 | United States |
| 3110-01-340-3522 | 2020-01-22 | 1 | BG |
| BACB10CH40 | 2011-03-81 | 50 | RO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-340-3522
Technical Data | NSN 3110-01-340-3522
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL ROLLER STEEL COMP 4140 SLEEVE |

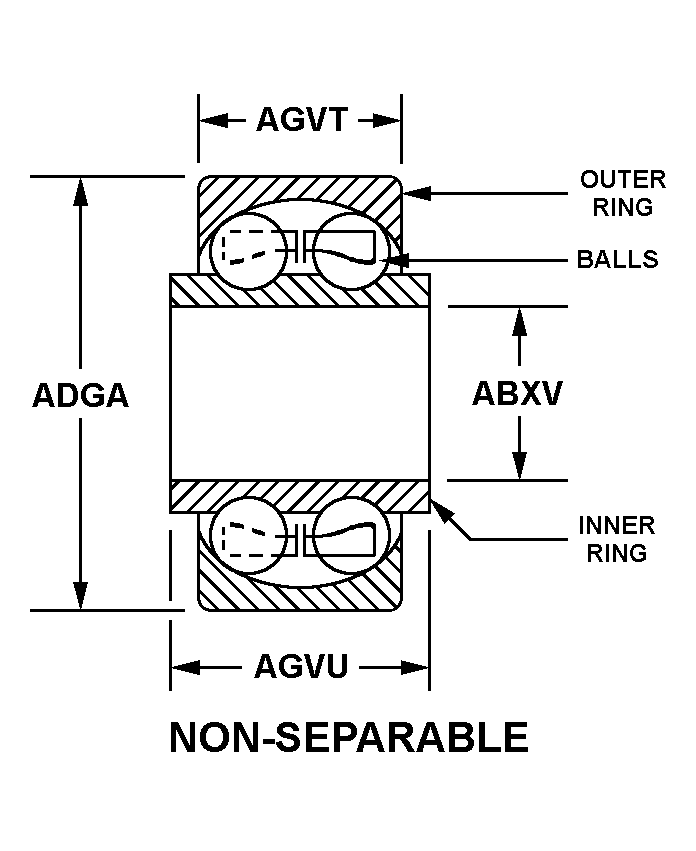

| STYLE DESIGNATOR | 78 NON-SEPARABLE |
| BORE DIAMETER | 0.2500 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.9010 INCHES NOMINAL |
| OUTER RING WIDTH | 0.4640 INCHES NOMINAL |
| INNER RING WIDTH | 0.6250 INCHES NOMINAL |
| ALIGNMENT TYPE | SELF-ALIGNING |
Restrictions/Controls & Freight Information | NSN 3110-01-340-3522
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
