NSN 3110-01-512-9556 144404, 20726GB017 FIND NO. 19, 20726GB017FINDNO19
Product Details | ANNULAR BALL BEARING
3110-01-512-9556 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: 144404, 20726GB017 FIND NO. 19, 20726GB017FINDNO19, 5205A2RS, 5205A-2RS, 3110-01-512-9556, 01-512-9556, 3110015129556, 015129556
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 15 SEP 2003 | 01-512-9556 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-01-512-9556
Demand History | NSN 3110-01-512-9556
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-512-9556 | 2018-09-269 | 24 | DIBBS |
| 3110-01-512-9556 | 2018-09-261 | 24 | DIBBS |
| 3110-01-512-9556 | 2017-01-04 | 9 | DIBBS |
| 3110-01-512-9556 | 2016-11-329 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-512-9556
Technical Data | NSN 3110-01-512-9556
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

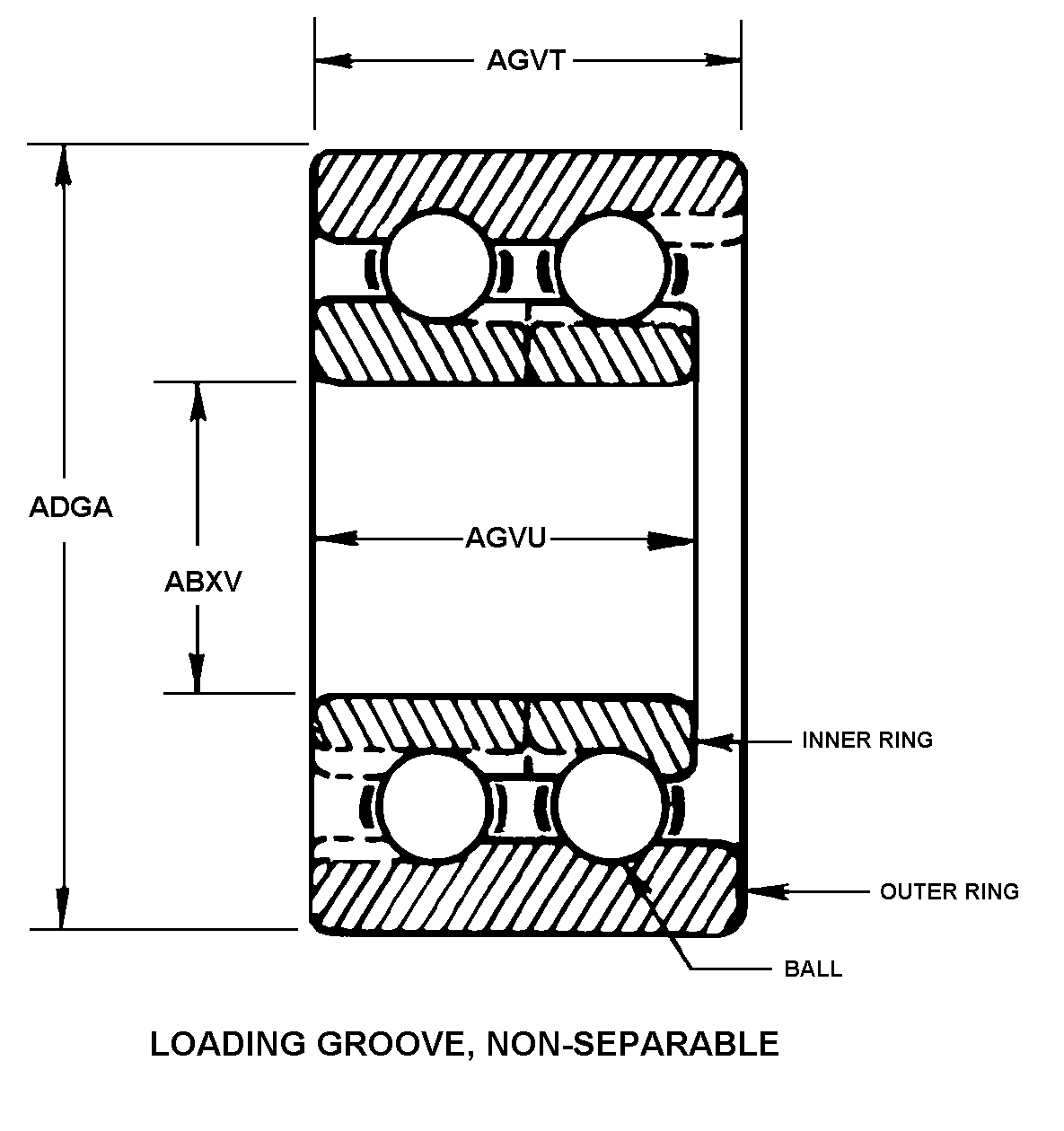

| STYLE DESIGNATOR | 32B LOADING GROOVE, NON-SEPARABLE |
| BORE DIAMETER | 0.9843 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.0472 INCHES NOMINAL |
| OUTER RING WIDTH | 0.8125 INCHES NOMINAL |
| INNER RING WIDTH | 0.8125 INCHES NOMINAL |
| INTERNAL FIT-UP CONTACT ANGULAR DIRECTION | PRIMARILY RADIAL |
| LUBRICATION MATERIAL | OIL OR GREASE |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | LIPS TURNED INWARDLY |
| LOAD DIRECTION | ANGULAR |
| SPECIAL FEATURES | ANGULAR CONTACT BALL BEARINGS,DOUBLE ROW WITH 2 SEALS.MAY BE USED WITH GREASE OR OIL,SPEED RATING R/MIN GREASE-8000,OIL-11000. |
| III END ITEM IDENTIFICATION | XMTR,RUDDER ASSY |
Restrictions/Controls & Freight Information | NSN 3110-01-512-9556
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-512-9556
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
