NSN 3120-00-079-9696 LS3859R48, LS3859R4-8, 00-079-9696
Product Details | SLEEVE BEARING
3120-00-079-9696 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: LS3859R48, LS3859R4-8, 3120-00-079-9696, 00-079-9696, 3120000799696, 000799696
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-079-9696 | 13205 ( BEARING, SLEEVE ) |

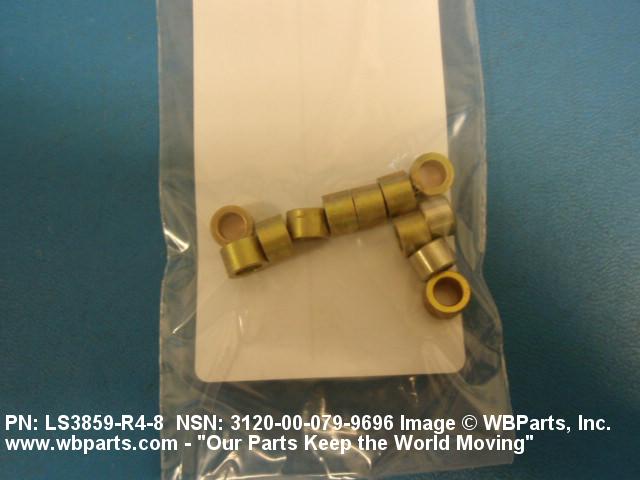

Drawings & Photos | NSN 3120-00-079-9696
Demand History | NSN 3120-00-079-9696
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LS3859R48 | 2025-11-308 | 10 | us |
| 3120-00-079-9696 | 2024-04-107 | 4 | United States |
| LS3859R48 | 2009-11-309 | 12 | United States |
Cross Reference | NSN 3120-00-079-9696
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS3859R4-8 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-079-9696
Technical Data | NSN 3120-00-079-9696
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM LEFT END SURFACE OF BODY CADMIUM OUTSIDE DIAMETER SURFACE OF BODY CADMIUM RIGHT END SURFACE OF BODY |
| STYLE DESIGNATOR | 17C SOLID |
| OVERALL LENGTH | 0.2500 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.3761 INCHES MINIMUM AND 0.3766 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.2350 INCHES MINIMUM AND 0.2430 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| SURFACE FINISH | 125.0 MICROINCHES OVERALL |
Restrictions/Controls & Freight Information | NSN 3120-00-079-9696
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
