NSN 3120-00-163-9392 3021T00P01, 00-163-9392, 001639392

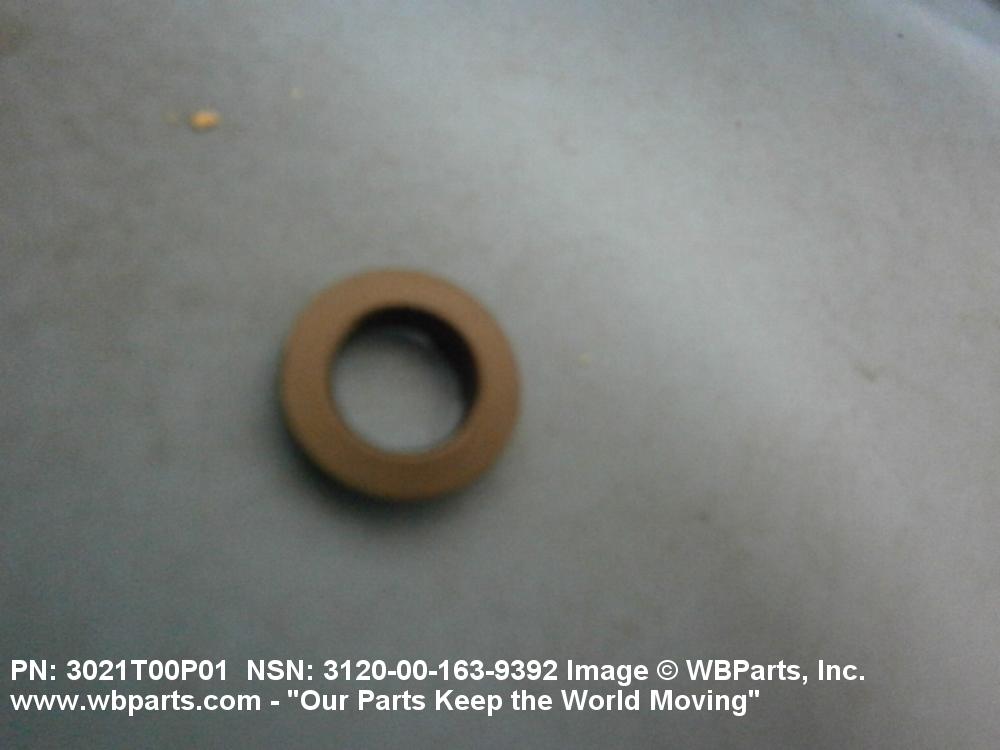

Product Details | SLEEVE BEARING
3120-00-163-9392 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 3021T00P01, 3120-00-163-9392, 00-163-9392, 3120001639392, 001639392
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 07 FEB 1973 | 00-163-9392 | 13205 ( BEARING, SLEEVE ) |
Drawings & Photos | NSN 3120-00-163-9392
Demand History | NSN 3120-00-163-9392
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3021T00P01 | 2020-02-35 | 689 | DIBBS |
| 3021T00P01 | 2020-01-09 | 937 | DIBBS |
| 3021T00P01 | 2019-07-212 | 596 | DIBBS |
| 3021T00P01 | 2019-06-169 | 596 | DIBBS |
| 3120-00-163-9392 | 2018-05-140 | 527 | DIBBS |
| 3120-00-163-9392 | 2012-09-261 | 2975 | DIBBS |
| 3120-00-163-9392 | 2012-08-234 | 2975 | DIBBS |
| 3120-00-163-9392 | 2011-11-327 | 3801 | DIBBS |
| 3120-00-163-9392 | 2011-10-279 | 194 | United States |
| 3120-00-163-9392 | 2011-08-224 | 480 | DIBBS |
| 3120-00-163-9392 | 2011-06-155 | 4534 | DIBBS |
| 3120-00-163-9392 | 2011-03-73 | 4908 | DIBBS |
| 3120-00-163-9392 | 2010-04-102 | 5456 | DIBBS |
Cross Reference | NSN 3120-00-163-9392
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3021T00P01 | 99207 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-163-9392
Related Products | NSN 3120-00-163-9392
Technical Data | NSN 3120-00-163-9392
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE AND GRAPHITE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 0.1270 INCHES MINIMUM AND 0.1370 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.4400 INCHES MINIMUM AND 0.4520 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.3980 INCHES MINIMUM AND 0.4020 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 0.6700 INCHES MINIMUM AND 0.6800 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0230 INCHES MINIMUM AND 0.0250 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER ROUND INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER ROUND LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 125.0 MICROINCHES OVERALL |
| (NON-CORE DATA) RADIUS | 0.0200 INCHES MINIMUM AND 0.0360 INCHES MAXIMUM 0.0050 INCHES MINIMUM AND 0.0100 INCHES MAXIMUM |
| MANUFACTURERS CODE | 99207 |
| DESIGN CONTROL REFERENCE | 3021T00P01 |
Restrictions/Controls & Freight Information | NSN 3120-00-163-9392
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
