NSN 3120-00-187-8893 2522112, 00-187-8893, 001878893
Product Details | SLEEVE BEARING
3120-00-187-8893 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 2522112, 3120-00-187-8893, 00-187-8893, 3120001878893, 001878893
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 16 MAR 1973 | 00-187-8893 | 13205 ( BEARING, SLEEVE ) |

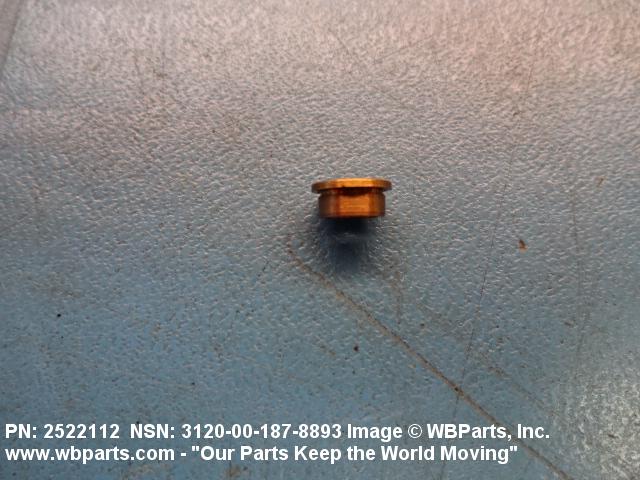

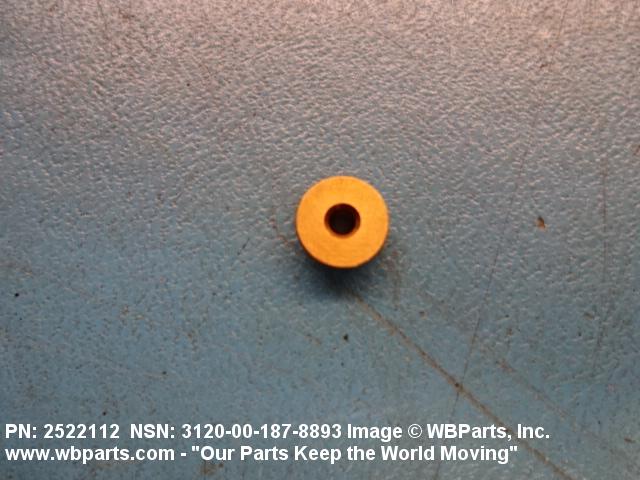

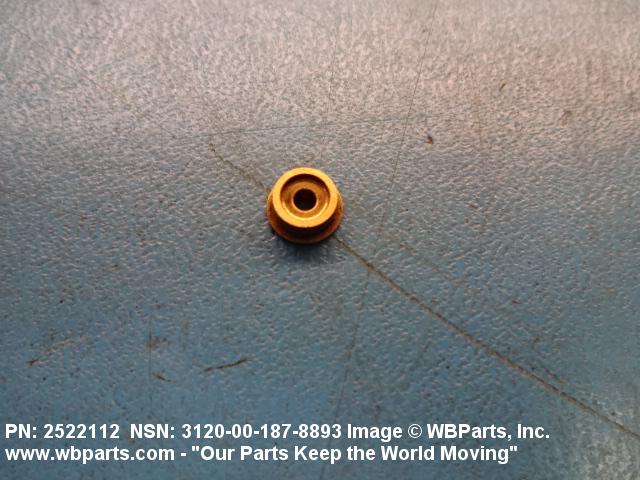

Drawings & Photos | NSN 3120-00-187-8893
Demand History | NSN 3120-00-187-8893
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2522112 | 2025-05-147 | 35 | DIBBS |
| 2522112 | 2025-05-138 | 35 | DIBBS |
| 2522112 | 2025-01-28 | 150 | DIBBS |
| 2522112 | 2025-01-20 | 150 | DIBBS |
| 2522112 | 2024-11-312 | 111 | DIBBS |
| 2522112 | 2024-10-305 | 111 | DIBBS |
| 2522112 | 2024-07-208 | 11 | DIBBS |
| 2522112 | 2024-07-200 | 11 | DIBBS |
| 2522112 | 2024-03-77 | 8 | DIBBS |
| 2522112 | 2023-12-339 | 25 | DIBBS |
| 2522112 | 2019-08-233 | 73 | DIBBS |
| 3120-00-187-8893 | 2019-08-226 | 42 | United States |
| 2522112 | 2019-08-225 | 73 | DIBBS |
| 2522112 | 2019-06-158 | 42 | DIBBS |
| 2522112 | 2019-05-135 | 42 | DIBBS |
| 2522112 | 2019-02-44 | 11 | DIBBS |
| 2522112 | 2019-02-36 | 11 | DIBBS |
| 3120-00-187-8893 | 2018-11-310 | 34 | DIBBS |
| 3120-00-187-8893 | 2018-10-302 | 34 | DIBBS |
| 3120-00-187-8893 | 2014-04-104 | 9 | DIBBS |
| 3120-00-187-8893 | 2014-04-93 | 9 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-187-8893
Related Products | NSN 3120-00-187-8893
Technical Data | NSN 3120-00-187-8893
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OR IRON COMP A1 OR IRON COMP A2 OR IRON COMP A3 OR IRON COMP B OVERALL |
| STYLE DESIGNATOR | 22C SOLID |

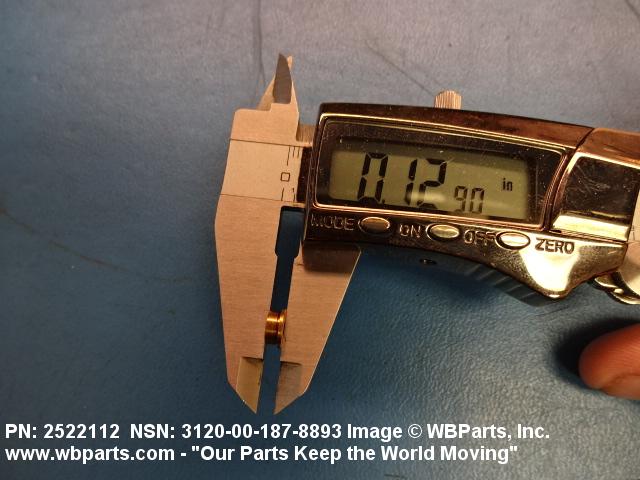

| OVERALL LENGTH | 0.1300 INCHES NOMINAL |

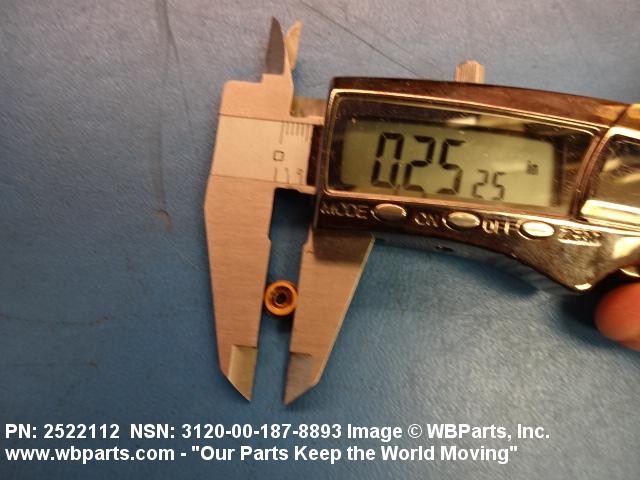

| BODY OUTSIDE DIAMETER | 0.2500 INCHES NOMINAL |

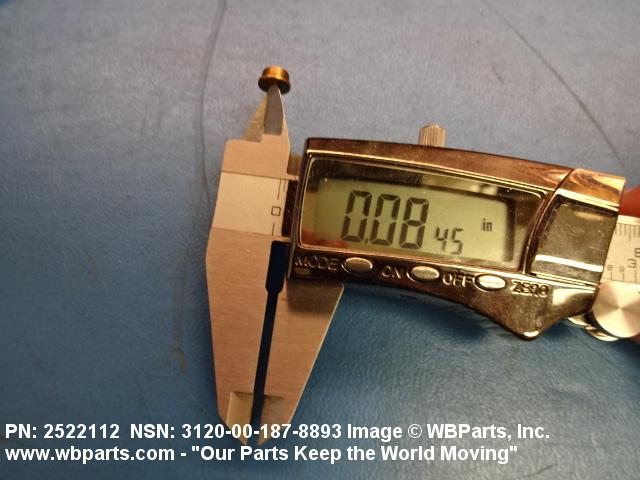

| BODY INSIDE DIAMETER | 0.0800 INCHES NOMINAL |

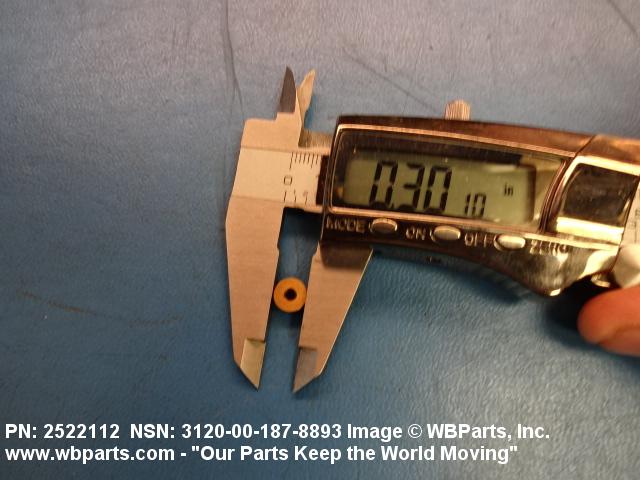

| FLANGE OUTSIDE DIAMETER | 0.3000 INCHES NOMINAL |
| FLANGE WIDTH | 0.0300 INCHES NOMINAL |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER SQUARE LEFT FLANGE BODY CORNER |
| SPECIAL FEATURES | FLANGE END COUNTERSUNK 0.1200 IN BY 90 DEGREES |
Restrictions/Controls & Freight Information | NSN 3120-00-187-8893
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-187-8893
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | MU | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS BASE PT6T400–CP-400 |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
