NSN 3120-00-361-6353 EL149, EM203, 699597
Product Details | SLEEVE BEARING
3120-00-361-6353 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: EL149, EM203, 699597, 1266338, 3120-00-361-6353, 00-361-6353, 3120003616353, 003616353
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-361-6353 | 13205 ( BEARING, SLEEVE ) |
Drawings & Photos | NSN 3120-00-361-6353
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-361-6353
Technical Data | NSN 3120-00-361-6353
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 2.2450 INCHES MINIMUM AND 2.2550 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 1.4380 INCHES MINIMUM AND 1.4395 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 1.1265 INCHES MINIMUM AND 1.1280 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 1.4950 INCHES MINIMUM AND 1.5050 INCHES MAXIMUM |
| FLANGE WIDTH | 0.1562 INCHES NOMINAL |
| ANTIROTATION/LUBRICATION TYPE AND QUANTITY | 1 SLOT AND 4 HOLE |
| HOLE DIAMETER | 0.1562 INCHES NOMINAL FIRST |
| SLOT WIDTH | 0.2500 INCHES NOMINAL FIRST |

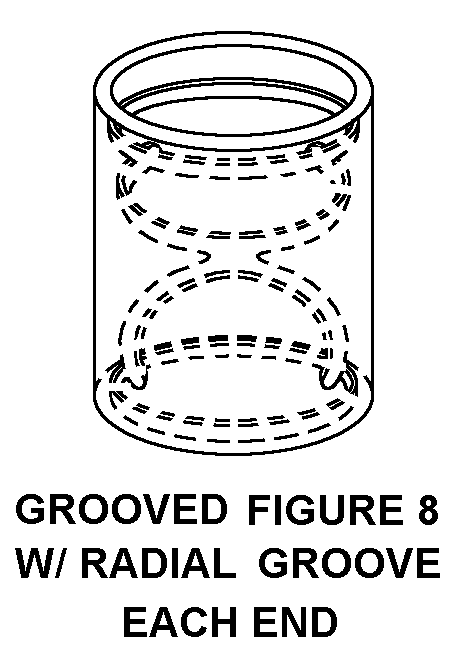

| LUBRICANT ACCOMMODATION STYLE | 74 GROOVED FIGURE 8 W/RADIAL GROOVE EACH END |
Restrictions/Controls & Freight Information | NSN 3120-00-361-6353
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-361-6353
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
