NSN 3120-00-390-3791 C3107746 REV C, C3107746REVC, D3175145 REV D
Product Details | SLEEVE BEARING
3120-00-390-3791 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: C3107746 REV C, C3107746REVC, D3175145 REV D, D3175145REVD, 127D827001, 127D827-001, 127D827PC1, 3120-00-390-3791, 00-390-3791, 3120003903791, 003903791
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-390-3791 | 13205 ( BEARING, SLEEVE ) |

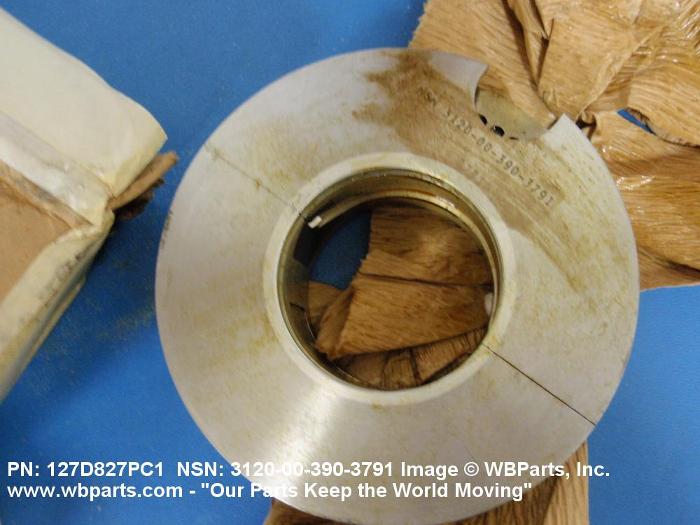

Drawings & Photos | NSN 3120-00-390-3791
Demand History | NSN 3120-00-390-3791
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-390-3791 | 2011-05-144 | 1 | United States |
| 3120-00-390-3791 | 2011-05-131 | 1 | United States |
| 127D827-001 | 2011-02-57 | 2 | |
| 3120-00-390-3791 | 2011-02-56 | 2 | NECO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-390-3791
Technical Data | NSN 3120-00-390-3791
| Characteristic | Specifications |
|---|---|
| MATERIAL | TIN ALLOY INNER LAYER STEEL OUTER LAYER |
| STYLE DESIGNATOR | 18B SEGMENTED |
| OVERALL LENGTH | 2.0000 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 4.9990 INCHES MINIMUM AND 5.0000 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 2.5050 INCHES MINIMUM AND 2.5060 INCHES MAXIMUM |
| LEFT FLANGE OUTSIDE DIAMETER | 5.3750 INCHES NOMINAL |
| RIGHT FLANGE OUTSIDE DIAMETER | 5.3750 INCHES NOMINAL |
| LEFT FLANGE WIDTH | 0.1718 INCHES NOMINAL |
| RIGHT FLANGE WIDTH | 0.1718 INCHES NOMINAL |
| CORNER SHAPE | SQUARE ALL CORNERS |
| ANTIROTATION/LUBRICATION TYPE AND QUANTITY | 4 HOLE |
| HOLE DIAMETER | 0.1870 INCHES NOMINAL FIRST |
| LUBRICANT ACCOMMODATION STYLE | 69 GROOVED CIRCULAR |
| SURFACE GROOVE LOCATION AND QUANTITY | 1 EXTERNAL |
| MANUFACTURERS CODE | 24446 |
| DESIGN CONTROL REFERENCE | 127D827PC1 |
Restrictions/Controls & Freight Information | NSN 3120-00-390-3791
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-390-3791
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
