NSN 3120-00-447-9681 25863331, 2586333-1 , 8039669
Product Details | SLEEVE BEARING
3120-00-447-9681 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 25863331, 2586333-1 , 8039669, 8075272PC8039669, 81129S41575272PC8039669, 81129S41-575272PC8039669, 81129S41575272PH75ELM10999, 81129S41-575272PH75ELM10999, 3120-00-447-9681, 00-447-9681, 3120004479681, 004479681
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-447-9681 | 13205 ( BEARING, SLEEVE ) |

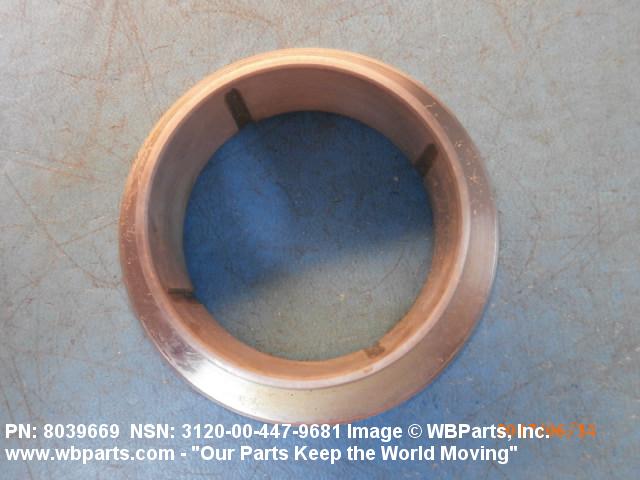

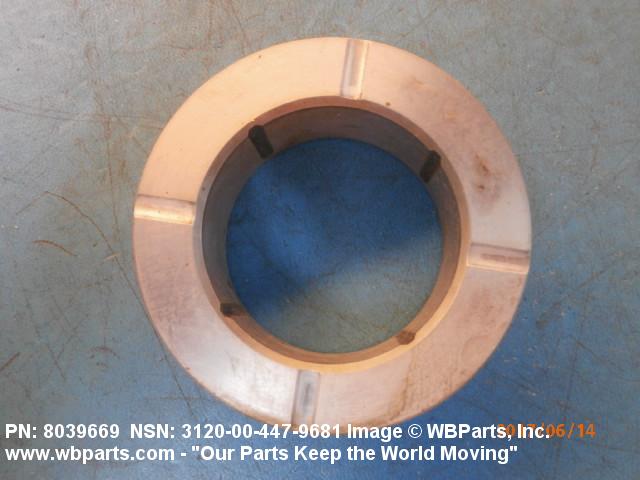

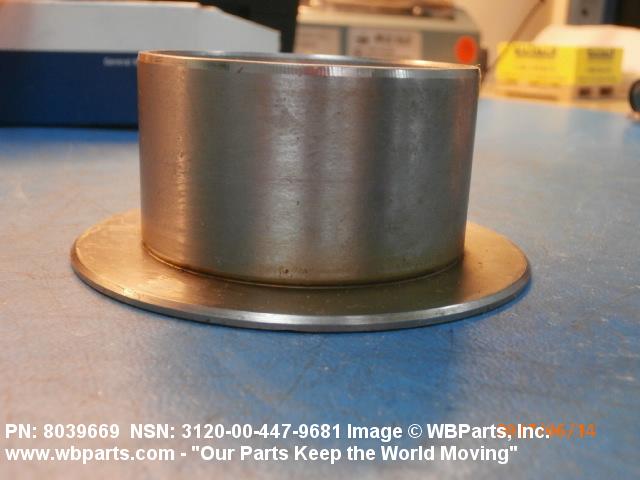

Drawings & Photos | NSN 3120-00-447-9681
Demand History | NSN 3120-00-447-9681
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 25863331 | 2025-08-216 | 3 | US |
| 3120-00-447-9681 | 2018-06-156 | 1 | US |
| 3120-00-447-9681 | 2017-05-142 | 1 | United States |
| 3120-00-447-9681 | 2017-05-142 | 1 | United States |
| 25863331 | 2015-10-279 | 4 | United States |
| 25863331 | 2014-12-338 | 1 | Malaysia |
| 25863331 | 2013-11-309 | 10 | GE |
| 25863331 | 2013-10-301 | 1 | TR |
| 25863331 | 2013-07-212 | 10 | US |
| 2586333-1 | 2013-05-133 | 1 | United States |
| 2586333-1 | 2013-05-133 | 1 | United States |
| 3120-00-447-9681 | 2011-08-223 | 100 | US |
| 25863331 | 2011-07-184 | 1 | Malaysia |
| 3120-00-447-9681 | 2008-10-288 | 5 | US |
| 3120-00-447-9681 | 2008-10-288 | 10 | US |
Cross Reference | NSN 3120-00-447-9681
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8039669 | 24617 | GENERAL MOTORS CORP |
| 8039669 | 55380 | HATCH & KIRK, INC. DIV HATCH & KIRK INC |
| 8039669 | 72915 | GENERAL MOTORS CORP ELECTRO-MOTIVE DIV |
| 8075272PC8039669 | 24617 | GENERAL MOTORS CORP |
| 8075272PC8039669 | 72915 | GENERAL MOTORS CORP ELECTRO-MOTIVE DIV |
| 81129S41-575272PC8039669 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 81129S41-575272PH75ELM10999 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-447-9681
Related Products | NSN 3120-00-447-9681
Technical Data | NSN 3120-00-447-9681
| Characteristic | Specifications |
|---|---|
| MATERIAL | LEAD ALLOY INNER LAYER STEEL COMP 1010 OUTER LAYER |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 1.5312 INCHES NOMINAL |

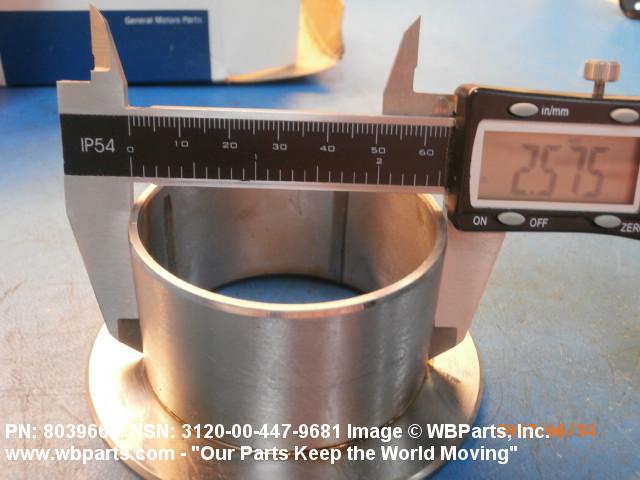

| BODY OUTSIDE DIAMETER | 2.5760 INCHES NOMINAL |

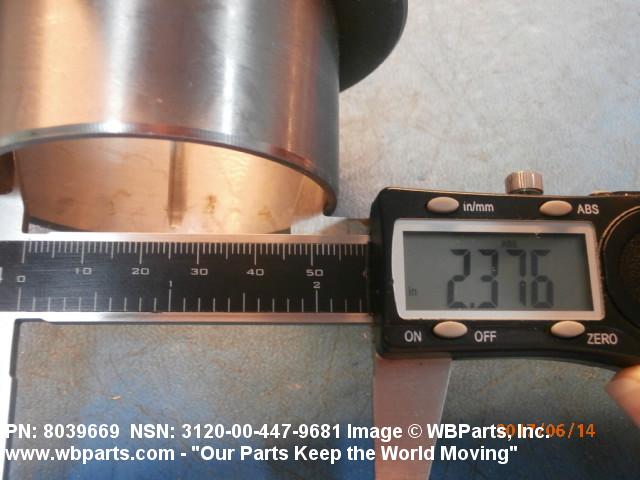

| BODY INSIDE DIAMETER | 2.3771 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 3.6150 INCHES MINIMUM AND 3.6200 INCHES MAXIMUM |

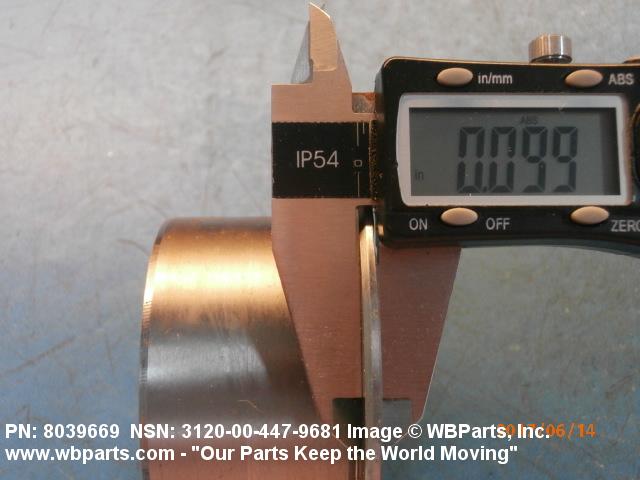

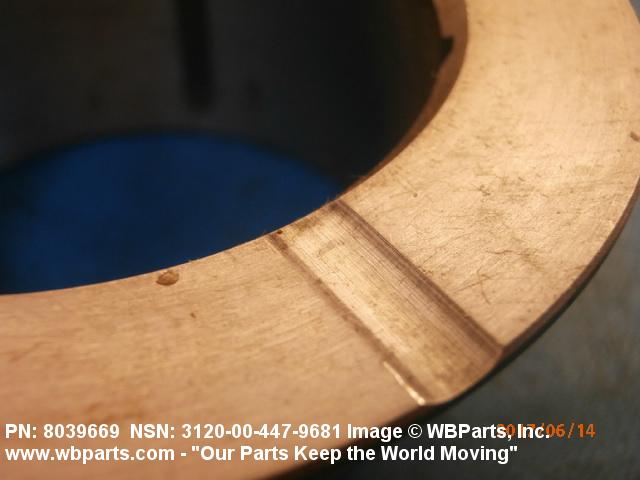

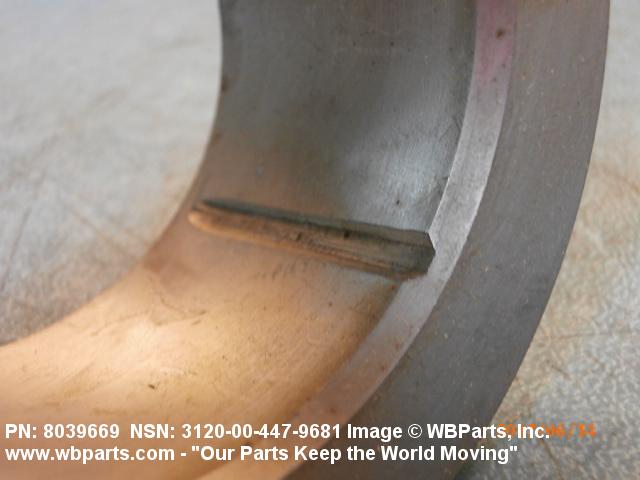

| FLANGE WIDTH | 0.0980 INCHES MINIMUM AND 0.0990 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER SQUARE LEFT FLANGE BODY CORNER |
| ANTIROTATION/LUBRICATION TYPE AND QUANTITY | 4 SLOT |
| SLOT WIDTH | 0.2812 INCHES NOMINAL FIRST |
| SLOT LENGTH | 0.6202 INCHES NOMINAL FIRST |
| LUBRICANT ACCOMMODATION STYLE | 76 GROOVED OPEN ONE END |
| SURFACE GROOVE LOCATION AND QUANTITY | 4 INTERNAL |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0781 INCHES NOMINAL |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 72915 |
| DESIGN CONTROL REFERENCE | 8075272PC8039669 |
