NSN 3120-00-537-2075 50B25222, 00-537-2075, 005372075
Product Details | SLEEVE BEARING
3120-00-537-2075 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 50B25222, 3120-00-537-2075, 00-537-2075, 3120005372075, 005372075
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1961 | 00-537-2075 | 13205 ( BEARING, SLEEVE ) |

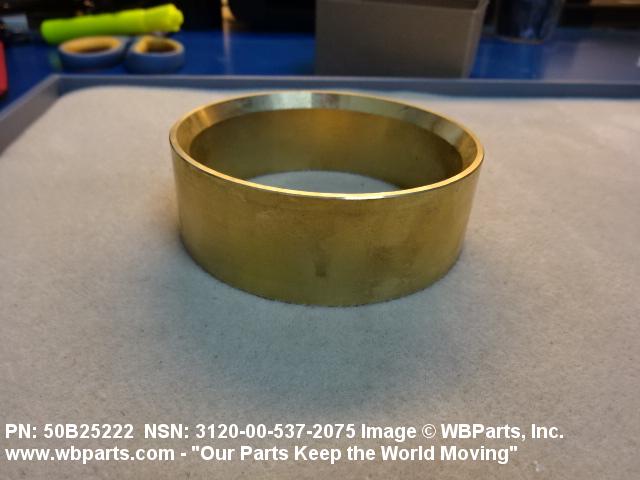

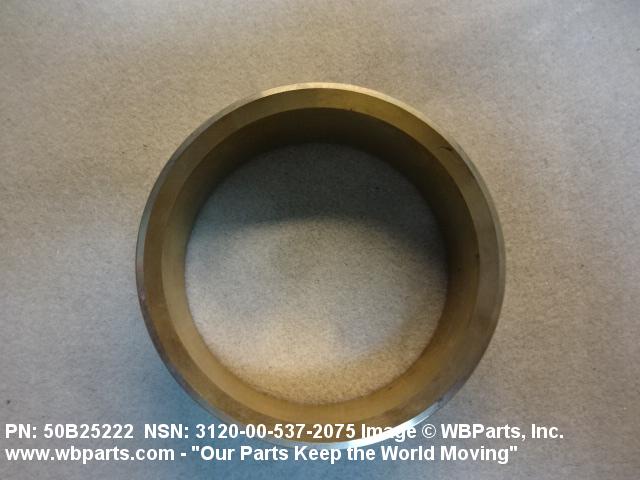

Drawings & Photos | NSN 3120-00-537-2075
Demand History | NSN 3120-00-537-2075
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-537-2075 | 2025-06-174 | 31 | DIBBS |
| 3120-00-537-2075 | 2025-06-166 | 31 | DIBBS |
| 50B25222 | 2025-02-56 | 1 | United States |
| 50B25222 | 2025-02-45 | 1 | United States |
| 3120-00-537-2075 | 2024-09-268 | 12 | DIBBS |
| 3120-00-537-2075 | 2024-09-260 | 12 | DIBBS |
| 3120-00-537-2075 | 2022-12-336 | 1 | Taiwan |
| 50B25222 | 2022-11-326 | 6 | Thailand |
| 3120-00-537-2075 | 2021-03-73 | 85 | DIBBS |
| 50B25222 | 2017-09-263 | 1 | United States |
| 50B25222 | 2017-09-248 | 1 | United States |
| 3120-00-537-2075 | 2016-01-08 | 168 | DIBBS |
| 3120-00-537-2075 | 2015-12-335 | 131 | DIBBS |
| 3120-00-537-2075 | 2015-11-327 | 131 | DIBBS |
| 3120-00-537-2075 | 2010-05-124 | 107 | DIBBS |
| 3120-00-537-2075 | 2008-02-59 | 181 | DIBBS |
| 3120-00-537-2075 | 2007-07-188 | 110 | DIBBS |
| 3120-00-537-2075 | 2007-04-107 | 92 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-537-2075
Related Products | NSN 3120-00-537-2075
Technical Data | NSN 3120-00-537-2075
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| STYLE DESIGNATOR | 17C SOLID |

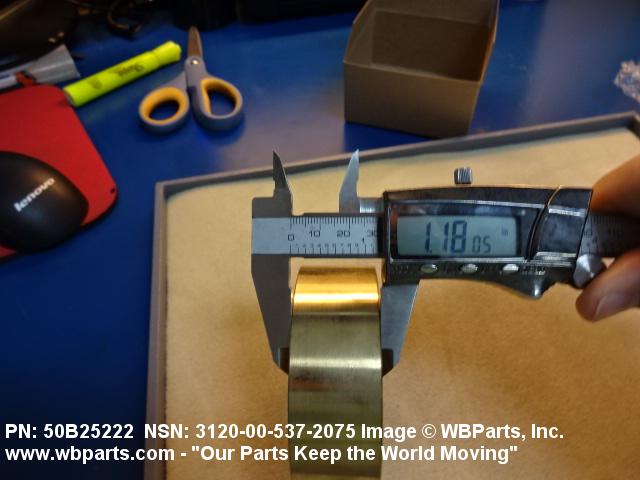

| OVERALL LENGTH | 1.1870 INCHES NOMINAL |

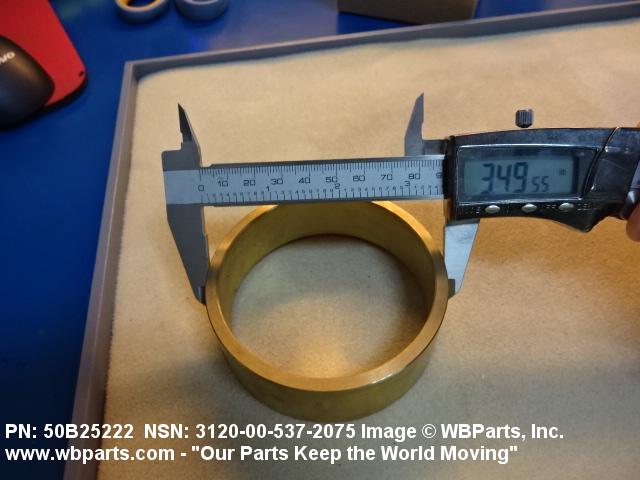

| BODY OUTSIDE DIAMETER | 3.4940 INCHES MINIMUM AND 3.4970 INCHES MAXIMUM |

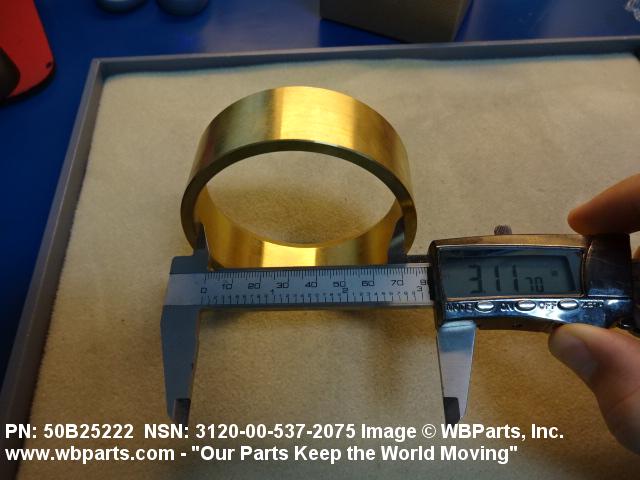

| BODY INSIDE DIAMETER | 3.1160 INCHES MINIMUM AND 3.1190 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER |
| (NON-CORE DATA) CHAMFER LENGTH | 0.1140 INCHES NOMINAL |
| (NON-CORE DATA) CHAMFER ANGLE | 30.0 DEGREES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3120-00-537-2075
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114870 | BEARING/BUSHING METAL |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-537-2075
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | QS | TG:AIRCRAFT GROUND SERVICES EQUIPMENT |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
