NSN 3120-00-603-2285 MS2124006C008, MS21240-06C008, M81934/1-06C008

Product Details | SLEEVE BEARING

3120-00-603-2285 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.

Part Alternates: MS2124006C008, MS21240-06C008, M81934/1-06C008, M81934106C008, NAS75, AD06C008, AHJ06C008, AS81934, ATT06SS008, ST4M12806C008, ST4M128-06C008, PBRR06V008, PBRR-06V008, MILB81934, MIL-B-81934, FBJW12TH06C008, FBJW12TH-06C008, KDJ06C008240, KDJ06C008-240, KDJ06C008341, KDJ06C008-341, KRJ6SB06C008M, KRJ6SB-06C008M, LD13100220608, LD131-0022-0608, 0628206C008, 06-282-06C008, 1172106008, 117-2106-008, 1222006C008, 122-2006C008, 9108606C008, 91086-06C008, 3120-00-603-2285, 00-603-2285, 3120006032285, 006032285

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	22 JAN 1975	00-603-2285	13205 ( BEARING, SLEEVE )

Drawings & Photos | NSN 3120-00-603-2285

Part Number	Request Date	QTY	Origin
3120-00-603-2285	2025-11-331	81	DIBBS
M81934106C008	2023-10-284	5	United States
3120-00-603-2285	2022-02-54	56	DIBBS
3120-00-603-2285	2021-05-137	5	US
3120-00-603-2285	2019-06-169	157	DIBBS
3120-00-603-2285	2017-02-32	160	United States
3120-00-603-2285	2017-02-32	450	United States
3120-00-603-2285	2016-09-252	80	DIBBS
M81934106C008	2013-10-280	58	United States
AS81934	2013-01-25	10	United States
M81934106C008	2008-02-50	10	United States
AS81934	2008-02-46	10	US
MILB81934	2007-07-199	50	US
M81934106C008	2006-11-321	388	US

Cross Reference | NSN 3120-00-603-2285

Part Number	Cage Code	Manufacturer
06-282-06C008	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
117-2106-008	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
122-2006C008	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
91086-06C008	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
AD06C008	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
AHJ06C008	50294	NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB
AS81934	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
ATT06SS008	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
FBJW12TH-06C008	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
FBJW12TH06C008	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KDJ06C008-240	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
KDJ06C008-341	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
KRJ6SB-06C008M	50632	KAMATICS CORPORATION
LD131-0022-0608	43999	BOEING COMPANY, THE DBA BOEING
M81934/1-06C008	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M81934/1-06C008	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-B-81934	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS21240-06C008	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS75	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
PBRR-06V008	73134	ROLLER BEARING COMPANY OF AMERICA, INC.
ST4M128-06C008	76301	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-00-603-2285

Compare

Related Products | NSN 3120-00-603-2285

3120-00-603-2288, 3120-00-603-2376, 3120-00-603-2691, 3120-00-603-2858, 3120-00-603-3133

Technical Data | NSN 3120-00-603-2285

Characteristic	Specifications
MATERIAL	PLASTIC POLYTETRAFLUOROETHYLENE INNER LAYER STEEL COMP 630 OUTER LAYER
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OUTER LAYER
STYLE DESIGNATOR	17C SOLID

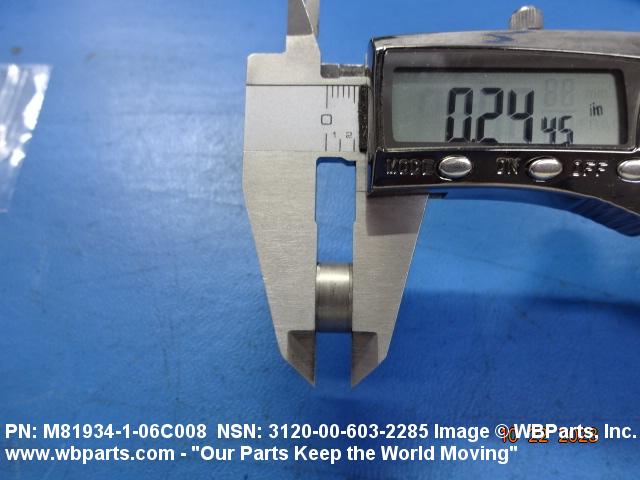

OVERALL LENGTH	0.2400 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM

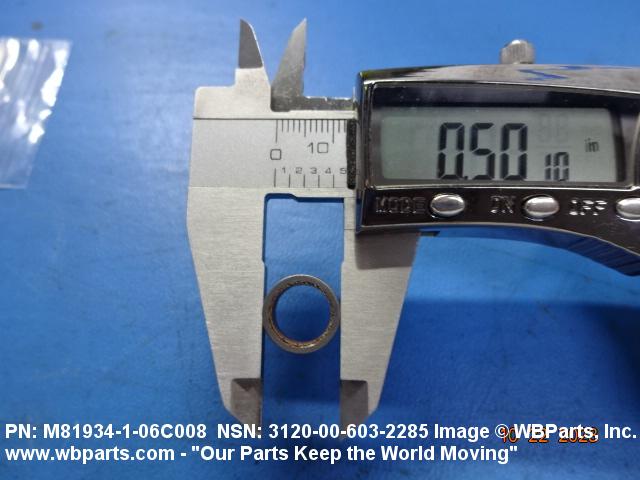

BODY OUTSIDE DIAMETER	0.5007 INCHES MINIMUM AND 0.5012 INCHES MAXIMUM

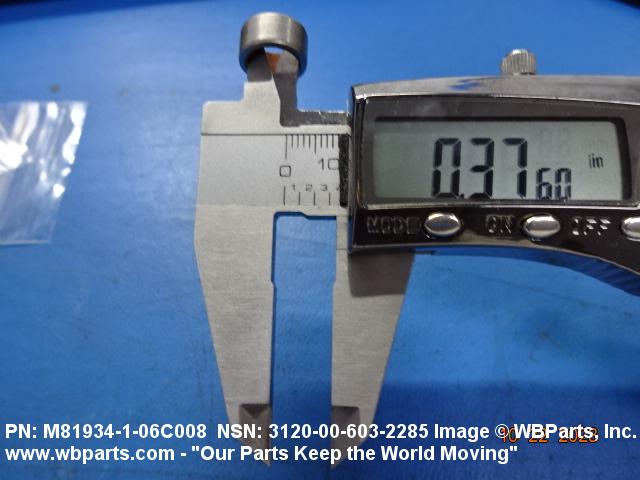

BODY INSIDE DIAMETER	0.3755 INCHES MINIMUM AND 0.3765 INCHES MAXIMUM
CORNER SHAPE	SQUARE ALL CORNERS

Restrictions/Controls & Freight Information | NSN 3120-00-603-2285

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114850	BEARING/BUSHING O/T BALL/ROLLER I/S
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-00-603-2285

Category	Code	Description
Materiel Category and Inventory Manager	E	General Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
