NSN 3120-00-620-4961 MS17795, MS1779560, MS17795-60
Product Details | SLEEVE BEARING
3120-00-620-4961 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: MS17795, MS1779560, MS17795-60, NAS75, ANSIP408037, B6108, B610-8, EP061016, P-3/8X58X1/2, P38X58X12, P-40-8, P40-8, PB122016, PB1220-16, PWA5528583, PWA55285-83, P408, 3C3685P25, 3120-00-620-4961, 00-620-4961, 3120006204961, 006204961
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 22 FEB 1975 | 00-620-4961 | 13205 ( BEARING, SLEEVE ) |

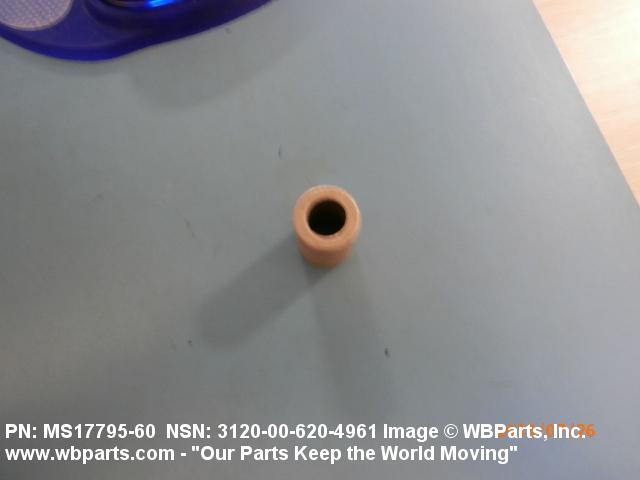

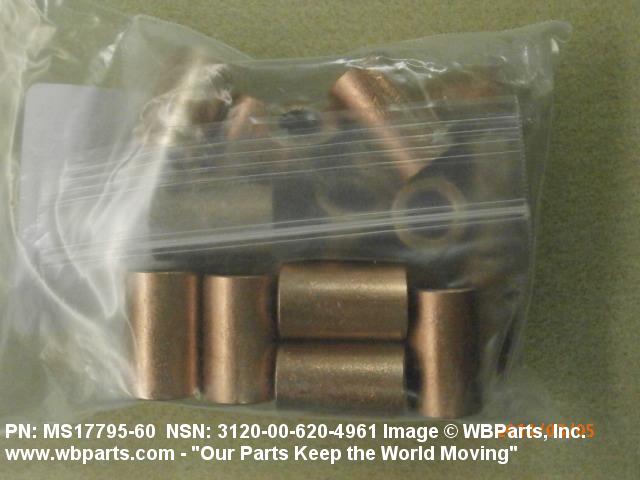

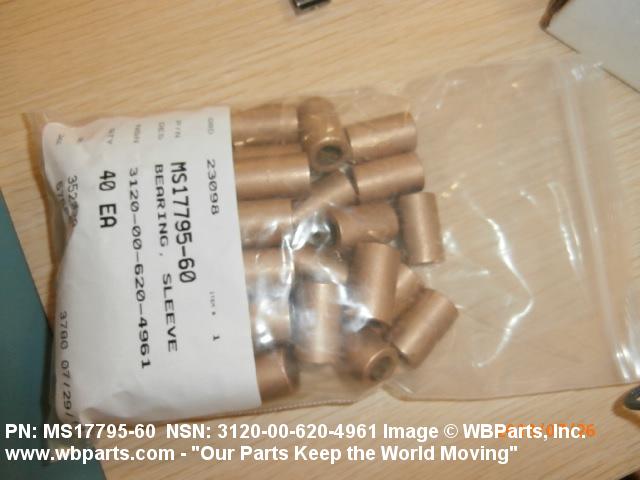

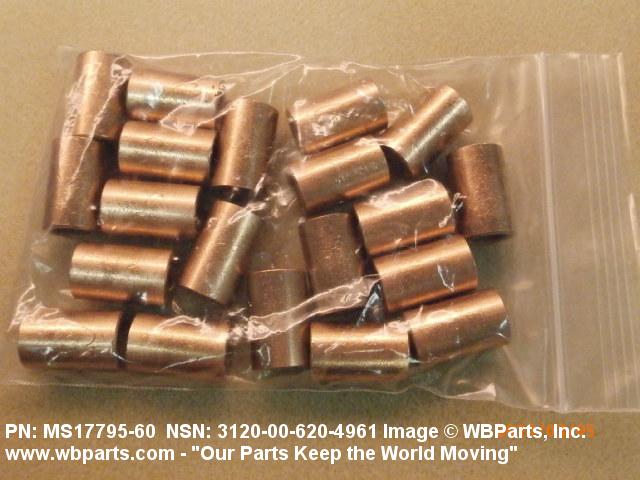

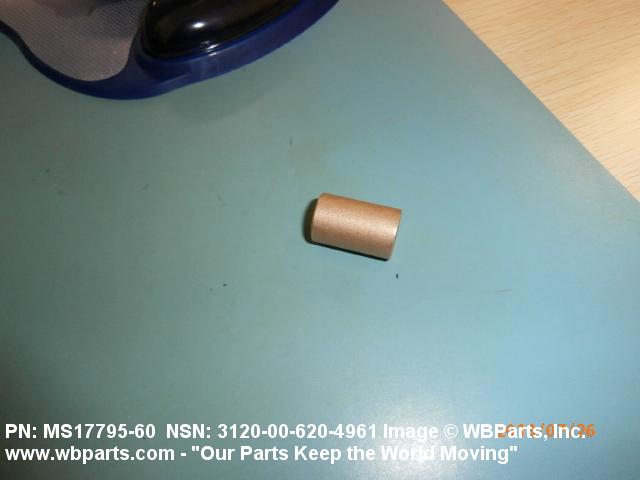

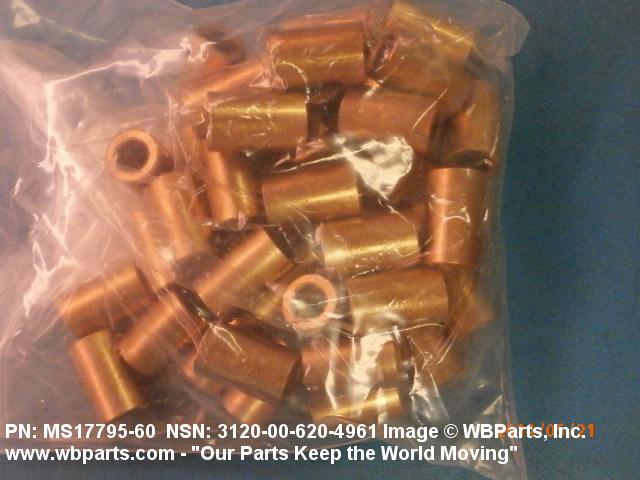

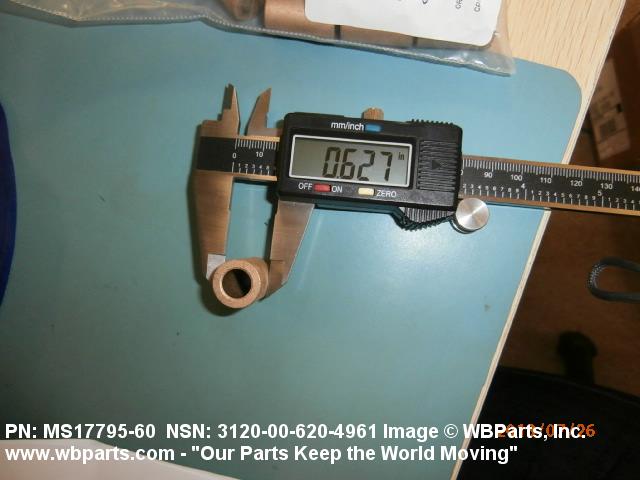

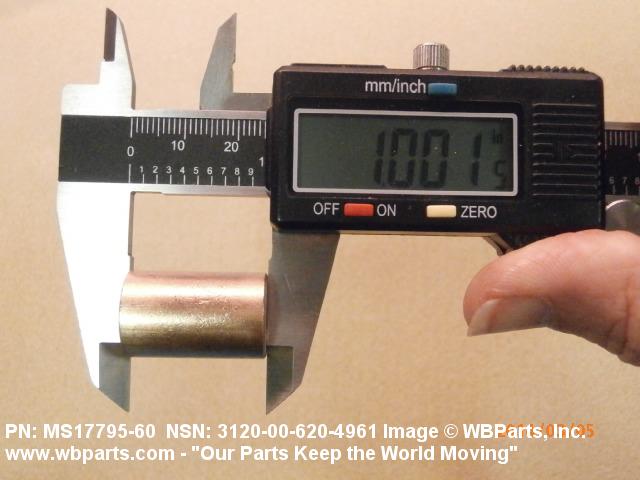

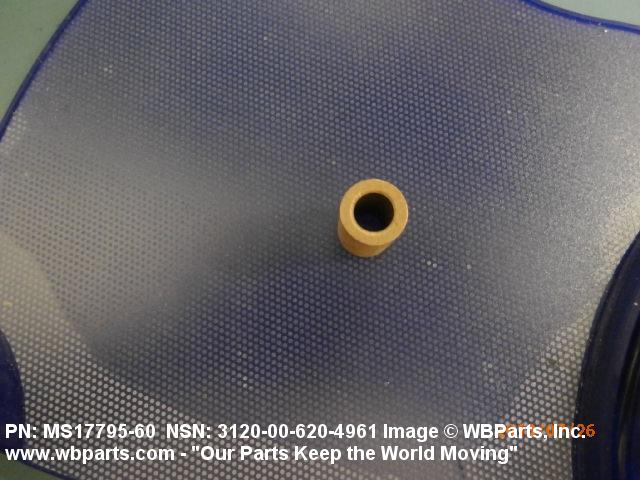

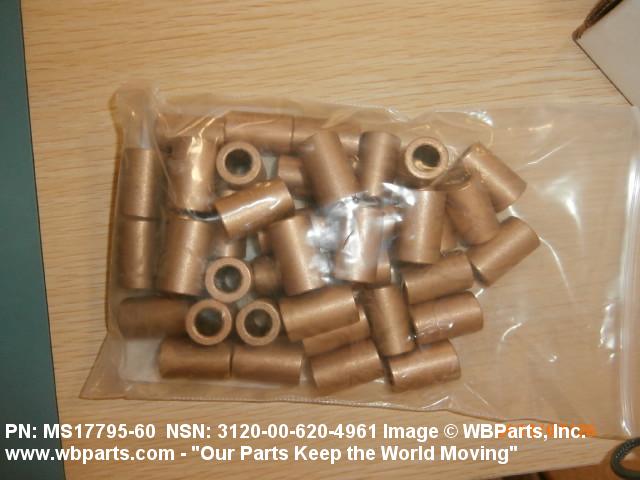

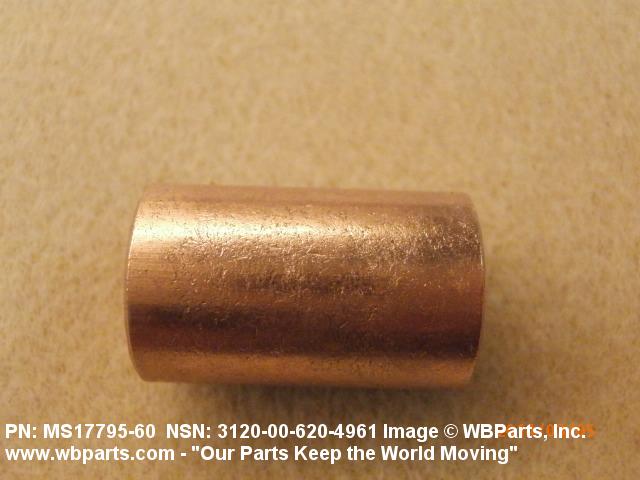

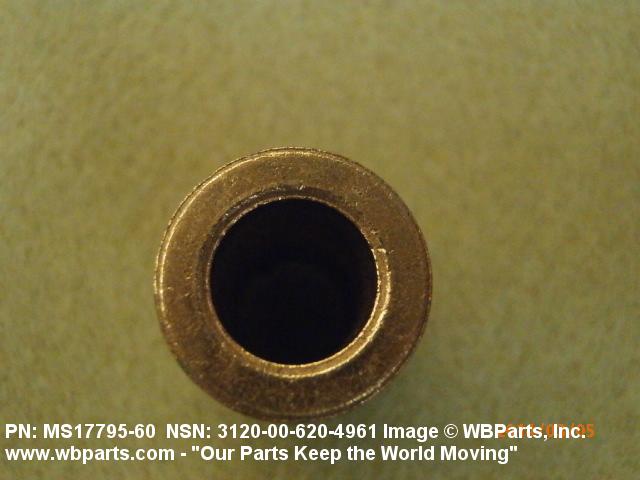

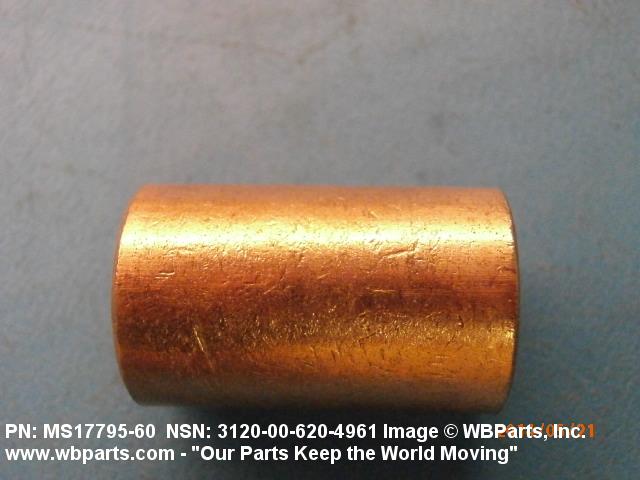

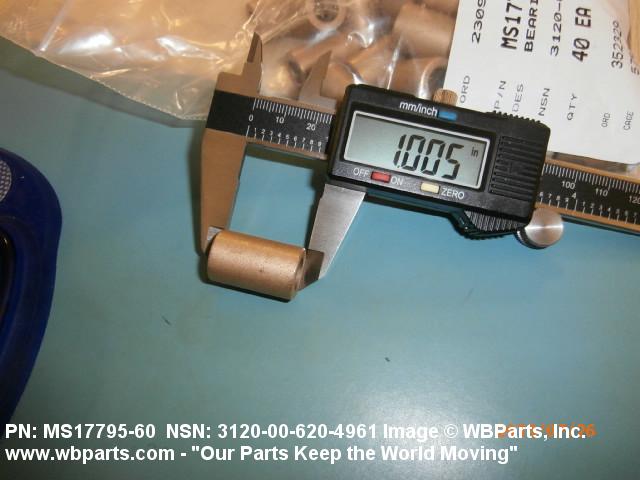

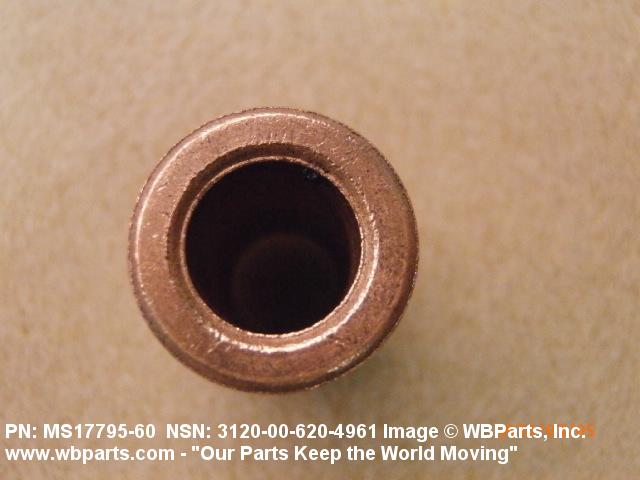

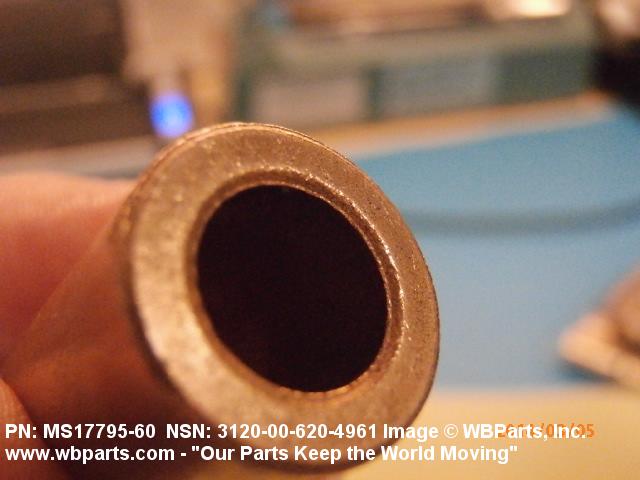

Drawings & Photos | NSN 3120-00-620-4961
Demand History | NSN 3120-00-620-4961
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-620-4961 | 2015-04-114 | 40 | United States |
| MS1779560 | 2014-05-139 | 40 | United States |
| 3120-00-620-4961 | 2014-03-70 | 24 | US |
| MS1779560 | 2014-02-48 | 20 | United States |
| MS1779560 | 2013-07-199 | 40 | United States |
| MS1779560 | 2011-08-222 | 100 | US |
Cross Reference | NSN 3120-00-620-4961
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3C3685P25 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| ANSI P-40-8,0.37 | 99862 | CARR LANE MANUFACTURING COMPANY DBA CARR LANE MANUFACTURING |
| B610-8 | 71041 | ALTRA HOLDINGS, INC. DIV BOSTON GEAR |
| EP061016 | 4T3X6 | BUNTING BEARINGS, LLC |
| EP061016 | 60960 | BUNTING BEARINGS CORP KALAMAZOO PLANT |
| MS17795 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17795-60 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS75 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| P-3/8X58X1/2 | 02064 | MJT HOLDINGS LLC DBA AMERICAN DRILL BUSHING |
| P-40-8 | 99862 | CARR LANE MANUFACTURING COMPANY DBA CARR LANE MANUFACTURING |
| P40-8 | 02064 | MJT HOLDINGS LLC DBA AMERICAN DRILL BUSHING |
| P40-8 | 60960 | BUNTING BEARINGS CORP KALAMAZOO PLANT |
| P40-8 | 71366 | BUNTING BEARINGS CORP |
| PB1220-16 | 75174 | JOHNSON BRONZE CO |
| PWA55285-83 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-620-4961
Related Products | NSN 3120-00-620-4961
Technical Data | NSN 3120-00-620-4961
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-5697,TY 1,COMP A MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 17C SOLID |
| OVERALL LENGTH | 0.9950 INCHES MINIMUM AND 1.0050 INCHES MAXIMUM |

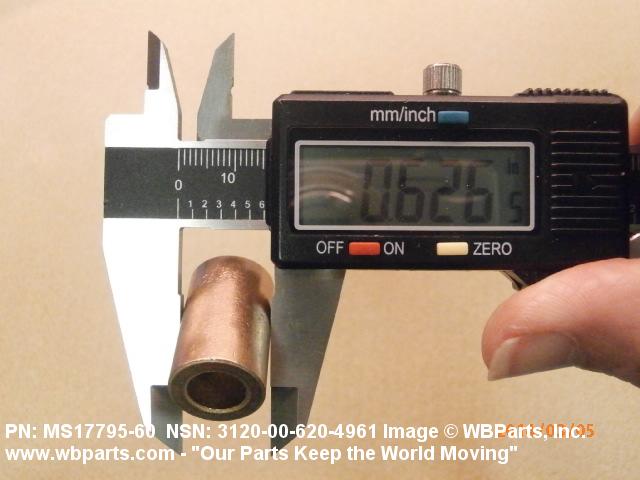

| BODY OUTSIDE DIAMETER | 0.6260 INCHES MINIMUM AND 0.6270 INCHES MAXIMUM |

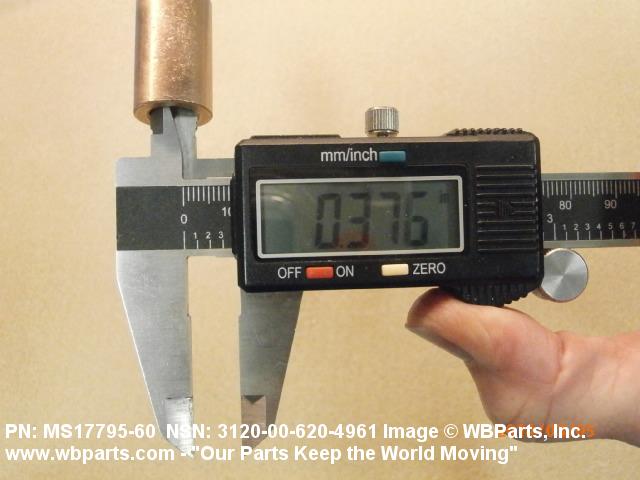

| BODY INSIDE DIAMETER | 0.3760 INCHES MINIMUM AND 0.3770 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| LUBRICATION MATERIAL | LUBRICATING OIL |
Restrictions/Controls & Freight Information | NSN 3120-00-620-4961
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114870 | BEARING/BUSHING METAL |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-620-4961
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
