NSN 3120-00-661-8669 N86401ALT2PC1F, N8640-1ALT2PC1F, 514301013918

Product Details | SLEEVE BEARING

3120-00-661-8669 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.

Part Alternates: N86401ALT2PC1F, N8640-1ALT2PC1F, 514301013918, 521315901998668ALT2PC1F, 52131-5901-998668ALT2PC1F, 52MAD1282N18PC100, 54MAD1343N3RDPC1F, 57138011444715REVAPC100, 571-3801-1444715REVAPC100, 5H401012, 5H40-1012, 3120-00-661-8669, 00-661-8669, 3120006618669, 006618669

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-661-8669	13205 ( BEARING, SLEEVE )

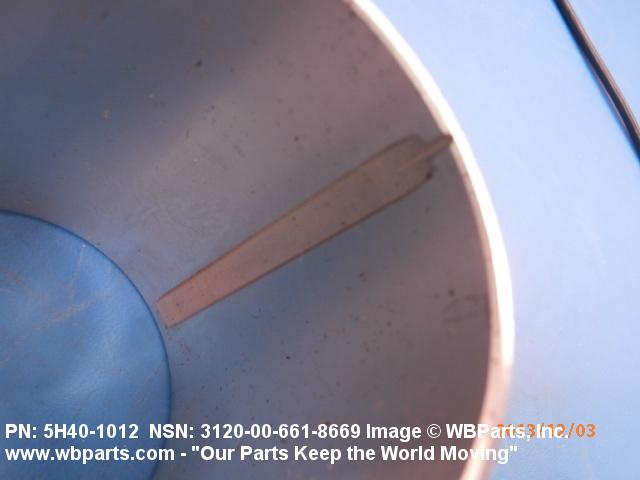

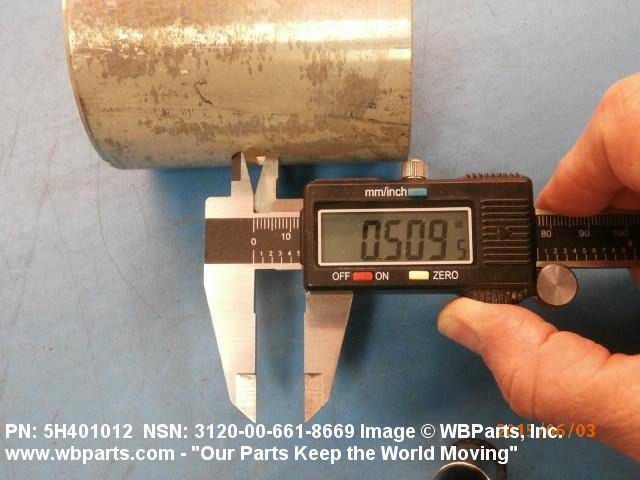

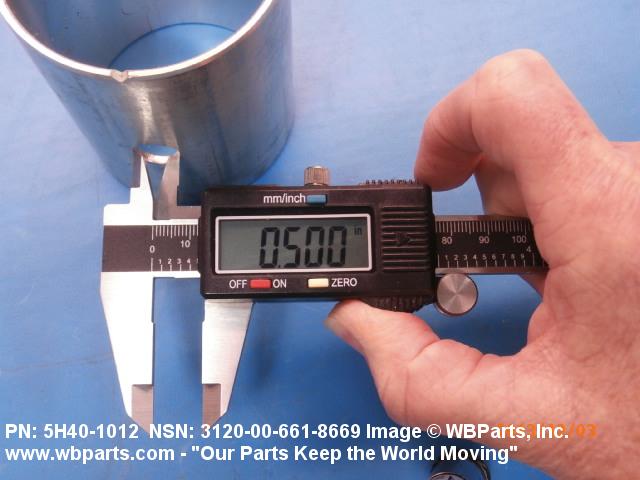

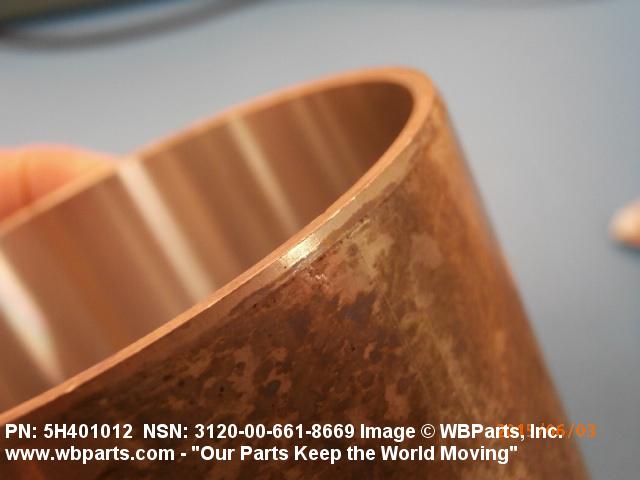

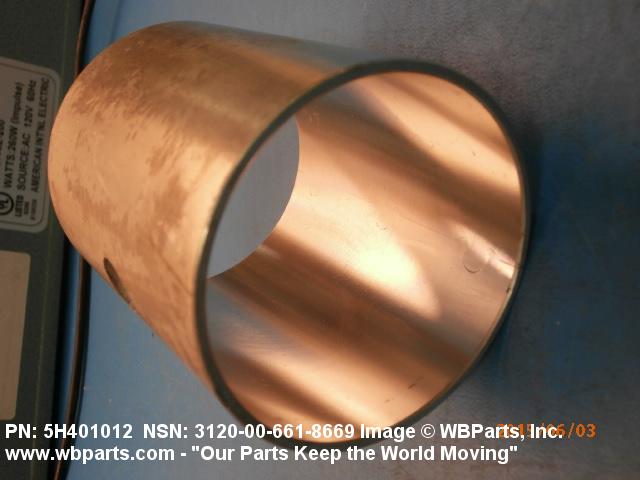

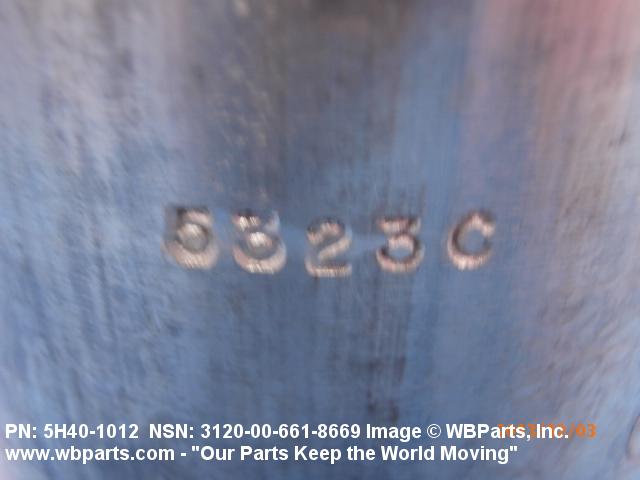

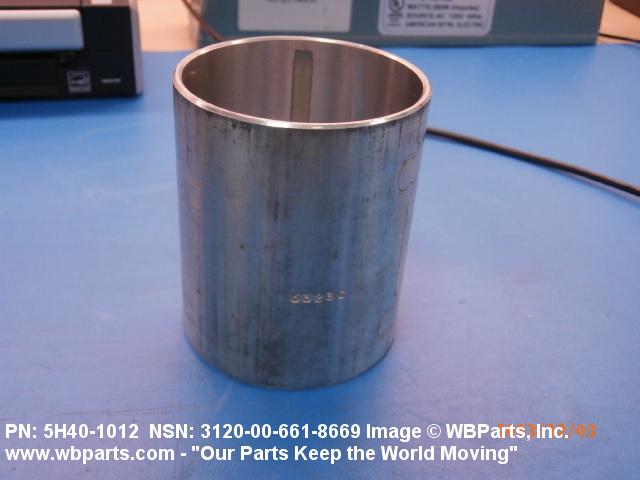

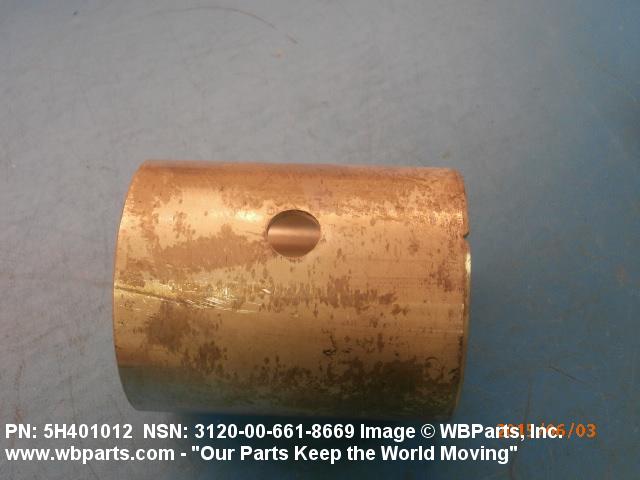

Drawings & Photos | NSN 3120-00-661-8669

Part Number	Request Date	QTY	Origin
5H40-1012	2023-11-311	47	DIBBS
5H40-1012	2023-10-299	13	DIBBS
5H40-1012	2023-04-107	34	DIBBS
5H40-1012	2023-01-16	21	DIBBS
5H40-1012	2022-08-226	13	DIBBS
5H40-1012	2022-04-107	55	DIBBS
5H40-1012	2021-08-227	13	DIBBS
5H40-1012	2020-12-355	13	DIBBS
5H40-1012	2020-06-155	25	DIBBS
5H40-1012	2020-03-84	51	DIBBS
5H401012	2018-12-358	1	GT
3120-00-661-8669	2018-12-350	44	DIBBS
514301013918	2018-07-208	2	United Arab Emirates
3120-00-661-8669	2018-07-193	29	DIBBS
3120-00-661-8669	2016-03-78	1	US
3120-00-661-8669	2015-07-207	73	DIBBS
5H401012	2015-05-135	2	United States
3120-00-661-8669	2015-04-99	33	DIBBS
006618669	2013-11-317	1	United States
3120-00-661-8669	2013-11-308	29	DIBBS
3120-00-661-8669	2013-06-178	21	DIBBS
3120-00-661-8669	2012-08-214	35	DIBBS
3120-00-661-8669	2011-09-264	28	DIBBS
3120-00-661-8669	2007-03-89	27	DIBBS

Cross Reference | NSN 3120-00-661-8669

Part Number	Cage Code	Manufacturer
514301013918	S3934	KOCKUMS AB
52131-5901-998668ALT2PC1F	80064	NAVAL SHIP SYSTEMS COMMAND
52MAD1282N18PC100	10855	CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION
54MAD1343N3RDPC1F	10855	CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION
571-3801-1444715REVAPC100	80064	NAVAL SHIP SYSTEMS COMMAND
5H40-1012	10855	CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION
N8640-1ALT2PC1F	10855	CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-00-661-8669

Compare

Related Products | NSN 3120-00-661-8669

3120-00-661-8673, 3120-00-661-8683, 3120-00-661-8694, 3120-00-661-8696, 3120-00-661-8700

Technical Data | NSN 3120-00-661-8669

Characteristic	Specifications
MATERIAL	STEEL COMP 1010 OVERALL
STYLE DESIGNATOR	17C SOLID

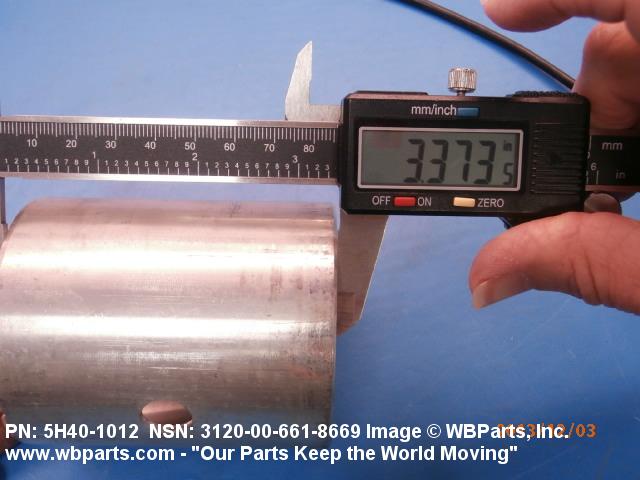

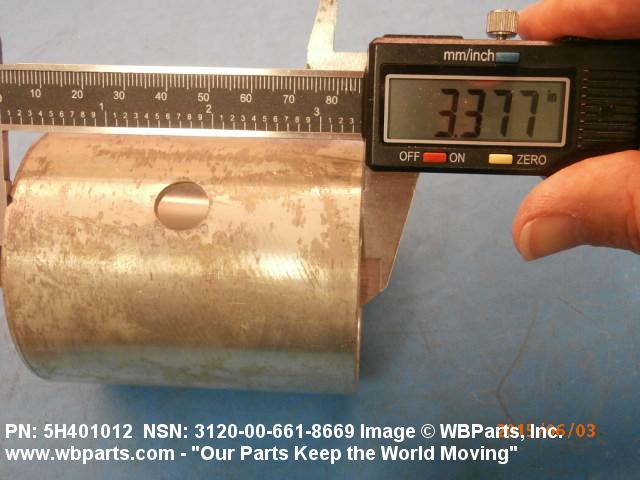

OVERALL LENGTH	3.3650 INCHES MINIMUM AND 3.3850 INCHES MAXIMUM

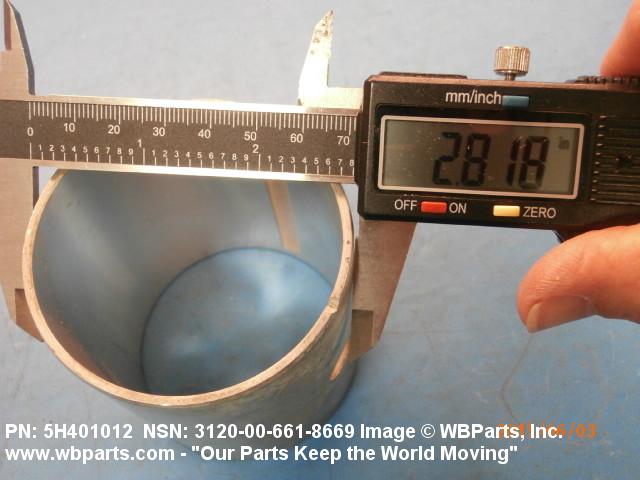

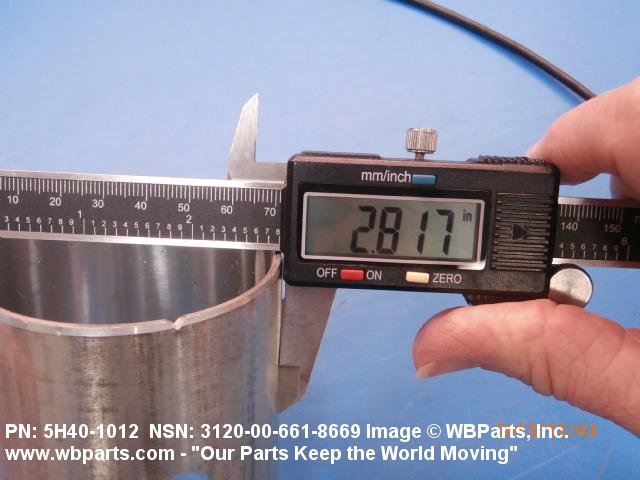

BODY OUTSIDE DIAMETER	2.8170 INCHES MINIMUM AND 2.8180 INCHES MAXIMUM

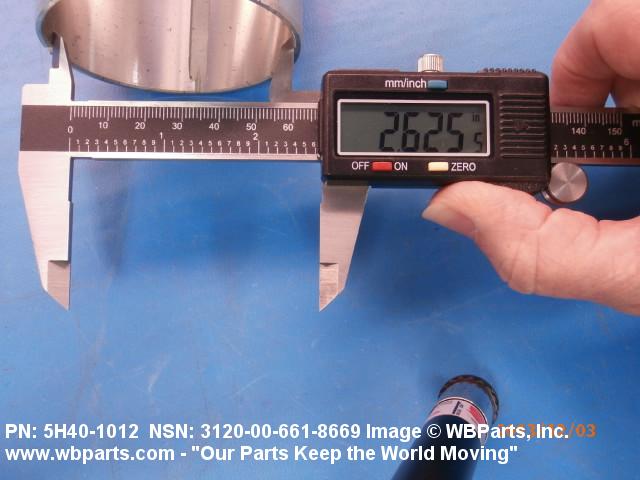

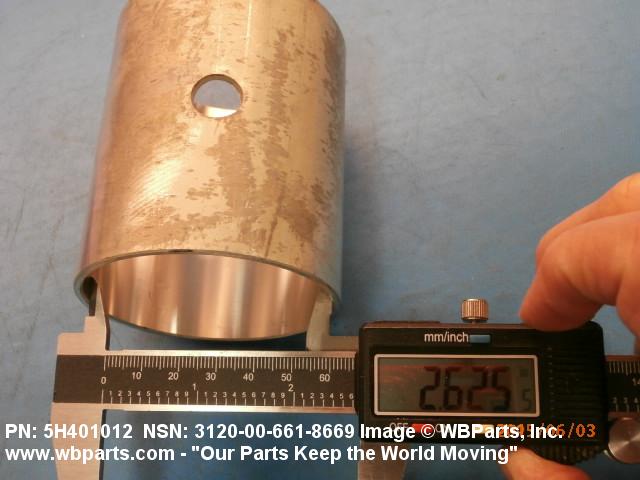

BODY INSIDE DIAMETER	2.6250 INCHES MINIMUM AND 2.6264 INCHES MAXIMUM
