NSN 3120-00-679-7068 6756782, 7710319, 00-679-7068
Product Details | SLEEVE BEARING
3120-00-679-7068 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 6756782, 7710319, 3120-00-679-7068, 00-679-7068, 3120006797068 , 006797068
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-679-7068 | 13205 ( BEARING, SLEEVE ) |

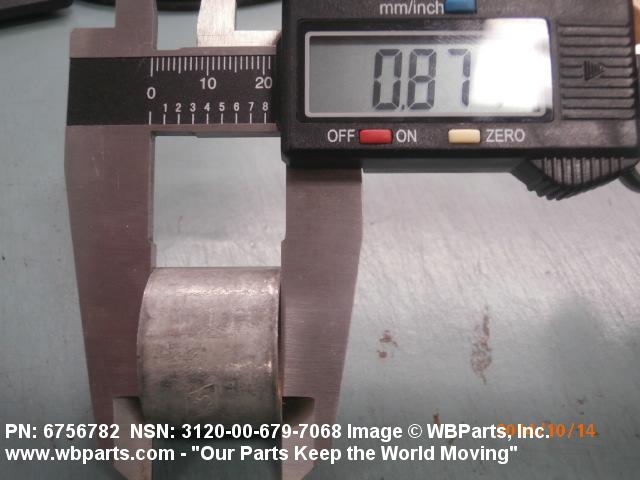

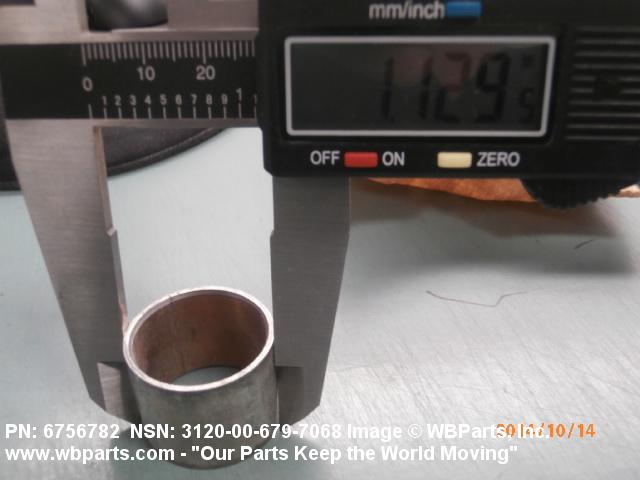

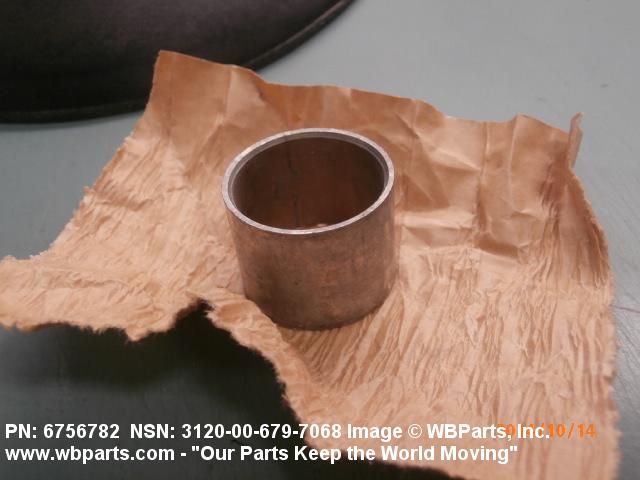

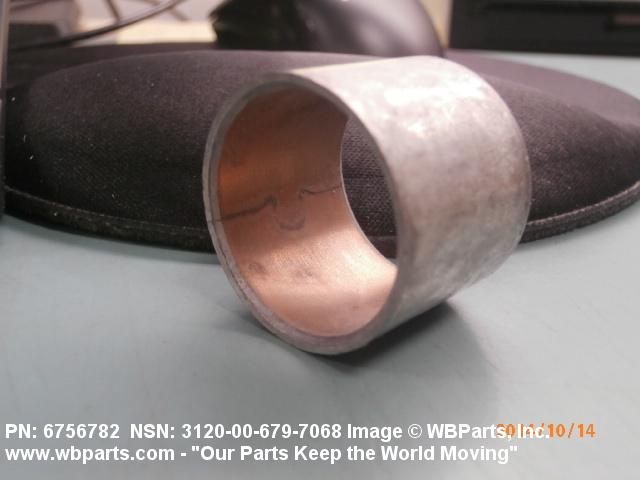

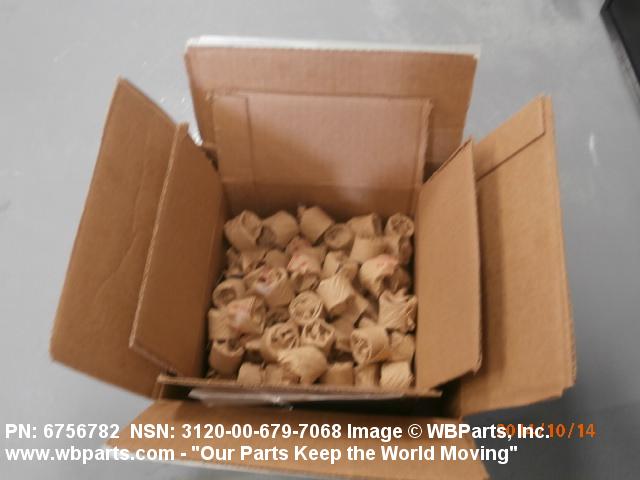

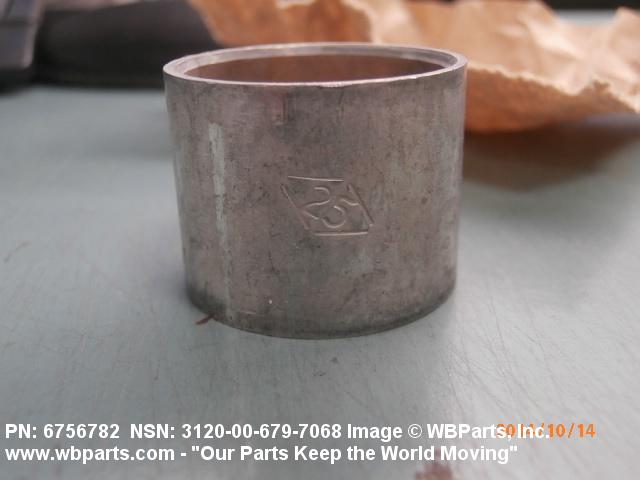

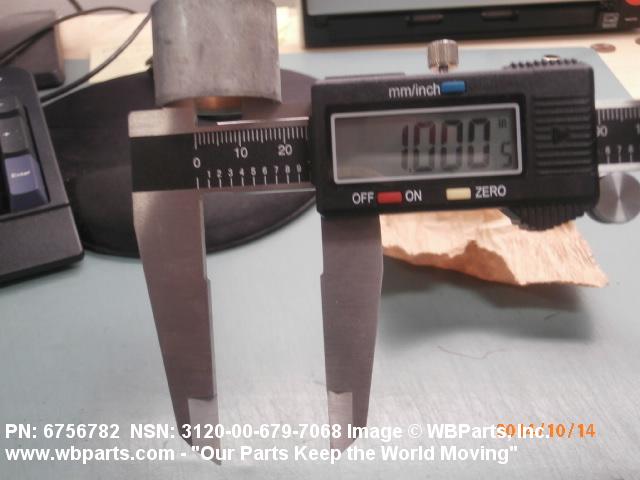

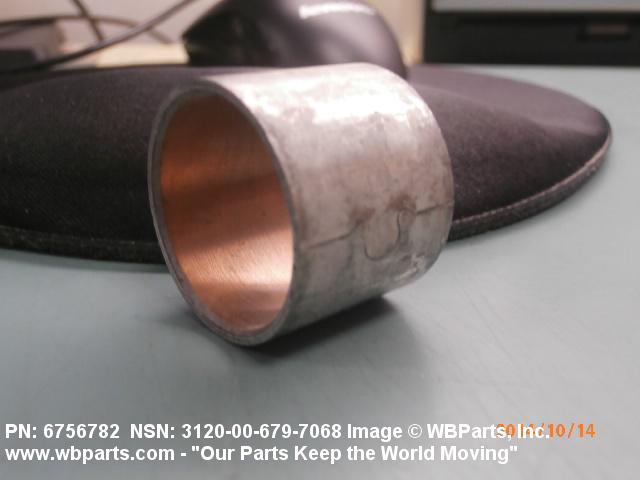

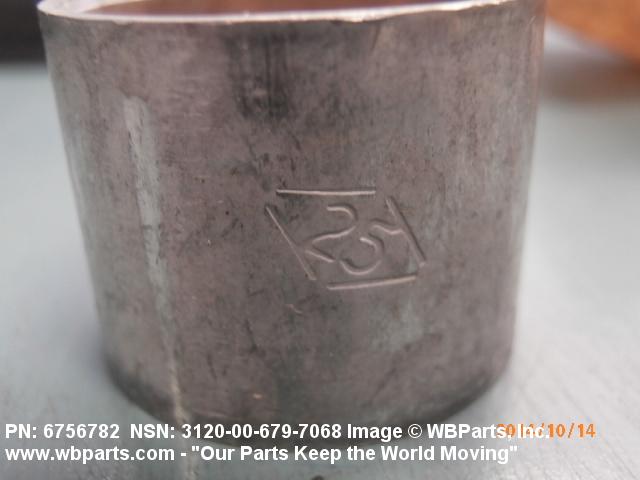

Drawings & Photos | NSN 3120-00-679-7068
Demand History | NSN 3120-00-679-7068
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-679-7068 | 2025-08-225 | 287 | DIBBS |
| 3120-00-679-7068 | 2025-08-217 | 287 | DIBBS |
| 3120-00-679-7068 | 2025-03-78 | 230 | DIBBS |
| 3120-00-679-7068 | 2025-03-70 | 230 | DIBBS |
| 3120-00-679-7068 | 2024-10-305 | 256 | DIBBS |
| 3120-00-679-7068 | 2024-10-296 | 256 | DIBBS |
| 3120-00-679-7068 | 2022-08-237 | 508 | DIBBS |
| 3120-00-679-7068 | 2022-08-229 | 508 | DIBBS |
| 3120-00-679-7068 | 2021-07-203 | 330 | DIBBS |
| 3120-00-679-7068 | 2021-05-123 | 479 | DIBBS |
| 3120-00-679-7068 | 2021-04-115 | 479 | DIBBS |
| 3120-00-679-7068 | 2021-04-97 | 479 | DIBBS |
| 3120-00-679-7068 | 2021-03-77 | 193 | DIBBS |
| 3120-00-679-7068 | 2021-01-24 | 184 | DIBBS |
| 3120-00-679-7068 | 2020-07-203 | 67 | DIBBS |
| 3120-00-679-7068 | 2020-04-98 | 327 | DIBBS |
| 6756782 | 2020-01-14 | 5 | United States |
| 6756782 | 2020-01-14 | 5 | United States |
| 3120-00-679-7068 | 2019-06-176 | 178 | DIBBS |
| 3120-00-679-7068 | 2019-03-64 | 391 | DIBBS |
| 3120-00-679-7068 | 2019-01-22 | 443 | United States |
| 3120-00-679-7068 | 2018-08-225 | 443 | United States |
| 3120-00-679-7068 | 2018-08-219 | 443 | DIBBS |
| 3120-00-679-7068 | 2018-04-116 | 282 | DIBBS |
| 3120-00-679-7068 | 2017-07-191 | 277 | DIBBS |
| 3120-00-679-7068 | 2015-03-68 | 174 | DIBBS |
| 3120-00-679-7068 | 2014-10-279 | 99 | United States |
| 7710319 | 2014-06-163 | 222 | United States |
| 3120-00-679-7068 | 2014-04-114 | 222 | DIBBS |
| 3120-00-679-7068 | 2014-03-73 | 65 | Chile |
| 3120-00-679-7068 | 2013-10-288 | 405 | DIBBS |
| 3120-00-679-7068 | 2013-10-280 | 405 | DIBBS |
| 3120-00-679-7068 | 2008-04-109 | 1 | US |
Cross Reference | NSN 3120-00-679-7068
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-679-7068
Related Products | NSN 3120-00-679-7068
Technical Data | NSN 3120-00-679-7068
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY INNER LAYER STEEL OUTER LAYER |
| STYLE DESIGNATOR | 17C SOLID |
| OVERALL LENGTH | 0.8750 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.1245 INCHES MINIMUM AND 1.1255 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 1.0625 INCHES MINIMUM AND 1.0628 INCHES MAXIMUM |
| CORNER SHAPE | CHAMFERED OUTSIDE LEFT CORNER CHAMFERED OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER |
| SURFACE FINISH | 30.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0600 INCHES NOMINAL 0.0600 INCHES NOMINAL |
| (NON-CORE DATA) CHAMFER ANGLE | 30.0 DEGREES NOMINAL 30.0 DEGREES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3120-00-679-7068
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
