NSN 3120-00-692-9286 8686311, 00-692-9286, 006929286
Product Details | SLEEVE BEARING
3120-00-692-9286 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 8686311, 3120-00-692-9286, 00-692-9286, 3120006929286, 006929286
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-692-9286 | 13205 ( BEARING, SLEEVE ) |

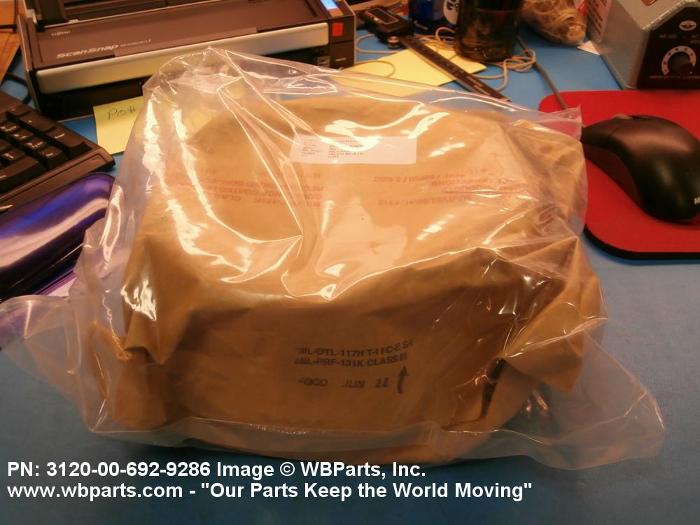

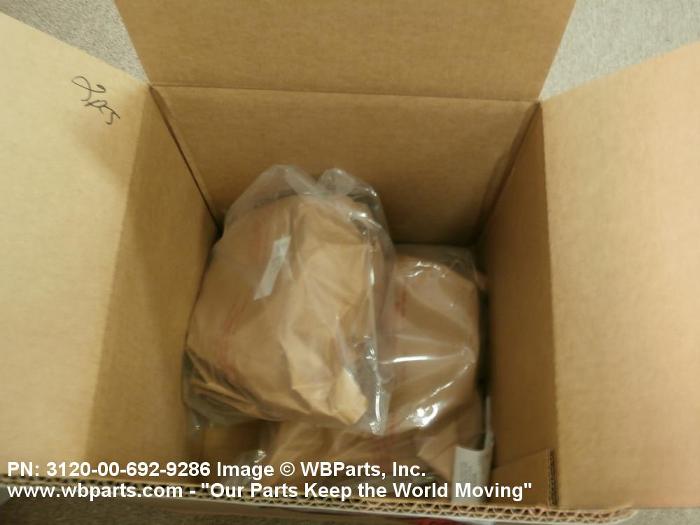

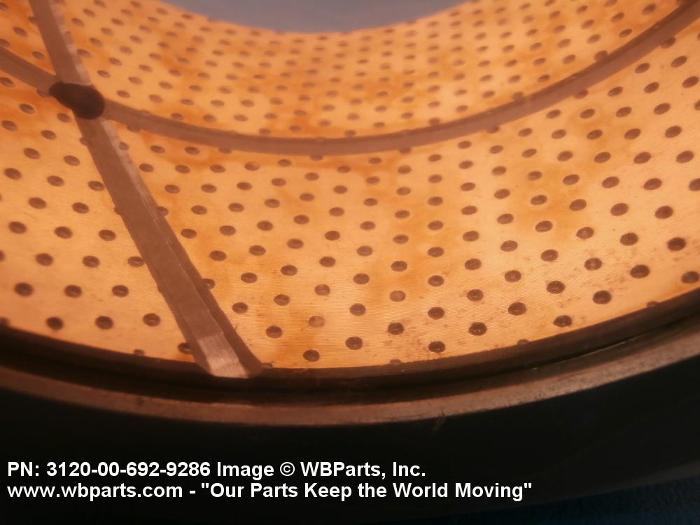

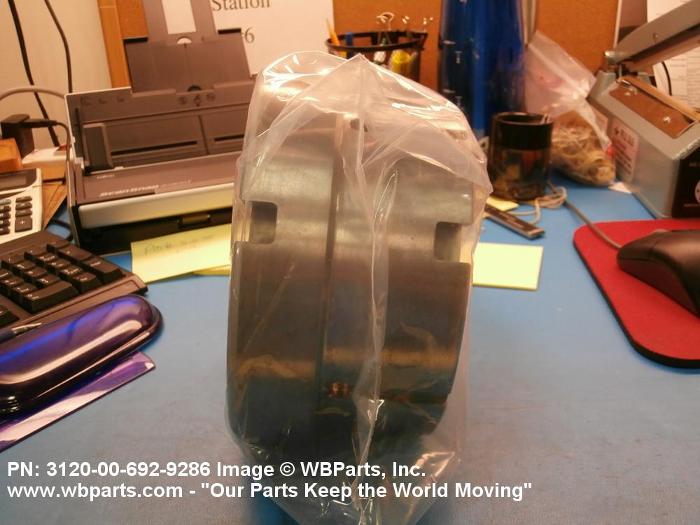

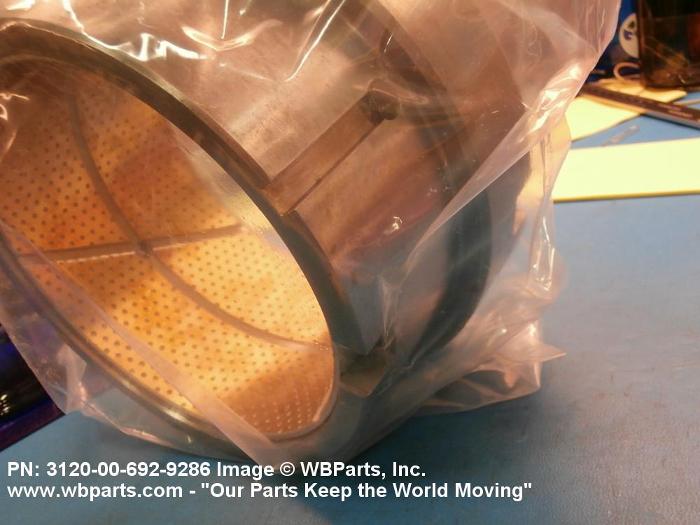

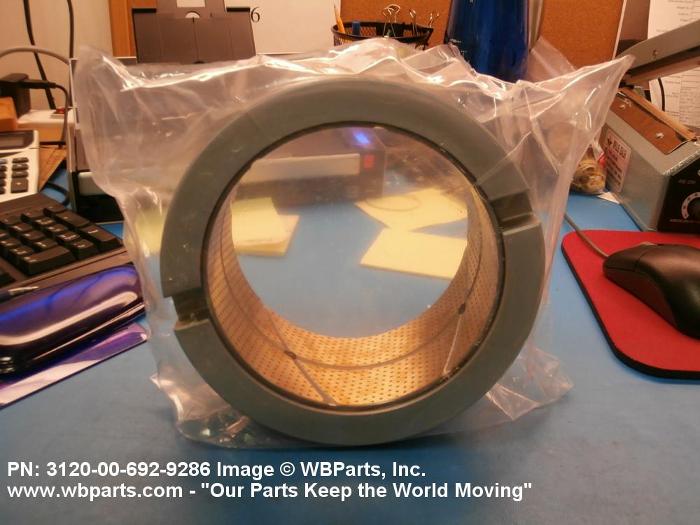

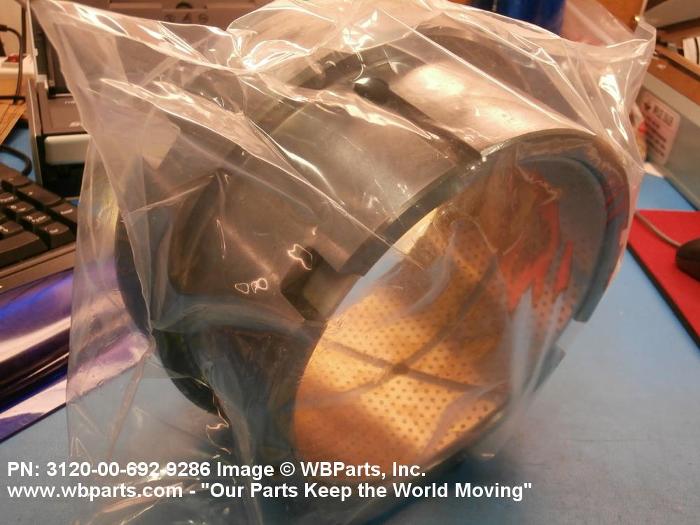

Drawings & Photos | NSN 3120-00-692-9286
Demand History | NSN 3120-00-692-9286
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-692-9286 | 2025-09-259 | 8 | DIBBS |
| 3120-00-692-9286 | 2023-12-351 | 13 | DIBBS |
| 3120-00-692-9286 | 2014-04-108 | 27 | DIBBS |
| 3120-00-692-9286 | 2014-04-100 | 27 | DIBBS |
| 3120-00-692-9286 | 2013-09-262 | 85 | DIBBS |
| 3120-00-692-9286 | 2013-02-42 | 2 | United States |
| 3120-00-692-9286 | 2012-06-173 | 104 | DIBBS |
| 3120-00-692-9286 | 2011-03-73 | 100 | United States |
| 3120-00-692-9286 | 2011-01-27 | 96 | United States |
| 3120-00-692-9286 | 2010-09-252 | 94 | DIBBS |
| 3120-00-692-9286 | 2009-12-349 | 94 | DIBBS |
| 8686311 | 2009-06-163 | 17 | United States |
| 3120-00-692-9286 | 2007-09-262 | 109 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-692-9286
Technical Data | NSN 3120-00-692-9286
| Characteristic | Specifications |
|---|---|
| MATERIAL | SILICA OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-5687,TYPE 2 FED SPEC ALL MATERIAL RESPONSES OVERALL |
| HARDNESS RATING | 58.0 ROCKWELL C NOMINAL OVERALL |
| SURFACE TREATMENT | PHOSPHATE MANGANESE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-P-16232,TYPE M,CLASS 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 3.7500 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 6.4980 INCHES MINIMUM AND 6.5000 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 5.5055 INCHES MINIMUM AND 5.5075 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 7.2480 INCHES MINIMUM AND 7.7250 INCHES MAXIMUM |
| FLANGE WIDTH | 1.4940 INCHES MINIMUM AND 1.4990 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| ANTIROTATION/LUBRICATION TYPE AND QUANTITY | 4 HOLE AND 4 SLOT |
| HOLE DIAMETER | 0.4375 INCHES NOMINAL FIRST |
| SLOT WIDTH | 0.6250 INCHES MINIMUM AND 0.6270 INCHES MAXIMUM FIRST |
| SLOT LENGTH | 0.6250 INCHES NOMINAL FIRST |
| SURFACE FINISH | 125.0 MICROINCHES OVERALL |
| LUBRICANT ACCOMMODATION STYLE | 69 GROOVED CIRCULAR |
| SURFACE GROOVE LOCATION AND QUANTITY | 3 INTERNAL |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0500 INCHES NOMINAL 0.0500 INCHES NOMINAL 0.0500 INCHES NOMINAL 0.0500 INCHES NOMINAL 0.0900 INCHES NOMINAL |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 8686311 |
Restrictions/Controls & Freight Information | NSN 3120-00-692-9286
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
