NSN 3120-00-900-5751 114RS3154, 114RS315-4, 80558
Product Details | SLEEVE BEARING
3120-00-900-5751 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 114RS3154, 114RS315-4, 80558, 3120-00-900-5751, 00-900-5751, 3120009005751, 009005751
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 22 APR 1968 | 00-900-5751 | 13205 ( BEARING, SLEEVE ) |

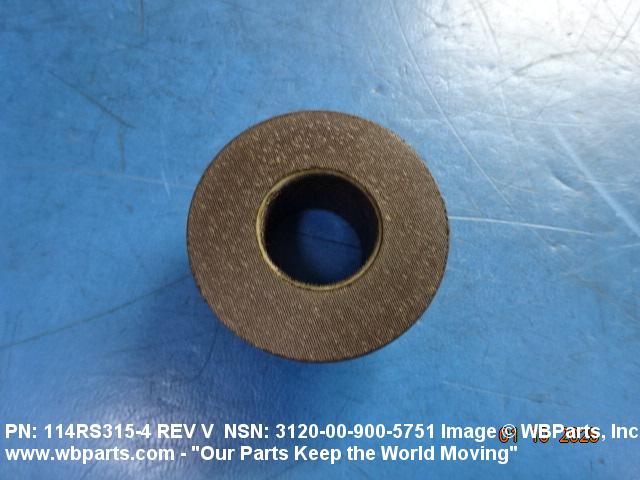

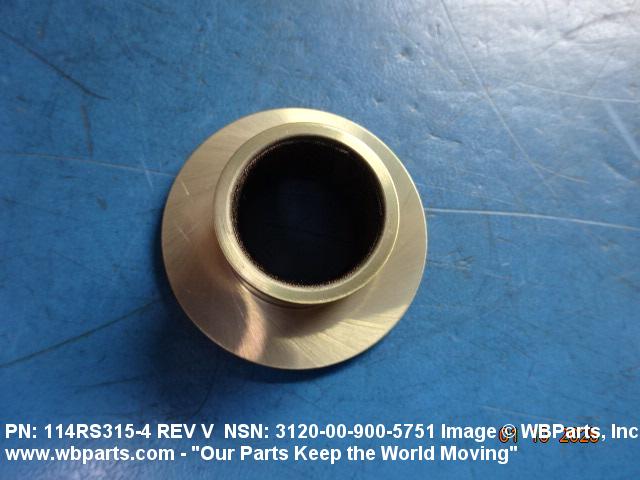

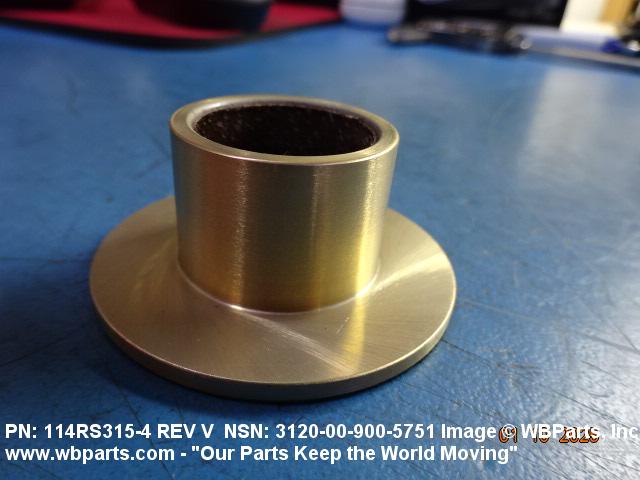

Drawings & Photos | NSN 3120-00-900-5751
Demand History | NSN 3120-00-900-5751
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 114RS3154 | 2025-11-315 | 24 | United States |
| 114RS3154 | 2025-04-100 | 2 | United States |
| 3120-00-900-5751 | 2024-12-362 | 12 | United States |
| 114RS3154 | 2024-12-348 | 12 | United States |
| 114RS3154 | 2024-07-211 | 4 | United States |
| 114RS3154 | 2024-01-09 | 16 | United States |
| 114RS315-4 | 2023-01-11 | 527 | DIBBS |
| 114RS315-4 | 2023-01-02 | 527 | DIBBS |
| 114RS315-4 | 2022-12-356 | 527 | DIBBS |
| 114RS3154 | 2022-11-307 | 4 | United States |
| 114RS315-4 | 2021-12-336 | 299 | DIBBS |
| 114RS315-4 | 2021-11-322 | 299 | DIBBS |
| 114RS3154 | 2021-09-260 | 24 | United States |
| 114RS315-4 | 2021-05-144 | 277 | DIBBS |
| 114RS315-4 | 2021-05-136 | 277 | DIBBS |
| 3120-00-900-5751 | 2020-10-304 | 1 | DIBBS-RFPs |
| 114RS3154 | 2020-02-59 | 4 | United States |
| 114RS3154 | 2019-10-301 | 28 | United States |
| 114RS3154 | 2019-01-09 | 48 | United States |
| 114RS3154 | 2018-05-143 | 4 | United States |
| 3120-00-900-5751 | 2016-02-53 | 1 | DIBBS-RFPs |
| 3120-00-900-5751 | 2013-03-76 | 204 | DIBBS |
| 3120-00-900-5751 | 2013-02-39 | 334 | DIBBS |
| 3120-00-900-5751 | 2012-11-306 | 361 | DIBBS |
| 3120-00-900-5751 | 2012-06-169 | 522 | DIBBS |
| 3120-00-900-5751 | 2009-09-266 | 40 | us |
| 3120-00-900-5751 | 2007-05-137 | 120 | DIBBS |
| 3120-00-900-5751 | 2007-05-128 | 154 | DIBBS |
| 3120-00-900-5751 | 2007-02-59 | 216 | DIBBS |
| 3120-00-900-5751 | 2007-02-59 | 141 | DIBBS |
Cross Reference | NSN 3120-00-900-5751
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-900-5751
Related Products | NSN 3120-00-900-5751
Technical Data | NSN 3120-00-900-5751
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE INNER LAYER PLASTIC AND GLASS OUTER LAYER |
| STYLE DESIGNATOR | 22C SOLID |

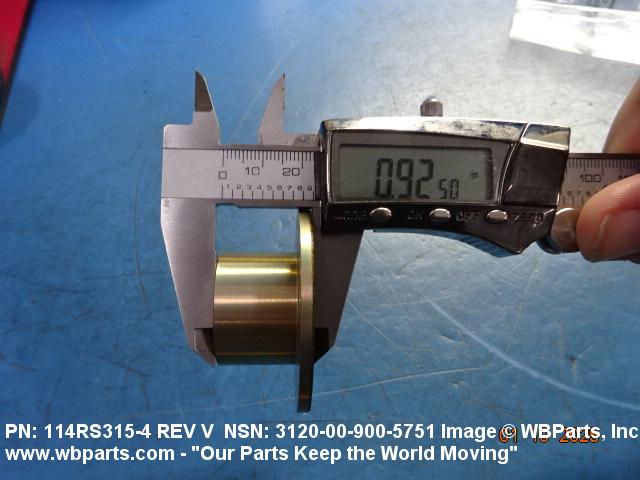

| OVERALL LENGTH | 0.9200 INCHES MINIMUM AND 0.9300 INCHES MAXIMUM |

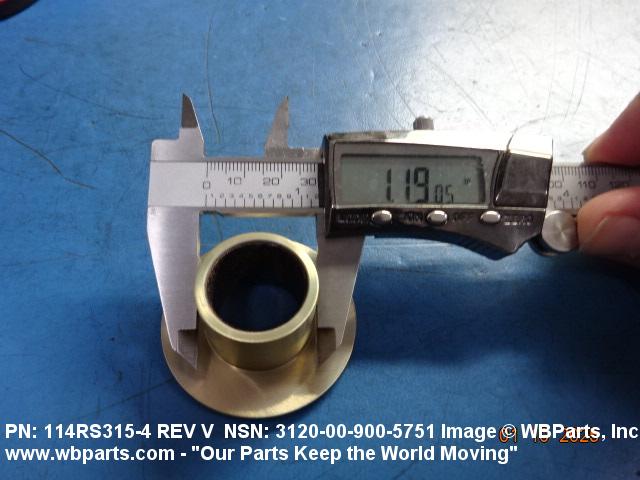

| BODY OUTSIDE DIAMETER | 1.1890 INCHES MINIMUM AND 1.1900 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.9392 INCHES MINIMUM AND 0.9400 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 2.1150 INCHES MINIMUM AND 2.1350 INCHES MAXIMUM |

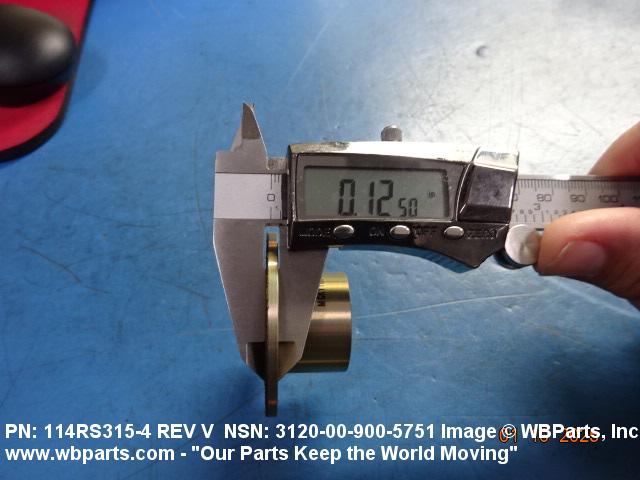

| FLANGE WIDTH | 0.1240 INCHES MINIMUM AND 0.1250 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER ROUND INSIDE RIGHT CORNER ROUND INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER SQUARE LEFT FLANGE BODY CORNER |
| (NON-CORE DATA) RADIUS | 0.0400 INCHES NOMINAL 0.0400 INCHES NOMINAL |
| MANUFACTURERS CODE | 77272 |
| MFR SOURCE CONTROLLING REFERENCE | 114RS315-4 |
Restrictions/Controls & Freight Information | NSN 3120-00-900-5751
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-900-5751
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
