NSN 3120-00-914-8671 BJ87XA9396, BJ87XA93-96, BJ87XA9396A2252

Product Details | SLEEVE BEARING

3120-00-914-8671 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.

Part Alternates: BJ87XA9396, BJ87XA93-96, BJ87XA9396A2252, SB5201, SB52011, SB5201-1, SB5203102, SB5203-102, DDLF168, DDLF16-8, FBJ323YA2252, FBJ32-3YA22-52, FBJ326Y, FBJ32-6Y, KDJ163, KDJ16-3, KMS607, 3120-00-914-8671, 00-914-8671, 3120009148671, 009148671

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	06 JUL 1966	00-914-8671	13205 ( BEARING, SLEEVE )

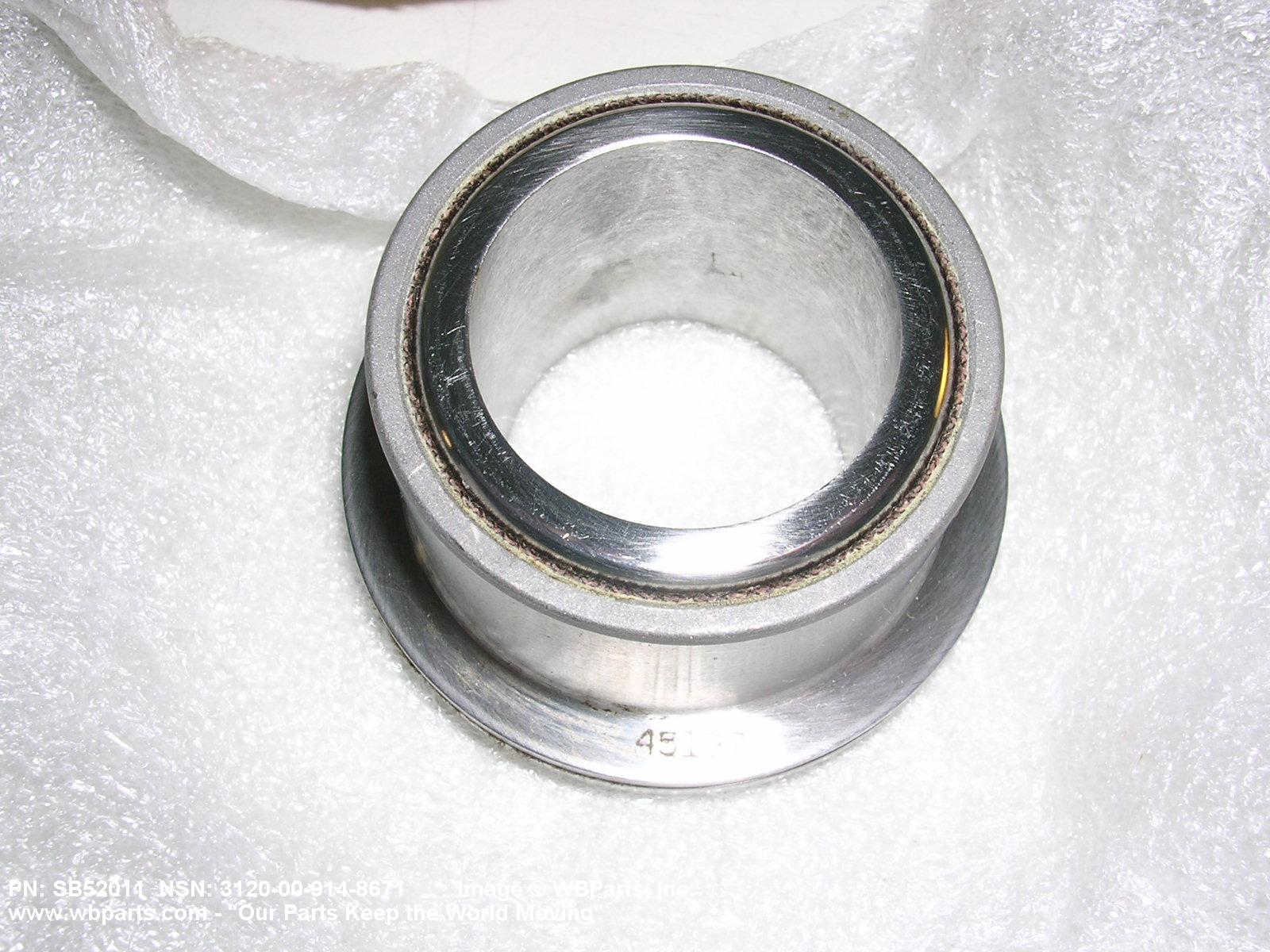

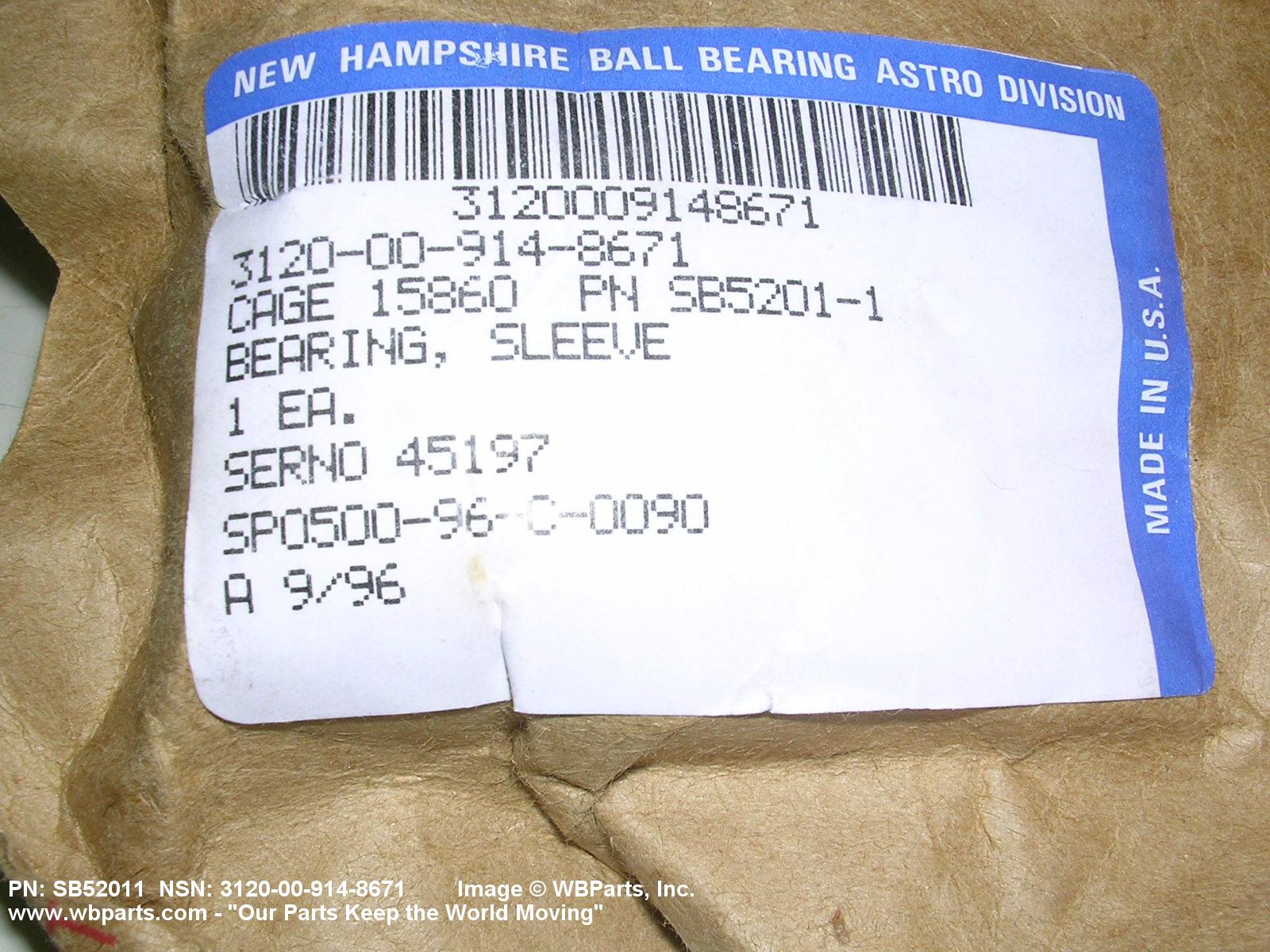

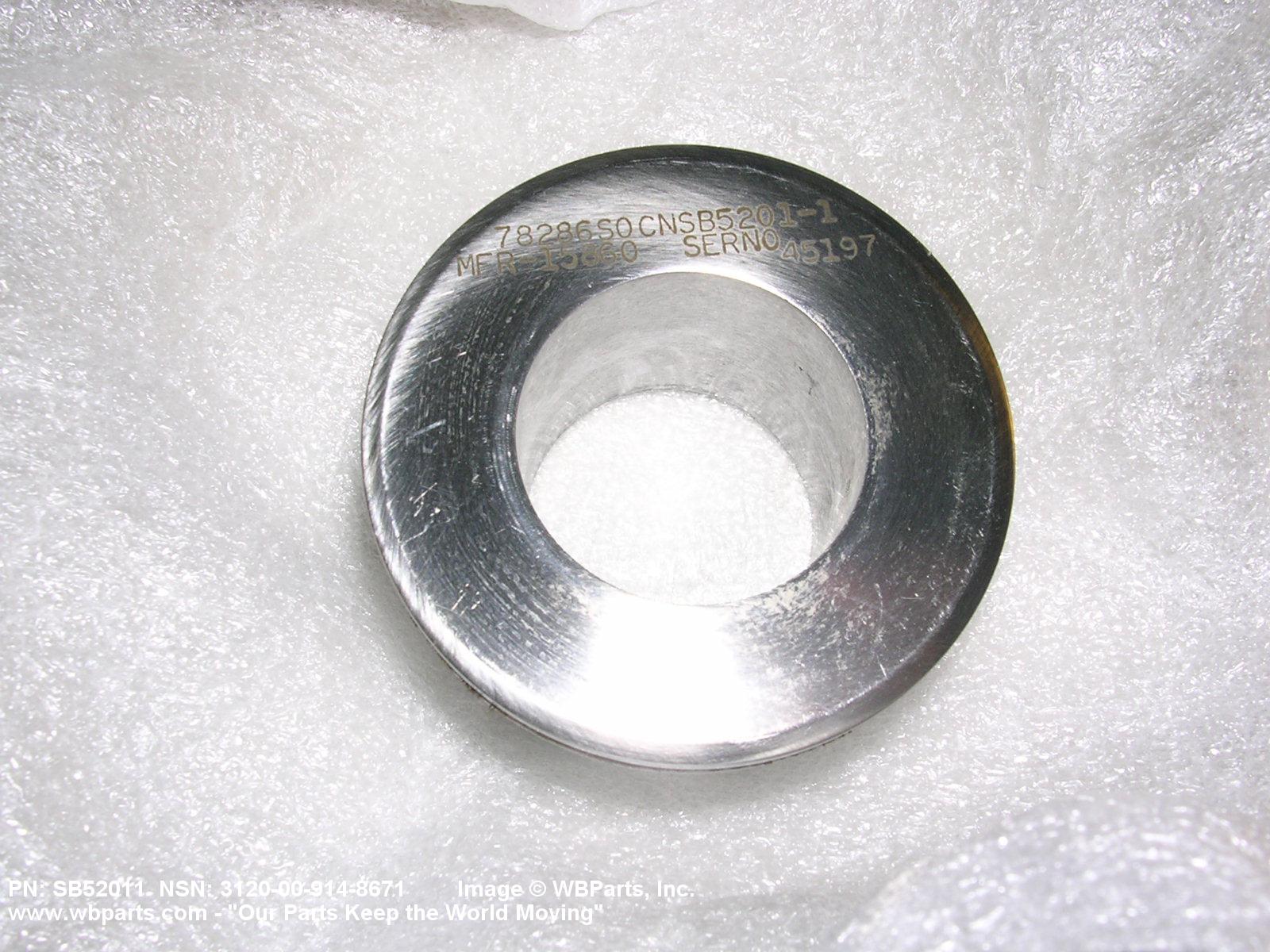

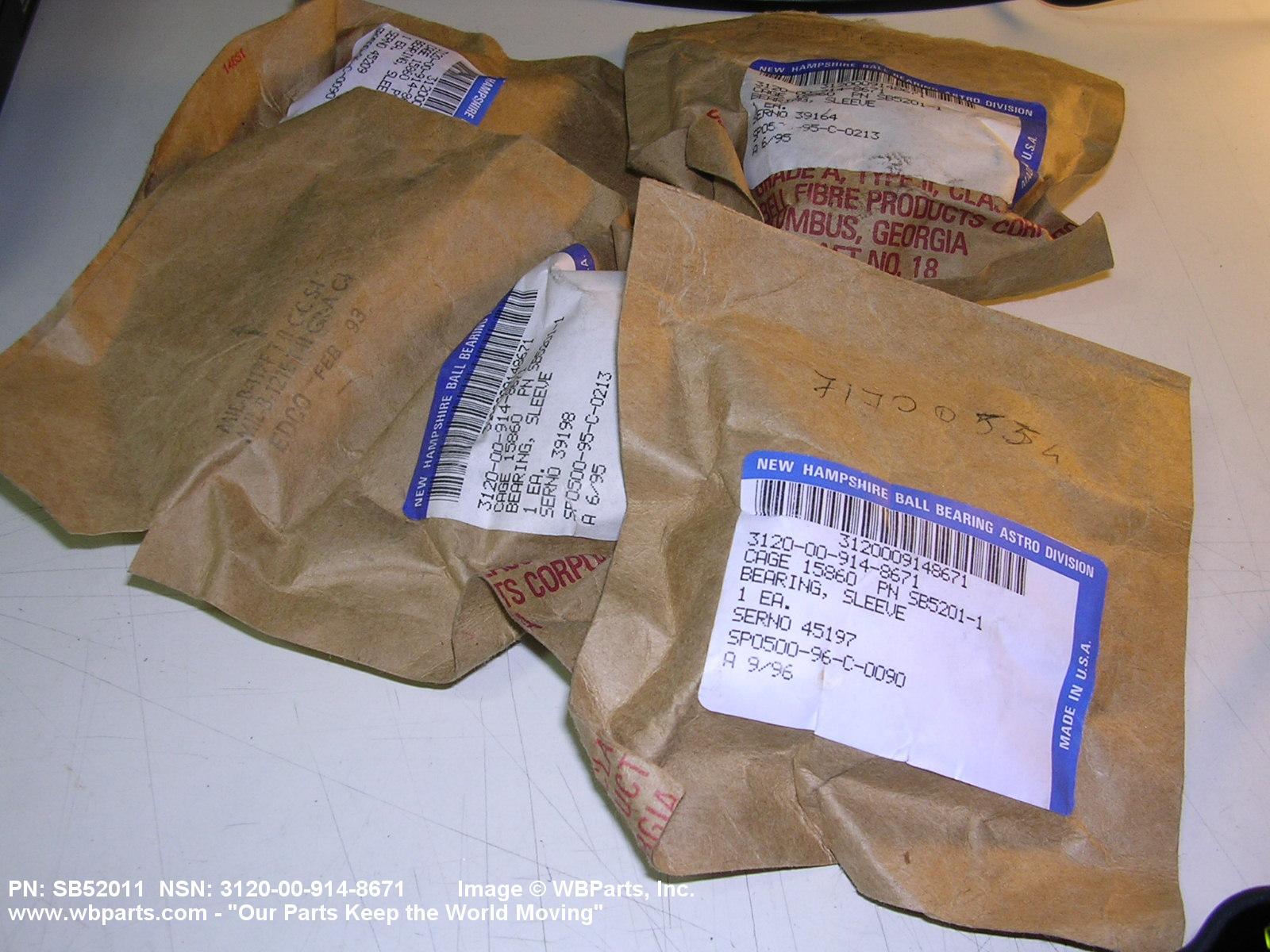

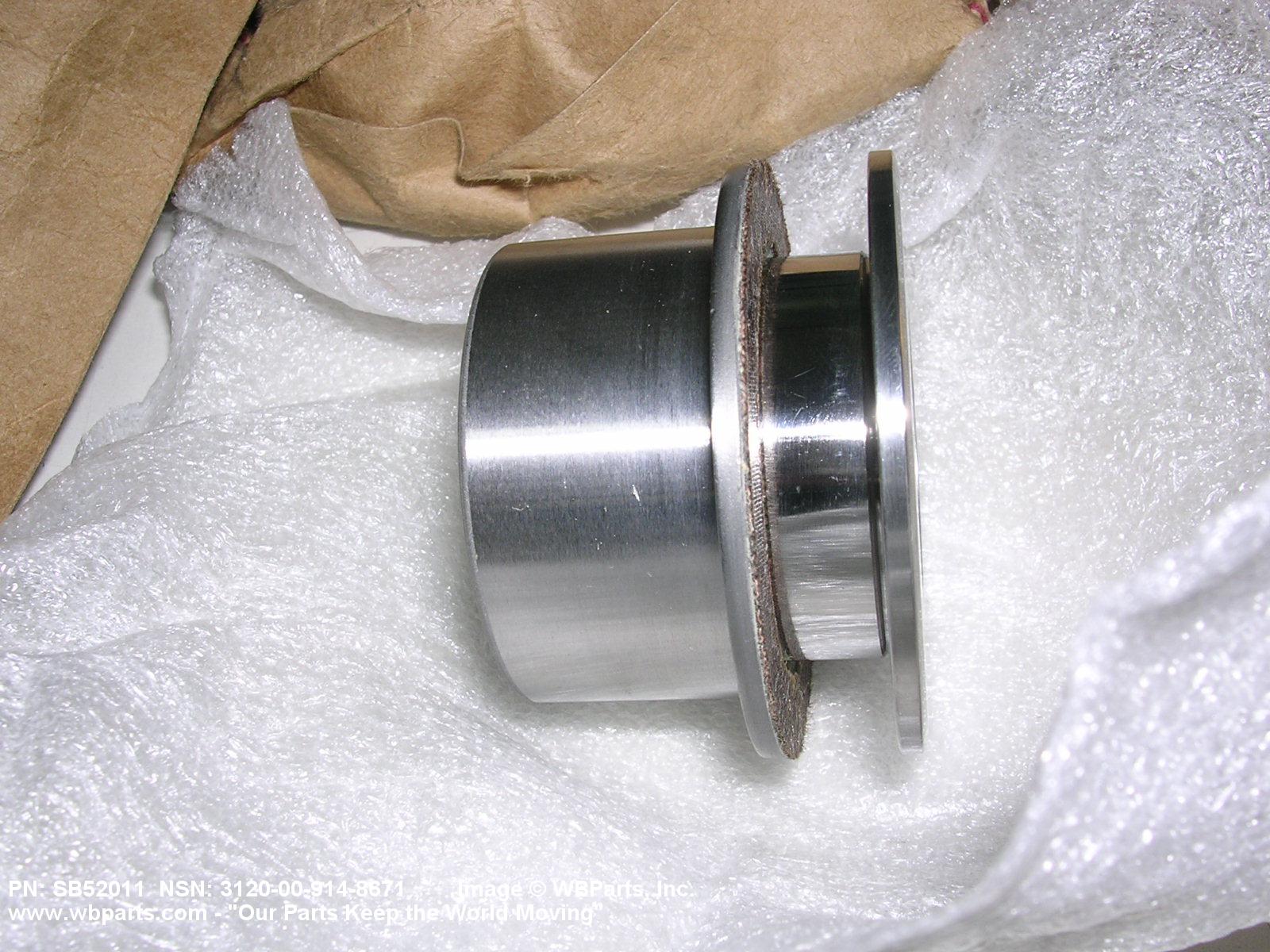

Drawings & Photos | NSN 3120-00-914-8671

Part Number	Request Date	QTY	Origin
3120-00-914-8671	2024-10-303	2	United States
3120-00-914-8671	2022-05-129	4	Australia
SB52011	2021-05-137	2	United States
SB5201-1	2021-04-109	2232	DIBBS
3120-00-914-8671	2021-04-91	30	US
SB5201-1	2021-03-84	728	DIBBS
SB5201-1	2021-03-76	1300	DIBBS
SB52011	2021-02-40	6	Canada
3120-00-914-8671	2020-11-328	6	Canada
3120-00-914-8671	2020-10-304	1	DIBBS-RFPs
SB52011	2020-09-262	12	us
3120-00-914-8671	2020-06-182	50	TR
3120-00-914-8671	2020-06-170	30	TW
SB5201-1	2020-03-75	321	DIBBS
SB5201-1	2020-03-65	700	DIBBS
SB5201-1	2020-03-65	1335	DIBBS
SB5201-1	2020-03-65	390	DIBBS
SB5201-1	2020-02-49	641	DIBBS
SB5201-1	2020-01-15	390	DIBBS
SB5201-1	2019-11-308	195	DIBBS
SB5201-1	2019-09-273	700	DIBBS
3120-00-914-8671	2019-04-119	1	DIBBS-RFPs
SB52011	2019-02-53	5	US
3120-00-914-8671	2019-01-27	4	United States
3120-00-914-8671	2019-01-23	20	MX
3120-00-914-8671	2019-01-23	20	MX
3120-00-914-8671	2018-03-81	1	DIBBS-RFPs
3120-00-914-8671	2018-03-77	742	DIBBS
SB52011	2018-01-29	10	US
3120-00-914-8671	2017-10-286	225	US
3120-00-914-8671	2015-07-190	50	TR
3120-00-914-8671	2015-07-189	50	MANUAL
3120-00-914-8671	2015-06-161	1085	DIBBS
3120-00-914-8671	2015-06-153	1085	DIBBS
3120-00-914-8671	2015-05-141	201	DIBBS
3120-00-914-8671	2015-04-113	743	DIBBS
3120-00-914-8671	2014-06-167	565	DIBBS
3120-00-914-8671	2014-06-162	844	DIBBS
3120-00-914-8671	2014-06-155	1	DIBBS-RFPs
3120-00-914-8671	2014-05-142	869	DIBBS
SB52011	2014-05-135	4	United States
3120-00-914-8671	2014-01-21	1015	DIBBS
3120-00-914-8671	2013-11-322	88	DIBBS
3120-00-914-8671	2013-08-227	212	DIBBS
3120-00-914-8671	2013-07-196	1	DIBBS-RFPs
3120-00-914-8671	2013-04-120	6	United States
3120-00-914-8671	2012-02-44	617	DIBBS
SB52011	2011-10-283	2292	US
3120-00-914-8671	2011-09-269	200	US
SB52011	2011-03-76	4	US
3120-00-914-8671	2011-03-63	314	DIBBS
3120-00-914-8671	2009-12-356	556	DIBBS
3120-00-914-8671	2009-09-266	689	DIBBS
SB52011	2009-08-227	6	MX
3120-00-914-8671	2009-05-127	650	DIBBS
3120-00-914-8671	2008-08-238	1001	DIBBS
3120-00-914-8671	2008-02-60	2	US
3120-00-914-8671	2008-02-60	6	US
DDLF168	2008-02-46	20	US
SB52011	2008-02-42	16	US
SB52011	2008-01-11	4	United States

Cross Reference | NSN 3120-00-914-8671

Part Number	Cage Code	Manufacturer
BJ87XA93-96	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
BJ87XA9396A2252	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
BJ87XA9396A2252	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
DDLF16-8	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
FBJ32-3YA22-52	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
FBJ32-6Y	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
FBJ32-6Y	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
KDJ16-3	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
KMS607	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
SB5201	78286	SIKORSKY AIRCRAFT CORPORATION
SB5201-1	78286	SIKORSKY AIRCRAFT CORPORATION
SB5201-1	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
SB5203-102	78286	SIKORSKY AIRCRAFT CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-00-914-8671

Compare

Related Products | NSN 3120-00-914-8671

3120-00-914-8766, 3120-00-914-9158, 3120-00-914-9593, 3120-00-914-9639, 3120-00-915-0426

Technical Data | NSN 3120-00-914-8671

Characteristic	Specifications
MATERIAL	STEEL COMP 630 INNER LAYER PLASTIC POLYTETRAFLUOROETHYLENE INTERMEDIATE LAYER STEEL COMP 410 OUTER LAYER
SURFACE TREATMENT	PASSIVATE OVERALL
STYLE DESIGNATOR	22C SOLID
OVERALL LENGTH	0.9810 INCHES MINIMUM AND 0.9880 INCHES MAXIMUM
BODY OUTSIDE DIAMETER	1.5015 INCHES MINIMUM AND 1.5020 INCHES MAXIMUM
BODY INSIDE DIAMETER	1.0000 INCHES MINIMUM AND 1.0005 INCHES MAXIMUM
FLANGE OUTSIDE DIAMETER	1.8650 INCHES MINIMUM AND 1.8850 INCHES MAXIMUM
FLANGE WIDTH	0.1820 INCHES MINIMUM AND 0.1860 INCHES MAXIMUM
CORNER SHAPE	SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER ROUND LEFT FLANGE BODY CORNER
SURFACE FINISH	90.0 MICROINCHES OVERALL
SPECIAL FEATURES	TEFLON FABRIC BONDED TO ID OF OUTER LAYER,OUTSIDE SURFACE OF INNER LAYER FINISHED TO 6 MICROINCH AA,INNER ANDOUTER LAYER MARKED W/SAME SERIAL NO.
III END ITEM IDENTIFICATION	HELICOPTER, MH-53E; HELICOPTER, HH-53H PAVE LOW; HELICOPTER, CARRIER BASED ASW, SH-60F; HELICOPTER, SEARCH AND RESCUE, HH-60H; HELICOPTER, USCG SEARCH AND RESCUE, HH-60J; HELICOPTER, ELECTRONIC COUNTERMEASURES, EH-60A; AIRCRAFT BLACK HAWK (MH-60K SPECIAL OPERATONS AIRCRAFT); HELICOPTER, SUPER JOLLY H-53; HELICOPTER, SEAHAWK, H-60; HH-60L MEDIVAC

Restrictions/Controls & Freight Information | NSN 3120-00-914-8671

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KE	Naval ICP Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-00-914-8671

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
