3120-00-980-0344 - ROD END PLAIN BEARING, NHN45, NHN4-5, RF4TH1

Product Details | ROD END PLAIN BEARING

3120-00-980-0344 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.

Part Alternates: NHN45, NHN4-5, RF4TH1, YTF125, 204011763001, 204-011-763-001, 2040117631, 204-011-763-1, 25820096 , 77353, 3120-00-980-0344, 00-980-0344, 3120009800344, 009800344

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1962	00-980-0344	13209 ( BEARING, PLAIN, ROD END )

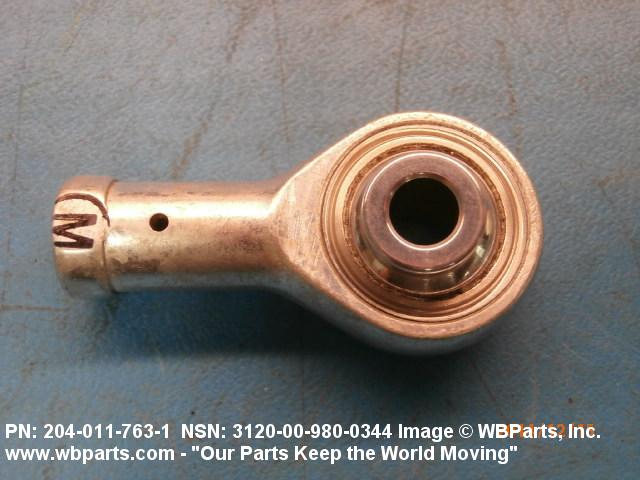

Drawings & Photos | NSN 3120-00-980-0344

Part Number	Request Date	QTY	Origin
3120-00-980-0344	2022-08-04	5	MX
3120-00-980-0344	2015-08-12	1	United States
2040117631	2014-09-02	5	Turkey
204011763001	2013-09-05	4	United States
204011763001	2011-09-30	4	US
2040117631	2011-07-11	4	US
3120-00-980-0344	2011-01-24	10	US
3120-00-980-0344	2009-02-05	4	Philippines
2040117631	2008-09-11	3	United States

Cross Reference | NSN 3120-00-980-0344

Part Number	Cage Code	Manufacturer
204-011-763-001	97499	BELL HELICOPTER TEXTRON INC.
204-011-763-1	97499	BELL HELICOPTER TEXTRON INC.
77353	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
NHN4-5	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION

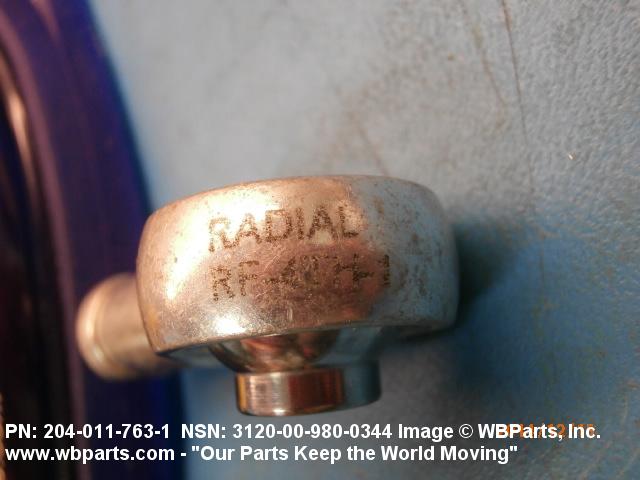

RF4TH1	99528	RADIAL BEARING CORPORATION
YTF125	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3120-00-980-0344

Compare

Related Products | NSN 3120-00-980-0344

3120-00-980-1079, 3120-00-980-2324, 3120-00-980-3950, 3120-00-980-3957, 3120-00-980-3974

Technical Data | NSN 3120-00-980-0344

Characteristic	Specifications
MATERIAL	STEEL INNER MEMBER STEEL RACE INSERT PLASTIC TETRAFLUOROETHYLENE RACE LINER STEEL ROD END BODY
MATERIAL DOCUMENT AND CLASSIFICATION	FED-STD-66 FED STD SINGLE MATERIAL RESPONSE INNER MEMBER FED-STD-66 FED STD SINGLE MATERIAL RESPONSE RACE INSERT FED-STD-66 FED STD SINGLE MATERIAL RESPONSE RACE LINER FED-STD-66 FED STD SINGLE MATERIAL RESPONSE ROD END BODY
HARDNESS RATING	57.0 ROCKWELL C MINIMUM INNER MEMBER 61.0 ROCKWELL C MAXIMUM RACE INSERT 36.0 ROCKWELL C NOMINAL ROD END BODY
SURFACE TREATMENT	CHROMIUM INNER MEMBER CADMIUM ROD END BODY
STYLE DESIGNATOR	4 BALL TYPE EXTENDED ONE SIDE

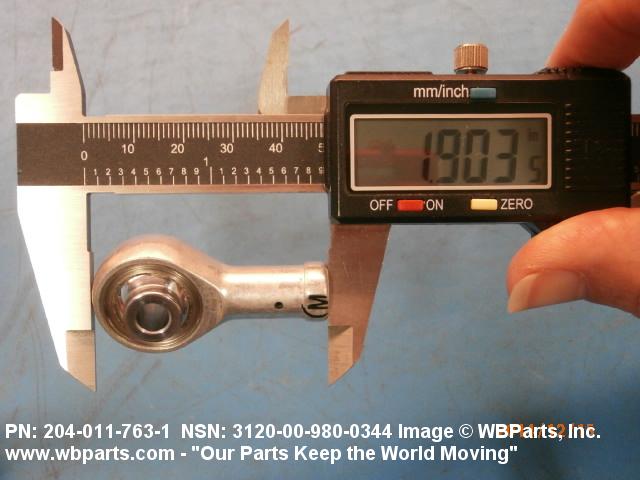

OVERALL LENGTH	1.8735 INCHES MINIMUM AND 1.9160 INCHES MAXIMUM
BORE DIAMETER	0.2494 INCHES MINIMUM AND 0.2497 INCHES MAXIMUM

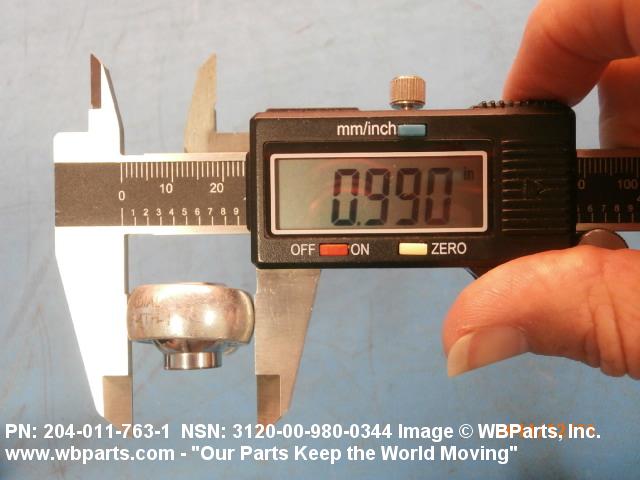

OUTER MEMBER OUTSIDE DIAMETER	1.0000 INCHES MAXIMUM

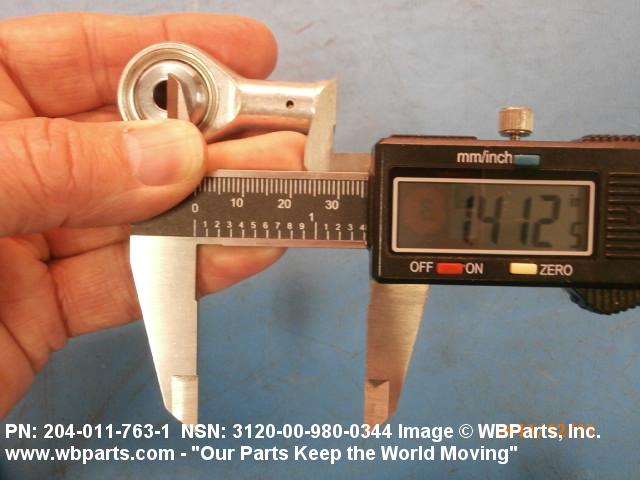

BORE CENTER TO SHANK END DISTANCE	1.3960 INCHES MINIMUM AND 1.4160 INCHES MAXIMUM
OUTER MEMBER WIDTH	0.4060 INCHES MAXIMUM
INNER MEMBER WIDTH	0.6500 INCHES MINIMUM AND 0.6600 INCHES MAXIMUM
SHANK END TO SHOULDER LENGTH	0.8960 INCHES MINIMUM AND 0.9160 INCHES MAXIMUM
SHANK STYLE	5 INTERNALLY THREADED W/BEAD AND WRENCH FLATS AND INSPECTION HOLE
SHANK THREAD LENGTH	0.7200 INCHES MINIMUM AND 0.8100 INCHES MAXIMUM
INSPECTION HOLE CENTER TO END DISTANCE	0.4010 INCHES MINIMUM AND 0.4110 INCHES MAXIMUM
SHANK WIDTH ACROSS WRENCH FLATS	0.4270 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNF
THREAD DIAMETER	0.312 INCHES NOMINAL
THREAD QUANTITY PER INCH	24
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MANUFACTURERS CODE	97499
MFR SOURCE CONTROLLING REFERENCE	204-011-763-1

Restrictions/Controls & Freight Information | NSN 3120-00-980-0344

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	723	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable
NMF Description	114850	BEARING/BUSHING O/T BALL/ROLLER I/S
Less than car load rating	W	Rating Variable
Less than truck load rating	Q	70.0
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-00-980-0344

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BA	UH-1
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	GA	TG:H-1 IROQUOIS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
