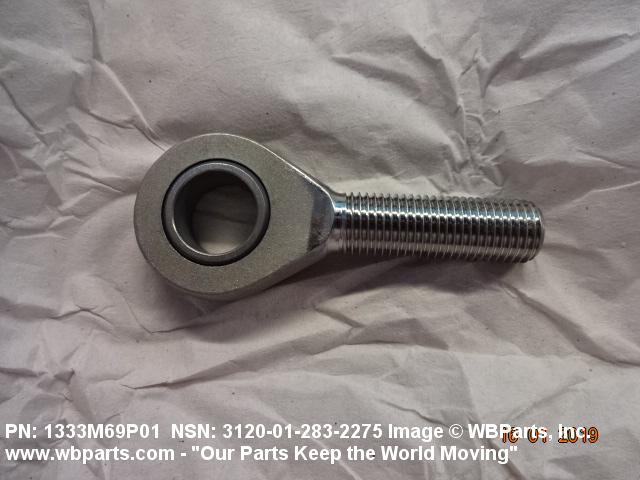

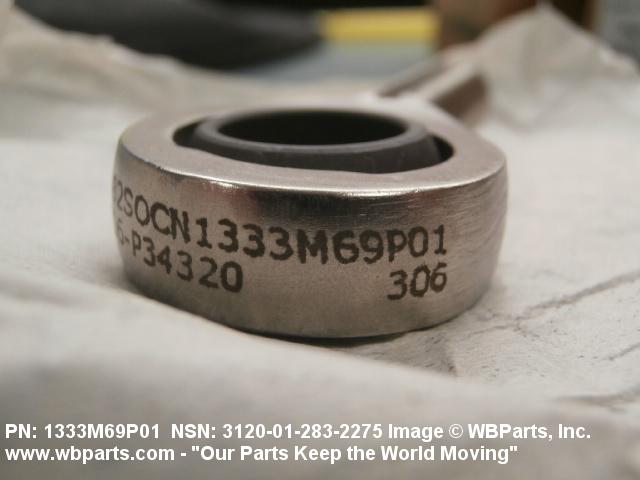

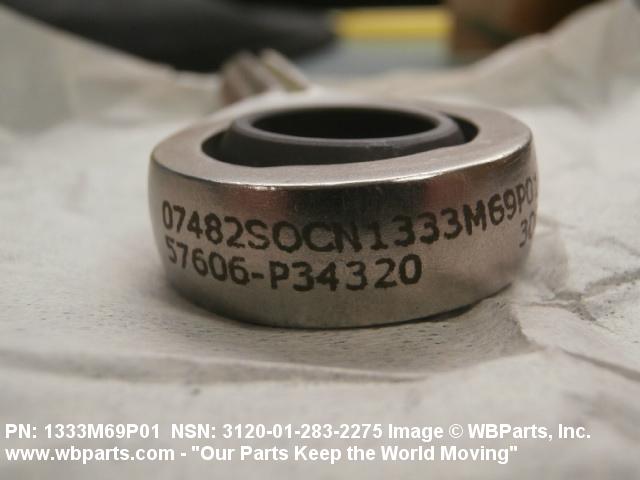

Product Details | ROD END PLAIN BEARING
3120-01-283-2275 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: P34320, 1333969P001, 1333M69P01 , 1333M69P02, 1333M69P03, 133M69P01, 133M69P03, 3120-01-283-2275, 01-283-2275, 3120012832275, 012832275
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 30 JUL 1988 | 01-283-2275 | 13209 ( BEARING, PLAIN, ROD END ) |

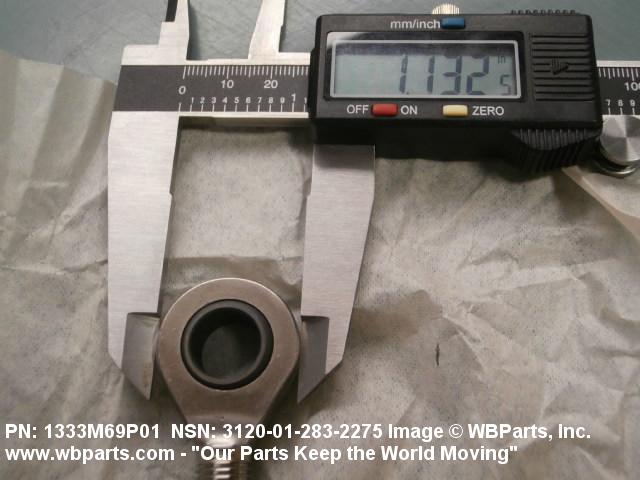

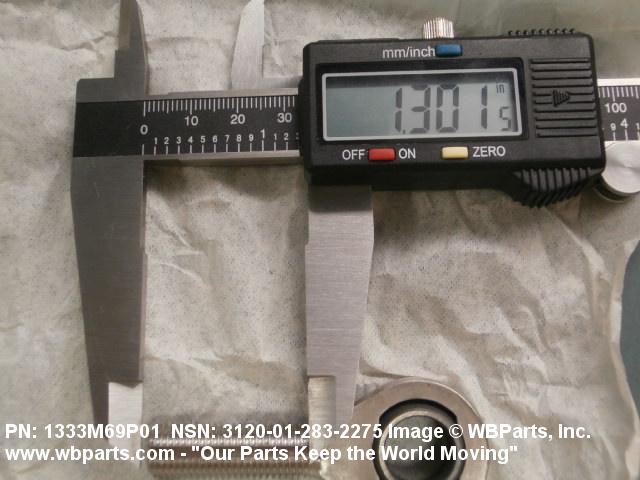

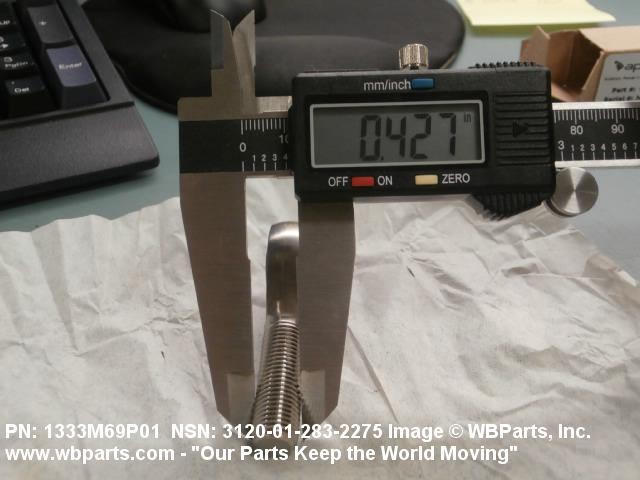

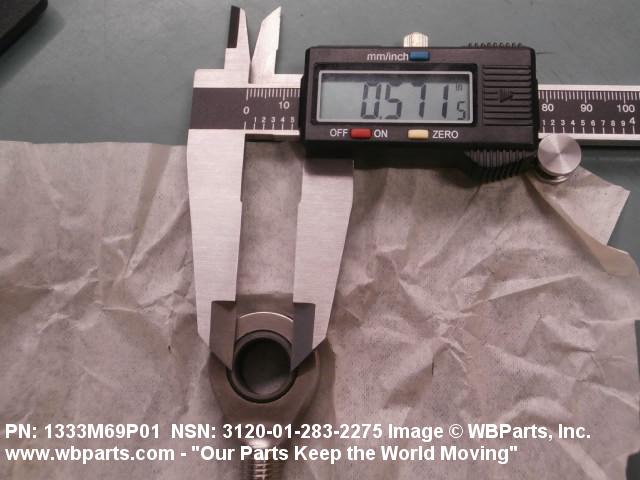

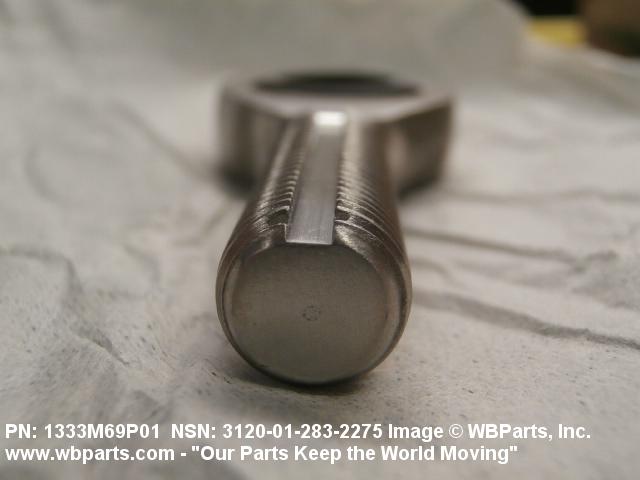

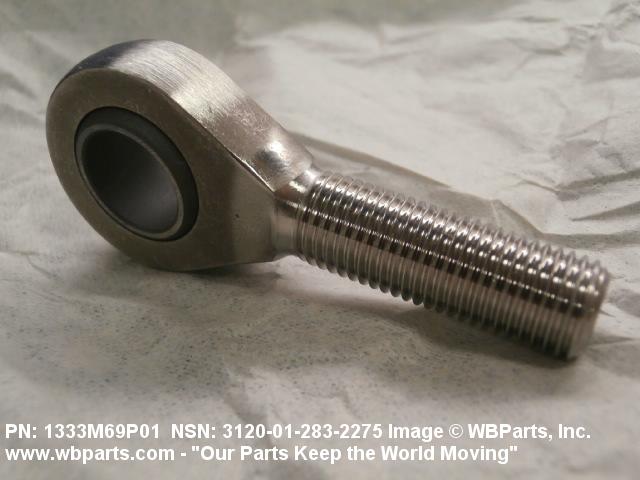

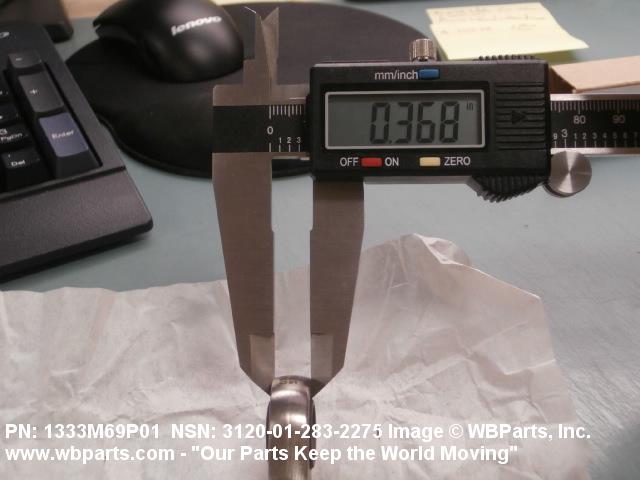

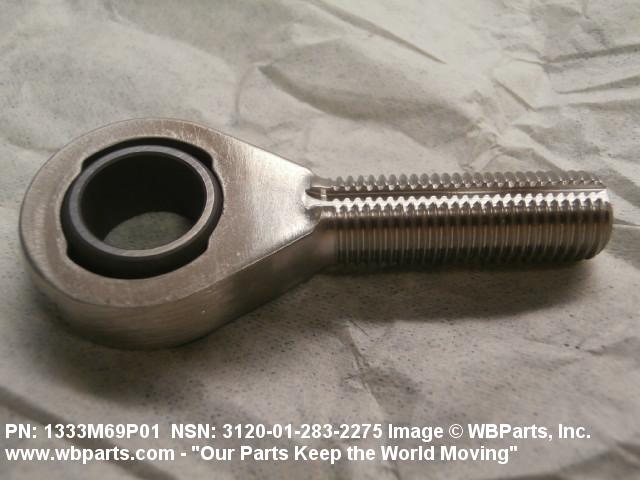

Drawings & Photos | NSN 3120-01-283-2275
Demand History | NSN 3120-01-283-2275
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-283-2275 | 2024-07-207 | 10 | US |
| 3120-01-283-2275 | 2024-07-199 | 10 | US |
| 3120-01-283-2275 | 2024-04-117 | 2 | IE |
| 3120-01-283-2275 | 2020-06-174 | 1 | DIBBS-RFPs |
| 1333M69P01 | 2019-12-350 | 3 | CA |
| 3120-01-283-2275 | 2019-12-345 | 3 | US |
| 1333M69P01 | 2019-12-343 | 1 | US |
| 1333M69P01 | 2019-12-343 | 1 | US |
| 3120-01-283-2275 | 2019-09-262 | 10 | United States |
| 3120-01-283-2275 | 2019-09-254 | 3 | Australia |
| 133M69P01 | 2018-11-330 | 1 | Australia |
| 3120-01-283-2275 | 2017-09-257 | 3 | United States |
| 1333M69P01 | 2015-05-140 | 2 | United States |
| 1333M69P01 | 2014-09-265 | 2 | United States |
| 1333M69P01 | 2014-07-191 | 2 | United States |
| 1333M69P01 | 2014-07-191 | 2 | United States |
| 3120-01-283-2275 | 2014-06-164 | 1 | DIBBS-RFPs |
| 3120-01-283-2275 | 2013-12-351 | 125 | DIBBS |
| 3120-01-283-2275 | 2013-12-343 | 125 | DIBBS |
| 1333M69P01 | 2013-03-64 | 1 | SG |
| 1333M69P01 | 2013-02-51 | 2 | United States |
| 3120-01-283-2275 | 2013-01-14 | 5 | UK |
| 3120-01-283-2275 | 2011-04-101 | 100 | DIBBS |
| 3120-01-283-2275 | 2010-08-217 | 49 | DIBBS |
| 3120-01-283-2275 | 2010-06-166 | 46 | DIBBS |
| 3120-01-283-2275 | 2009-02-35 | 26 | DIBBS |
| 3120-01-283-2275 | 2009-01-02 | 3 | DIBBS |
| 3120-01-283-2275 | 2008-11-316 | 41 | DIBBS |
| 3120-01-283-2275 | 2008-10-304 | 102 | DIBBS |
| 1333M69P01 | 2007-04-114 | 2 | Canada |
| 3120-01-283-2275 | 2007-02-37 | 32 | DIBBS |
| 3120-01-283-2275 | 2007-01-22 | 32 | DIBBS |
Cross Reference | NSN 3120-01-283-2275
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1333M69P01 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| 1333M69P01 | 57606 | REXNORD INDUSTRIES, LLC DBA INDUSTRIAL COMPONENTS DIV |
| 1333M69P02 | 06710 | VALLEY-TODECO, INC. |
| 1333M69P02 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| 1333M69P03 | 02758 | U S BEARINGS |
| P34320 | 57606 | REXNORD INDUSTRIES, LLC DBA INDUSTRIAL COMPONENTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-283-2275
Related Products | NSN 3120-01-283-2275
Technical Data | NSN 3120-01-283-2275
| Characteristic | Specifications |
|---|---|
| MATERIAL | COBALT COMP 6 INNER MEMBER STEEL COMP 630 ROD END BODY |
| HARDNESS RATING | 37.0 ROCKWELL C NOMINAL INNER MEMBER 35.0 ROCKWELL C NOMINAL ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |

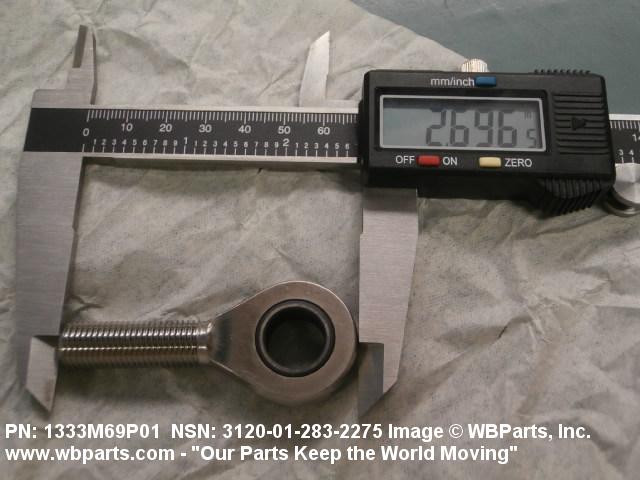

| OVERALL LENGTH | 2.6890 INCHES MINIMUM AND 2.7110 INCHES MAXIMUM |
| BORE DIAMETER | 0.5380 INCHES MINIMUM AND 0.5383 INCHES MAXIMUM |

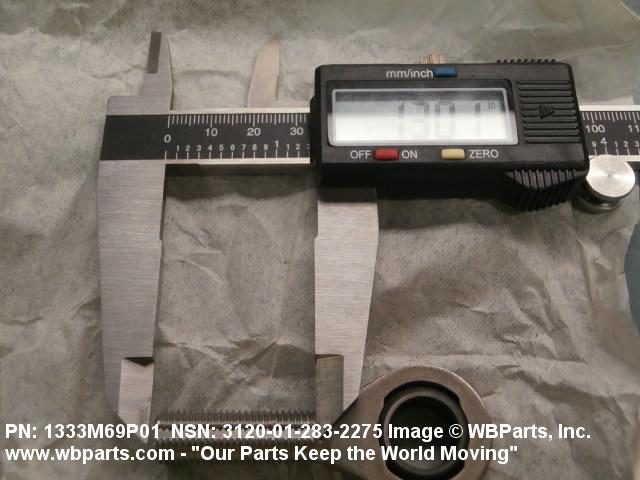

| OUTER MEMBER OUTSIDE DIAMETER | 1.1400 INCHES MINIMUM AND 1.1600 INCHES MAXIMUM |
