Product Details | ROD END PLAIN BEARING

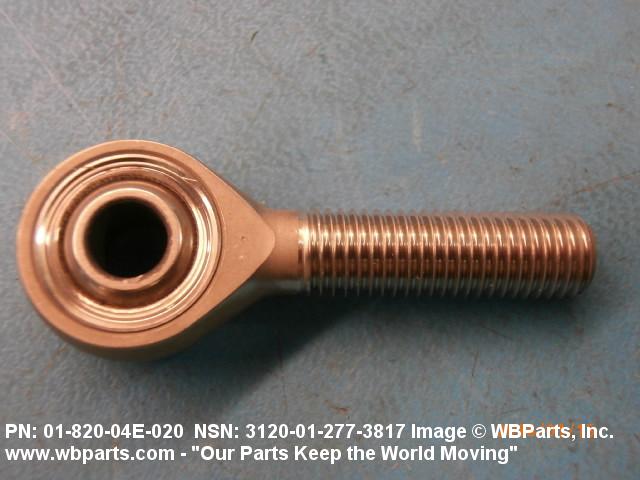

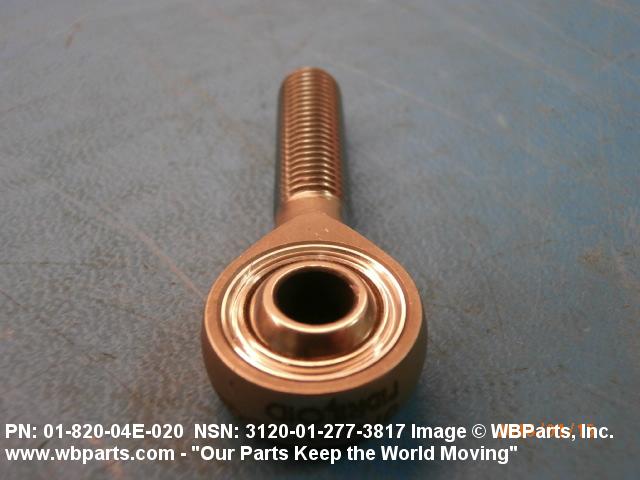

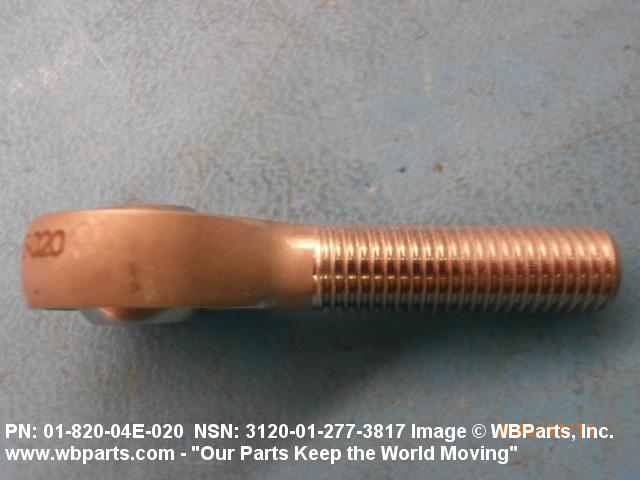

3120-01-277-3817 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: 0182004E020, 01-820-04E-020, 3120-01-277-3817, 01-277-3817, 3120012773817 , 012773817
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 21 APR 1988 | 01-277-3817 | 13209 ( BEARING, PLAIN, ROD END ) |

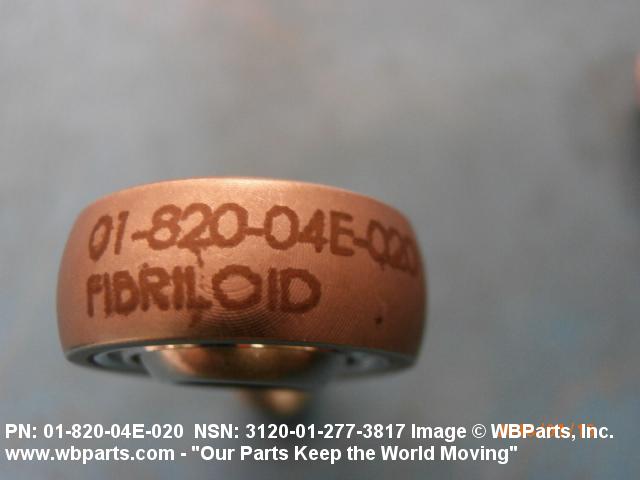

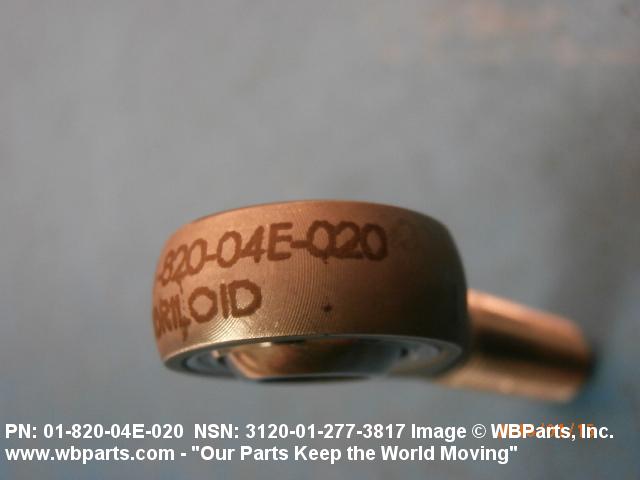

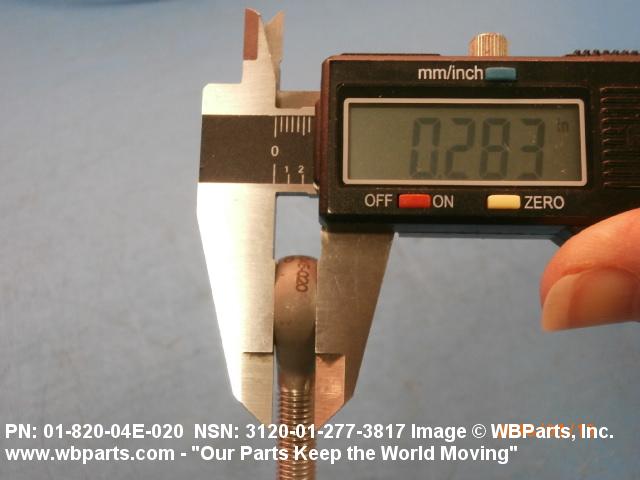

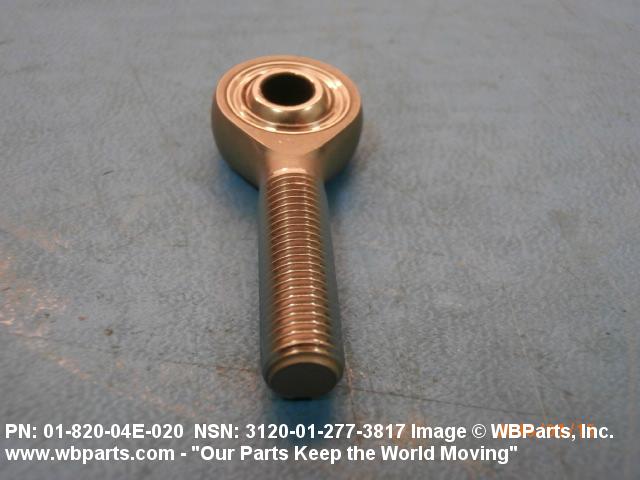

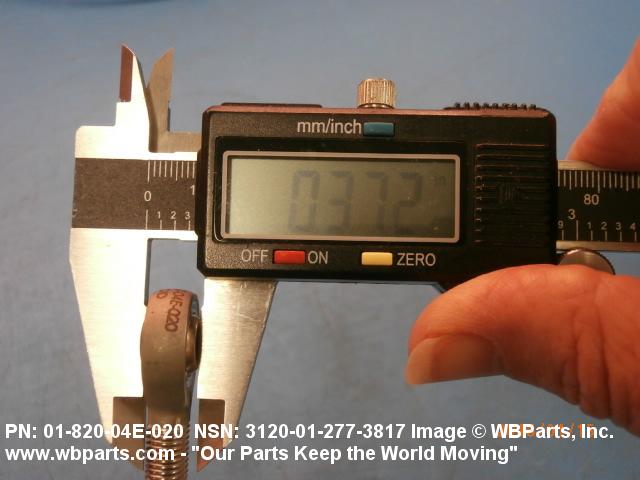

Drawings & Photos | NSN 3120-01-277-3817
Demand History | NSN 3120-01-277-3817
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 01-820-04E-020 | 2023-03-16 | 4 | DIBBS |
| 01-820-04E-020 | 2023-01-17 | 23 | DIBBS |
| 01-820-04E-020 | 2022-01-25 | 35 | DIBBS |
| 01-820-04E-020 | 2021-12-19 | 37 | DIBBS |
| 01-820-04E-020 | 2021-09-26 | 33 | DIBBS |
| 3120-01-277-3817 | 2021-07-08 | 1 | United States |
| 01-820-04E-020 | 2021-06-20 | 17 | DIBBS |
| 01-820-04E-020 | 2021-02-15 | 20 | DIBBS |
| 01-820-04E-020 | 2020-10-16 | 28 | DIBBS |
| 01-820-04E-020 | 2020-10-07 | 28 | DIBBS |
| 0182004E020 | 2020-05-19 | 5 | United States |
| 3120-01-277-3817 | 2018-08-07 | 52 | DIBBS |
| 3120-01-277-3817 | 2017-04-06 | 28 | DIBBS |
| 3120-01-277-3817 | 2017-01-09 | 96 | DIBBS |
| 3120-01-277-3817 | 2016-11-09 | 34 | DIBBS |
| 3120-01-277-3817 | 2016-09-12 | 34 | DIBBS |
| 3120-01-277-3817 | 2016-07-14 | 30 | DIBBS |
| 3120-01-277-3817 | 2015-10-28 | 2 | United States |
| 3120-01-277-3817 | 2014-05-01 | 150 | DIBBS |
| 3120-01-277-3817 | 2014-02-25 | 57 | DIBBS |
| 3120-01-277-3817 | 2012-11-14 | 48 | DIBBS |
| 3120-01-277-3817 | 2011-12-28 | 42 | DIBBS |
| 3120-01-277-3817 | 2011-01-21 | 20 | DIBBS |
| 3120-01-277-3817 | 2007-11-06 | 23 | DIBBS |
| 3120-01-277-3817 | 2007-10-19 | 23 | DIBBS |
| 3120-01-277-3817 | 2006-03-07 | 5 | United States |
| 3120-01-277-3817 | 2006-02-27 | 5 | United States |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3120-01-277-3817
Related Products | NSN 3120-01-277-3817
3120-01-277-3964, 3120-01-277-4262, 3120-01-277-4263, 3120-01-277-4264, 3120-01-277-4433
Technical Data | NSN 3120-01-277-3817
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 630 RACE INSERT FIBER RACE LINER STEEL COMP XM-13 ROD END BODY |
| HARDNESS RATING | 56.0 ROCKWELL C MINIMUM AND 60.0 ROCKWELL C MAXIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM RACE INSERT |
| STYLE DESIGNATOR | 6 BALL TYPE |

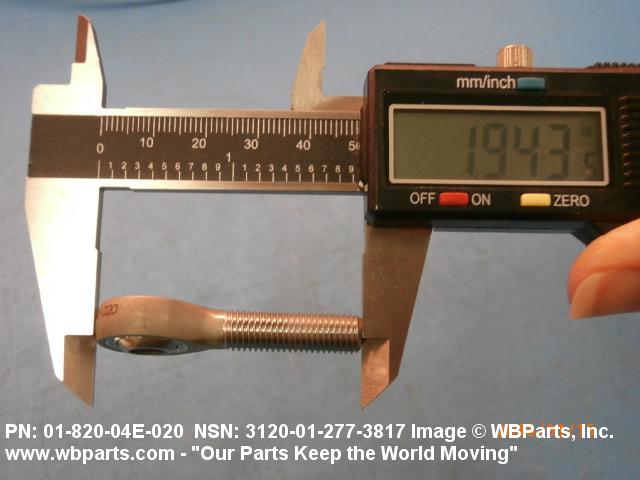

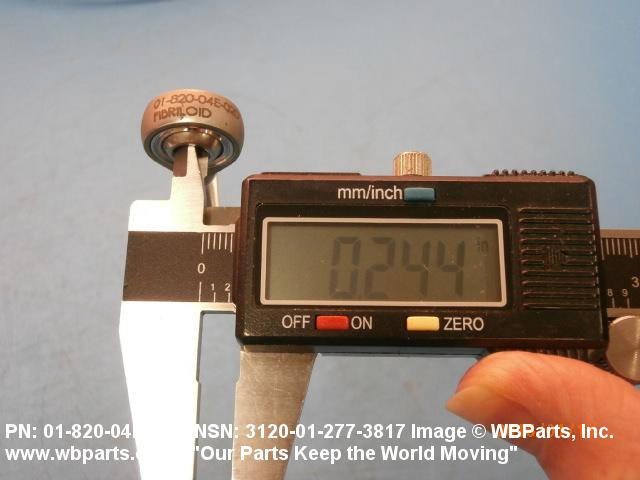

| OVERALL LENGTH | 1.9370 INCHES NOMINAL |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |

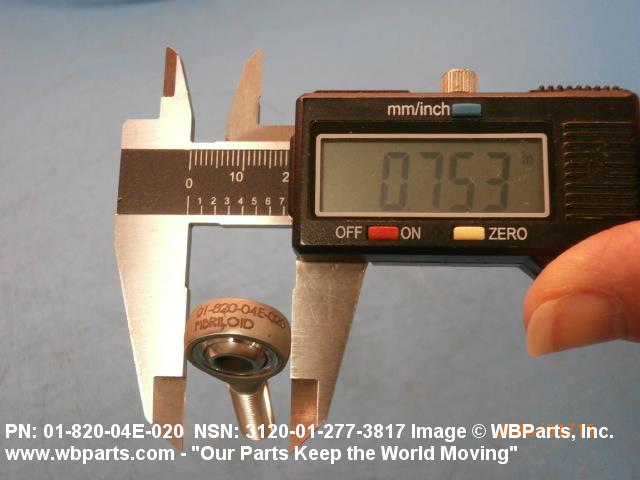

| OUTER MEMBER OUTSIDE DIAMETER | 0.7500 INCHES NOMINAL |

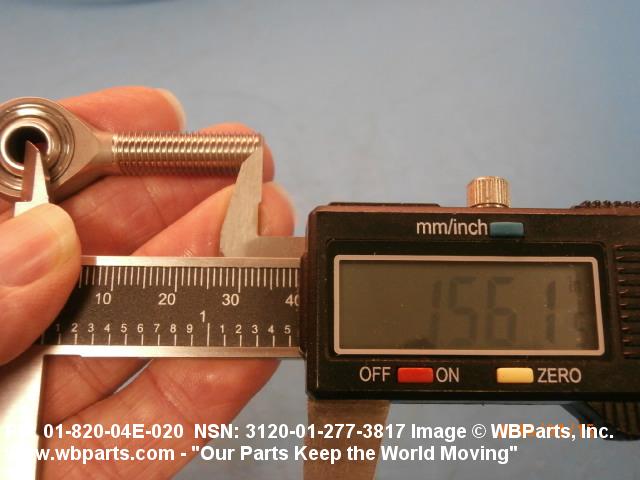

| BORE CENTER TO SHANK END DISTANCE | 1.5620 INCHES NOMINAL |
