NSN 3120-01-053-7058 MS2124005A012, MS21240-05A012, M81934

Product Details | SLEEVE BEARING

3120-01-053-7058 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.

Part Alternates: MS2124005A012, MS21240-05A012, M81934, M81934/1-05A012, M81934105A012, AD05A012, AHJ05A012, AS81934/1, AS819341, BJ10TF05A012, BJ10TF-05A012, ST4M12805A012, ST4M128-05A012, PBRR05A012, PBRR-05A012, KDJ05A012, KRJ5YB05A012M, KRJ5YB-05A012M, MILB81934, MIL-B-81934, 0638205A012, 06-382-05A012, 1220205A012, 122-0205A012, 3120-01-053-7058, 01-053-7058, 3120010537058, 010537058

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	09 JAN 1978	01-053-7058	13205 ( BEARING, SLEEVE )

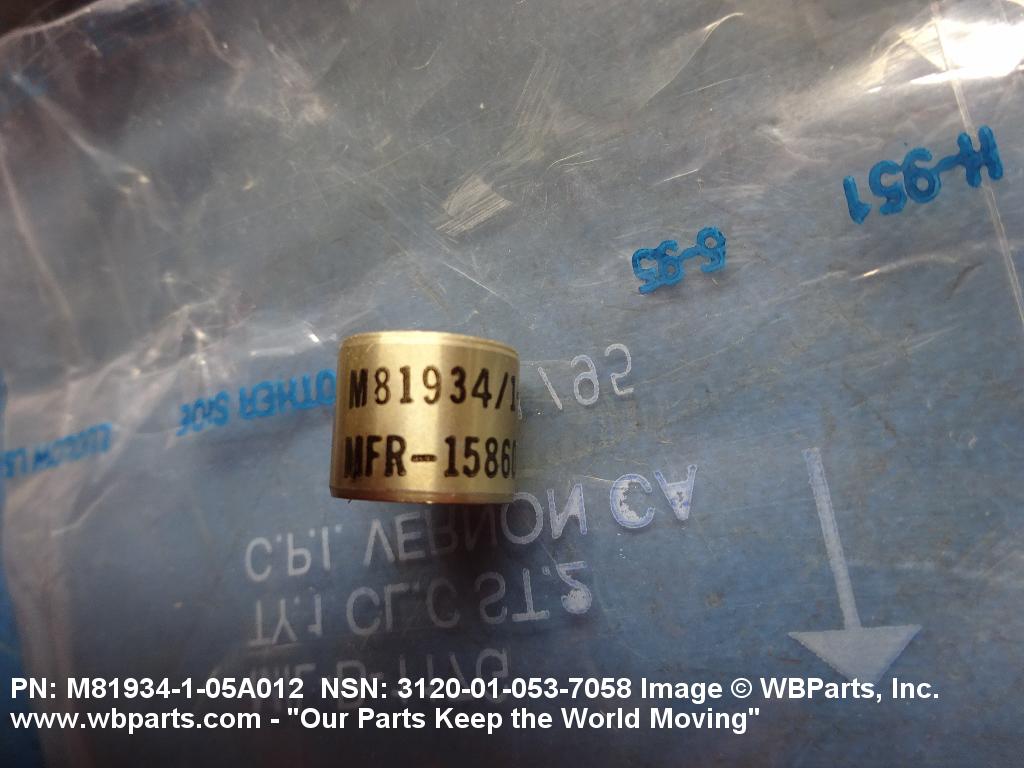

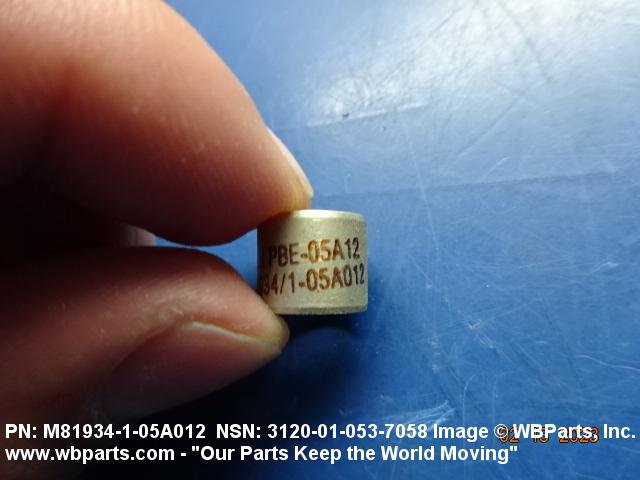

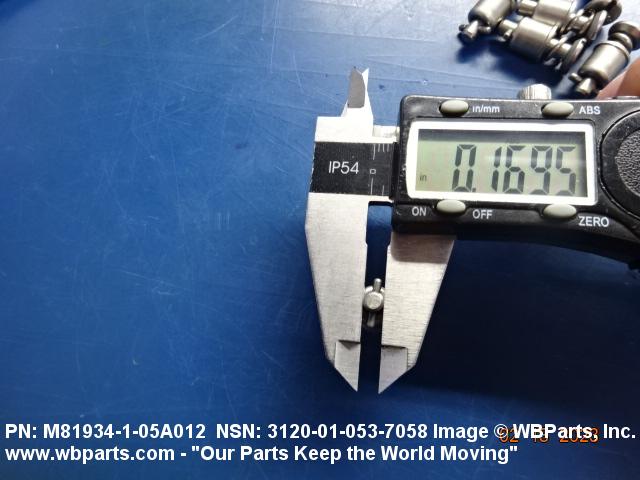

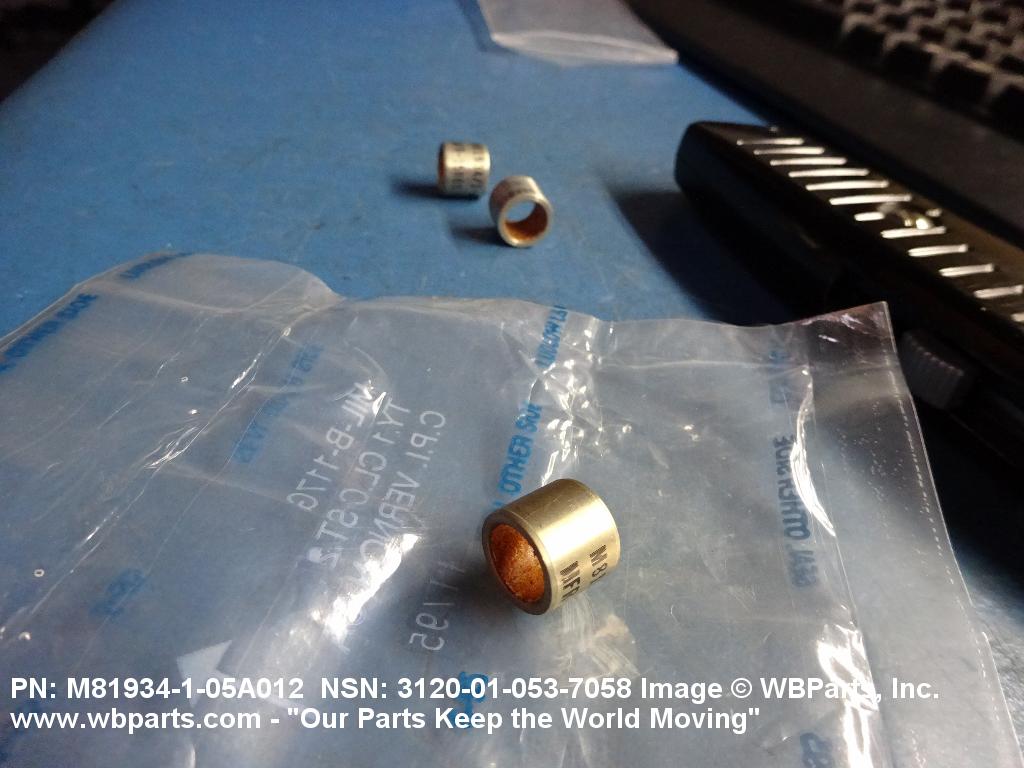

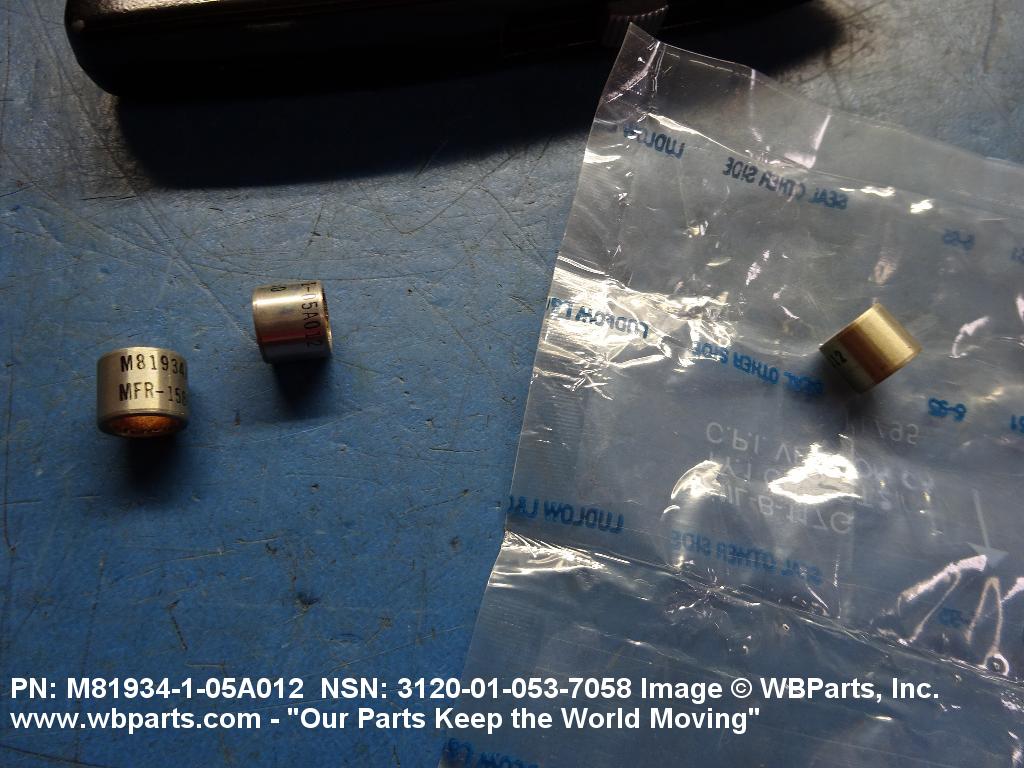

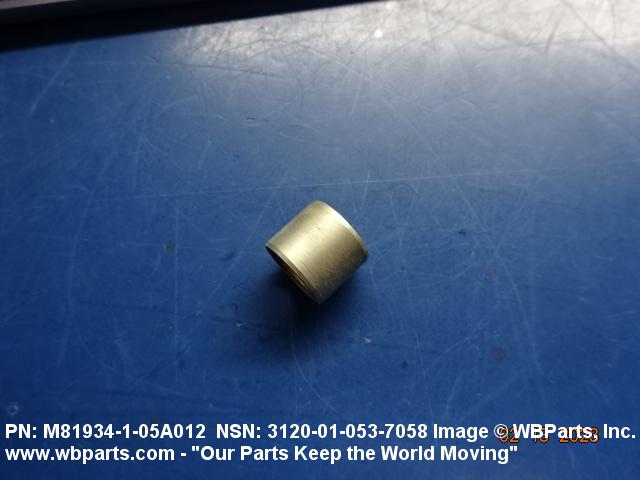

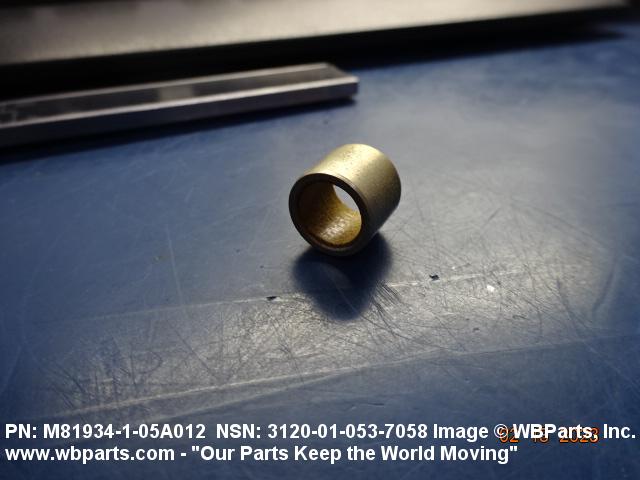

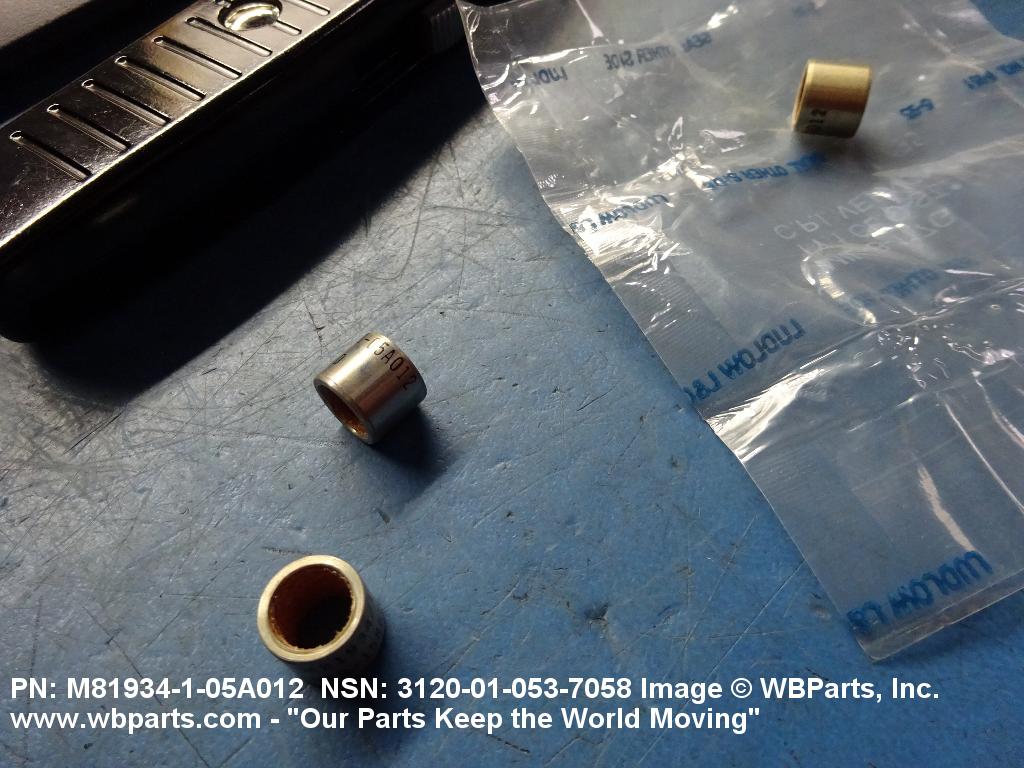

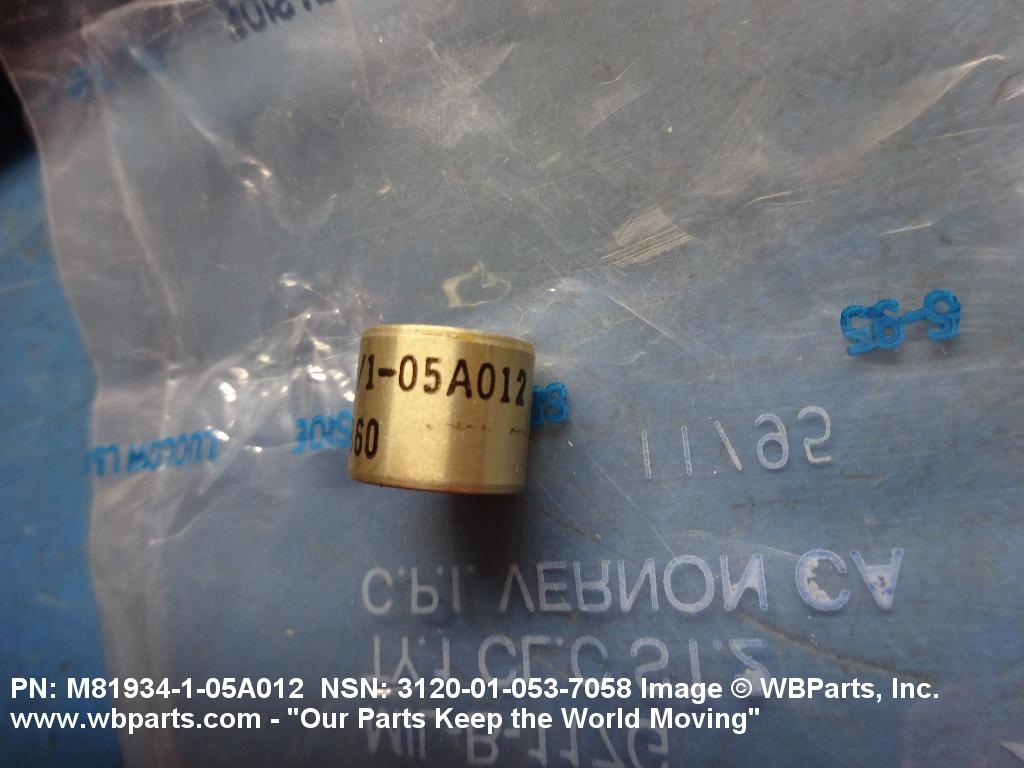

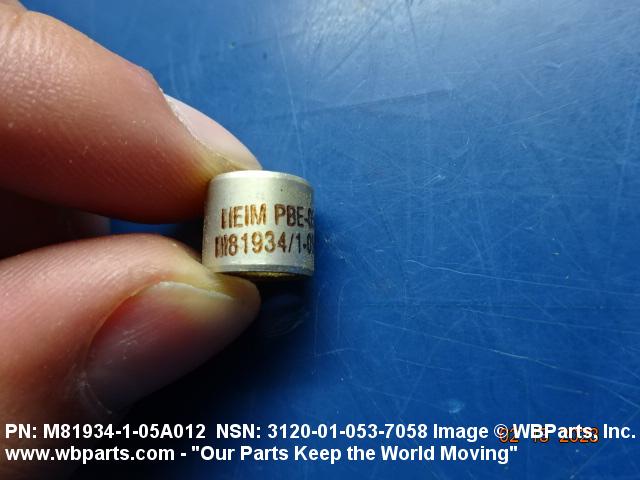

Drawings & Photos | NSN 3120-01-053-7058

Part Number	Request Date	QTY	Origin
3120-01-053-7058	2025-06-166	45	DIBBS
3120-01-053-7058	2025-02-54	34	DIBBS
3120-01-053-7058	2024-04-113	34	DIBBS
3120-01-053-7058	2024-04-105	34	DIBBS
3120-01-053-7058	2023-11-306	67	DIBBS
3120-01-053-7058	2022-11-320	40	South Africa
M81934105A012	2022-10-294	60	South Africa
M81934105A012	2022-10-290	6	South Africa
3120-01-053-7058	2022-02-38	134	DIBBS
3120-01-053-7058	2022-01-30	134	DIBBS
3120-01-053-7058	2021-11-330	67	DIBBS
3120-01-053-7058	2021-11-322	67	DIBBS
M81934	2021-10-294	5	United States
3120-01-053-7058	2021-07-196	67	DIBBS
M81934105A012	2021-04-111	24	South Africa
M81934105A012	2021-03-62	24	South Africa
M81934105A012	2020-10-290	8	South Africa
M81934105A012	2020-10-289	8	South Africa
M81934105A012	2018-10-284	16	South Africa
3120-01-053-7058	2017-03-86	107	DIBBS
3120-01-053-7058	2015-02-40	63	DIBBS
3120-01-053-7058	2014-12-356	113	DIBBS
3120-01-053-7058	2014-10-280	112	DIBBS
3120-01-053-7058	2014-07-197	104	DIBBS
M81934105A012	2014-07-192	150	United States
3120-01-053-7058	2014-06-164	59	DIBBS
M81934105A012	2013-12-337	44	US
3120-01-053-7058	2012-03-67	148	DIBBS
3120-01-053-7058	2011-01-06	174	DIBBS
M81934	2010-04-106	225	US
3120-01-053-7058	2010-04-95	37	DIBBS
3120-01-053-7058	2009-12-355	23	DIBBS
3120-01-053-7058	2009-11-334	15	DIBBS
3120-01-053-7058	2009-11-307	15	DIBBS
3120-01-053-7058	2008-03-91	4	United States
MILB81934	2007-07-199	50	US

Cross Reference | NSN 3120-01-053-7058

Part Number	Cage Code	Manufacturer
06-382-05A012	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
122-0205A012	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
AD05A012	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
AHJ05A012	50294	NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB
AS81934/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
BJ10TF-05A012	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
BJ10TF05A012	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KDJ05A012	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
KRJ5YB-05A012M	50632	KAMATICS CORPORATION
M81934	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M81934/1-05A012	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M81934/1-05A012	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-B-81934	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS21240-05A012	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PBRR-05A012	73134	ROLLER BEARING COMPANY OF AMERICA, INC.
ST4M128-05A012	76301	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-053-7058

Compare

Related Products | NSN 3120-01-053-7058

3120-01-053-7059, 3120-01-053-7061, 3120-01-053-7063, 3120-01-053-7064, 3120-01-053-7357

Technical Data | NSN 3120-01-053-7058

Characteristic	Specifications
MATERIAL	PLASTIC POLYTETRAFLUOROETHYLENE INNER LAYER ALUMINUM ALLOY 2024 OUTER LAYER
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-200/3 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225-6 FED SPEC SINGLE MATERIAL RESPONSE OUTER LAYER
STYLE DESIGNATOR	17C SOLID

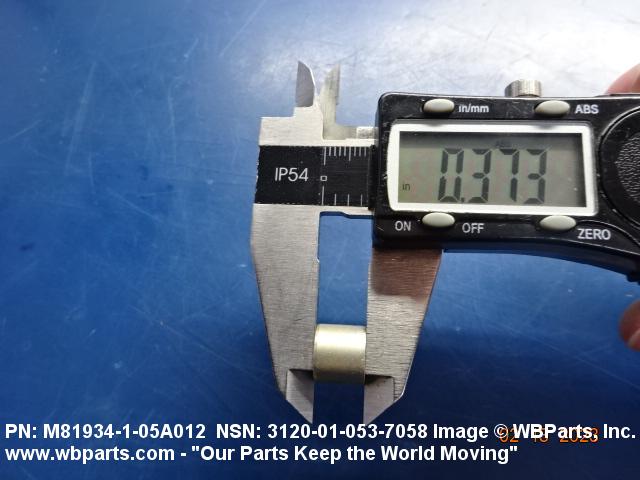

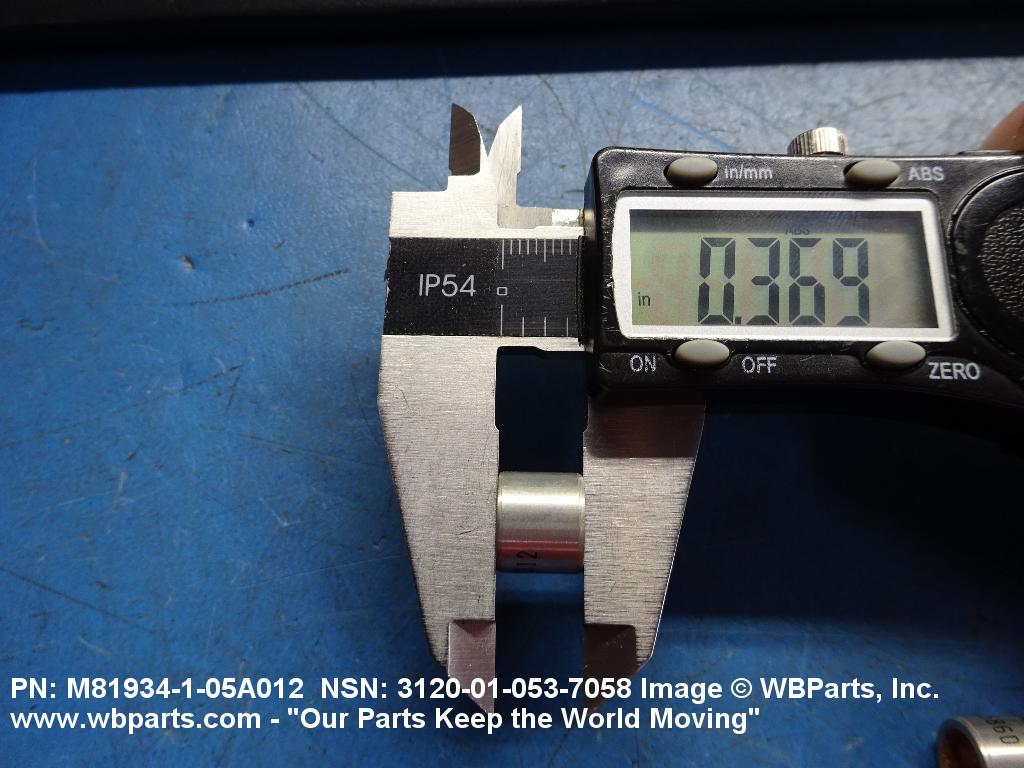

OVERALL LENGTH	0.3650 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM

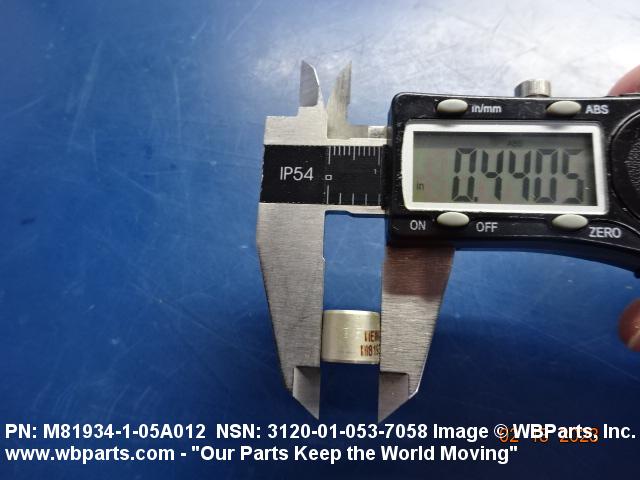

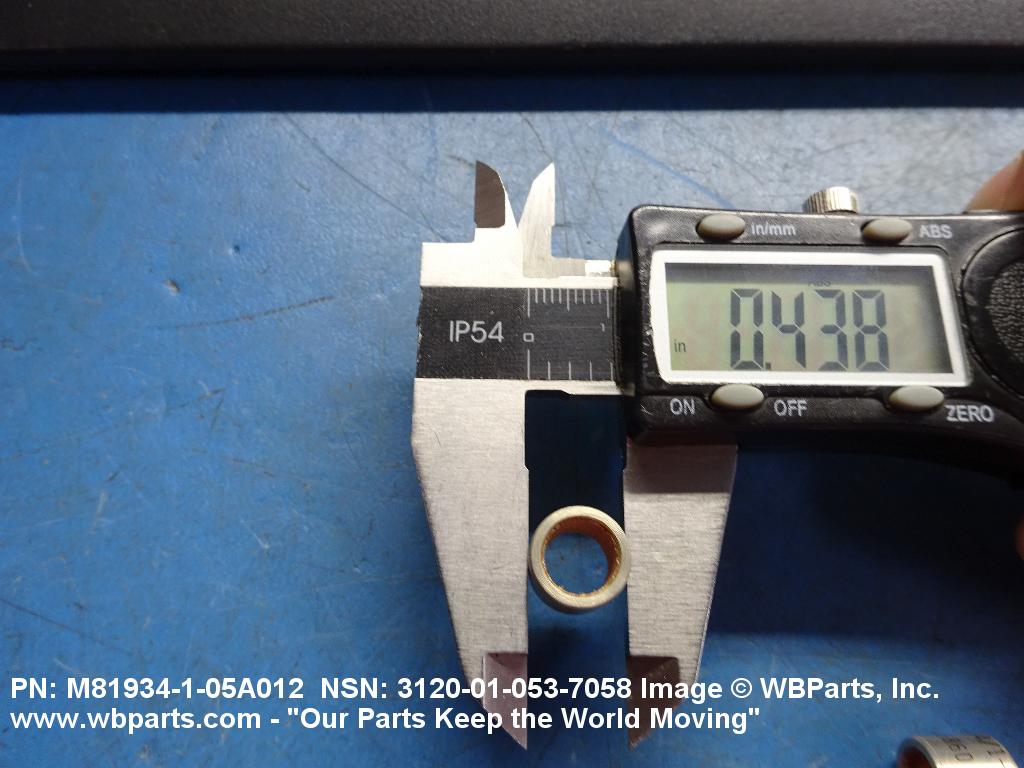

BODY OUTSIDE DIAMETER	0.4381 INCHES MINIMUM AND 0.4391 INCHES MAXIMUM

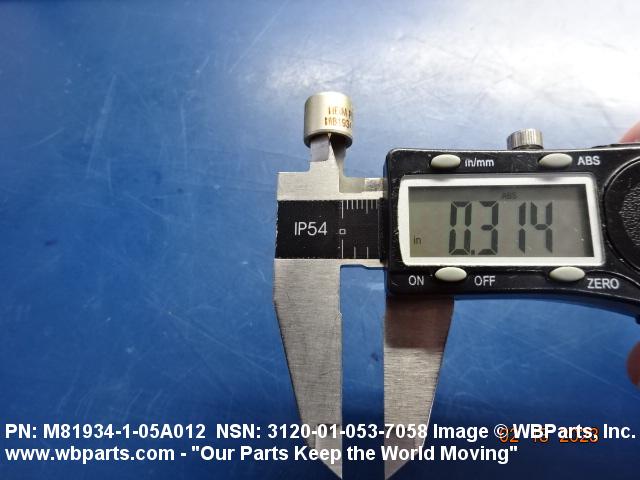

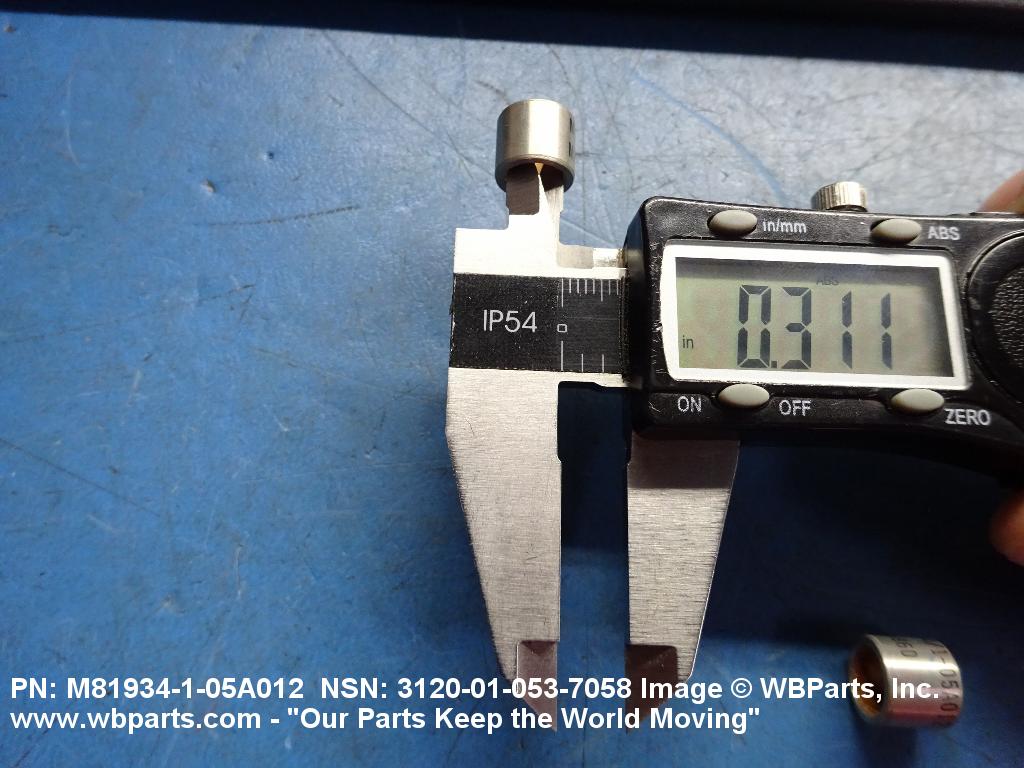

BODY INSIDE DIAMETER	0.3130 INCHES MINIMUM AND 0.3140 INCHES MAXIMUM
CORNER SHAPE	SQUARE ALL CORNERS
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M81934

Restrictions/Controls & Freight Information | NSN 3120-01-053-7058

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114870	BEARING/BUSHING METAL
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-01-053-7058

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
