NSN 3120-01-092-2154 SB5204105, SB5204-105, KDJ 16-92

Product Details | SLEEVE BEARING

3120-01-092-2154 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.

Part Alternates: SB5204105, SB5204-105, KDJ 16-92, KDJ1692, 3120-01-092-2154, 01-092-2154, 3120010922154, 010922154

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	21 MAR 1980	01-092-2154	13205 ( BEARING, SLEEVE )

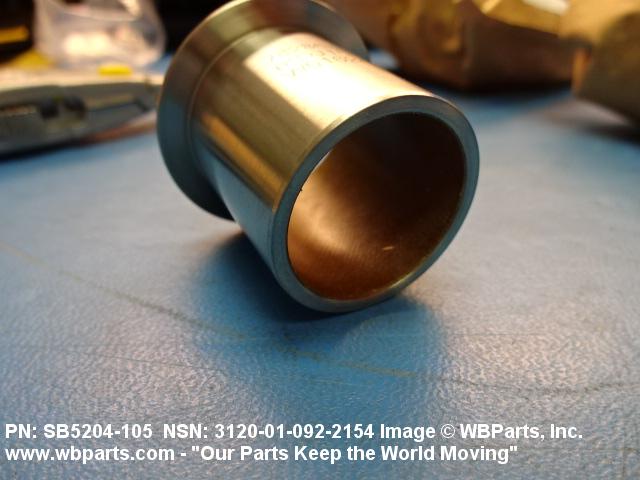

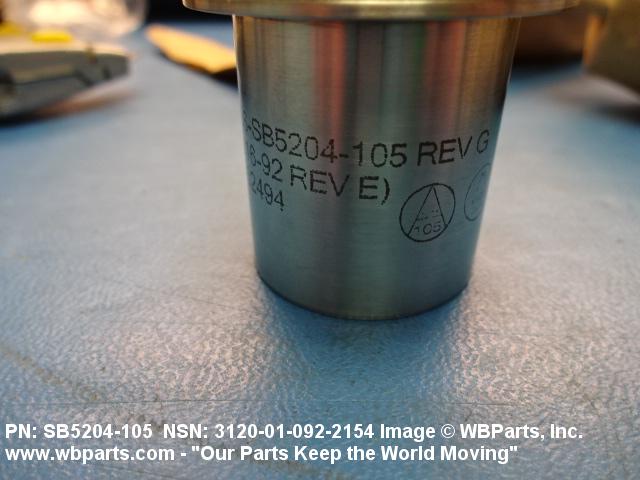

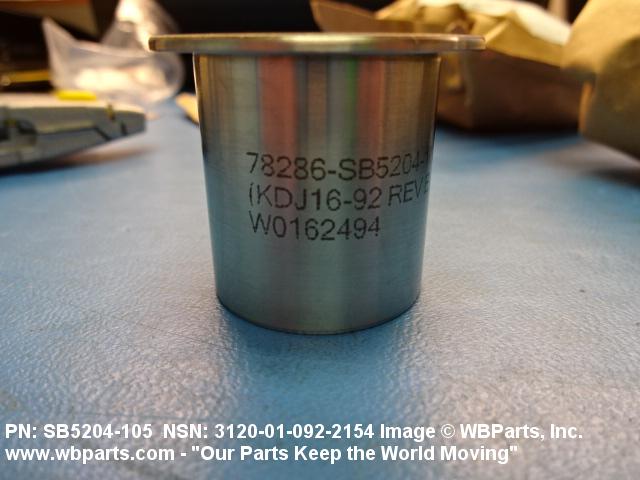

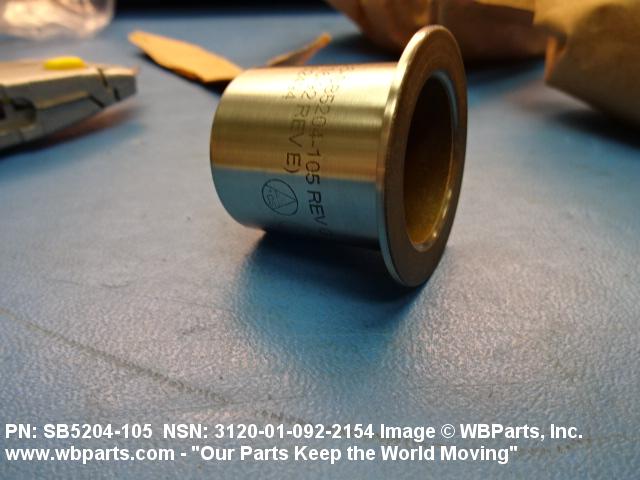

Drawings & Photos | NSN 3120-01-092-2154

Part Number	Request Date	QTY	Origin
3120-01-092-2154	2025-01-17	6	US
SB5204105	2024-08-235	40	US
SB5204105	2024-08-235	72	US
SB5204-105	2024-07-213	175	DIBBS
3120-01-092-2154	2024-07-205	2	US
SB5204105	2024-07-204	2	US
SB5204-105	2024-03-65	1556	DIBBS
SB5204-105	2024-02-53	185	DIBBS
SB5204-105	2023-09-264	256	DIBBS
SB5204-105	2023-05-143	1205	DIBBS
SB5204-105	2023-03-79	250	DIBBS
SB5204-105	2022-11-326	404	DIBBS
3120-01-092-2154	2022-09-270	115	United States
SB5204-105	2022-08-235	294	DIBBS
SB5204-105	2022-04-107	419	DIBBS
SB5204-105	2022-01-19	211	DIBBS
SB5204-105	2021-10-285	216	DIBBS
SB5204-105	2021-07-200	234	DIBBS
SB5204105	2021-06-166	6	US
3120-01-092-2154	2021-06-154	10	MANUAL
SB5204-105	2021-04-119	400	DIBBS
3120-01-092-2154	2020-09-247	1	United States
3120-01-092-2154	2020-09-246	1	United States
3120-01-092-2154	2017-12-362	351	DIBBS
3120-01-092-2154	2017-12-345	1	DIBBS-RFPs
SB5204105	2017-03-73	6	Canada
SB5204105	2017-03-73	6	Canada
3120-01-092-2154	2017-02-43	215	DIBBS
3120-01-092-2154	2016-11-313	293	DIBBS
3120-01-092-2154	2016-05-144	244	DIBBS
3120-01-092-2154	2016-03-80	802	DIBBS
3120-01-092-2154	2015-12-363	193	DIBBS
3120-01-092-2154	2015-11-327	226	DIBBS
3120-01-092-2154	2015-10-281	291	DIBBS
3120-01-092-2154	2015-03-84	1	DIBBS-RFPs
3120-01-092-2154	2015-03-82	254	DIBBS
3120-01-092-2154	2015-02-47	313	DIBBS
3120-01-092-2154	2014-11-309	286	DIBBS
3120-01-092-2154	2014-08-229	192	DIBBS
3120-01-092-2154	2014-06-181	213	DIBBS
3120-01-092-2154	2014-06-175	1	DIBBS-RFPs
3120-01-092-2154	2014-04-98	396	DIBBS
3120-01-092-2154	2014-02-55	388	DIBBS
3120-01-092-2154	2013-03-66	341	DIBBS
3120-01-092-2154	2013-03-65	11	US
3120-01-092-2154	2012-07-199	183	DIBBS
3120-01-092-2154	2012-06-164	109	DIBBS
SB5204105	2011-10-283	32	US
3120-01-092-2154	2011-09-269	40	US
SB5204105	2011-07-206	1	United States
3120-01-092-2154	2011-03-68	480	DIBBS
3120-01-092-2154	2011-02-34	252	DIBBS
SB5204105	2010-12-336	2	Canada
3120-01-092-2154	2010-11-334	217	DIBBS
SB5204105	2010-11-327	40	Canada
SB5204105	2010-04-116	400	US
3120-01-092-2154	2010-03-83	244	DIBBS
3120-01-092-2154	2009-12-355	10	DIBBS
SB5204105	2009-06-168	12	Taiwan
3120-01-092-2154	2009-04-119	106	DIBBS
3120-01-092-2154	2008-02-50	187	DIBBS
3120-01-092-2154	2007-10-298	386	DIBBS
KDJ1692	2007-02-58	2	United States

Cross Reference | NSN 3120-01-092-2154

Part Number	Cage Code	Manufacturer
KDJ 16-92	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
SB5204-105	78286	SIKORSKY AIRCRAFT CORPORATION
SB5204-105	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-092-2154

Compare

Related Products | NSN 3120-01-092-2154

3120-01-092-2155, 3120-01-092-2727, 3120-01-092-2728, 3120-01-092-3471, 3120-01-092-3472

Technical Data | NSN 3120-01-092-2154

Characteristic	Specifications
MATERIAL	STEEL COMP 630 OR STEEL COMP 410 OR STEEL COMP 416 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5643 ASSN STD SINGLE MATERIAL RESPONSE OR FED STD 66,AISI 410/SAE 51410 FED STD SINGLE MATERIAL RESPONSE OR FED STD 66,AISI 416/SAE 51416 FED STD SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR	22C SOLID
OVERALL LENGTH	1.3075 INCHES MINIMUM AND 1.3125 INCHES MAXIMUM

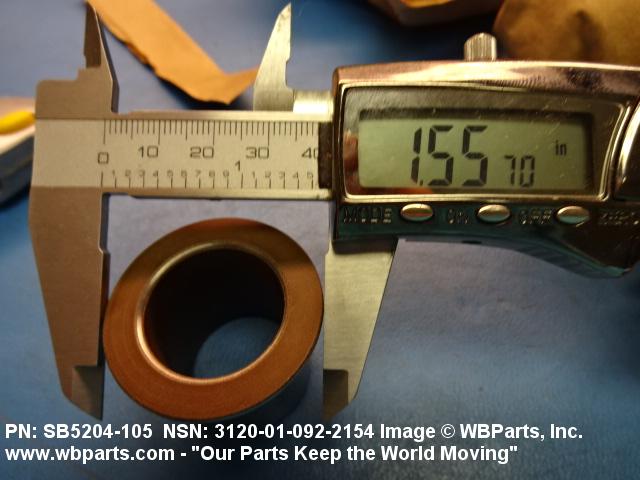

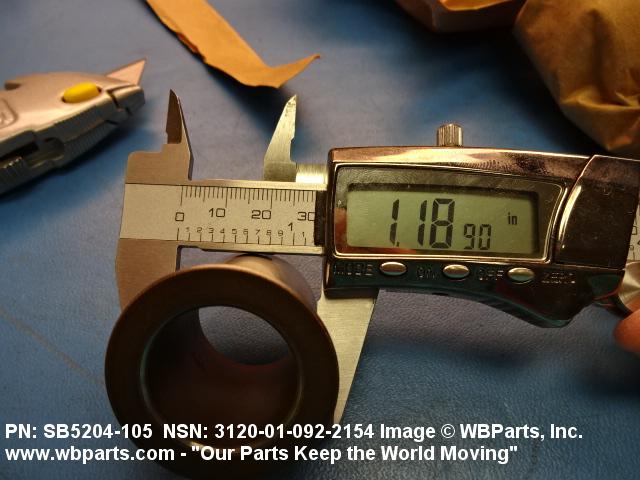

BODY OUTSIDE DIAMETER	1.1893 INCHES MINIMUM AND 1.1898 INCHES MAXIMUM
