NSN 3120-01-125-6886 65267-07024-101, 01-125-6886, 6526707024101
Product Details | SLEEVE BEARING
3120-01-125-6886 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 65267-07024-101, 3120-01-125-6886, 01-125-6886, 3120011256886, 6526707024101, 011256886
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 FEB 1982 | 01-125-6886 | 13205 ( BEARING, SLEEVE ) |

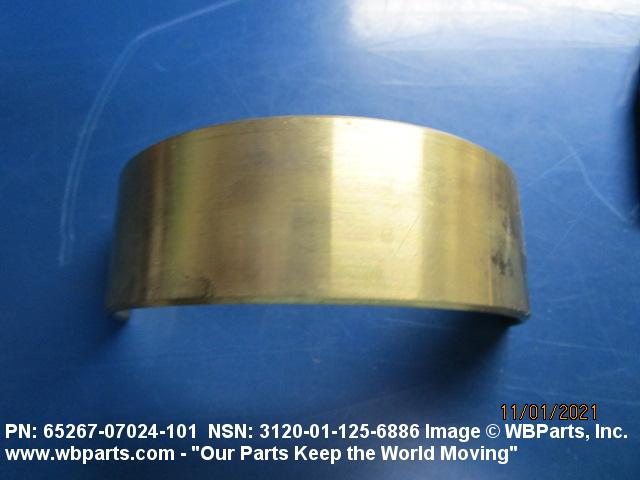

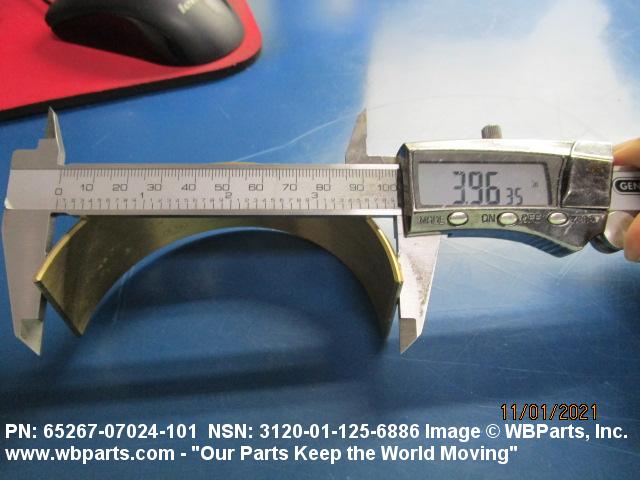

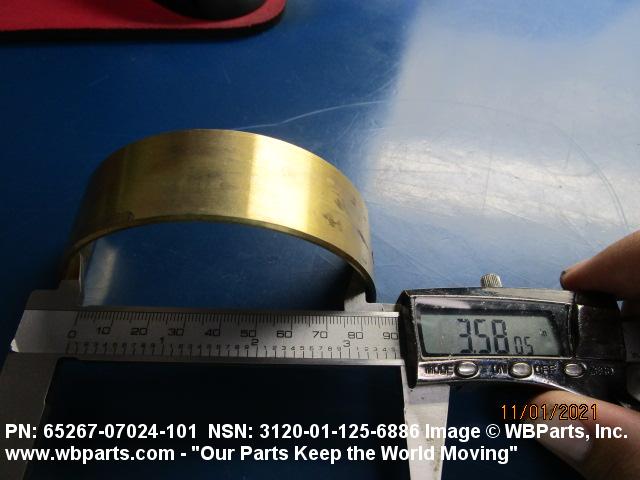

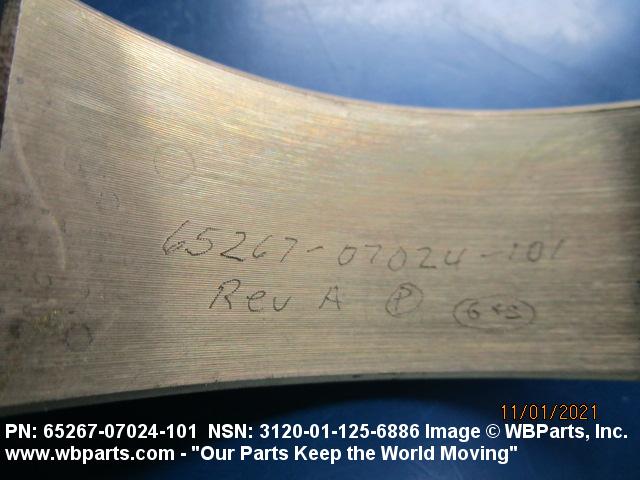

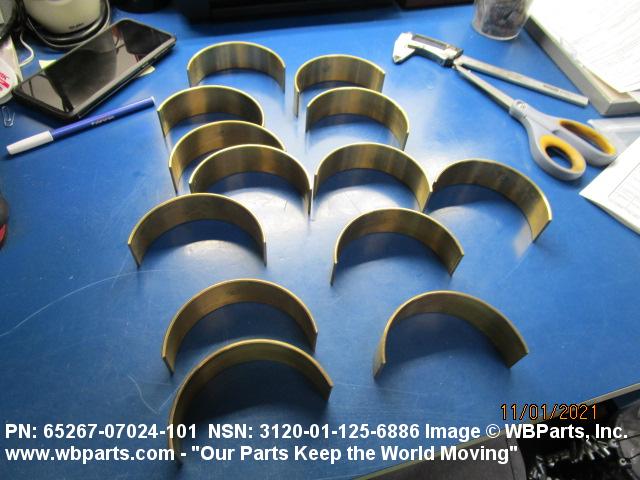

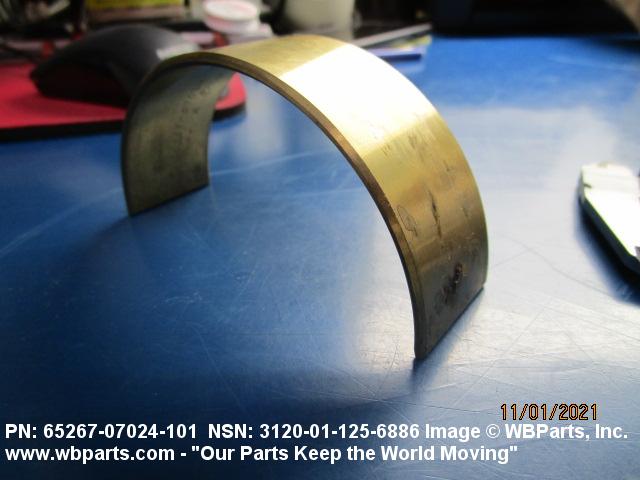

Drawings & Photos | NSN 3120-01-125-6886
Demand History | NSN 3120-01-125-6886
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 65267-07024-101 | 2021-12-342 | 18 | DIBBS |
| 3120-01-125-6886 | 2021-10-300 | 13 | United States |
| 65267-07024-101 | 2021-10-290 | 18 | DIBBS |
| 65267-07024-101 | 2021-02-48 | 13 | DIBBS |
| 65267-07024-101 | 2020-10-297 | 7 | DIBBS |
| 65267-07024-101 | 2020-10-289 | 7 | DIBBS |
| 65267-07024-101 | 2020-05-128 | 35 | DIBBS |
| 65267-07024-101 | 2020-04-103 | 29 | DIBBS |
| 65267-07024-101 | 2020-03-85 | 2 | DIBBS |
| 3120-01-125-6886 | 2018-11-317 | 21 | DIBBS |
Cross Reference | NSN 3120-01-125-6886
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65267-07024-101 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-125-6886
Technical Data | NSN 3120-01-125-6886
| Characteristic | Specifications |
|---|---|
| BODY OUTSIDE DIAMETER | 3.9960 INCHES MINIMUM AND 3.9980 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 3.5000 INCHES NOMINAL |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | 65267-07024-101 |
Restrictions/Controls & Freight Information | NSN 3120-01-125-6886
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-125-6886
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | LU | HELICOPTERS(CH-53E) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
