NSN 3120-01-133-1178 M81934/2-05C008, M81934205C008, AS81934

Product Details | SLEEVE BEARING

3120-01-133-1178 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.

Part Alternates: M81934/2-05C008, M81934205C008, AS81934, AS81934/2, AS819342, MIL-B-81934/2, MILB819342, 10108031 , 3120-01-133-1178, 01-133-1178, 3120011331178, 011331178

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	09 JUN 1982	01-133-1178	13205 ( BEARING, SLEEVE )

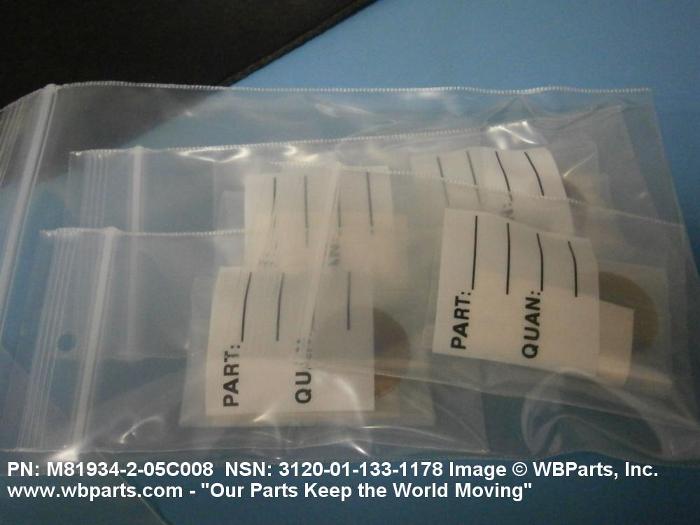

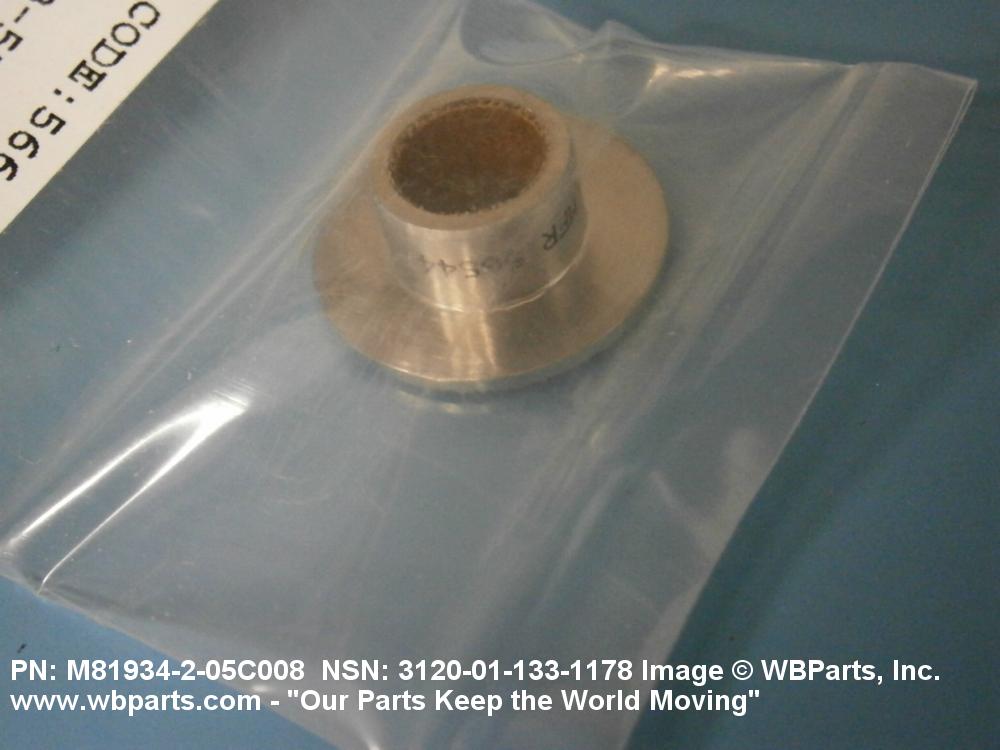

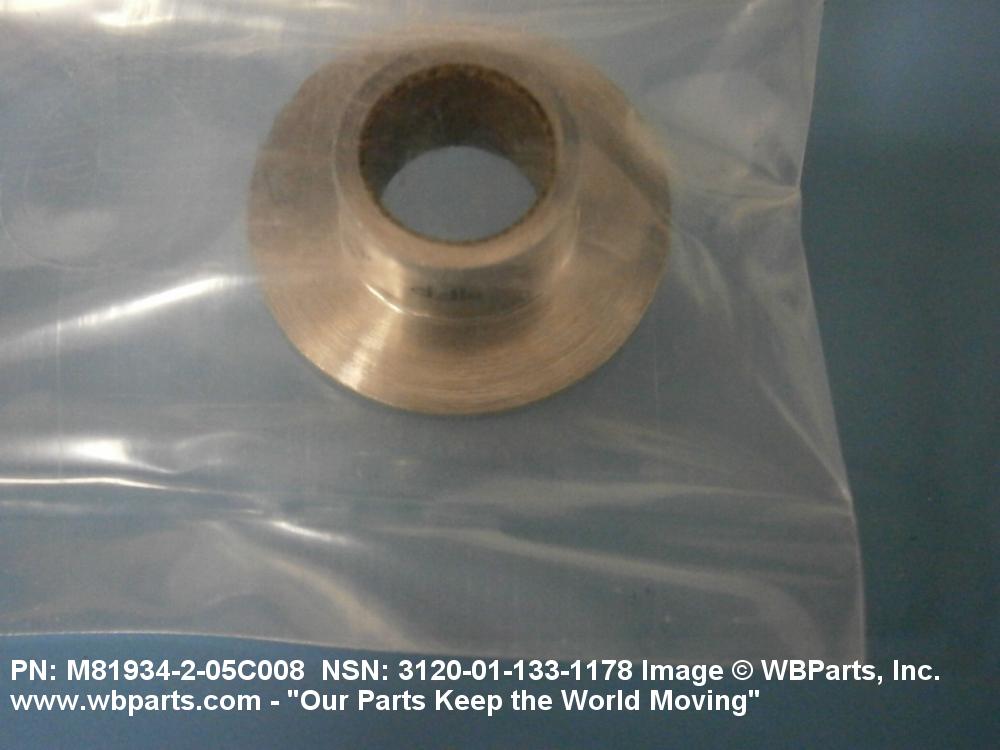

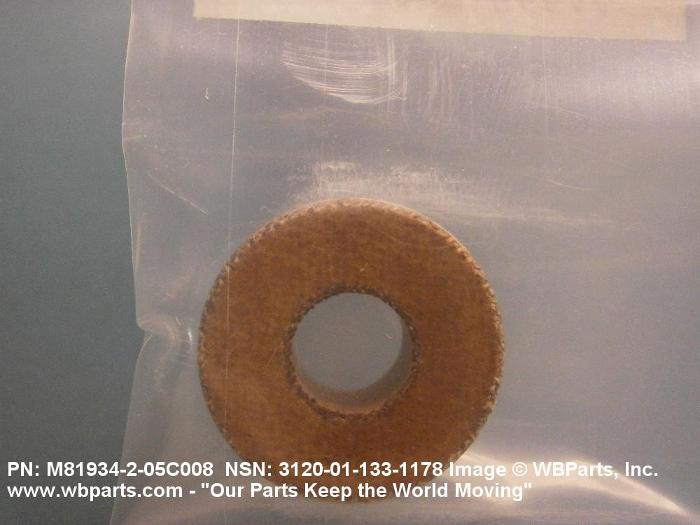

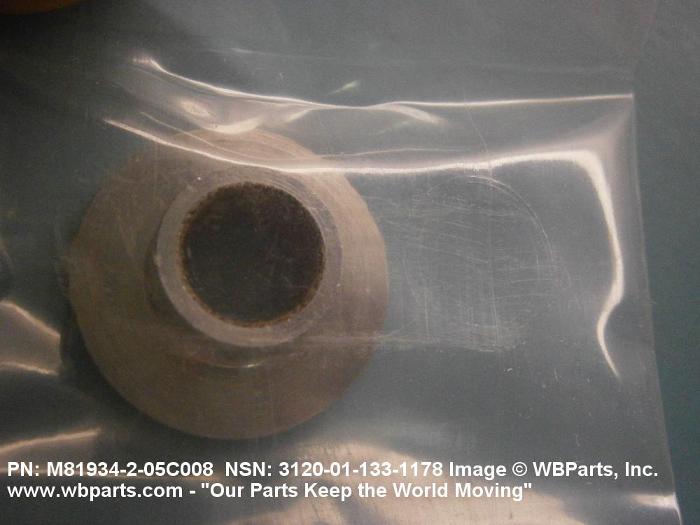

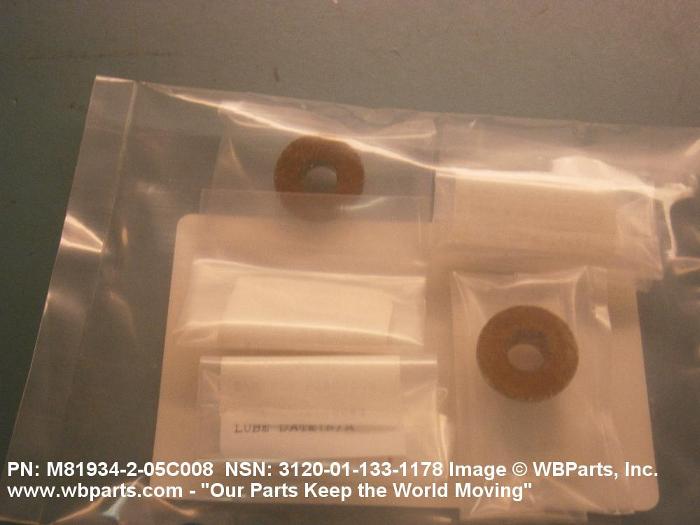

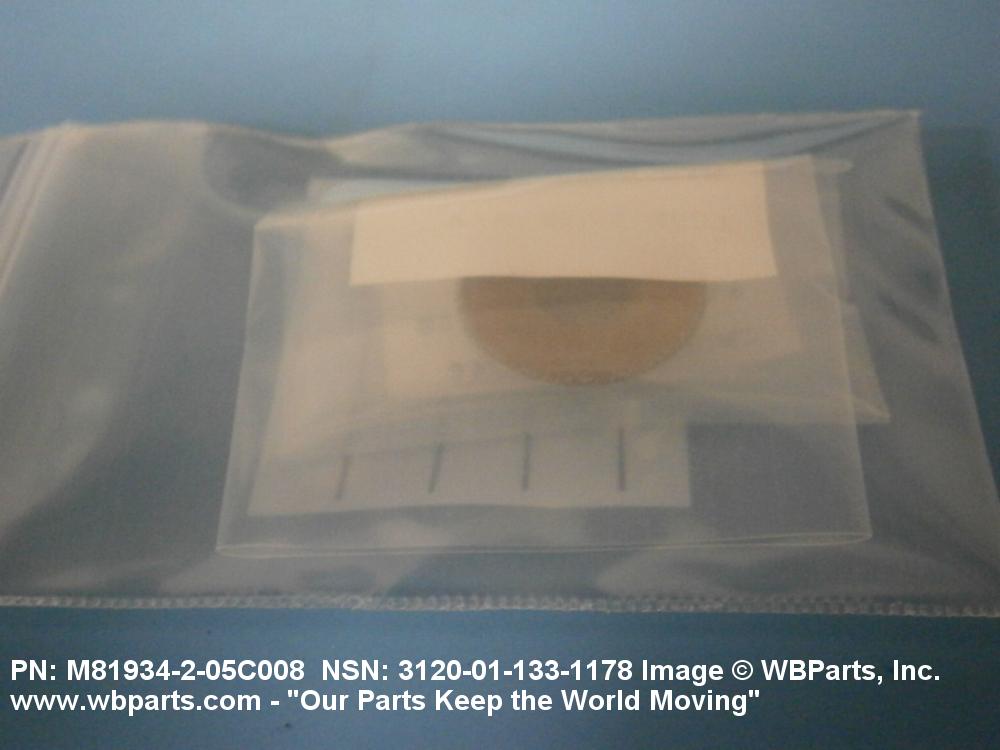

Drawings & Photos | NSN 3120-01-133-1178

Part Number	Request Date	QTY	Origin
3120-01-133-1178	2025-12-337	287	DIBBS
3120-01-133-1178	2025-10-292	144	DIBBS
3120-01-133-1178	2025-03-84	287	DIBBS
3120-01-133-1178	2024-08-239	117	DIBBS
3120-01-133-1178	2024-08-231	117	DIBBS
M81934205C008	2024-04-121	228	United States
3120-01-133-1178	2024-04-105	99	DIBBS
3120-01-133-1178	2023-12-351	77	DIBBS
3120-01-133-1178	2023-08-232	51	DIBBS
3120-01-133-1178	2023-05-141	70	DIBBS
3120-01-133-1178	2023-03-61	94	DIBBS
AS819342	2020-09-262	12	US
M81934205C008	2019-11-317	300	United States
AS819342	2019-09-248	36	United States
3120-01-133-1178	2015-10-279	1083	DIBBS
M81934205C008	2015-01-30	12	US
M81934205C008	2013-11-316	100	China
AS819342	2013-06-171	2	AU
AS81934	2013-01-25	10	United States
3120-01-133-1178	2012-05-135	4	United States
M81934205C008	2012-03-86	8	United States
AS819342	2011-08-231	2	us
M81934205C008	2010-07-202	4	United States
AS819342	2009-10-296	550	us
M81934205C008	2008-05-122	35	United Kingdom
AS81934	2008-02-46	10	US
MILB819342	2007-11-320	200	US
MILB819342	2007-09-264	4	US

Cross Reference | NSN 3120-01-133-1178

Part Number	Cage Code	Manufacturer
AS81934	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS81934/2	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M81934/2-05C008	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M81934/2-05C008	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-B-81934/2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-133-1178

Compare

Related Products | NSN 3120-01-133-1178

3120-01-133-1179, 3120-01-133-1180, 3120-01-133-1181, 3120-01-133-1182, 3120-01-133-1183

Technical Data | NSN 3120-01-133-1178

Characteristic	Specifications
MATERIAL	STEEL COMP 630 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR	22C SOLID
OVERALL LENGTH	0.2975 INCHES MINIMUM AND 0.3125 INCHES MAXIMUM
BODY OUTSIDE DIAMETER	0.4381 INCHES MINIMUM AND 0.4386 INCHES MAXIMUM
BODY INSIDE DIAMETER	0.3130 INCHES MINIMUM AND 0.3140 INCHES MAXIMUM
FLANGE OUTSIDE DIAMETER	0.7920 INCHES MINIMUM AND 0.8120 INCHES MAXIMUM
FLANGE WIDTH	0.0575 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM
CORNER SHAPE	SQUARE ALL CORNERS
SPECIAL FEATURES	PLASTIC LINER BONDED TO LEFT END SURFACE OF FLANGE
(NON-CORE DATA) UNDERCUT DEPTH	0.0050 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 3120-01-133-1178

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114850	BEARING/BUSHING O/T BALL/ROLLER I/S
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-01-133-1178

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
