Product Details | SLEEVE BEARING

3120-01-144-5503 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.

Part Alternates: 65142PIECE3422232634, 716WPG430251PIECE3422232, 3120-01-144-5503, 01-144-5503, 3120011445503, 011445503

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	23 DEC 1982	01-144-5503	13205 ( BEARING, SLEEVE )

Drawings & Photos | NSN 3120-01-144-5503

Part Number	Request Date	QTY	Origin
4	2022-03-75	0
4	2022-03-70	0
22	2019-02-41	1	US
22	2019-02-38	1	US
4	2018-03-74	7
2	2016-07-209	23	us
22	2016-07-209	12	us
34	2016-07-207	2	us
4	2016-04-110	40	US
2	2012-09-263	5
34	2011-06-180	30	France
2	2010-04-102	1	US
2	2010-04-102	1	US
2	2010-04-102	2	us
2	2010-04-99	2	US
2	2010-04-99	2	us
2	2010-04-99	3	US
2	2010-04-99	2	United States
2	2010-04-99	2	United States
2	2010-04-99	2	US
2	2010-04-99	3	us
2	2010-04-98	3	US
2	2010-04-98	2	DE
2	2010-04-98	3	us
2	2010-04-97	4	us
2	2010-04-97	86	US
2	2010-04-97	1	US
2	2010-04-97	2	Singapore
2	2010-04-97	60	United Kingdom
2	2010-04-96	1	us
2	2010-04-96	1	US
2	2010-04-96	2	US
2	2010-04-96	1	Singapore
2	2010-04-96	2	Singapore
2	2010-04-96	2	Singapore
2	2010-04-96	2	Singapore
2	2010-04-95	2	US
2	2010-04-95	2	US
2	2010-04-95	2	US
2	2010-04-95	2	US
2	2010-04-95	2	US
2	2010-04-95	10	US
2	2010-04-95	2	US
2	2010-04-95	2	United Arab Emirates
2	2010-04-92	2	United States
2	2010-04-92	1	US
2	2010-04-91	2	US
2	2010-04-91	3	US
2	2010-04-91	1	United Kingdom
2	2010-03-90	2	United States
2	2010-03-90	2	US
2	2010-03-89	2	US
2	2010-03-89	2	United States
2	2010-03-89	2	US
2	2010-03-89	3	US
2	2010-03-89	2	us
2	2010-03-89	2	Australia
2	2010-03-88	2	US
2	2010-03-88	2	us
2	2010-03-88	2	us
2	2010-03-88	35	us
2	2010-03-88	2	United States
2	2010-03-85	1	US
2	2010-03-84	2	us
2	2010-03-84	3	US
2	2010-03-84	2	United States
2	2010-03-82	5	us
2	2010-03-71	2	US
2	2010-03-71	2	United States
2	2010-03-68	1	Australia
2	2010-03-68	2	us
2	2010-03-67	2	US
2	2010-03-67	1	US
2	2010-03-67	3	United States
2	2010-03-61	1	US
2	2010-03-61	2	IL
2	2010-03-60	2	United States
2	2006-04-96	23033721	us
2	2006-04-96	23060411	us
2	2006-04-96	23060415	us
2	2006-04-96	23060416	us
2	2006-04-96	23060432	us

Cross Reference | NSN 3120-01-144-5503

Part Number	Cage Code	Manufacturer
65142 PIECE 3,4,22,23,26,34	70508	AMERICAN METAL BEARING COMPANY
716WPG-4302-51 PIECE 3,4,22,23,2	06101	UNITED STATES COAST GUARD YARD

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-144-5503

Compare

Related Products | NSN 3120-01-144-5503

3120-01-144-5701, 3120-01-144-5702, 3120-01-144-5703, 3120-01-144-5704, 3120-01-144-5705

Technical Data | NSN 3120-01-144-5503

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING EXTERNAL OUTER MEMBER LEAD ALLOY INTERNAL INNER MEMBER

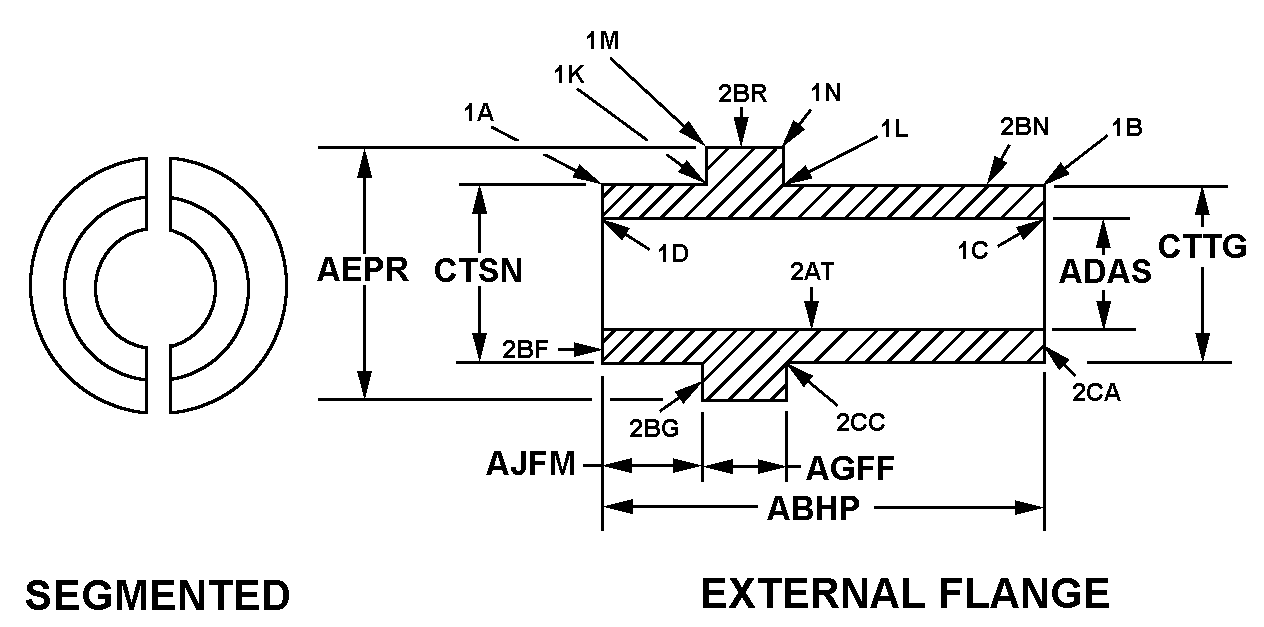

STYLE DESIGNATOR	21B SEGMENTED
OVERALL LENGTH	27.0000 INCHES NOMINAL
BODY INSIDE DIAMETER	18.0860 INCHES MINIMUM AND 18.0890 INCHES MAXIMUM
FLANGE OUTSIDE DIAMETER	21.7420 INCHES NOMINAL
FLANGE WIDTH	2.7500 INCHES NOMINAL
END TO FLANGE DISTANCE	12.1250 INCHES NOMINAL
LEFT END BODY DIAMETER	18.9922 INCHES NOMINAL
RIGHT END BODY DIAMETER	18.9922 INCHES NOMINAL
CORNER SHAPE	SQUARE ALL CORNERS
LUBRICATION MATERIAL	LUBRICATING OIL
SPECIAL FEATURES	CONSISTS OF 8 EA. 5/8 IN. HEX HD NUTS,8 EA. 5/8 IN. HEX HD LOCKNUTS,8 EA. FITTED 3/4 X 10 X 2 3/4 IN. LG. HEX HD BOLTS
III END ITEM IDENTIFICATION	USED ON MAIN PROPULSION LINE SHAFT 378 FT WHEC COAST GUARD VESSELS
