NSN 3120-01-166-8607 77C716736P001, 01-166-8607, 011668607
Product Details | SLEEVE BEARING
3120-01-166-8607 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 77C716736P001, 3120-01-166-8607, 01-166-8607, 3120011668607, 011668607
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 18 NOV 1983 | 01-166-8607 | 13205 ( BEARING, SLEEVE ) |
Drawings & Photos | NSN 3120-01-166-8607
Cross Reference | NSN 3120-01-166-8607
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 77C716736P001 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-166-8607
Technical Data | NSN 3120-01-166-8607
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 905 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B22 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 1.5000 INCHES MINIMUM AND 1.5200 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 1.4950 INCHES MINIMUM AND 1.4970 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 1.0030 INCHES MINIMUM AND 1.0040 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 2.0000 INCHES NOMINAL |
| FLANGE WIDTH | 0.2080 INCHES MINIMUM AND 0.2100 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 125.0 MICROINCHES OVERALL |
| LUBRICATION MATERIAL | GREASE |

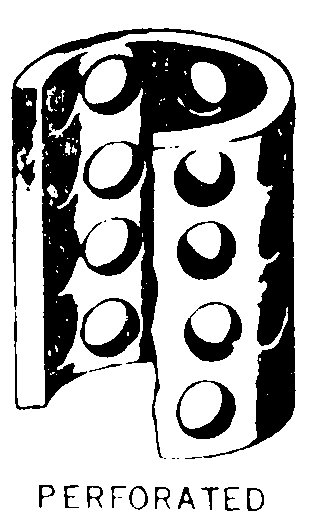

| LUBRICANT ACCOMMODATION STYLE | 65 PERFORATED |
| SPECIAL FEATURES | FILL PERFORATIONS WITH LUBRITE WA-5 OR EQUIVALENT |
| (NON-CORE DATA) UNDERCUT WIDTH | 0.0050 INCHES MINIMUM AND 0.0200 INCHES MAXIMUM |
| (NON-CORE DATA) UNDERCUT DEPTH | 0.0100 INCHES MINIMUM AND 0.0200 INCHES MAXIMUM |
