NSN 3120-01-186-4034 M81934/2-08C016, M81934208C016, AS81934

Product Details | SLEEVE BEARING

3120-01-186-4034 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.

Part Alternates: M81934/2-08C016, M81934208C016, AS81934, AS81934/2, AS819342, MIL-B-81934/2, MILB819342, 803-5001048 PIECE 124, 8035001048PIECE124, 3120-01-186-4034, 01-186-4034, 3120011864034, 011864034

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	10 AUG 1984	01-186-4034	13205 ( BEARING, SLEEVE )

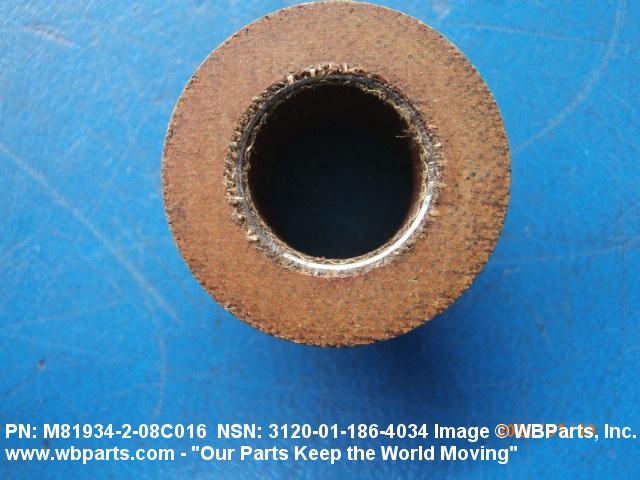

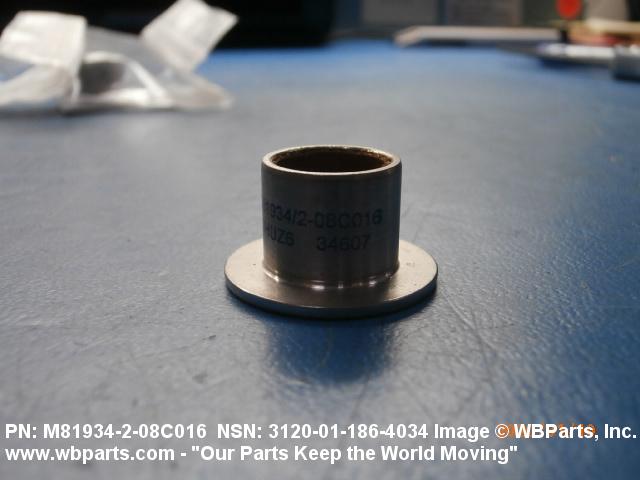

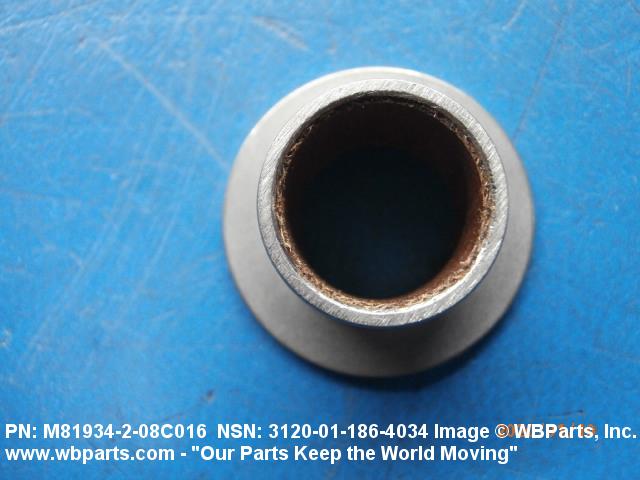

Drawings & Photos | NSN 3120-01-186-4034

Part Number	Request Date	QTY	Origin
AS819342	2020-09-262	12	US
3120-01-186-4034	2020-01-08	4	United States
AS819342	2019-09-248	36	United States
M81934208C016	2016-01-07	2	US
M81934208C016	2016-01-07	300	US
3120-01-186-4034	2015-05-138	4	DIBBS
3120-01-186-4034	2015-02-51	201	DIBBS
AS819342	2013-06-171	2	AU
AS81934	2013-01-25	10	United States
3120-01-186-4034	2012-10-275	4	United States
AS819342	2011-08-231	2	us
3120-01-186-4034	2011-01-18	200	United States
M81934208C016	2010-10-278	4	US
AS819342	2009-10-296	550	us
M81934208C016	2008-02-50	10	United States
AS81934	2008-02-46	10	US
MILB819342	2007-11-320	200	US
MILB819342	2007-09-264	4	US

Cross Reference | NSN 3120-01-186-4034

Part Number	Cage Code	Manufacturer
803-5001048 PIECE 124	53711	NAVAL SEA SYSTEMS COMMAND
803-5001048 PIECE 124	57041	SPECO INC
AS81934	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS81934/2	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M81934/2-08C016	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M81934/2-08C016	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-B-81934/2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-186-4034

Compare

Related Products | NSN 3120-01-186-4034

3120-01-186-4381, 3120-01-186-4382, 3120-01-186-4383, 3120-01-186-4384, 3120-01-186-4385

Technical Data | NSN 3120-01-186-4034

Characteristic	Specifications
MATERIAL	PLASTIC POLYTETRAFLUOROETHYLENE INNER LAYER STEEL COMP 630 OUTER LAYER
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OUTER LAYER
STYLE DESIGNATOR	22C SOLID

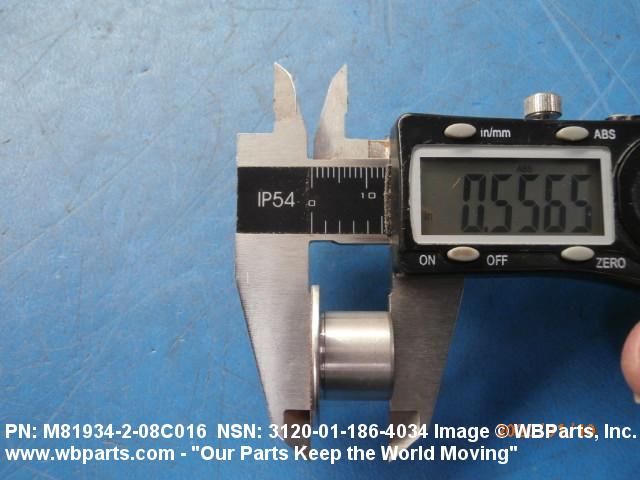

OVERALL LENGTH	0.5475 INCHES MINIMUM AND 0.5625 INCHES MAXIMUM

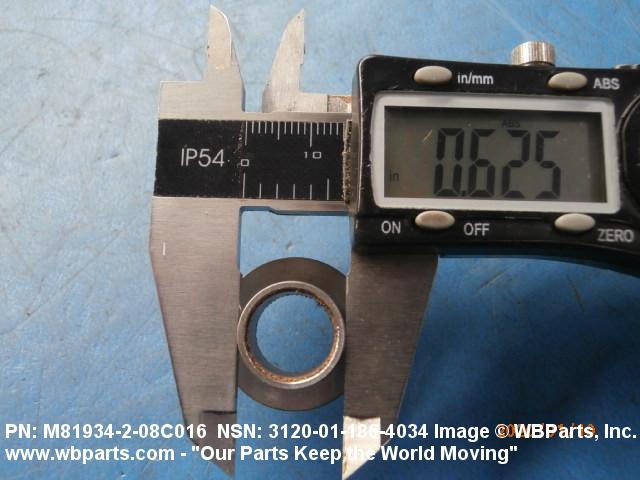

BODY OUTSIDE DIAMETER	0.6260 INCHES MINIMUM AND 0.6265 INCHES MAXIMUM

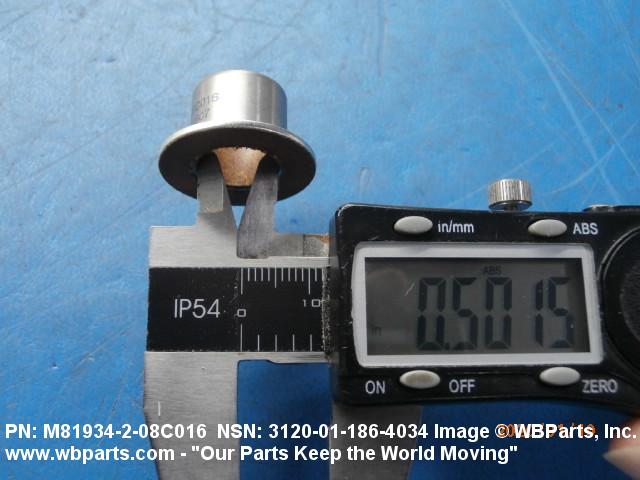

BODY INSIDE DIAMETER	0.5005 INCHES MINIMUM AND 0.5015 INCHES MAXIMUM

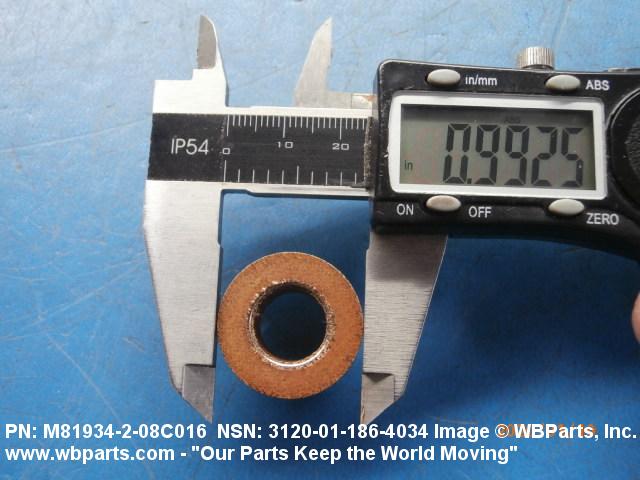

FLANGE OUTSIDE DIAMETER	0.9800 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM

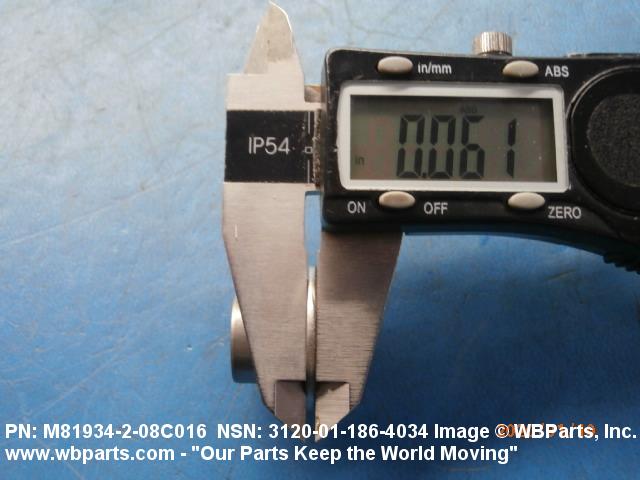

FLANGE WIDTH	0.0575 INCHES MINIMUM AND 0.0625 INCHES MAXIMUM
CORNER SHAPE	SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER
SURFACE FINISH	125.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES LEFT END SURFACE OF BODY AND FLANGE 63.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF FLANGE 125.0 MICROINCHES RIGHT END SURFACE OF BODY 125.0 MICROINCHES RIGHT END SURFACE OF LEFT FLANGE
SPECIAL FEATURES	PLASTIC LINER BONDED TO LEFT END SURFACE OF FLANGE
(NON-CORE DATA) UNDERCUT WIDTH	0.0620 INCHES MAXIMUM
(NON-CORE DATA) UNDERCUT DEPTH	0.0050 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 3120-01-186-4034

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	133300	MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-01-186-4034

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
