NSN 3120-01-187-8016 M81934/2-18C032, M81934218C032, NH7505618W100

Product Details | SLEEVE BEARING

3120-01-187-8016 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.

Part Alternates: M81934/2-18C032, M81934218C032, NH7505618W100, ADLF18C032, AFGDC18W100, AHJF18C032, AS81934/2, AS81934/2-18C032, AS819342, AS81934218C032, ATF364C18WA100, ATF364C-18WA100, C7505C18W100, HBFC18W100A, KDJ18C032342, KDJ18C032-342, KDJ18C10059W, KDJ18C100-59W, KRJ18UDSB18C032S, FBJW36TH32M, FBRR18C032, 0728218C032, 07-282-18C032, 1232018C032, 123-2018C032, 9041218WA100, 90412-18WA100, 9151618W100, 91516-18W100, 3120-01-187-8016, 01-187-8016, 3120011878016, 011878016

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	25 AUG 1984	01-187-8016	13205 ( BEARING, SLEEVE )

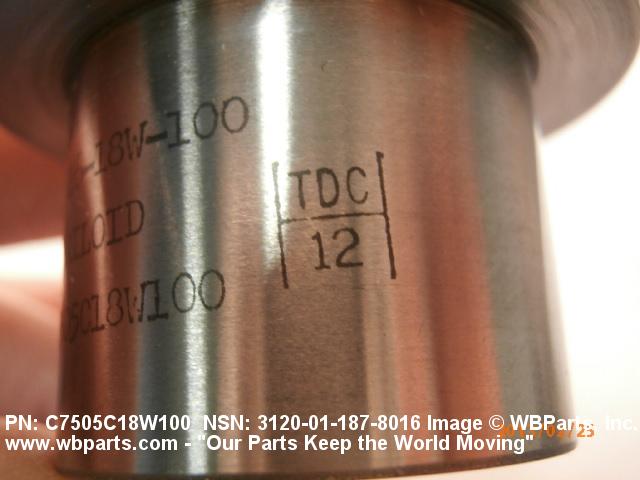

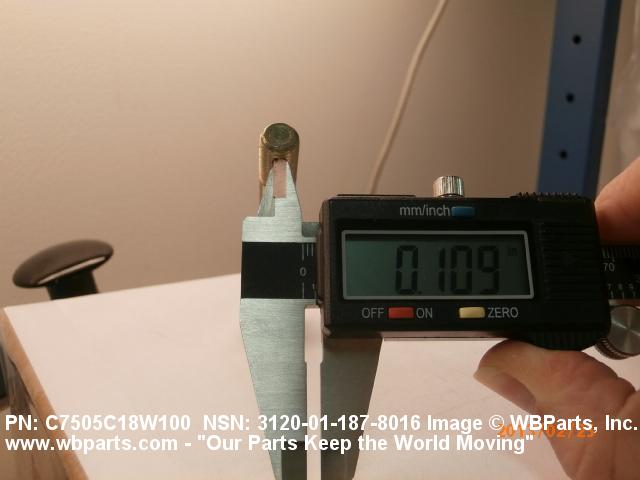

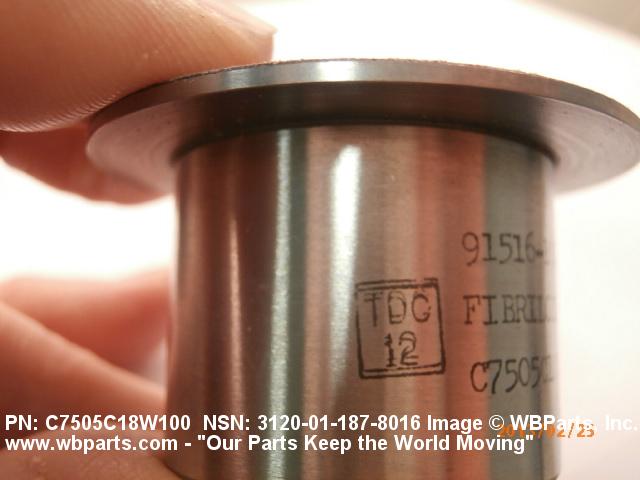

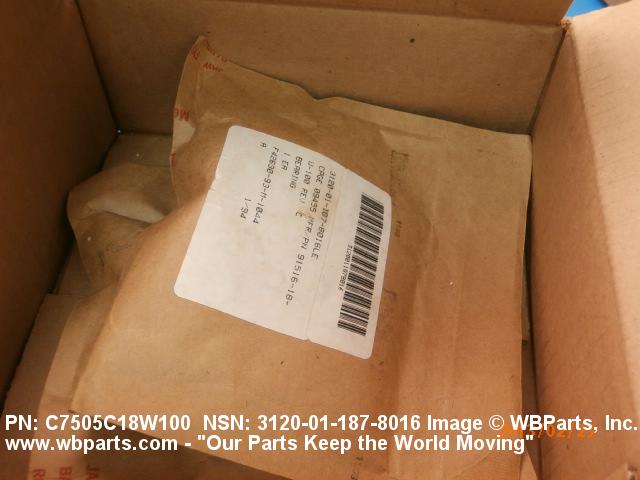

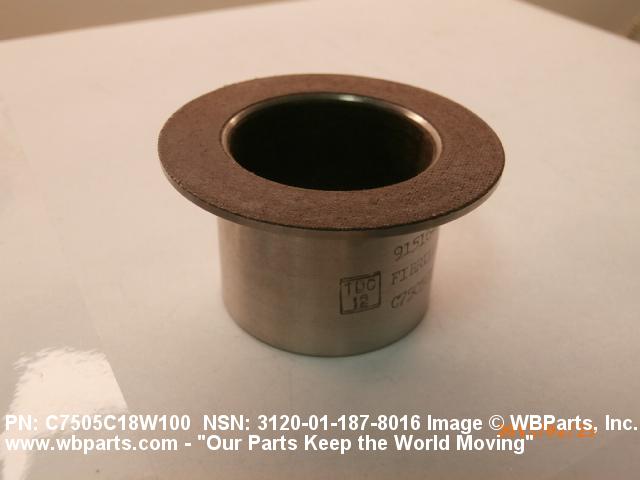

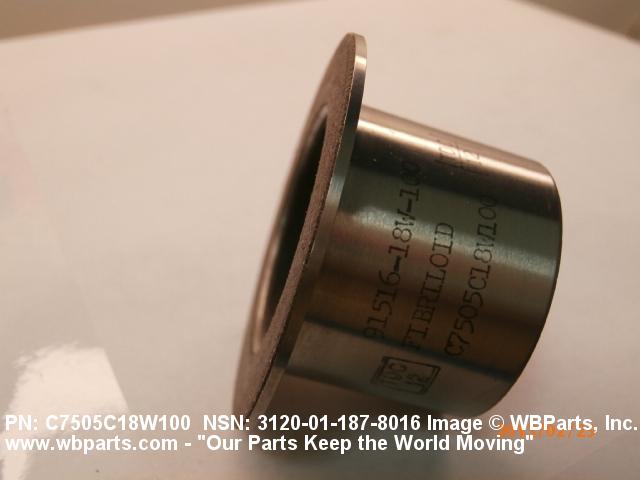

Drawings & Photos | NSN 3120-01-187-8016

Part Number	Request Date	QTY	Origin
AS819342	2020-09-262	12	US
AS819342	2019-09-248	36	United States
M81934218C032	2018-04-92	10	United States
AS819342	2013-06-171	2	AU
3120-01-187-8016	2013-02-39	2	United States
AS819342	2011-08-231	2	us
AS819342	2009-10-296	550	us

Cross Reference | NSN 3120-01-187-8016

Part Number	Cage Code	Manufacturer
07-282-18C032	98076	BFM TRANSPORT DYNAMICS CORP
123-2018C032	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
90412-18WA100	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
91516-18W100	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
ADLF18C032	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
AFGDC18W100	50294	NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB
AHJF18C032	50294	NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB
AS81934/2	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS81934/2-18C032	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
ATF364C-18WA100	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
C7505C18W100	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
FBJW36TH32M	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
FBJW36TH32M	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
FBRR18C032	73134	ROLLER BEARING COMPANY OF AMERICA, INC.
HBFC18W100A	73134	ROLLER BEARING COMPANY OF AMERICA, INC.
KDJ18C032-342	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
KDJ18C100-59W	97163	GRINDING AND POLISHING MACHINERY CORPORATION
KRJ18UDSB18C032S	50632	KAMATICS CORPORATION
M81934/2-18C032	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NH7505618W100	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-187-8016

Compare

Related Products | NSN 3120-01-187-8016

3120-01-187-8110, 3120-01-187-8538, 3120-01-187-8793, 3120-01-187-8954, 3120-01-187-8955

Technical Data | NSN 3120-01-187-8016

Characteristic	Specifications
MATERIAL	STEEL COMP 630 OVERALL
SURFACE TREATMENT	PLASTIC POLYTETRAFLUOROETHYLENE INSIDE DIAMETER SURFACE OF BODY PLASTIC POLYTETRAFLUOROETHYLENE LEFT END SURFACE OF BODY AND FLANGE
STYLE DESIGNATOR	22C SOLID

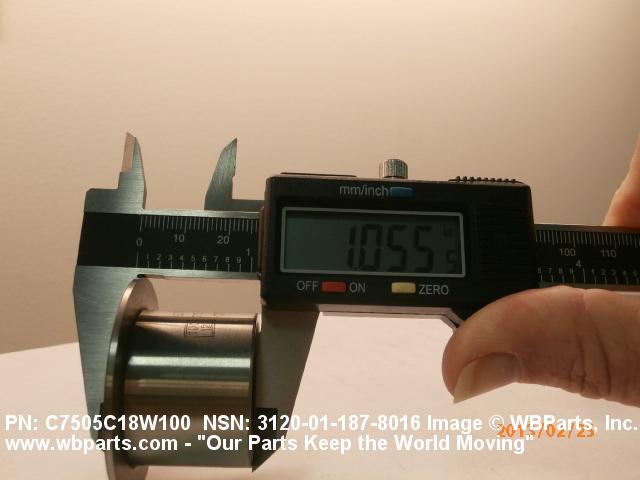

OVERALL LENGTH	1.0620 INCHES NOMINAL

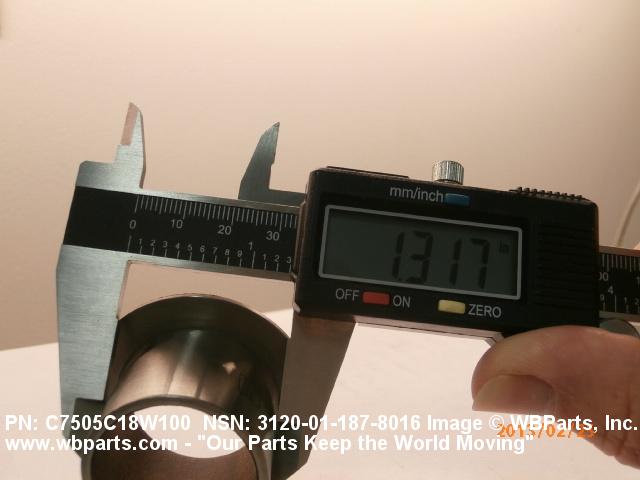

BODY OUTSIDE DIAMETER	1.3143 INCHES MINIMUM AND 1.3148 INCHES MAXIMUM
BODY INSIDE DIAMETER	1.1255 INCHES MINIMUM AND 1.1265 INCHES MAXIMUM
FLANGE OUTSIDE DIAMETER	1.8750 INCHES NOMINAL
FLANGE WIDTH	0.0620 INCHES NOMINAL
CORNER SHAPE	SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER
(NON-CORE DATA) UNDERCUT WIDTH	0.0620 INCHES NOMINAL
(NON-CORE DATA) UNDERCUT DEPTH	0.0050 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 3120-01-187-8016

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061700	ELEC APPLIANCES/INSTRUMENTS NOI
Less than car load rating	M	85
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	SU	Ogden Air Logistics Center Hill AFB, UT 84056-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	Z	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-01-187-8016

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	LE	SU:LANDING GEAR SYSTEMS AND COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
