NSN 3120-01-193-1701 M81934/2-04C008, M81934204C008, AS81934

Product Details | SLEEVE BEARING

3120-01-193-1701 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.

Part Alternates: M81934/2-04C008, M81934204C008, AS81934, LD13100310408, LD131-0031-0408, MIL-B-81934/2, MILB819342, 10108224 , 3120-01-193-1701, 01-193-1701, 3120011931701, 011931701

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	31 OCT 1984	01-193-1701	13205 ( BEARING, SLEEVE )

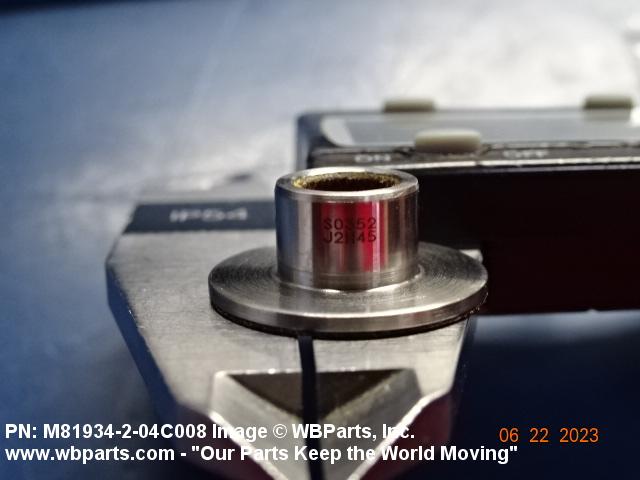

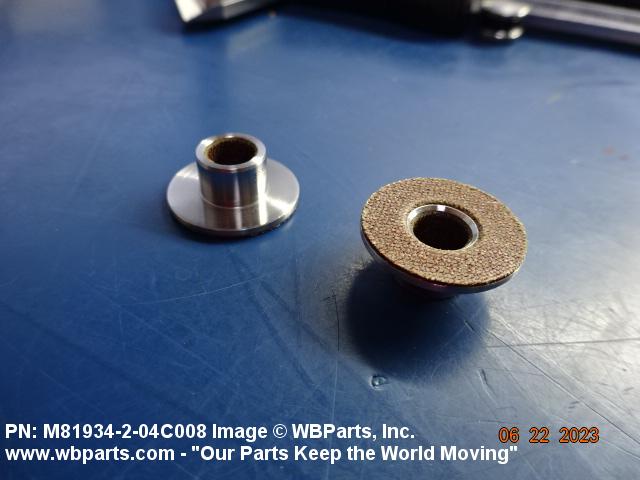

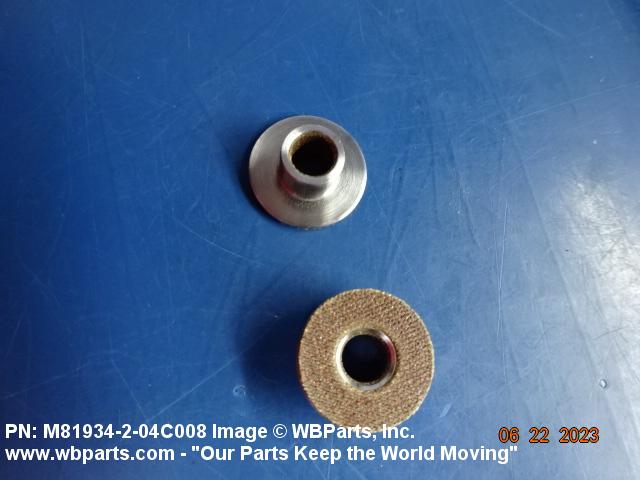

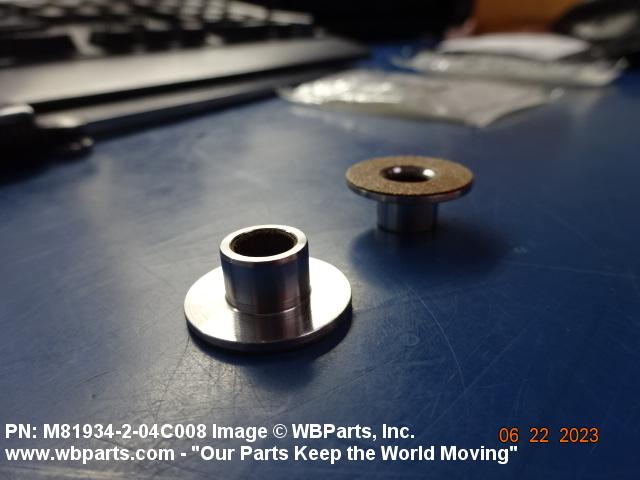

Drawings & Photos | NSN 3120-01-193-1701

Part Number	Request Date	QTY	Origin
3120-01-193-1701	2025-02-35	292	DIBBS
3120-01-193-1701	2025-01-27	292	DIBBS
M81934204C008	2023-10-284	5	United States
M81934204C008	2023-06-163	2	United States
3120-01-193-1701	2023-03-60	2	United States
3120-01-193-1701	2021-10-277	535	DIBBS
3120-01-193-1701	2021-09-269	535	DIBBS
3120-01-193-1701	2018-10-296	440	DIBBS
3120-01-193-1701	2017-09-249	164	DIBBS
3120-01-193-1701	2017-07-191	107	DIBBS
M81934204C008	2016-08-231	72	United States
M81934204C008	2016-08-231	144	United States
M81934204C008	2016-08-231	216	United States
M81934204C008	2014-07-199	12	United States
AS81934	2013-01-25	10	United States
M81934204C008	2012-03-61	8	United States
3120-01-193-1701	2011-10-304	8	United States
3120-01-193-1701	2009-05-125	40	DIBBS
3120-01-193-1701	2009-04-118	37	DIBBS
3120-01-193-1701	2009-01-16	37	DIBBS
3120-01-193-1701	2008-12-354	10	DIBBS
3120-01-193-1701	2008-11-333	75	DIBBS
3120-01-193-1701	2008-10-277	24	DIBBS
3120-01-193-1701	2008-09-256	29	DIBBS
3120-01-193-1701	2008-06-157	13	DIBBS
3120-01-193-1701	2008-05-148	5	DIBBS
3120-01-193-1701	2008-05-122	39	DIBBS
3120-01-193-1701	2008-02-59	61	DIBBS
AS81934	2008-02-46	10	US
MILB819342	2007-11-320	200	US
MILB819342	2007-09-264	4	US
3120-01-193-1701	2007-03-72	34	DIBBS
3120-01-193-1701	2007-03-64	128	DIBBS

Cross Reference | NSN 3120-01-193-1701

Part Number	Cage Code	Manufacturer
AS81934	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
LD131-0031-0408	43999	BOEING COMPANY, THE DBA BOEING
M81934/2-04C008	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M81934/2-04C008	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-B-81934/2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-193-1701

Compare

Related Products | NSN 3120-01-193-1701

3120-01-193-1702, 3120-01-193-1832, 3120-01-193-1937, 3120-01-193-1942, 3120-01-193-2116

Technical Data | NSN 3120-01-193-1701

Characteristic	Specifications
MATERIAL	PLASTIC POLYTETRAFLUOROETHYLENE INNER LAYER STEEL COMP 630 OUTER LAYER
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OUTER LAYER
STYLE DESIGNATOR	22C SOLID

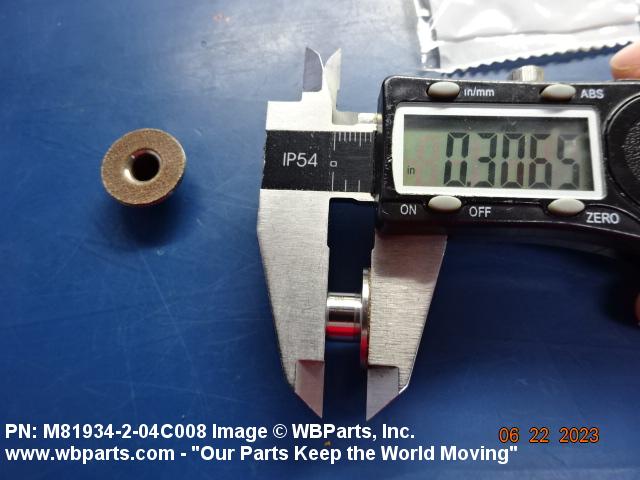

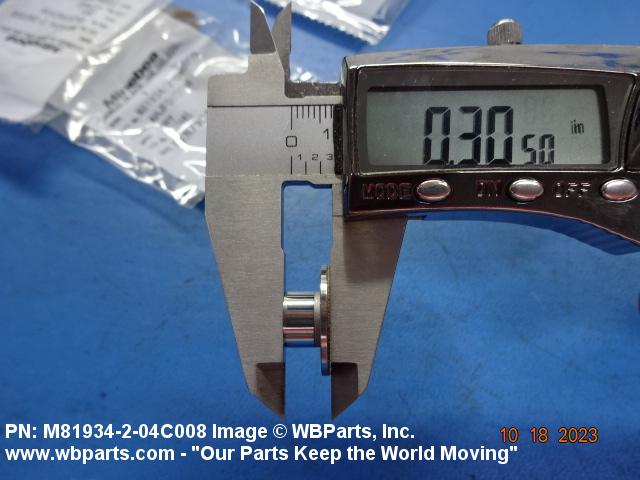

OVERALL LENGTH	0.2975 INCHES MINIMUM AND 0.3125 INCHES MAXIMUM

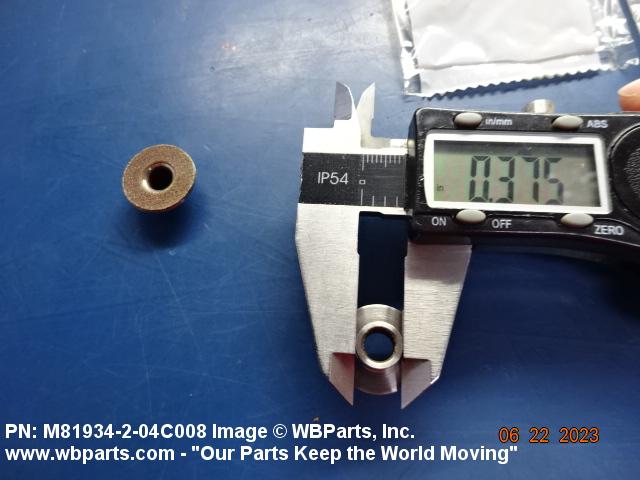

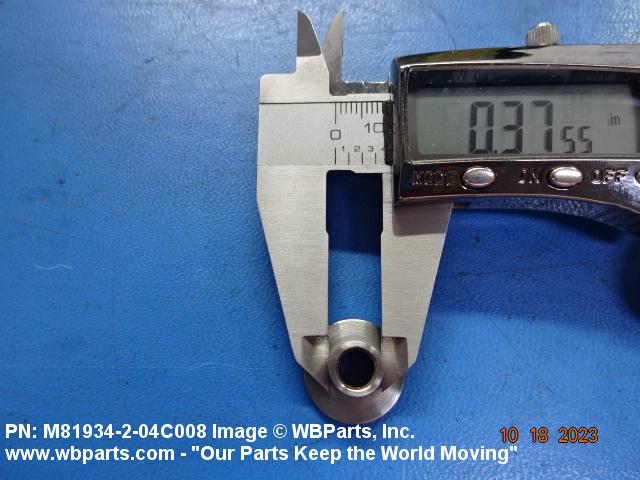

BODY OUTSIDE DIAMETER	0.3755 INCHES MINIMUM AND 0.3760 INCHES MAXIMUM

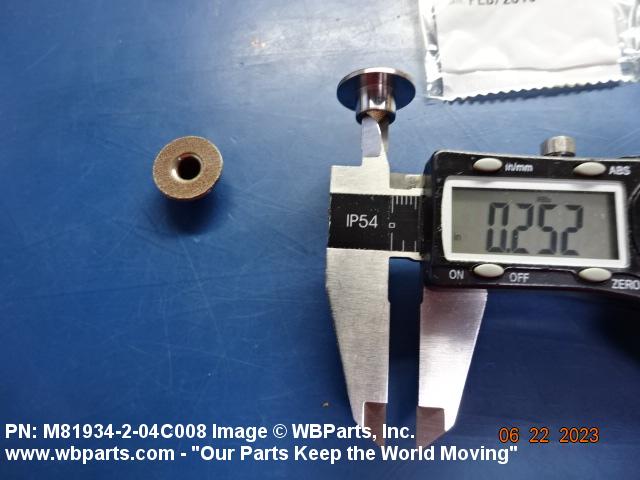

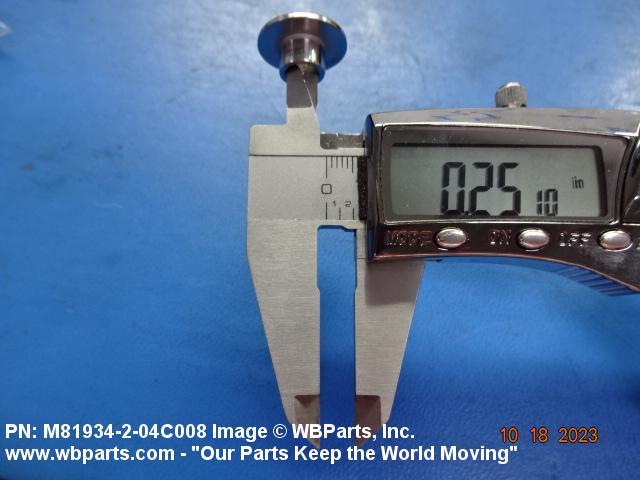

BODY INSIDE DIAMETER	0.2505 INCHES MINIMUM AND 0.2515 INCHES MAXIMUM

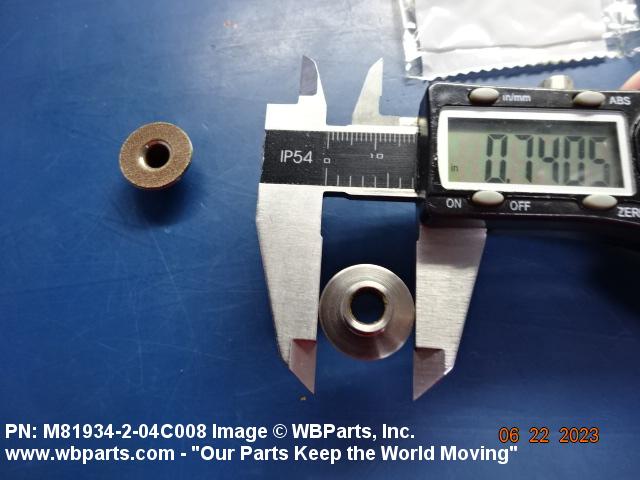

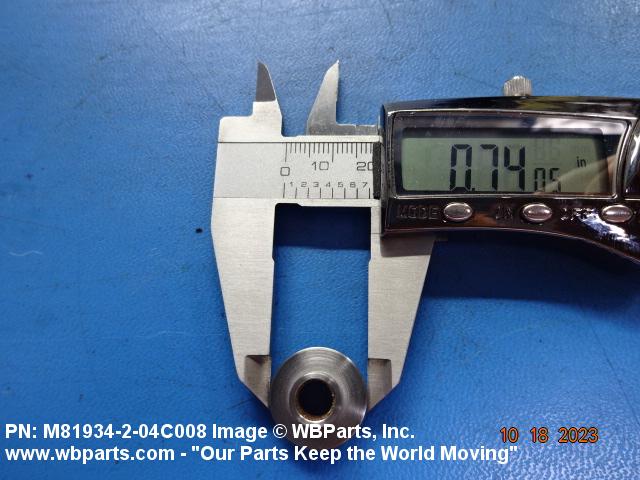

FLANGE OUTSIDE DIAMETER	0.7300 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM

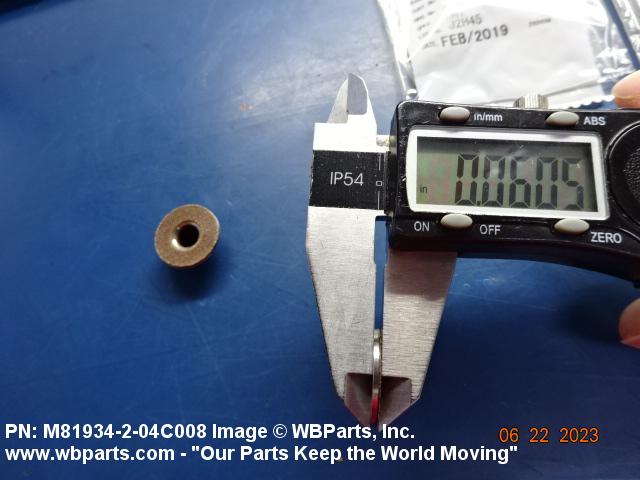

FLANGE WIDTH	0.0575 INCHES MINIMUM AND 0.0625 INCHES MAXIMUM

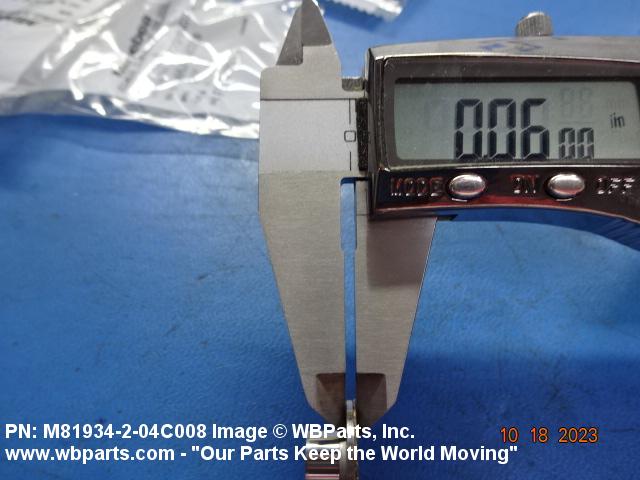

CORNER SHAPE	SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER
