NSN 3120-01-212-5247 M81934/1-04A016, M81934104A016, AD04A16
Product Details | SLEEVE BEARING
3120-01-212-5247 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: M81934/1-04A016, M81934104A016, AD04A16, AS81934, AS81934/1A , AS819341A, KDJ04016341, KDJ04016-341, KDJ04A016341, KDJ04A016-341, PBRR04A16, PBRR-04-A-16, 3120-01-212-5247, 01-212-5247, 3120012125247, 012125247
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 05 MAY 1989 | 01-212-5247 | 13205 ( BEARING, SLEEVE ) |

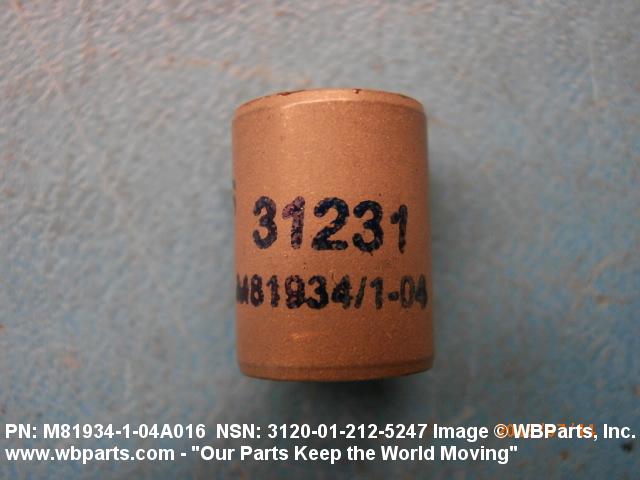

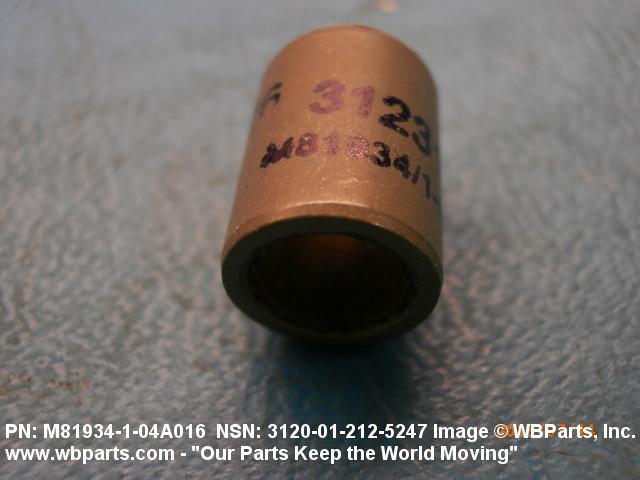

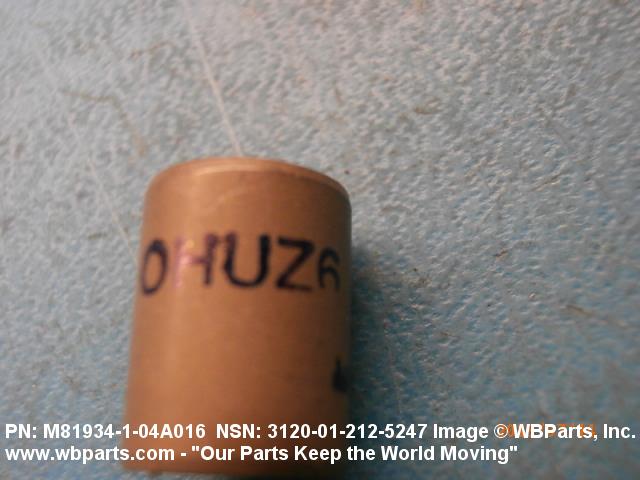

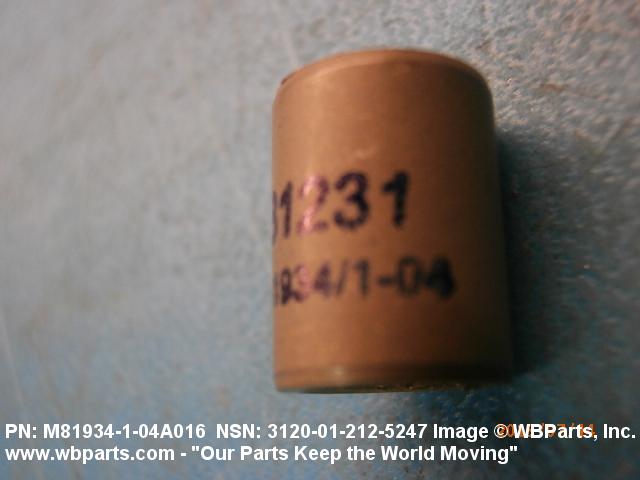

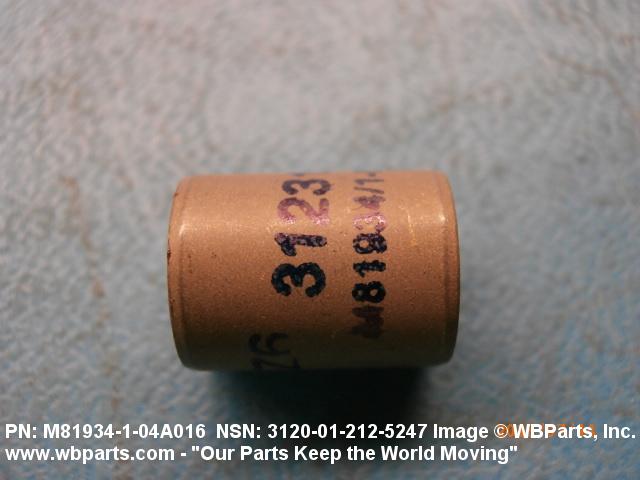

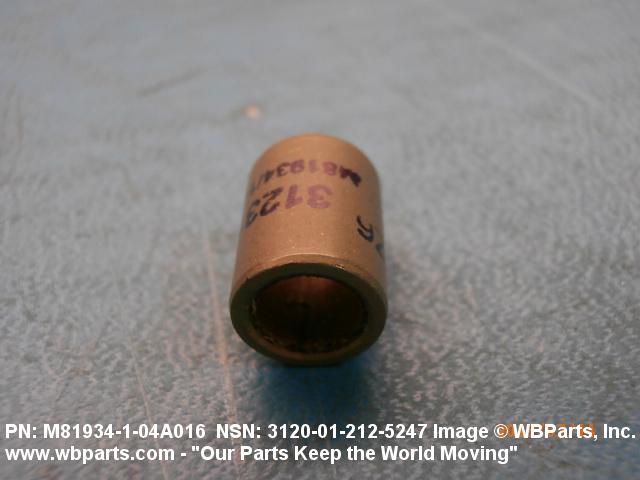

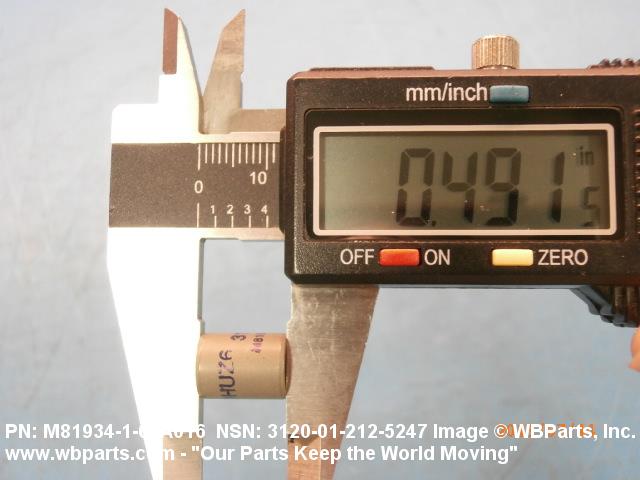

Drawings & Photos | NSN 3120-01-212-5247
Demand History | NSN 3120-01-212-5247
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M81934104A016 | 2025-06-154 | 100 | US |
| 3120-01-212-5247 | 2024-11-311 | 16 | US |
| M81934104A016 | 2023-12-339 | 5 | US |
| 3120-01-212-5247 | 2019-07-191 | 163 | DIBBS |
| 3120-01-212-5247 | 2018-02-39 | 81 | DIBBS |
| 3120-01-212-5247 | 2017-05-121 | 2 | United States |
| 3120-01-212-5247 | 2016-02-48 | 51 | DIBBS |
| 3120-01-212-5247 | 2016-02-40 | 51 | DIBBS |
| M81934104A016 | 2015-06-159 | 6 | United States |
| 3120-01-212-5247 | 2015-05-139 | 5 | DIBBS |
| 3120-01-212-5247 | 2015-02-33 | 100 | US |
| M81934104A016 | 2014-02-50 | 100 | US |
| 3120-01-212-5247 | 2014-01-29 | 4 | DIBBS |
| 3120-01-212-5247 | 2013-11-305 | 6 | DIBBS |
| AS81934 | 2013-01-25 | 10 | United States |
| 3120-01-212-5247 | 2012-01-30 | 1 | DIBBS |
| 3120-01-212-5247 | 2009-06-159 | 66 | DIBBS |
| 3120-01-212-5247 | 2008-06-170 | 500 | US |
| AS81934 | 2008-02-46 | 10 | US |
Cross Reference | NSN 3120-01-212-5247
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AD04A16 | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| AS81934 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS81934/1A | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| KDJ04016-341 | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
| KDJ04A016-341 | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
| M81934/1-04A016 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81934/1-04A016 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| PBRR-04-A-16 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-212-5247
Related Products | NSN 3120-01-212-5247
Technical Data | NSN 3120-01-212-5247
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/3 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OR CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 1 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-A-8625,TY 2 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 17C SOLID |
| OVERALL LENGTH | 0.5000 INCHES NOMINAL |

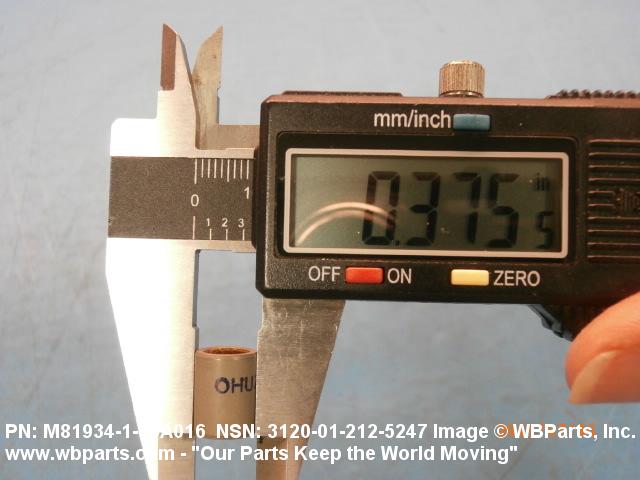

| BODY OUTSIDE DIAMETER | 0.3755 INCHES MINIMUM AND 0.3765 INCHES MAXIMUM |

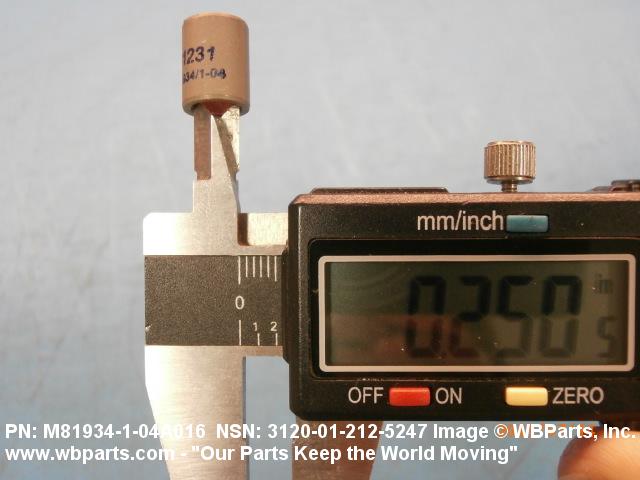

| BODY INSIDE DIAMETER | 0.2505 INCHES MINIMUM AND 0.2515 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
Restrictions/Controls & Freight Information | NSN 3120-01-212-5247
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114870 | BEARING/BUSHING METAL |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-212-5247
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
