NSN 3120-01-237-7592 10108250 , 74A4806122005, 74A480612-2005
Product Details | SLEEVE BEARING
3120-01-237-7592 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 10108250 , 74A4806122005, 74A480612-2005, 3120-01-237-7592, 01-237-7592, 3120012377592, 012377592
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 05 AUG 1986 | 01-237-7592 | 13205 ( BEARING, SLEEVE ) |
Drawings & Photos | NSN 3120-01-237-7592
Demand History | NSN 3120-01-237-7592
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-237-7592 | 2015-10-299 | 30 | United States |
| 3120-01-237-7592 | 2015-09-259 | 30 | DIBBS |
| 3120-01-237-7592 | 2015-09-250 | 30 | DIBBS |
| 3120-01-237-7592 | 2013-05-128 | 44 | DIBBS |
| 3120-01-237-7592 | 2013-04-113 | 44 | DIBBS |
| 3120-01-237-7592 | 2012-10-290 | 50 | DIBBS |
| 3120-01-237-7592 | 2012-10-289 | 50 | DIBBS |
| 3120-01-237-7592 | 2012-09-270 | 54 | DIBBS |
| 3120-01-237-7592 | 2009-08-224 | 36 | DIBBS |
Cross Reference | NSN 3120-01-237-7592
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74A480612-2005 | 02758 | U S BEARINGS |
| 74A480612-2005 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| 74A480612-2005 | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| 74A480612-2005 | 50632 | KAMATICS CORPORATION |
| 74A480612-2005 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| 74A480612-2005 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A480612-2005 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 74A480612-2005 | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-237-7592
Technical Data | NSN 3120-01-237-7592
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE INNER LAYER ALUMINUM ALLOY 2024 OUTER LAYER |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6,T351 FED SPEC SINGLE MATERIAL RESPONSE OUTER LAYER |
| SURFACE TREATMENT | ANODIZE OUTSIDE DIAMETER SURFACE OF BODY |
| STYLE DESIGNATOR | 17C-1 SOLID INTERNAL FLANGE ONE END |
| OVERALL LENGTH | 7.0100 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 2.9570 INCHES MINIMUM AND 2.9580 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 2.7540 INCHES MINIMUM AND 2.7560 INCHES MAXIMUM |

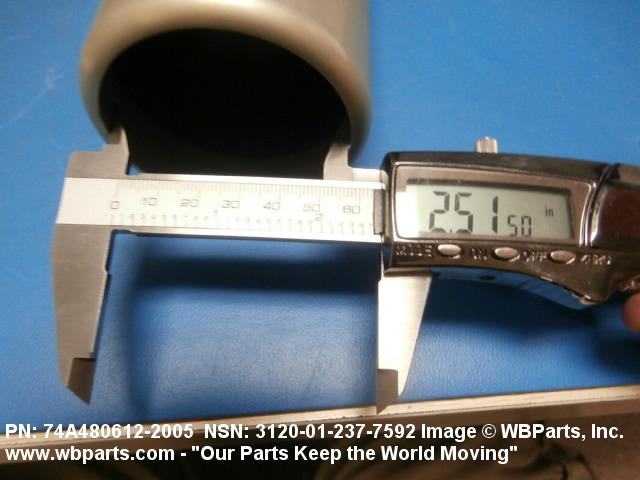

| RIGHT INTERNAL FLANGE HOLE DIAMETER | 2.5150 INCHES NOMINAL |
| RIGHT INTERNAL FLANGE WIDTH | 0.4950 INCHES MINIMUM AND 0.5050 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER ROUND OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER |
| (NON-CORE DATA) RADIUS | 0.2500 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3120-01-237-7592
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-237-7592
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
