NSN 3120-01-247-2799 5829204, 01-247-2799, 012472799
Product Details | SLEEVE BEARING
3120-01-247-2799 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 5829204, 3120-01-247-2799, 01-247-2799, 3120012472799, 012472799
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 31 DEC 1986 | 01-247-2799 | 13205 ( BEARING, SLEEVE ) |

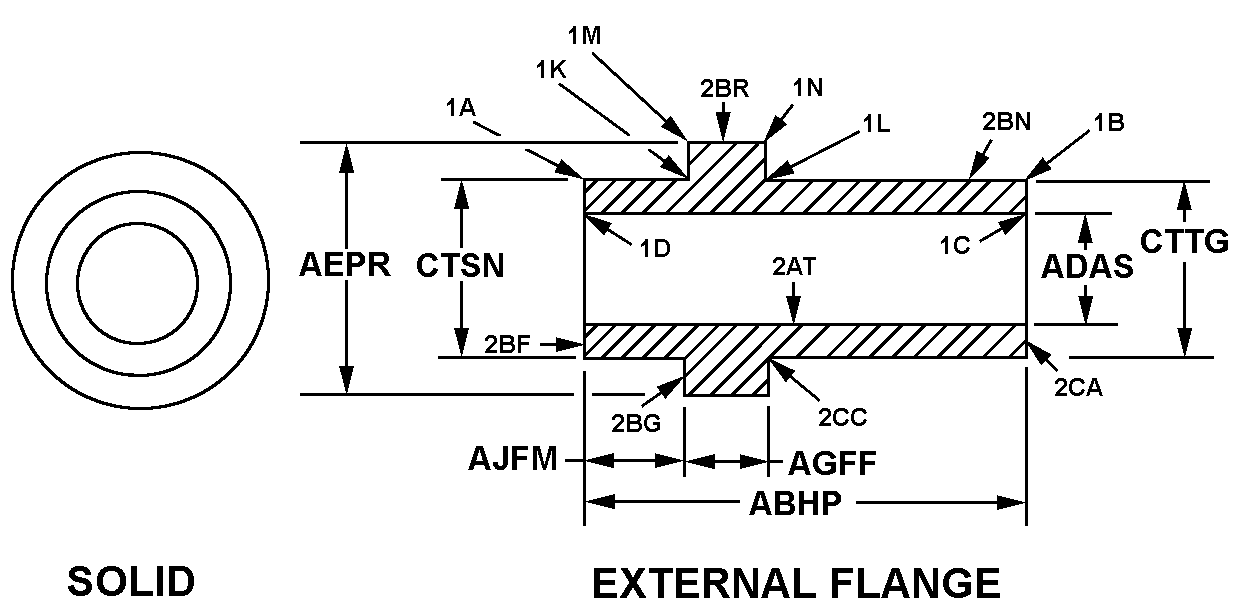

Drawings & Photos | NSN 3120-01-247-2799
Demand History | NSN 3120-01-247-2799
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-247-2799 | 2015-07-182 | 14 | DIBBS |
| 3120-01-247-2799 | 2015-06-174 | 14 | DIBBS |
Cross Reference | NSN 3120-01-247-2799
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5829204 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-247-2799
Technical Data | NSN 3120-01-247-2799
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-A-668,CLASS D ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-13924,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 21C-3 SOLID INTERNAL FLANGE AT BOTH ENDS |
| OVERALL LENGTH | 3.6790 INCHES MINIMUM AND 3.6810 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 2.9700 INCHES MINIMUM AND 3.0000 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 4.3800 INCHES NOMINAL |
| FLANGE WIDTH | 0.3800 INCHES NOMINAL |
| LEFT INTERNAL FLANGE HOLE DIAMETER | 2.9550 INCHES MINIMUM AND 2.9570 INCHES MAXIMUM |
| RIGHT INTERNAL FLANGE HOLE DIAMETER | 2.9550 INCHES MINIMUM AND 2.9570 INCHES MAXIMUM |
| LEFT INTERNAL FLANGE WIDTH | 0.3800 INCHES NOMINAL |
| RIGHT INTERNAL FLANGE WIDTH | 0.3800 INCHES NOMINAL |
| END TO FLANGE DISTANCE | 0.2500 INCHES NOMINAL |
| LEFT END BODY DIAMETER | 3.5000 INCHES NOMINAL |
| RIGHT END BODY DIAMETER | 3.5000 INCHES NOMINAL |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER CHAMFERED INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER ROUND CENTER FLANGE LEFT BODY CORNER ROUND CENTER FLANGE RIGHT BODY CORNER SQUARE CENTER FLANGE OUTSIDE LEFT CORNER SQUARE CENTER FLANGE OUTSIDE RIGHT CORNER |
| SURFACE FINISH | 63.0 MICROINCHES LEFT END SURFACE OF BODY 63.0 MICROINCHES RIGHT END SURFACE OF BODY |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0300 INCHES MINIMUM AND 0.0600 INCHES MAXIMUM 0.0300 INCHES MINIMUM AND 0.0600 INCHES MAXIMUM |
| (NON-CORE DATA) CHAMFER ANGLE | 25.0 DEGREES MINIMUM AND 35.0 DEGREES MAXIMUM 25.0 DEGREES MINIMUM AND 35.0 DEGREES MAXIMUM |
| (NON-CORE DATA) RADIUS | 0.1200 INCHES NOMINAL 0.1200 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3120-01-247-2799
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-247-2799
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
