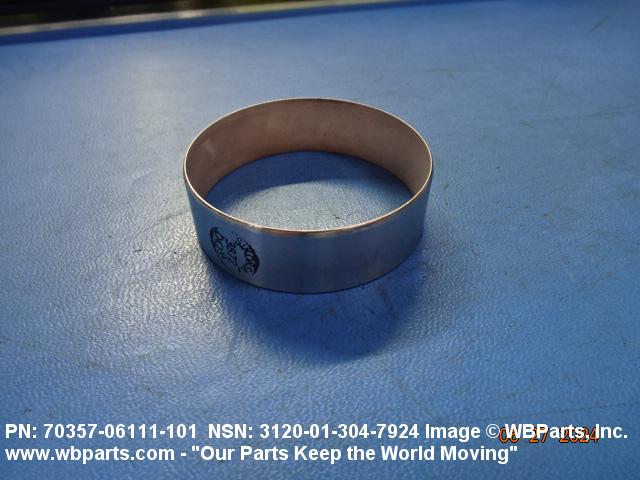

Product Details | SLEEVE BEARING
3120-01-304-7924 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 70357-06111-101, 3120-01-304-7924, 01-304-7924, 3120013047924, 7035706111101, 013047924
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 27 JUL 1989 | 01-304-7924 | 13205 ( BEARING, SLEEVE ) |
Drawings & Photos | NSN 3120-01-304-7924
Demand History | NSN 3120-01-304-7924
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-304-7924 | 2025-09-265 | 233 | DIBBS |
| 3120-01-304-7924 | 2024-06-176 | 1 | United States |
| 3120-01-304-7924 | 2024-06-176 | 2 | United States |
| 3120-01-304-7924 | 2024-06-158 | 2 | United States |
| 7035-70-611-1101 | 2020-03-71 | 1 | United States |
| 7035-70-611-1101 | 2019-06-175 | 2 | United States |
| 3120-01-304-7924 | 2018-11-319 | 803 | DIBBS |
| 3120-01-304-7924 | 2017-01-19 | 446 | DIBBS |
| 3120-01-304-7924 | 2016-02-42 | 93 | DIBBS |
| 3120-01-304-7924 | 2015-12-343 | 153 | DIBBS |
| 3120-01-304-7924 | 2014-08-240 | 67 | DIBBS |
| 3120-01-304-7924 | 2013-04-93 | 162 | DIBBS |
| 3120-01-304-7924 | 2013-02-56 | 17 | DIBBS |
| 3120-01-304-7924 | 2012-03-66 | 78 | DIBBS |
| 3120-01-304-7924 | 2011-09-270 | 100 | US |
| 3120-01-304-7924 | 2011-05-130 | 12 | DIBBS |
| 3120-01-304-7924 | 2010-08-228 | 54 | DIBBS |
| 3120-01-304-7924 | 2010-07-182 | 22 | DIBBS |
| 3120-01-304-7924 | 2008-04-99 | 80 | DIBBS |
| 3120-01-304-7924 | 2008-01-10 | 59 | DIBBS |
| 3120-01-304-7924 | 2007-11-317 | 41 | DIBBS |
| 3120-01-304-7924 | 2007-09-256 | 66 | DIBBS |
| 3120-01-304-7924 | 2007-06-166 | 32 | DIBBS |
| 3120-01-304-7924 | 2007-04-102 | 59 | DIBBS |
| 3120-01-304-7924 | 2007-02-46 | 16 | DIBBS |
Cross Reference | NSN 3120-01-304-7924
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70357-06111-101 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
