NSN 3120-01-336-0100 M81934/02-06C006, M81934/2-06C006, M819340206C006
Product Details | SLEEVE BEARING
3120-01-336-0100 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: M81934/02-06C006, M81934/2-06C006, M819340206C006, M81934206C006, AHJF06C006, AHJF06CL1006, AS81934/2, AS819342, KDJ06C006342, KDJ06C006-342, KRJ6UDSB006S, KRJ6UDSB-006S, MILB81934, MIL-B-81934, 04A07606C006, 04A076-06C006, 0728206006, 07-282-06-006, 3120-01-336-0100, 01-336-0100, 3120013360100, 013360100
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 19 MAR 1991 | 01-336-0100 | 13205 ( BEARING, SLEEVE ) |

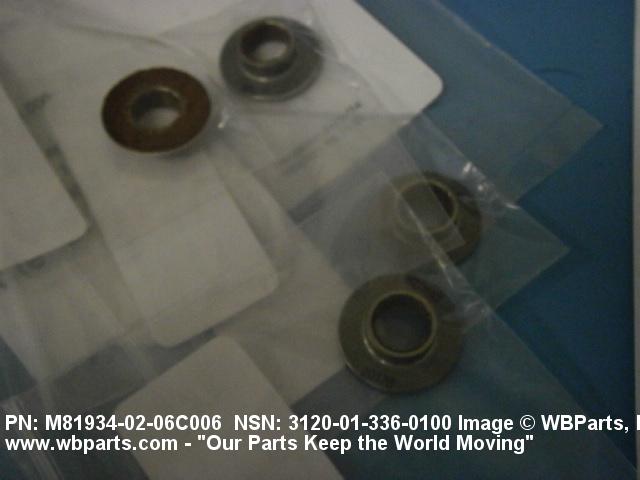

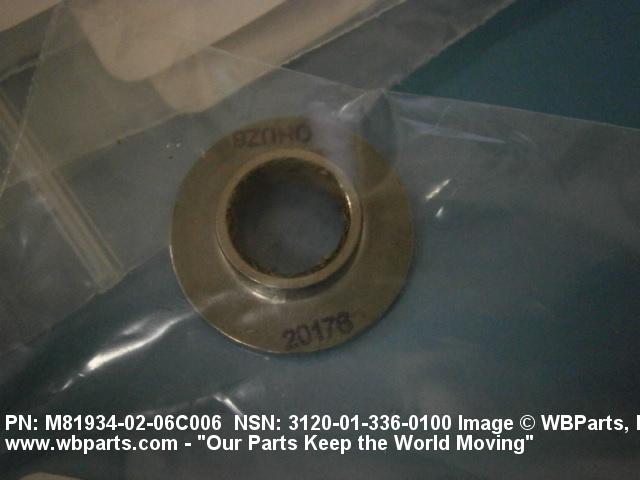

Drawings & Photos | NSN 3120-01-336-0100
Demand History | NSN 3120-01-336-0100
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS819342 | 2026-04-100 | 820 | US |
| 3120-01-336-0100 | 2025-03-86 | 185 | DIBBS |
| 3120-01-336-0100 | 2025-03-78 | 185 | DIBBS |
| 3120-01-336-0100 | 2023-12-347 | 185 | DIBBS |
| 3120-01-336-0100 | 2022-06-152 | 140 | DIBBS |
| AS819342 | 2020-09-262 | 12 | US |
| AS819342 | 2019-09-248 | 36 | United States |
| 3120-01-336-0100 | 2017-11-311 | 78 | DIBBS |
| 3120-01-336-0100 | 2017-07-191 | 29 | DIBBS |
| 3120-01-336-0100 | 2017-04-96 | 24 | DIBBS |
| 3120-01-336-0100 | 2017-03-65 | 24 | DIBBS |
| 3120-01-336-0100 | 2015-02-57 | 20 | CA |
| 3120-01-336-0100 | 2014-06-164 | 4 | United States |
| AS819342 | 2013-06-171 | 2 | AU |
| M81934206C006 | 2012-08-227 | 240 | US |
| M81934206C006 | 2011-11-334 | 4 | United States |
| AS819342 | 2011-08-231 | 2 | us |
| 3120-01-336-0100 | 2010-04-102 | 10 | DIBBS |
| 3120-01-336-0100 | 2010-03-64 | 47 | DIBBS |
| M81934206C006 | 2010-03-61 | 10 | Croatia |
| AS819342 | 2009-10-296 | 550 | us |
| M81934206C006 | 2009-10-293 | 6 | United States |
| 3120-01-336-0100 | 2009-08-236 | 35 | DIBBS |
| 3120-01-336-0100 | 2009-01-23 | 7 | DIBBS |
| 3120-01-336-0100 | 2008-11-316 | 6 | DIBBS |
| 3120-01-336-0100 | 2008-10-282 | 10 | DIBBS |
| M81934206C006 | 2008-02-50 | 2 | United States |
| MILB81934 | 2007-07-199 | 50 | US |
Cross Reference | NSN 3120-01-336-0100
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 04A076-06C006 | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 07-282-06-006 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| AHJF06C(L1)006 | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| AHJF06C006 | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
| AS81934/2 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| KDJ06C006-342 | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
| KRJ6UDSB-006S | 50632 | KAMATICS CORPORATION |
| M81934/02-06C006 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M81934/2-06C006 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-B-81934 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-336-0100
Related Products | NSN 3120-01-336-0100
Technical Data | NSN 3120-01-336-0100
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 INNER LAYER PLASTIC POLYTETRAFLUOROETHYLENE AND PLASTIC POLYAMIDE AND PLASTIC PHENOLIC OUTER LAYER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-81934 MIL SPEC SINGLE MATERIAL RESPONSE OUTER LAYER |
| HARDNESS RATING | 27.0 ROCKWELL C MINIMUM OUTER LAYER |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 0.2500 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.5007 INCHES MINIMUM AND 0.5012 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.3755 INCHES MINIMUM AND 0.3765 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 0.8550 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0625 INCHES NOMINAL |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER |
| (NON-CORE DATA) UNDERCUT WIDTH | 0.0625 INCHES NOMINAL |
| (NON-CORE DATA) UNDERCUT DEPTH | 0.0050 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 3120-01-336-0100
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-336-0100
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
