Product Details | SLEEVE BEARING
3120-01-342-5760 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: P28232, 10227154, 27154B, 3120-01-342-5760, 01-342-5760, 3120013425760, 013425760
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 26 JUL 1991 | 01-342-5760 | 13205 ( BEARING, SLEEVE ) |
Drawings & Photos | NSN 3120-01-342-5760
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3120-01-342-5760
3120-01-342-5761, 3120-01-342-5762, 3120-01-342-5763, 3120-01-342-5764, 3120-01-342-5765
Technical Data | NSN 3120-01-342-5760
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRONZE MANGANESE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 17C SOLID |
| OVERALL LENGTH | 4.1200 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 3.5040 INCHES MINIMUM AND 3.5050 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 3.0070 INCHES MINIMUM AND 3.0080 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| ANTIROTATION/LUBRICATION TYPE AND QUANTITY | 2 HOLE |
| HOLE DIAMETER | 0.1900 INCHES NOMINAL FIRST |

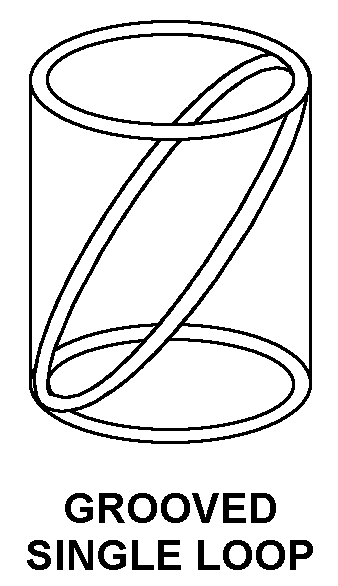

| LUBRICANT ACCOMMODATION STYLE | 61 GROOVED SINGLE LOOP AND 69 GROOVED CIRCULAR |
| SURFACE GROOVE LOCATION AND QUANTITY | 1 EXTERNAL |
