NSN 3120-01-354-8273 MS2124106A012, MS21241-06A012, M81934/2-06A012

Product Details | SLEEVE BEARING

3120-01-354-8273 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.

Part Alternates: MS2124106A012, MS21241-06A012, M81934/2-06A012, M81934206A012, AS81934, KDJ06A012241, KDJ06A012-241, MIL-B-81934/2, MILB819342, 3120-01-354-8273, 01-354-8273, 3120013548273, 013548273

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	06 MAR 1992	01-354-8273	13205 ( BEARING, SLEEVE )

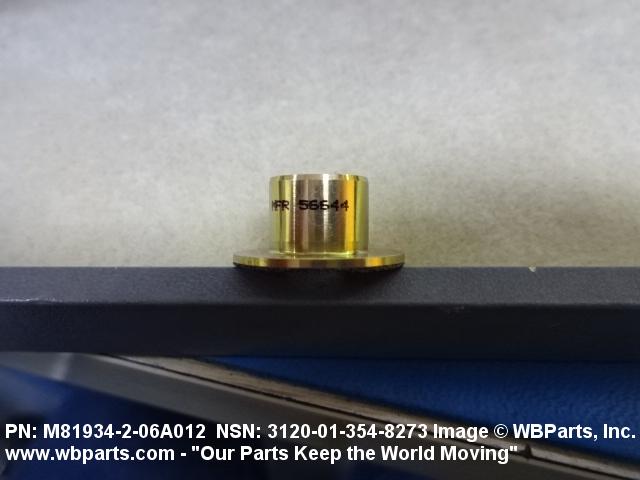

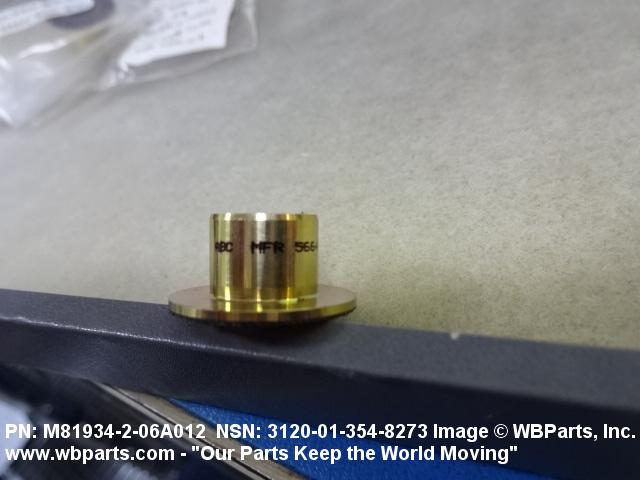

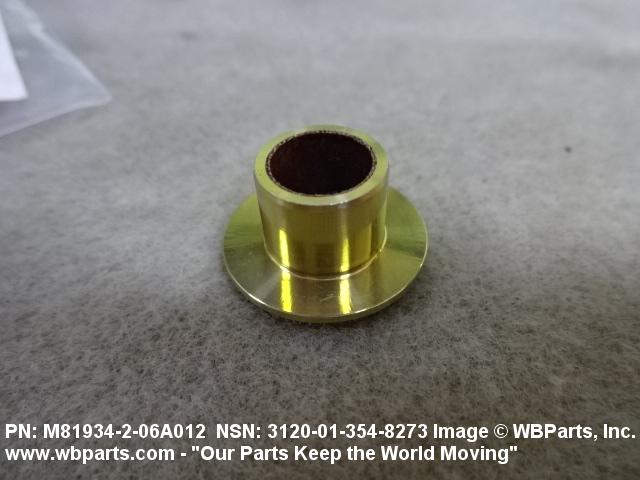

Drawings & Photos | NSN 3120-01-354-8273

Part Number	Request Date	QTY	Origin
MS2124106A012	2023-05-137	58	United States
3120-01-354-8273	2020-10-289	340	United States
MS2124106A012	2020-10-280	340	United States
3120-01-354-8273	2020-07-199	36	United States
AS81934	2013-01-25	10	United States
AS81934	2008-02-46	10	US
MILB819342	2007-11-320	200	US
MILB819342	2007-09-264	4	US

Cross Reference | NSN 3120-01-354-8273

Part Number	Cage Code	Manufacturer
AS81934	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
KDJ06A012-241	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
M81934/2-06A012	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M81934/2-06A012	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-B-81934/2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS21241-06A012	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-354-8273

Compare

Related Products | NSN 3120-01-354-8273

3120-01-354-8274, 3120-01-354-8275, 3120-01-354-8276, 3120-01-354-8277, 3120-01-354-8278

Technical Data | NSN 3120-01-354-8273

Characteristic	Specifications
MATERIAL	PLASTIC POLYTETRAFLUOROETHYLENE INNER LAYER ALUMINUM ALLOY 2024 OUTER LAYER
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-200/3,T8511 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/6,T851 FED SPEC SINGLE MATERIAL RESPONSE OUTER LAYER
SURFACE TREATMENT	CHROMATE OUTER LAYER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE OUTER LAYER
STYLE DESIGNATOR	22C SOLID

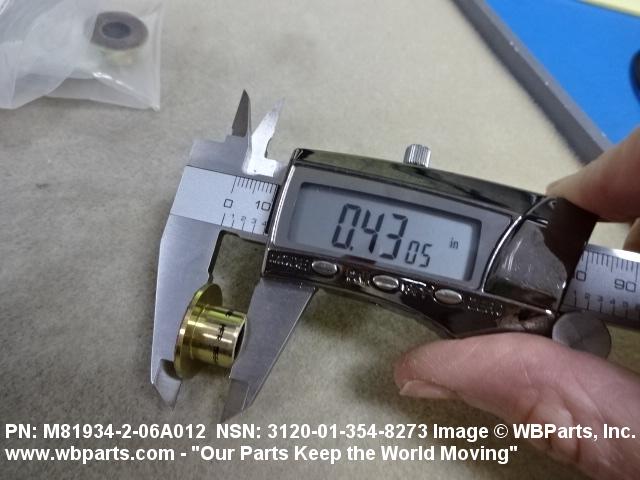

OVERALL LENGTH	0.4225 INCHES MINIMUM AND 0.4375 INCHES MAXIMUM

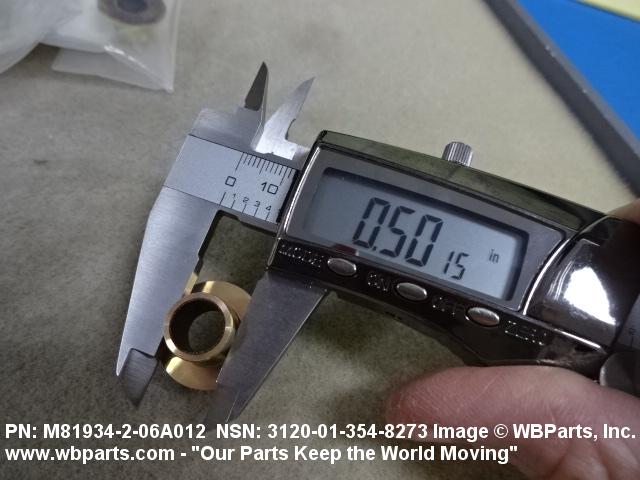

BODY OUTSIDE DIAMETER	0.5007 INCHES MINIMUM AND 0.5017 INCHES MAXIMUM

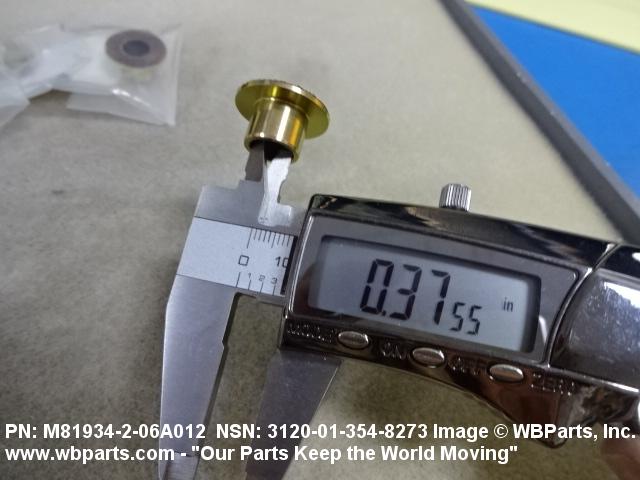

BODY INSIDE DIAMETER	0.3755 INCHES MINIMUM AND 0.3765 INCHES MAXIMUM
FLANGE OUTSIDE DIAMETER	0.8550 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM
FLANGE WIDTH	0.0575 INCHES MINIMUM AND 0.0625 INCHES MAXIMUM
CORNER SHAPE	SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER
SURFACE FINISH	125.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES LEFT END SURFACE OF BODY AND FLANGE 63.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF FLANGE 125.0 MICROINCHES RIGHT END SURFACE OF BODY 125.0 MICROINCHES RIGHT END SURFACE OF LEFT FLANGE
SPECIAL FEATURES	PLASTIC LINER BONDED TO LEFT END SURFACE OF FLANGE
(NON-CORE DATA) UNDERCUT WIDTH	0.0620 INCHES MAXIMUM
(NON-CORE DATA) UNDERCUT DEPTH	0.0050 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 3120-01-354-8273

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-01-354-8273

Army
Navy

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
