NSN 3120-01-468-1821 AJD04056, AJD-04-056, BACB28AB4056
Product Details | SLEEVE BEARING
3120-01-468-1821 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: AJD04056, AJD-04-056, BACB28AB4056, BACB28AB4-056, HBR284056, HBR284-056, 04228056, 04-228-056, 1073304056, 107-3304-056, 7891004056, 78910-04-056, 3120-01-468-1821, 01-468-1821, 3120014681821, 014681821
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01-468-1821 | 13205 ( BEARING, SLEEVE ) |

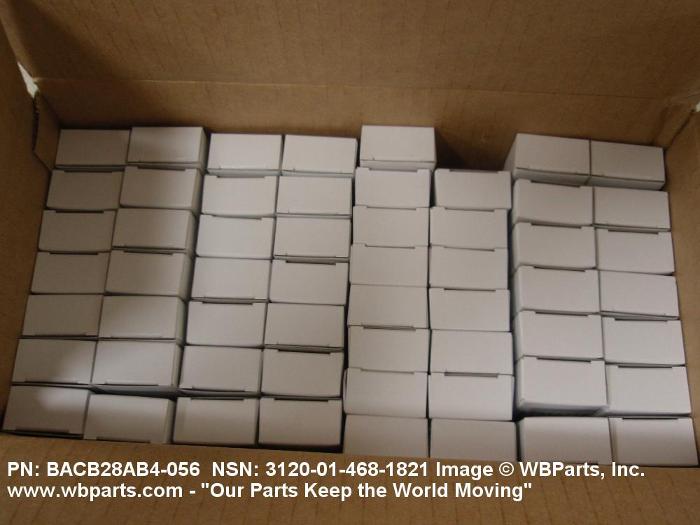

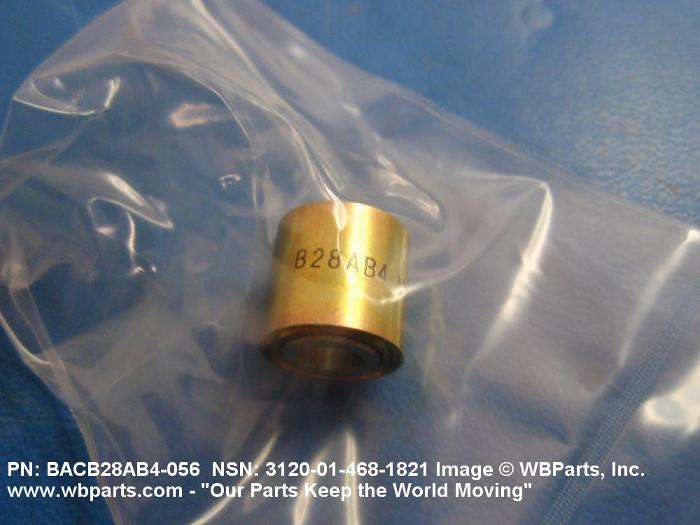

Drawings & Photos | NSN 3120-01-468-1821
Demand History | NSN 3120-01-468-1821
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACB28AB4056 | 2021-03-64 | 2 | United States |
| BACB28AB4056 | 2021-03-62 | 2 | United States |
| BACB28AB4056 | 2017-01-27 | 40 | United States |
| BACB28AB4056 | 2017-01-27 | 80 | United States |
| BACB28AB4056 | 2015-09-251 | 6 | United States |
| BACB28AB4056 | 2010-06-175 | 250 | US |
| BACB28AB4056 | 2008-10-282 | 5 | United States |
| 3120-01-468-1821 | 2008-08-219 | 63 | United States |
| 3120-01-468-1821 | 2008-06-182 | 30 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-468-1821
Technical Data | NSN 3120-01-468-1821
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING INNER LAYER PLASTIC POLYTETRAFLUOROETHYLENE INTERMEDIATE LAYER STEEL CORROSION RESISTING OUTER LAYER |
| MATERIAL DOCUMENT AND CLASSIFICATION | 17-4PH, AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE INNER LAYER 17-4PH, AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE INTERMEDIATE LAYER |
| SURFACE TREATMENT | CADMIUM OUTER LAYER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TY 2, CL 2 FED SPEC SINGLE TREATMENT RESPONSE OUTER LAYER |
| STYLE DESIGNATOR | 17C SOLID |
| OVERALL LENGTH | 0.4500 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.5620 INCHES MINIMUM AND 0.5625 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| SURFACE FINISH | 63.0 MICROINCHES EXTERNAL SURFACE MEMBER |
| III END ITEM IDENTIFICATION | AWACS |
Restrictions/Controls & Freight Information | NSN 3120-01-468-1821
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
