NSN 3120-01-488-5977 M81934/2-06C005, M81934206C005, 01-488-5977

Product Details | SLEEVE BEARING

3120-01-488-5977 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.

Part Alternates: M81934/2-06C005, M81934206C005, 3120-01-488-5977, 01-488-5977, 3120014885977, 014885977

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	28 AUG 2001	01-488-5977	13205 ( BEARING, SLEEVE )

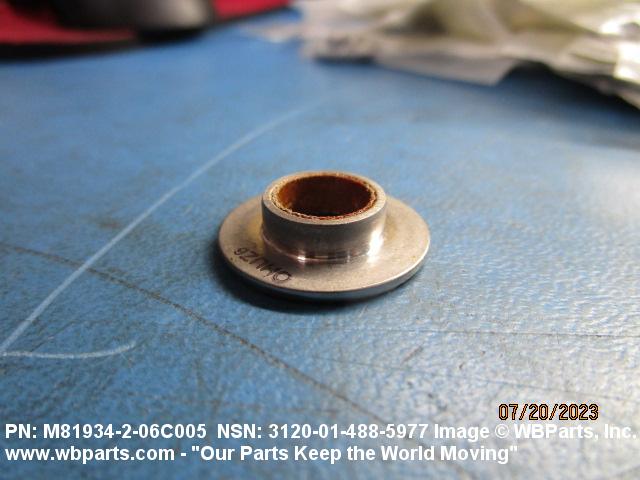

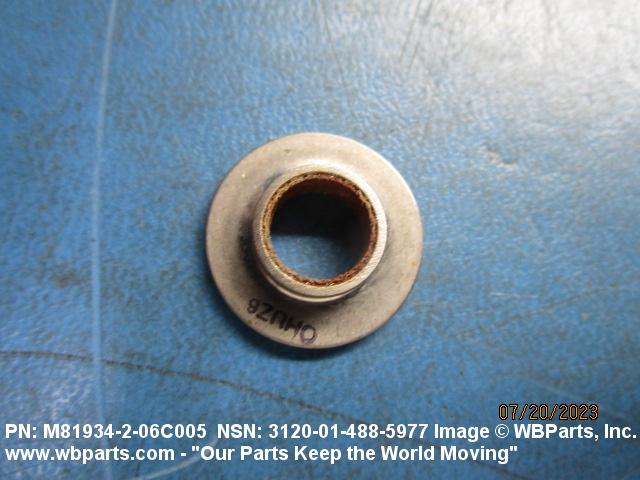

Drawings & Photos | NSN 3120-01-488-5977

Part Number	Request Date	QTY	Origin
M81934206C005	2024-06-171	25	us
M81934206C005	2023-12-338	50	CL
3120-01-488-5977	2023-06-177	25	United States
3120-01-488-5977	2022-05-131	289	DIBBS
3120-01-488-5977	2022-05-123	289	DIBBS
3120-01-488-5977	2021-09-256	73	DIBBS
3120-01-488-5977	2021-08-230	118	DIBBS
3120-01-488-5977	2021-08-220	120	DIBBS
3120-01-488-5977	2021-08-220	71	DIBBS
3120-01-488-5977	2021-06-167	94	DIBBS
3120-01-488-5977	2021-06-159	70	DIBBS
3120-01-488-5977	2021-05-129	63	DIBBS
3120-01-488-5977	2017-01-12	96	DIBBS
3120-01-488-5977	2016-09-258	35	DIBBS
3120-01-488-5977	2016-08-227	35	DIBBS
M81934206C005	2010-09-250	10	US
3120-01-488-5977	2010-04-106	35	US
3120-01-488-5977	2008-08-214	200	DIBBS
M81934206C005	2008-02-50	18	United States
3120-01-488-5977	2008-02-43	50	DIBBS
3120-01-488-5977	2008-02-38	200	DIBBS
3120-01-488-5977	2008-01-11	9	DIBBS
3120-01-488-5977	2007-12-360	7	DIBBS
3120-01-488-5977	2007-02-41	4	DIBBS

Cross Reference | NSN 3120-01-488-5977

Part Number	Cage Code	Manufacturer
M81934/2-06C005	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M81934/2-06C005	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-488-5977

Compare

Related Products | NSN 3120-01-488-5977

3120-01-488-5978, 3120-01-488-6125, 3120-01-488-6144, 3120-01-488-6244, 3120-01-488-6245

Technical Data | NSN 3120-01-488-5977

Characteristic	Specifications
MATERIAL	PLASTIC POLYTETRAFLUOROETHYLENE INNER LAYER STEEL COMP 630 OUTER LAYER
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OUTER LAYER
STYLE DESIGNATOR	22C SOLID

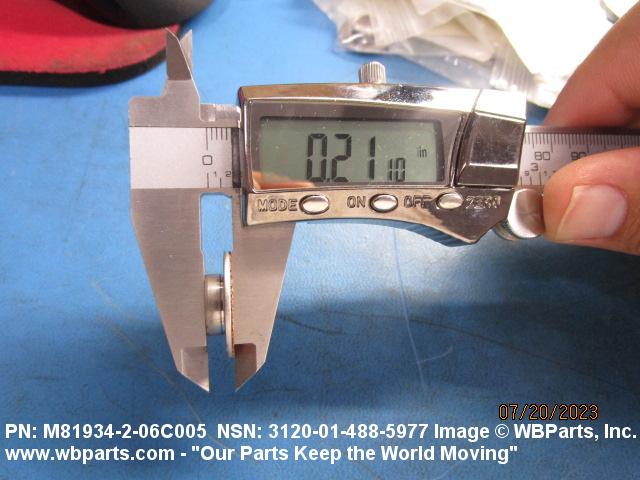

OVERALL LENGTH	0.2185 INCHES NOMINAL

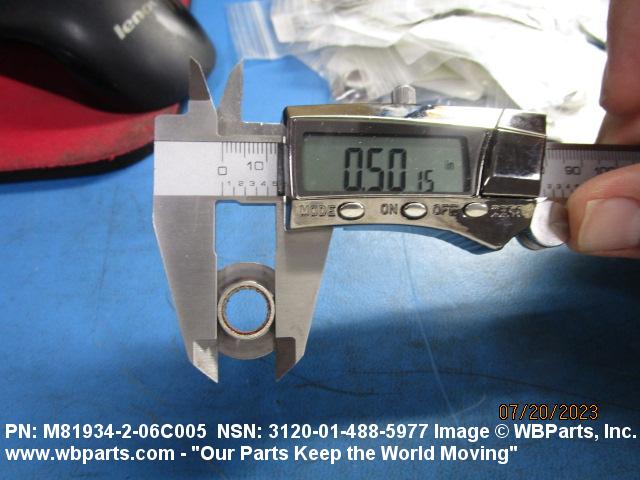

BODY OUTSIDE DIAMETER	0.5007 INCHES MINIMUM AND 0.5012 INCHES MAXIMUM
BODY INSIDE DIAMETER	0.3755 INCHES MINIMUM AND 0.3765 INCHES MAXIMUM

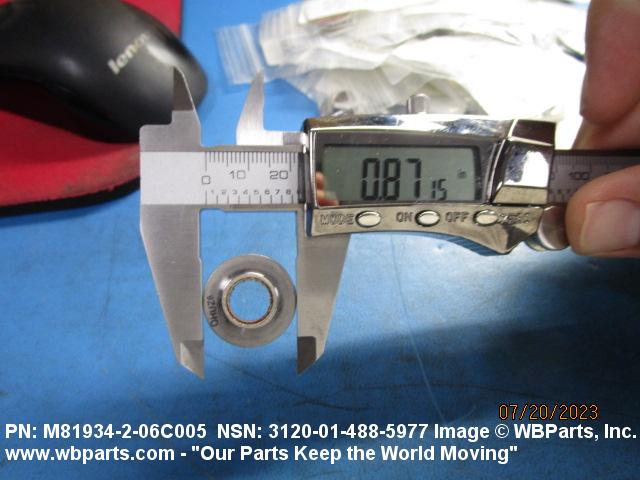

FLANGE OUTSIDE DIAMETER	0.8500 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM
FLANGE WIDTH	0.0575 INCHES MINIMUM AND 0.0625 INCHES MAXIMUM
CORNER SHAPE	SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER

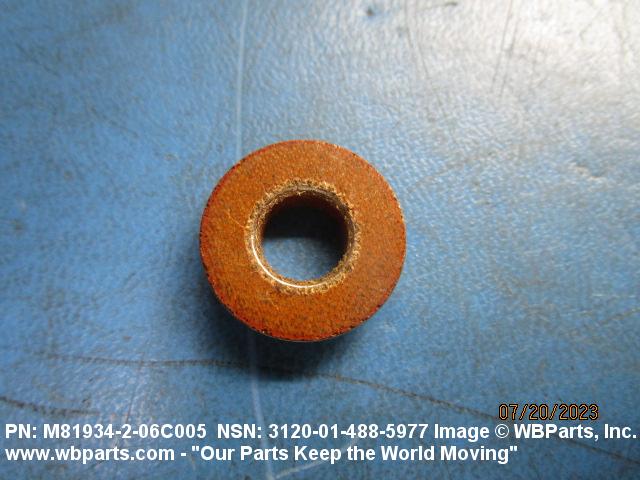

SPECIAL FEATURES	PLASTIC,POLYTETRAFLOROETHELINE LINER BONDED TO LEFT END SURFACE OF FLANGE
III END ITEM IDENTIFICATION	F22
(NON-CORE DATA) UNDERCUT WIDTH	0.0620 INCHES MAXIMUM
(NON-CORE DATA) UNDERCUT DEPTH	0.0050 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 3120-01-488-5977

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	TK	HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-01-488-5977

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	FD	SU:"ELECTRONIC WARFARE EQUIPMENT, NON-AIRBORNE"
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
