NSN 3120-01-492-9158 MS2124106C016, MS21241-06C016, M81934/2-06C016

Product Details | SLEEVE BEARING

3120-01-492-9158 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.

Part Alternates: MS2124106C016, MS21241-06C016, M81934/2-06C016, M81934206C016, AS81934/2, AS819342, 3120-01-492-9158, 01-492-9158, 3120014929158, 014929158

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	17 DEC 2001	01-492-9158	13205 ( BEARING, SLEEVE )

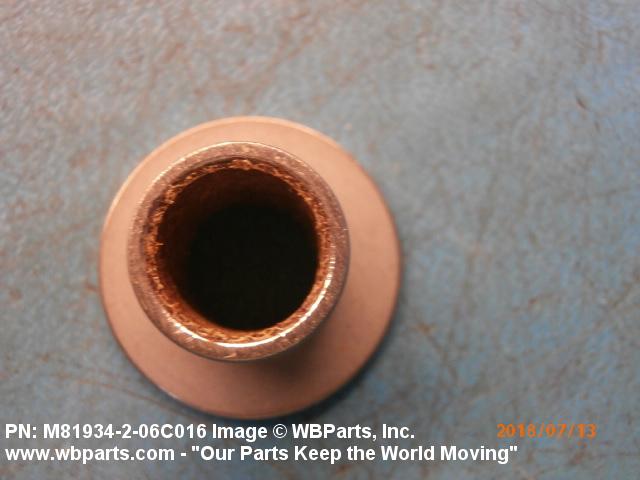

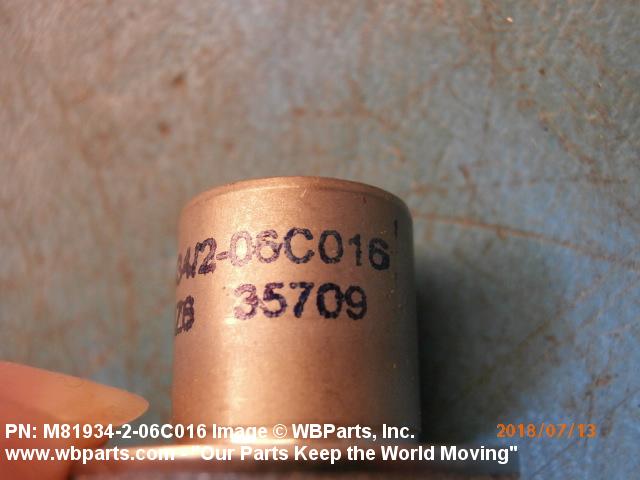

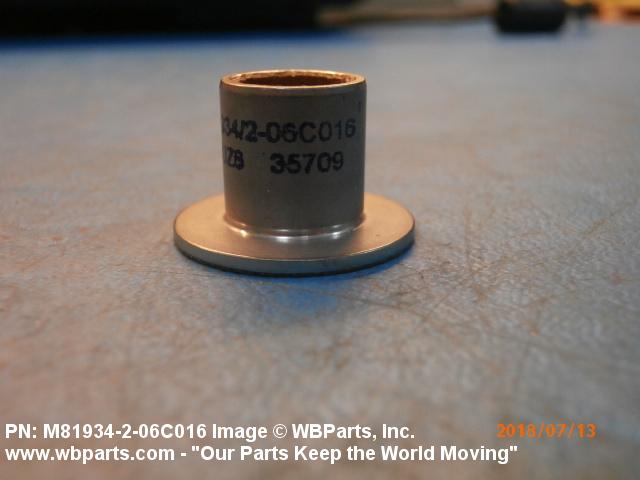

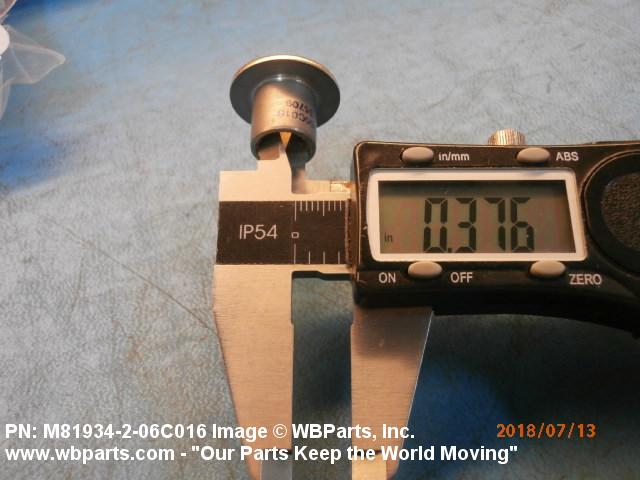

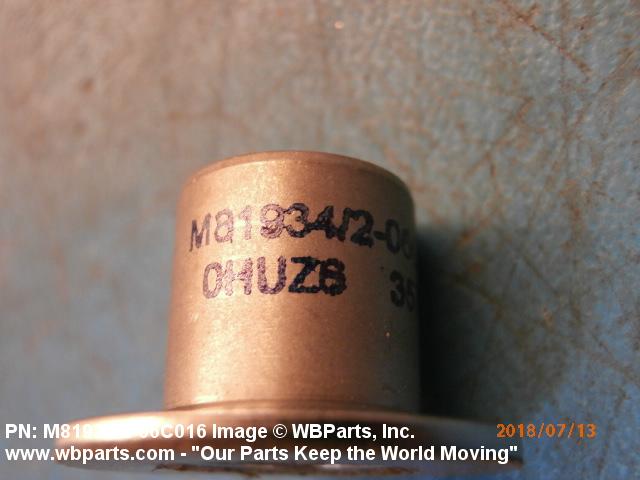

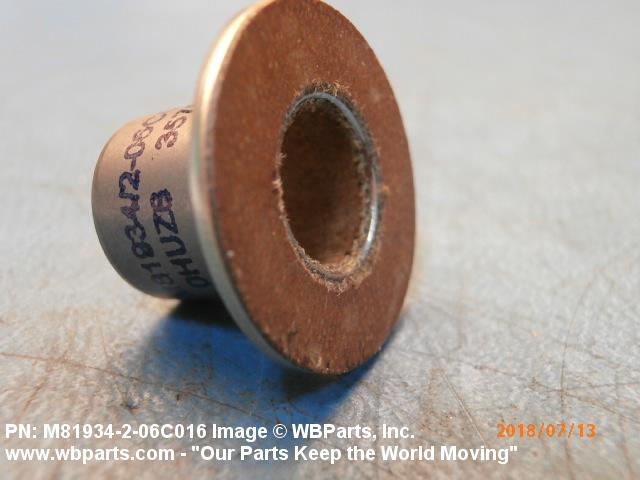

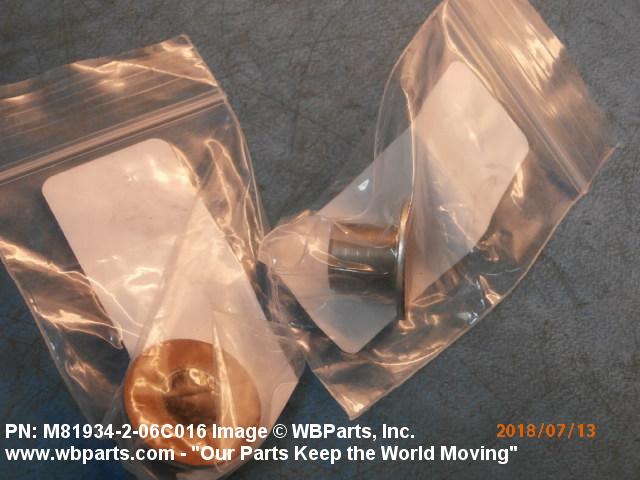

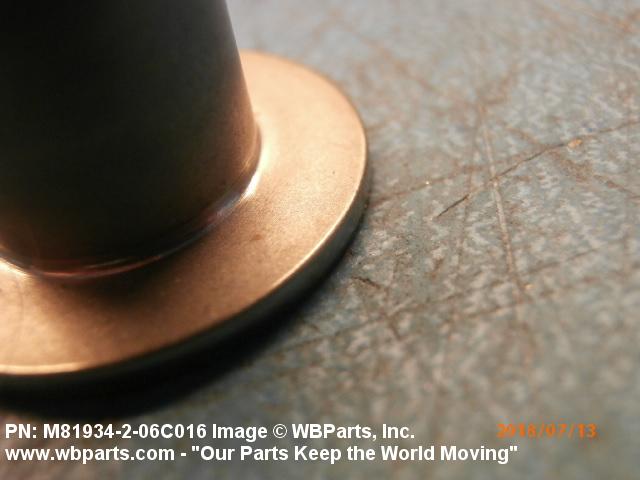

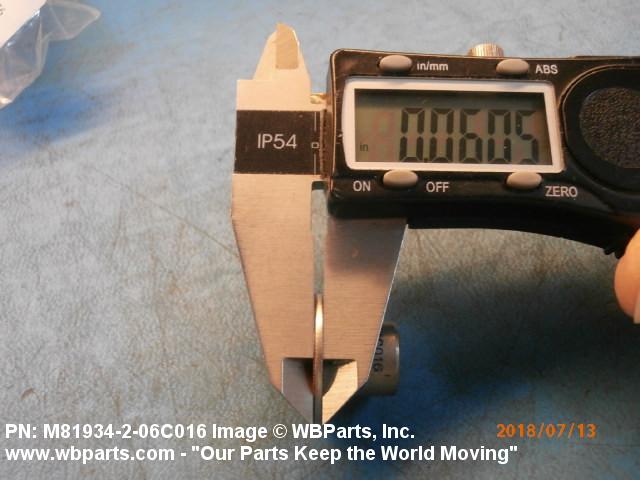

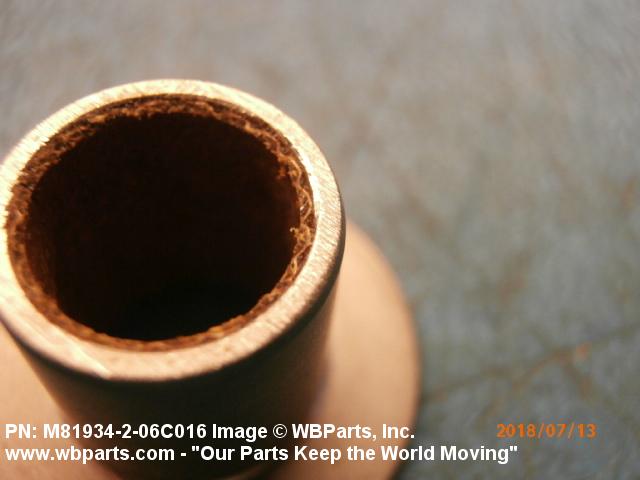

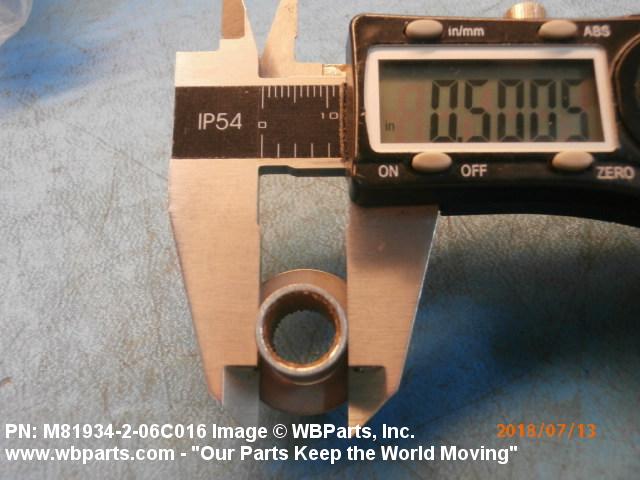

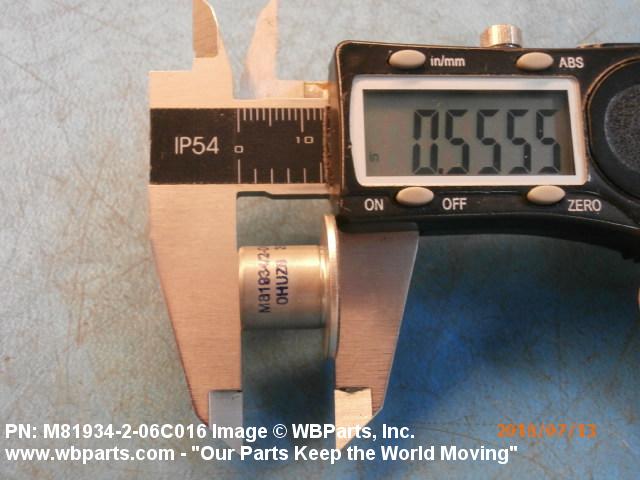

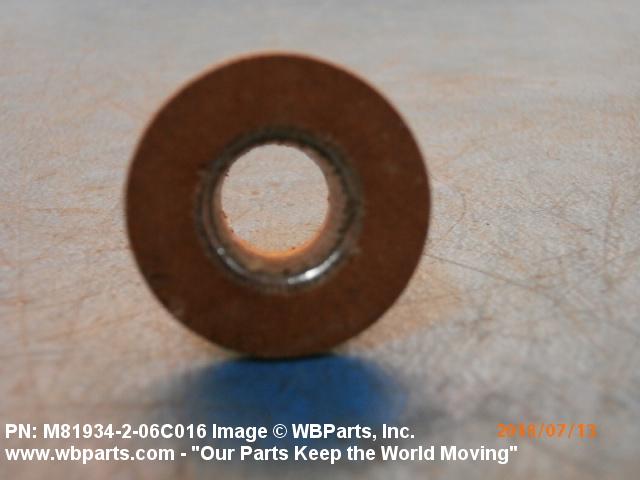

Drawings & Photos | NSN 3120-01-492-9158

Part Number	Request Date	QTY	Origin
M81934206C016	2025-09-247	6	United States
M81934206C016	2025-08-229	265	United States
M81934206C016	2025-02-35	4	United States
M81934206C016	2024-12-347	4	United States
M81934206C016	2024-10-276	4	United States
AS819342	2020-09-262	12	US
M81934206C016	2020-02-58	80	United States
AS819342	2019-09-248	36	United States
M81934206C016	2019-05-129	33	Greece
M81934206C016	2019-05-129	51	Greece
M81934206C016	2018-07-184	2	United Kingdom
M81934206C016	2018-07-184	10	United Kingdom
M81934206C016	2016-09-265	100	United States
M81934206C016	2015-08-219	140	United States
M81934206C016	2015-08-219	280	United States
AS819342	2013-06-171	2	AU
3120-01-492-9158	2012-03-66	550	United States
M81934206C016	2011-12-346	400	US
3120-01-492-9158	2011-09-245	497	DIBBS
AS819342	2011-08-231	2	us
3120-01-492-9158	2011-05-140	396	DIBBS
3120-01-492-9158	2011-01-11	100	US
3120-01-492-9158	2011-01-11	500	US
3120-01-492-9158	2010-09-246	120	US
3120-01-492-9158	2010-09-245	150	US
3120-01-492-9158	2010-08-243	650	US
3120-01-492-9158	2010-04-95	408	DIBBS
3120-01-492-9158	2009-11-334	185	DIBBS
AS819342	2009-10-296	550	us
3120-01-492-9158	2009-09-273	10	DIBBS
3120-01-492-9158	2009-07-187	66	DIBBS
3120-01-492-9158	2009-06-153	39	DIBBS
M81934206C016	2008-05-149	600	US
M81934206C016	2008-05-149	1500	US
M81934206C016	2008-05-147	600	US

Cross Reference | NSN 3120-01-492-9158

Part Number	Cage Code	Manufacturer
AS81934/2	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M81934/2-06C016	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21241-06C016	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-492-9158

Compare

Related Products | NSN 3120-01-492-9158

3120-01-492-9411, 3120-01-492-9481, 3120-01-492-9502, 3120-01-492-9518, 3120-01-492-9675

Technical Data | NSN 3120-01-492-9158

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
STYLE DESIGNATOR	22C SOLID
OVERALL LENGTH	0.5000 INCHES NOMINAL
BODY OUTSIDE DIAMETER	0.5007 INCHES MINIMUM AND 0.5012 INCHES MAXIMUM
BODY INSIDE DIAMETER	0.3755 INCHES MINIMUM AND 0.3765 INCHES MAXIMUM
FLANGE OUTSIDE DIAMETER	0.8550 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM
FLANGE WIDTH	0.0585 INCHES MINIMUM AND 0.0625 INCHES MAXIMUM
CORNER SHAPE	SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER
III END ITEM IDENTIFICATION	2330-01-117-3280
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21241-06C016

Restrictions/Controls & Freight Information | NSN 3120-01-492-9158

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114800	BEARING,ROLLER,THRUST
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	742	unknown
Originating Activity Code	CH	Defense Supply Center Richmond Richmond, VA 23297
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-01-492-9158

Army

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
