NSN 4310-00-437-6925 RSK234, RSK234A, 00-437-6925
Product Details | COMPRESSOR PISTON
4310-00-437-6925 A cylindrical piece which moves or reciprocates in a cylinder to compress air or gas from an initial intake pressure to a higher discharge pressure. May include integral connecting rod.20241300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: RSK234, RSK234A, 4310-00-437-6925, 00-437-6925, 4310004376925, 004376925
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 03 SEP 1969 | 00-437-6925 | 22220 ( PISTON, COMPRESSOR ) |

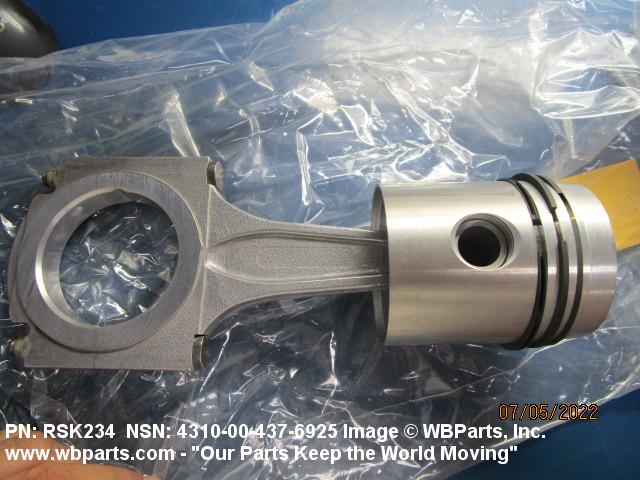

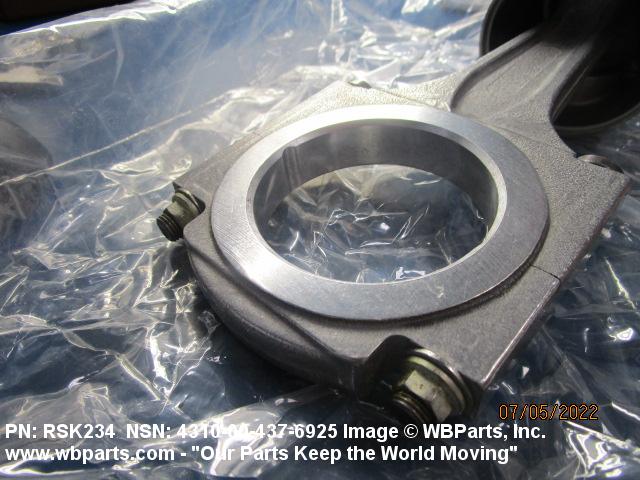

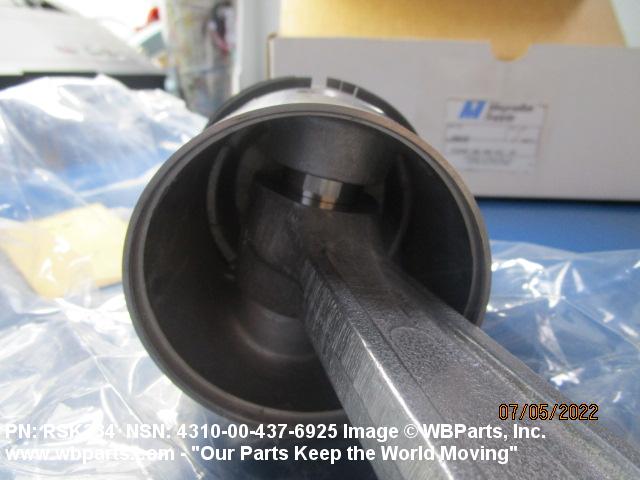

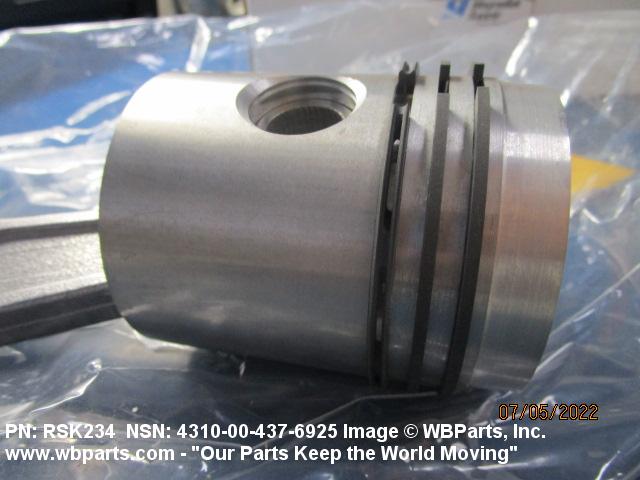

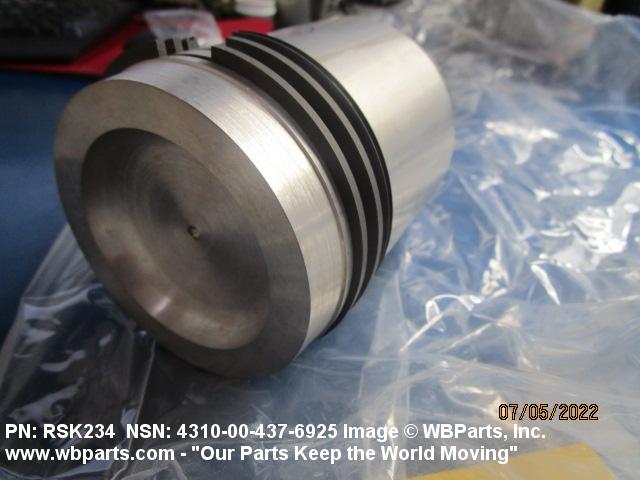

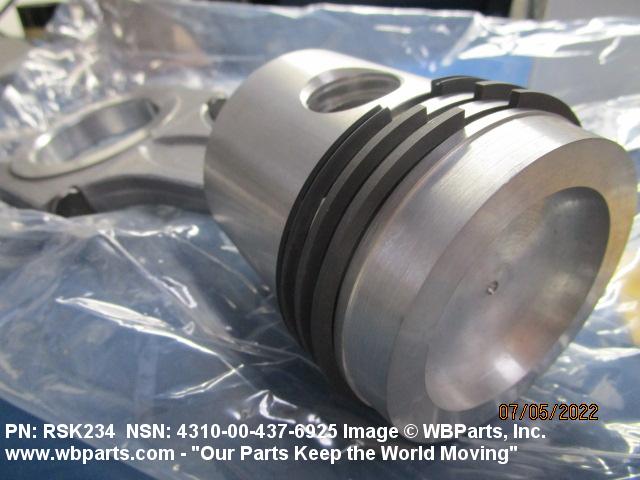

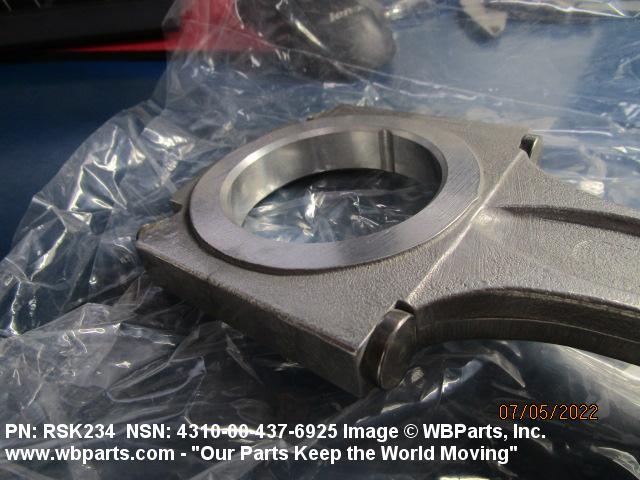

Drawings & Photos | NSN 4310-00-437-6925
Demand History | NSN 4310-00-437-6925
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4310-00-437-6925 | 2022-03-68 | 12 | Turkey |
| 4310-00-437-6925 | 2020-03-73 | 12 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-00-437-6925
Technical Data | NSN 4310-00-437-6925
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| DIAMETER | 3.250 INCHES NOMINAL |
| OVERALL HEIGHT | 3.875 INCHES NOMINAL |
| SURFACE FINISH | FINISHED |
| FINISHED SIZE DESIGNATION | STANDARD |
| HEAD STYLE | 11 CONCAVE |
| SKIRT TYPE | SOLID |
| SKIRT BOTTOM CUTAWAY FEATURE | NOT INCLUDED |
| RING GROOVE QUANTITY | 3 |
| RING GROOVE POSITION | NO. 1,NO. 2,NO. 3 POSITIONS |
| RING GROOVE WIDTH | 0.093 INCHES NOMINAL AND 0.156 INCHES NOMINAL |
| RING GROOVE DIAMETER | 2.930 INCHES NOMINAL |
| OIL PASSAGE TYPE | SLOT |
| OIL GROOVE | INCLUDED |
| DISTANCE FROM PIN HOLE CENTER TO EXTREME TOP | 2.250 INCHES NOMINAL |
| PIN HOLE BUSHING | NOT INCLUDED |
| PINHOLE DIAMETER | 0.750 INCHES NOMINAL |
| DISTANCE BETWEEN PIN BOSSES | 1.500 INCHES NOMINAL |
| RETAINING RING GROOVE | INCLUDED |
| PIN | INCLUDED |
| PIN TYPE FOR WHICH DESIGNED | LOCKED |
| RING | INCLUDED |
| INTEGRAL CONNECTING ROD | INCLUDED |
Restrictions/Controls & Freight Information | NSN 4310-00-437-6925
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
