Product Details | FLUID PRESSURE REGULATING VALVE

4810-00-716-8617 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered

Part Alternates: 114HS1022, 114HS102-2, 3A0112, 3A011-2, 4810-00-716-8617, 00-716-8617, 4810007168617, 007168617

Valves | Valves, Powered

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
48	01 JAN 1963	00-716-8617	27565 ( VALVE, REGULATING, FLUID PRESSURE )

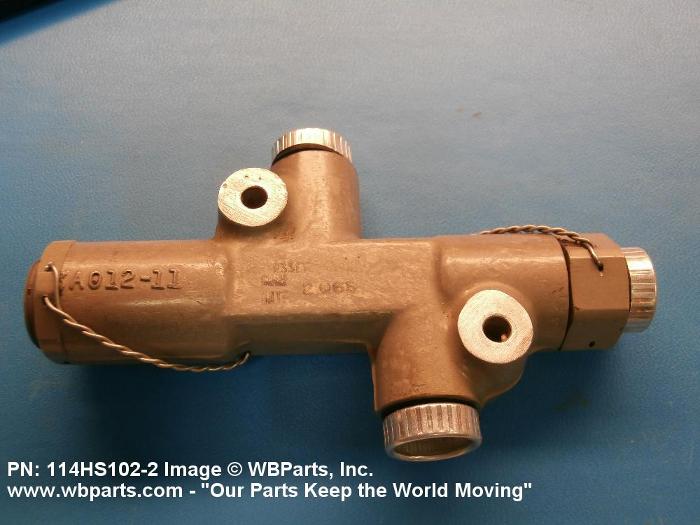

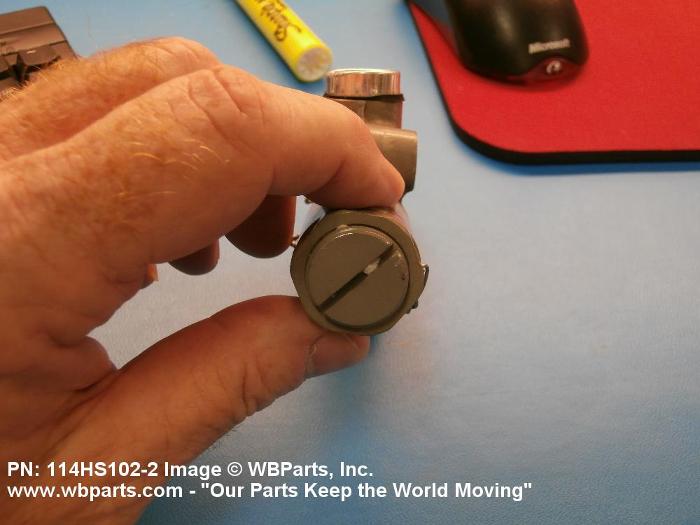

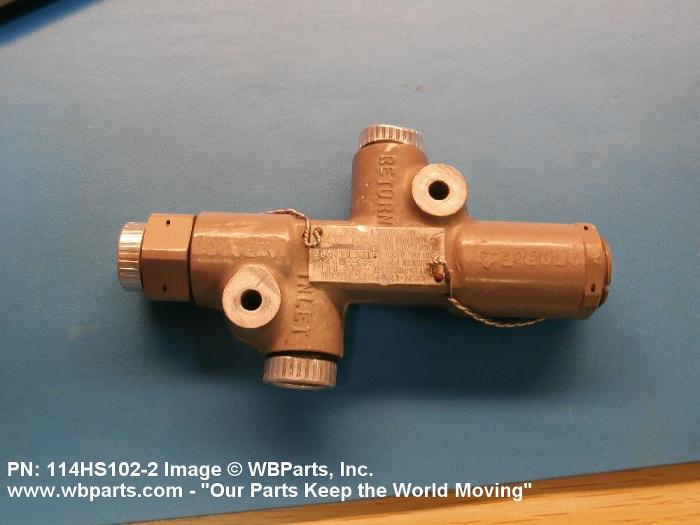

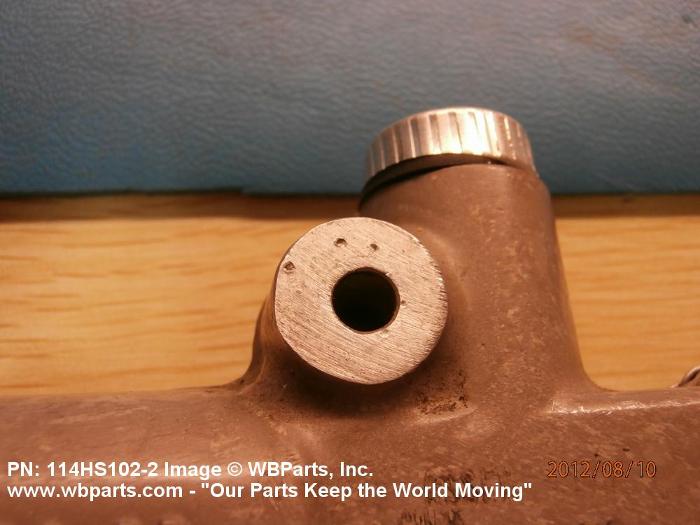

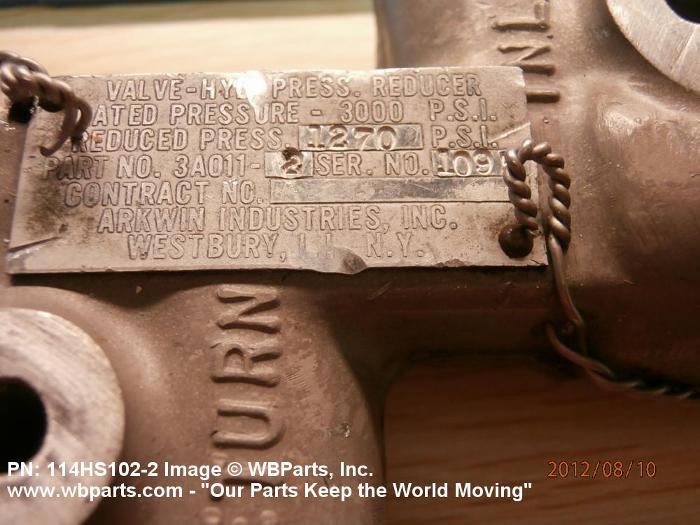

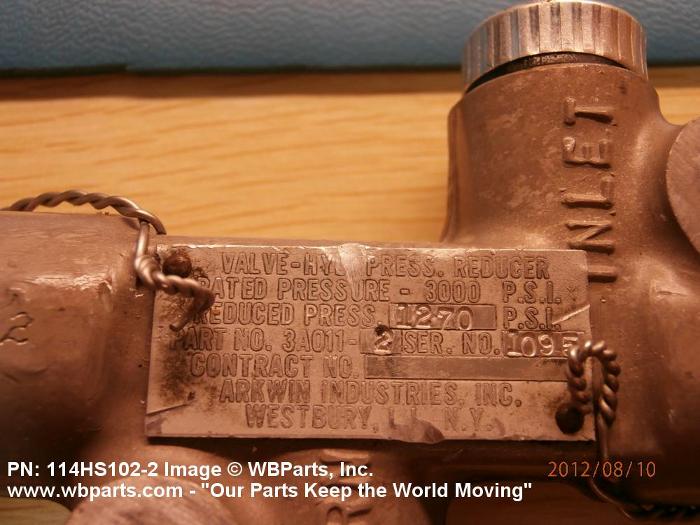

Drawings & Photos | NSN 4810-00-716-8617
