NSN 4820-00-055-5114 HP3681005, HP368100-5, 117SCH1045
Product Details | SAFETY RELIEF VALVE

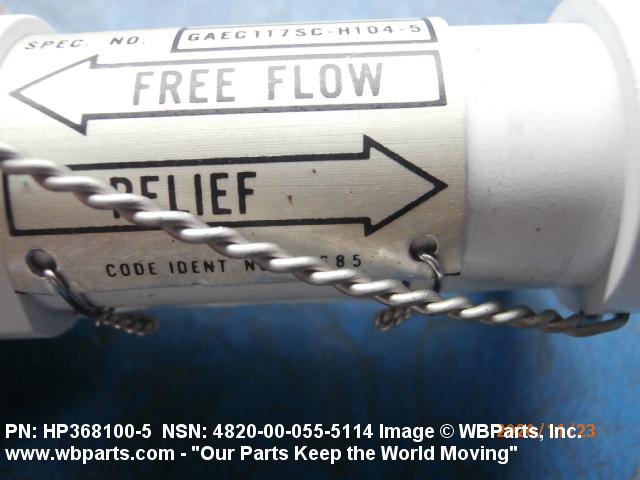

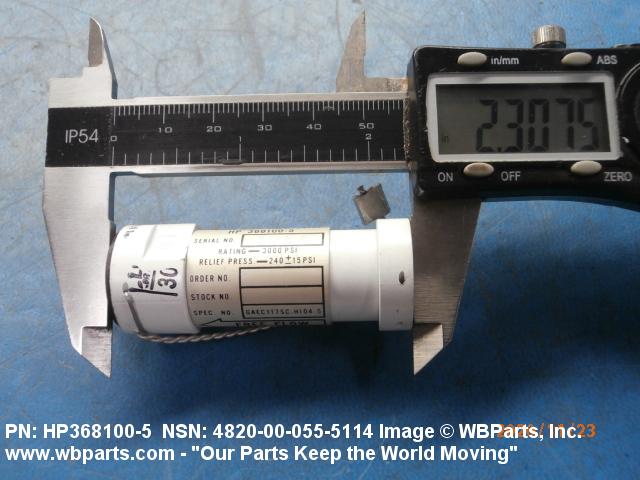

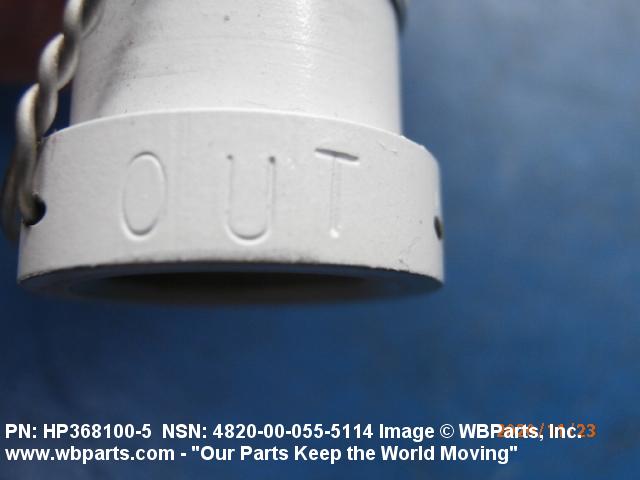

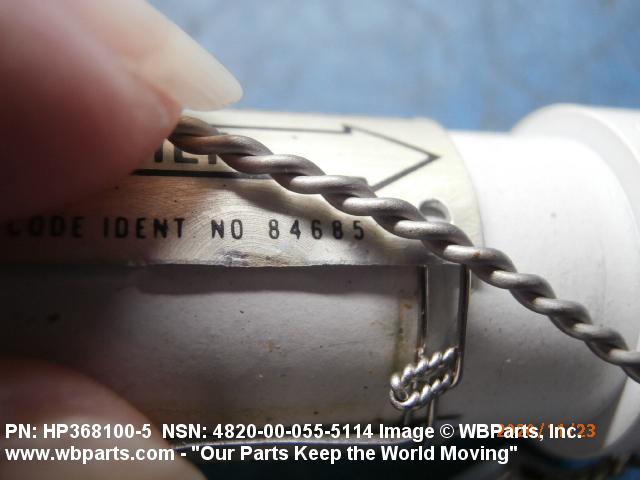

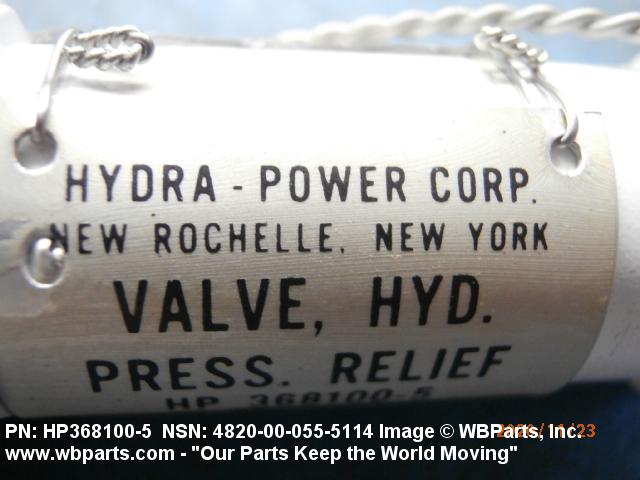

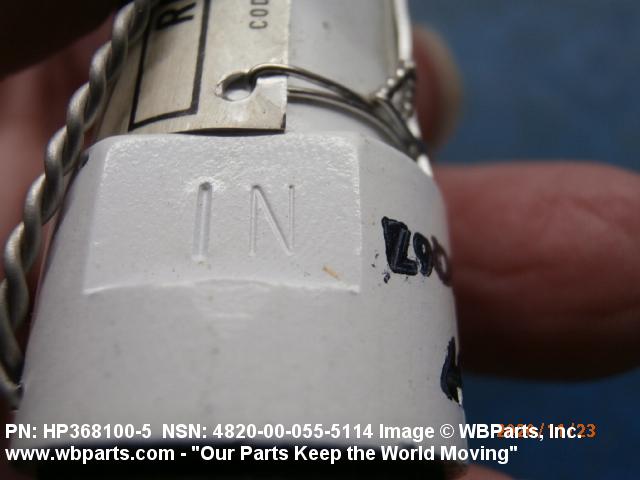

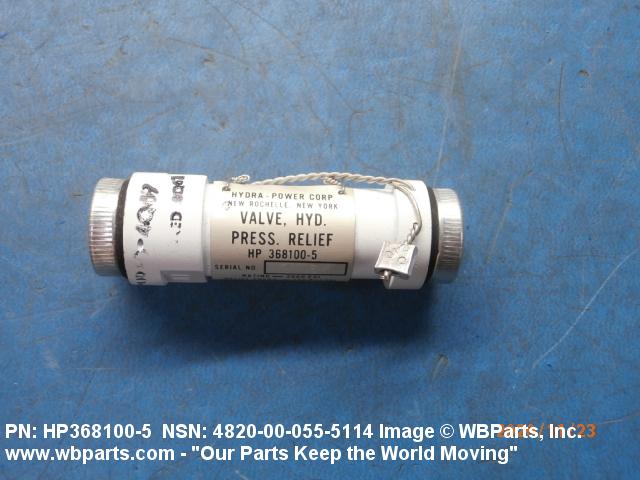

4820-00-055-5114 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: HP3681005, HP368100-5, 117SCH1045, 117SCH104-5, 4820-00-055-5114, 00-055-5114, 4820000555114, 000555114
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-055-5114 | 05488 ( VALVE, SAFETY RELIEF ) |

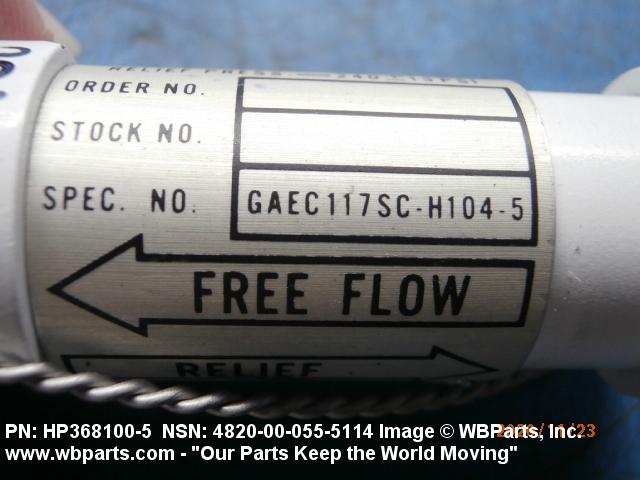

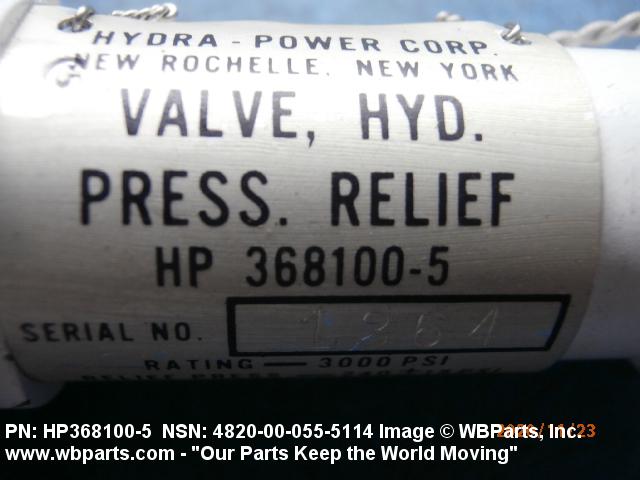

Drawings & Photos | NSN 4820-00-055-5114
Demand History | NSN 4820-00-055-5114
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HP368100-5 | 2025-11-308 | 17 | DIBBS |
| HP368100-5 | 2025-02-36 | 59 | DIBBS |
| HP368100-5 | 2024-08-219 | 11 | DIBBS |
| HP368100-5 | 2024-07-193 | 9 | DIBBS |
| HP368100-5 | 2024-04-100 | 25 | DIBBS |
| HP368100-5 | 2024-03-81 | 9 | DIBBS |
| HP368100-5 | 2023-11-316 | 16 | DIBBS |
| HP368100-5 | 2023-07-193 | 11 | DIBBS |
| HP368100-5 | 2023-06-170 | 22 | DIBBS |
| HP368100-5 | 2022-11-332 | 48 | DIBBS |
| HP368100-5 | 2022-11-317 | 35 | DIBBS |
| HP368100-5 | 2022-10-300 | 13 | DIBBS |
| HP368100-5 | 2022-08-230 | 13 | DIBBS |
| HP368100-5 | 2022-07-187 | 13 | DIBBS |
| HP368100-5 | 2022-05-143 | 3 | DIBBS |
| HP368100-5 | 2022-05-132 | 3 | DIBBS |
| HP368100-5 | 2021-02-55 | 29 | DIBBS |
| HP368100-5 | 2020-12-352 | 4 | DIBBS |
| 4820-00-055-5114 | 2020-11-318 | 1 | United States |
| HP368100-5 | 2020-10-288 | 29 | DIBBS |
| HP368100-5 | 2020-09-273 | 2 | DIBBS |
| HP368100-5 | 2020-09-261 | 2 | DIBBS |
| HP368100-5 | 2020-09-254 | 2 | DIBBS |
| HP368100-5 | 2020-08-226 | 7 | DIBBS |
| HP368100-5 | 2020-07-212 | 7 | DIBBS |
| HP368100-5 | 2020-07-205 | 8 | DIBBS |
| HP368100-5 | 2019-12-356 | 10 | DIBBS |
| HP368100-5 | 2019-10-282 | 4 | DIBBS |
| HP368100-5 | 2019-09-269 | 4 | DIBBS |
| 4820-00-055-5114 | 2018-11-319 | 12 | DIBBS |
| 4820-00-055-5114 | 2018-08-242 | 11 | DIBBS |
| 4820-00-055-5114 | 2018-03-67 | 14 | DIBBS |
| 4820-00-055-5114 | 2017-11-306 | 13 | DIBBS |
| 4820-00-055-5114 | 2017-08-219 | 12 | DIBBS |
| 4820-00-055-5114 | 2017-02-55 | 14 | DIBBS |
| 4820-00-055-5114 | 2017-02-44 | 24 | DIBBS |
| 4820-00-055-5114 | 2017-02-33 | 24 | DIBBS |
| 4820-00-055-5114 | 2017-01-08 | 14 | DIBBS |
| 4820-00-055-5114 | 2016-12-340 | 12 | DIBBS |
| 4820-00-055-5114 | 2016-07-200 | 11 | DIBBS |
| 4820-00-055-5114 | 2016-07-189 | 11 | DIBBS |
| 4820-00-055-5114 | 2016-05-143 | 10 | DIBBS |
| 4820-00-055-5114 | 2016-04-102 | 10 | DIBBS |
| 4820-00-055-5114 | 2016-02-39 | 10 | DIBBS |
| 4820-00-055-5114 | 2015-09-258 | 18 | DIBBS |
| 4820-00-055-5114 | 2015-09-246 | 18 | DIBBS |
| 4820-00-055-5114 | 2015-08-223 | 9 | DIBBS |
| 4820-00-055-5114 | 2015-07-211 | 9 | DIBBS |
| 4820-00-055-5114 | 2015-05-143 | 1 | DIBBS-RFPs |
| 4820-00-055-5114 | 2013-09-256 | 12 | DIBBS |
| 4820-00-055-5114 | 2013-08-241 | 12 | DIBBS |
| 4820-00-055-5114 | 2013-08-218 | 19 | DIBBS |
| 4820-00-055-5114 | 2013-07-202 | 19 | DIBBS |
| 4820-00-055-5114 | 2013-07-185 | 19 | DIBBS |
| 4820-00-055-5114 | 2013-04-98 | 72 | DIBBS |
| 4820-00-055-5114 | 2012-03-89 | 40 | DIBBS |
| 4820-00-055-5114 | 2011-01-06 | 18 | DIBBS |
| 4820-00-055-5114 | 2010-12-362 | 18 | DIBBS |
| 4820-00-055-5114 | 2010-07-190 | 5 | DIBBS |
| 4820-00-055-5114 | 2009-11-321 | 10 | DIBBS |
| 4820-00-055-5114 | 2009-11-321 | 13 | DIBBS |
| 4820-00-055-5114 | 2009-09-260 | 11 | DIBBS |
| 4820-00-055-5114 | 2009-09-260 | 28 | DIBBS |
| 4820-00-055-5114 | 2009-05-121 | 13 | DIBBS |
| 4820-00-055-5114 | 2008-09-269 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-055-5114
Related Products | NSN 4820-00-055-5114
Technical Data | NSN 4820-00-055-5114

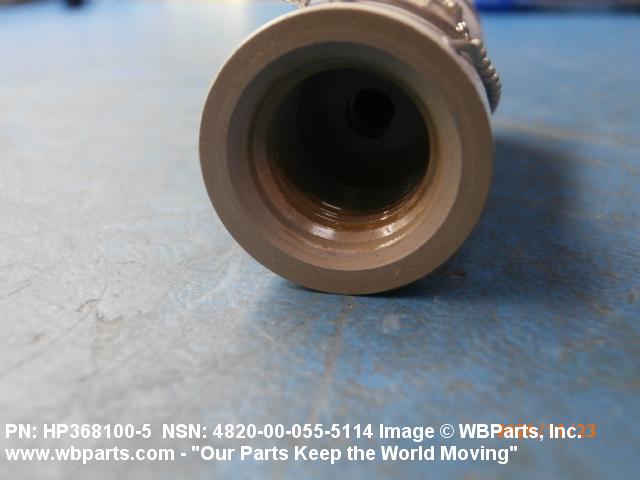

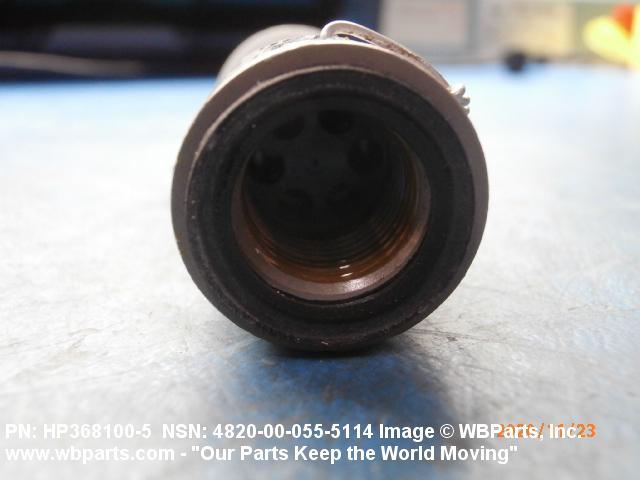

| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY STEEL CORROSION RESISTING FLOW CONTROL DEVICE ALUMINUM ALLOY SEAT |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| FLOW CONTROL DEVICE | POPPET |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 275.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 275.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE DISCHARGE FLOW RATE | 3.5 GALLONS PER MINUTE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED INTERNAL BOSS ALL ENDS |
| CONNECTION STYLE | G4 GASKET SEAL ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |

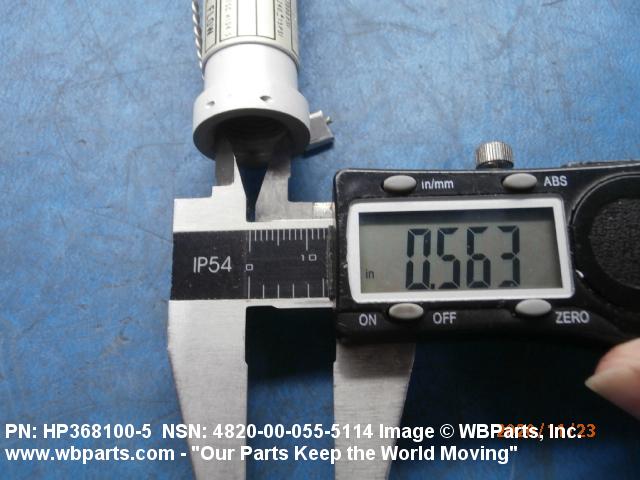

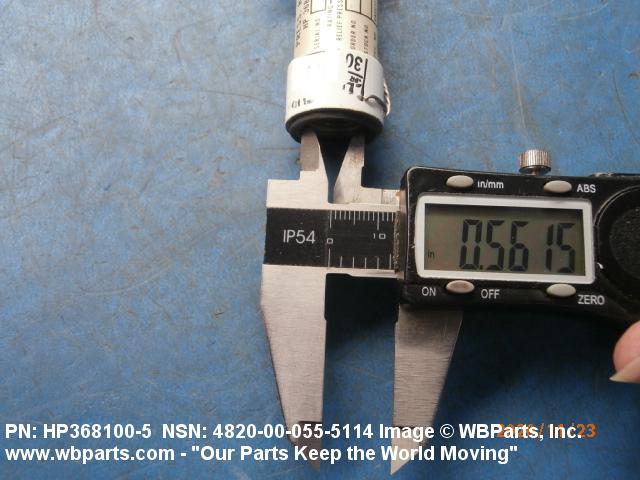

| NOMINAL THREAD SIZE | 0.562 INCHES ALL ENDS |

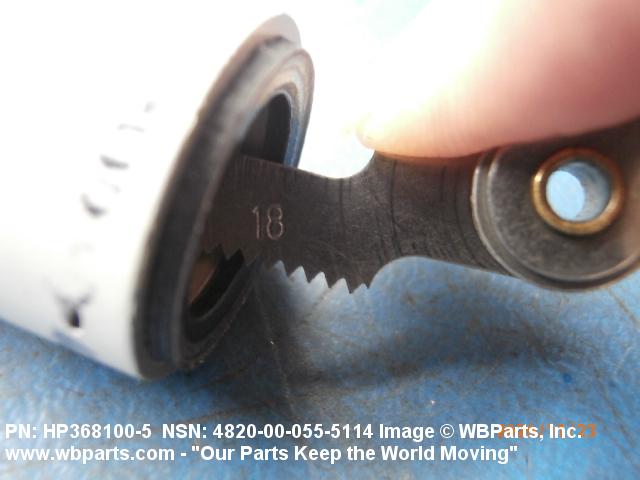

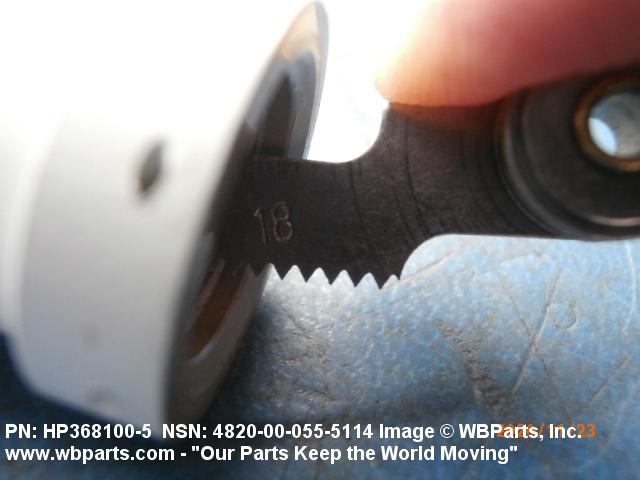

| THREAD QUANTITY PER INCH | 18 ALL ENDS |
| THREAD CLASS | 3B ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| DISK LOADING METHOD | SPRING |

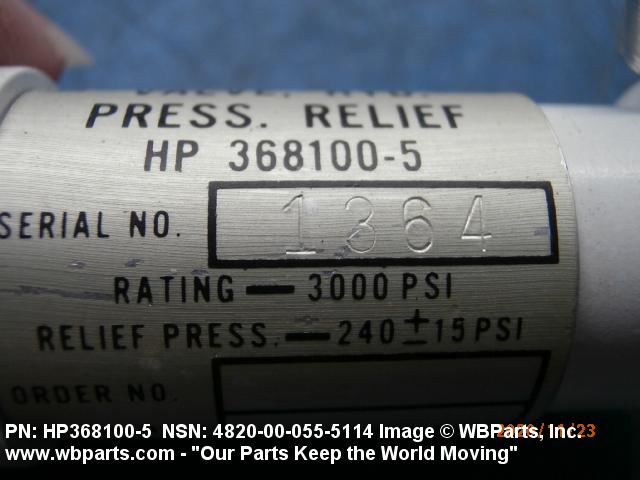

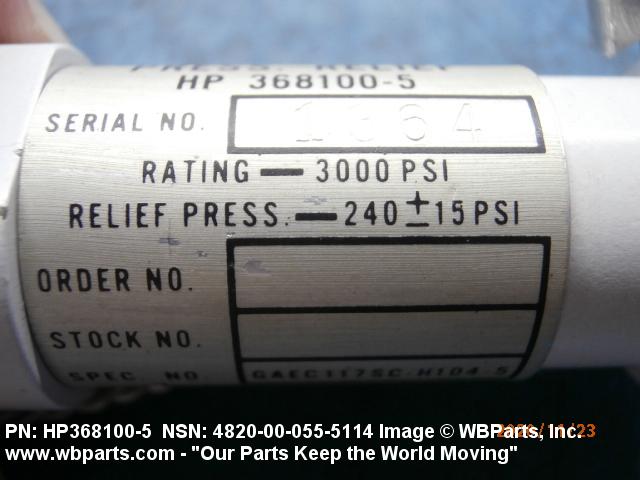

| OPENING PRESSURE SETTING | 240.0 POUNDS PER SQUARE INCH |
