NSN 4820-00-056-7677 18750L, 187-50L, 1896M40
Product Details | SAFETY RELIEF VALVE
4820-00-056-7677 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: 18750L, 187-50L, 1896M40, 1896-M40, 4820-00-056-7677, 00-056-7677, 4820000567677, 000567677
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-056-7677 | 05488 ( VALVE, SAFETY RELIEF ) |

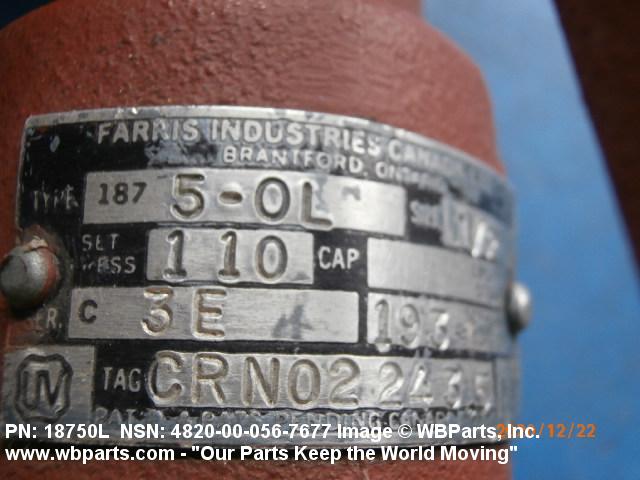

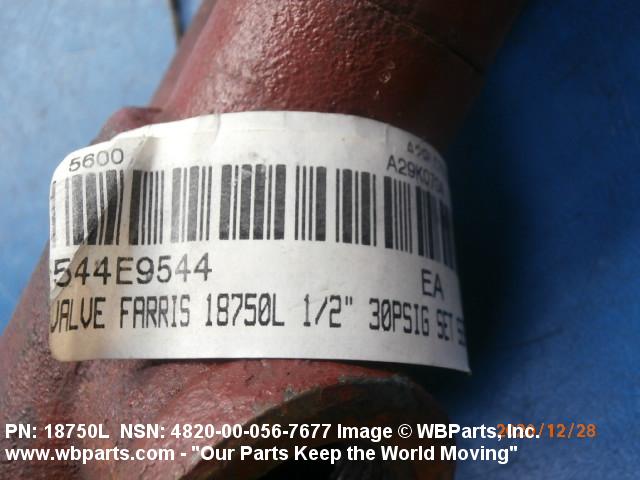

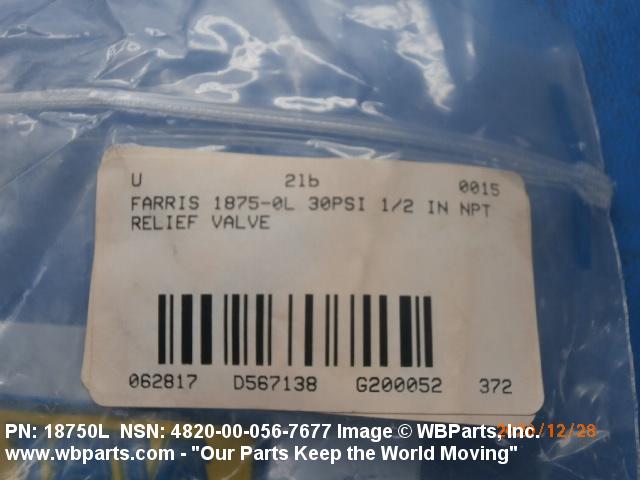

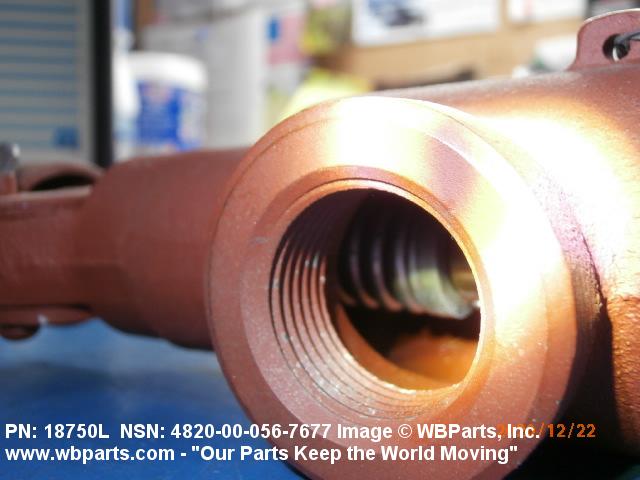

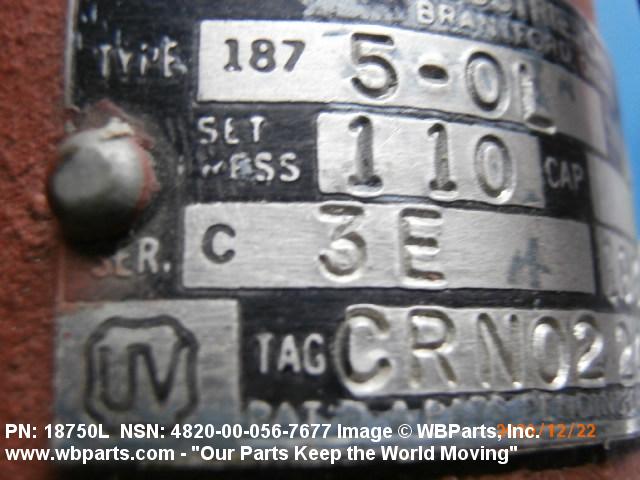

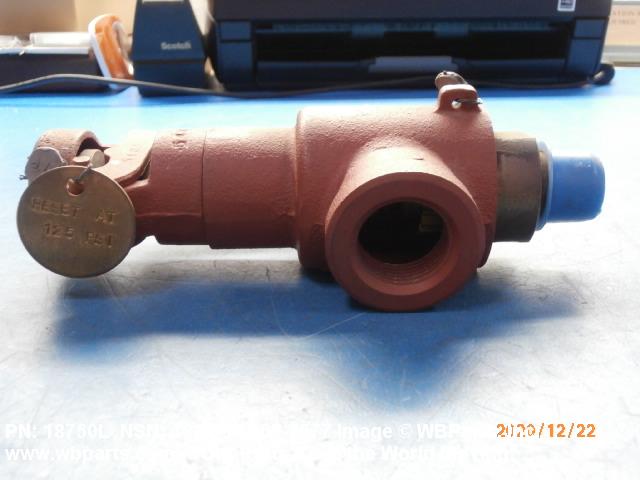

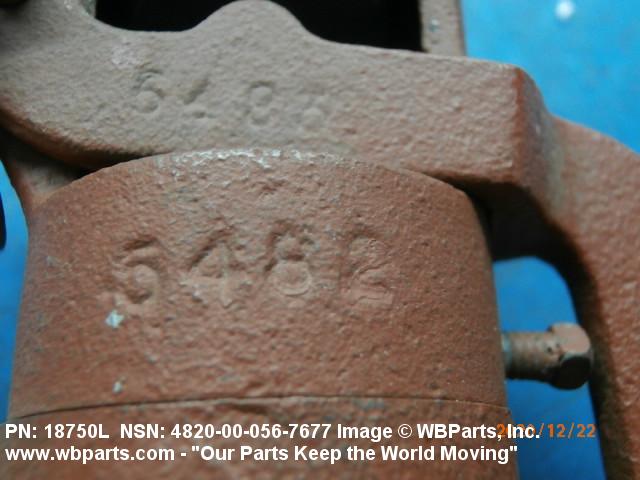

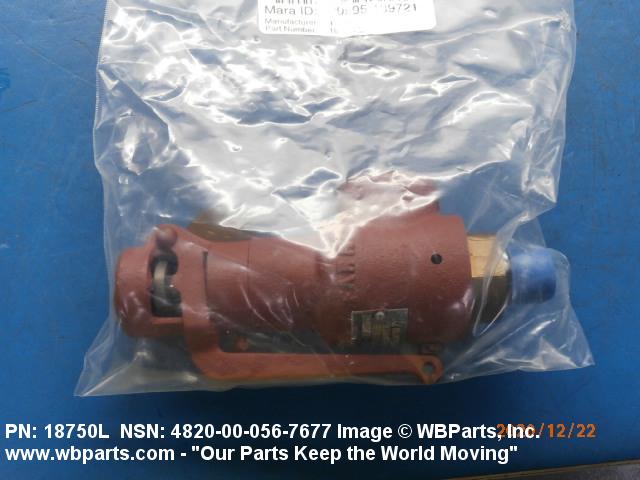

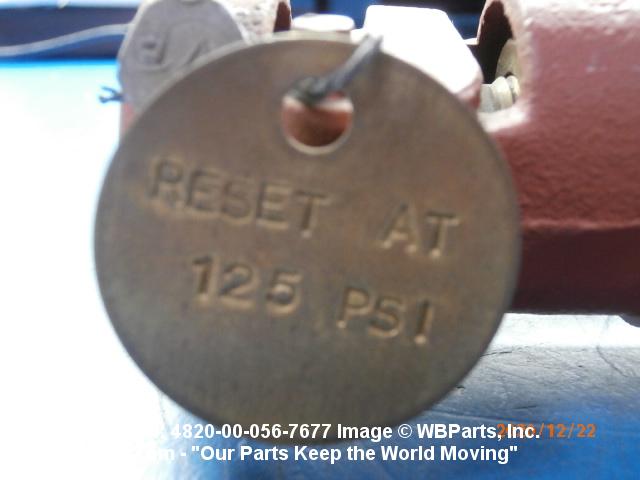

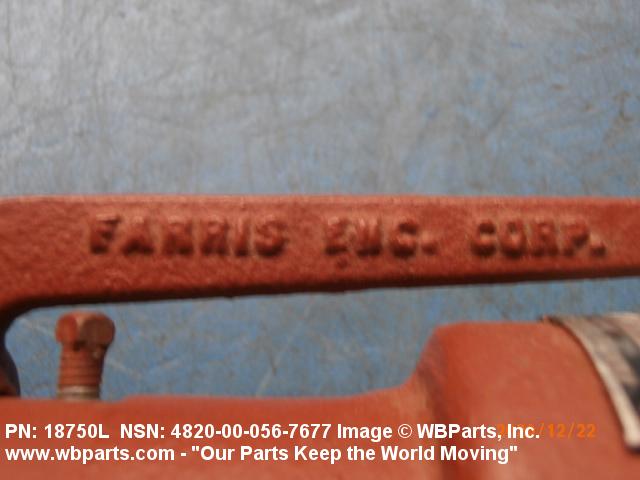

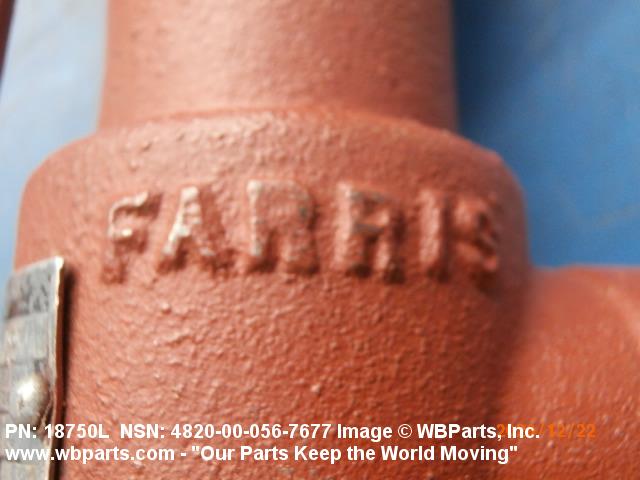

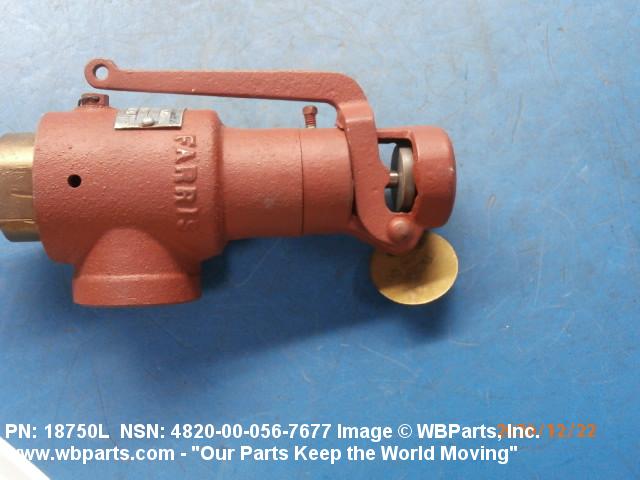

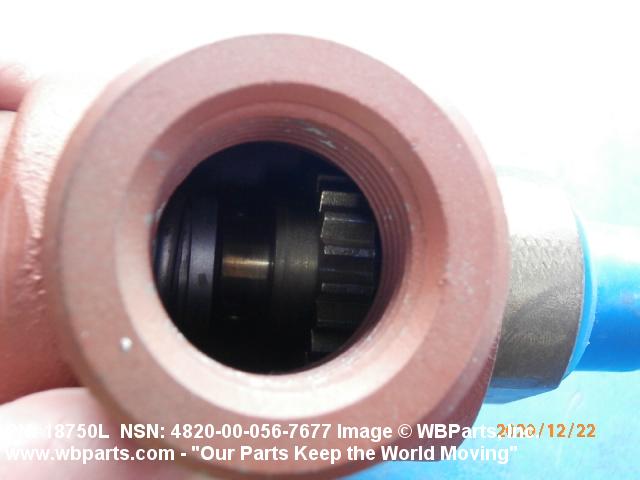

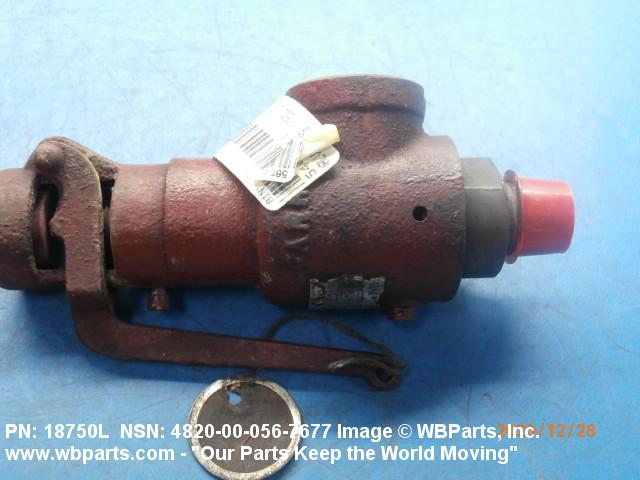

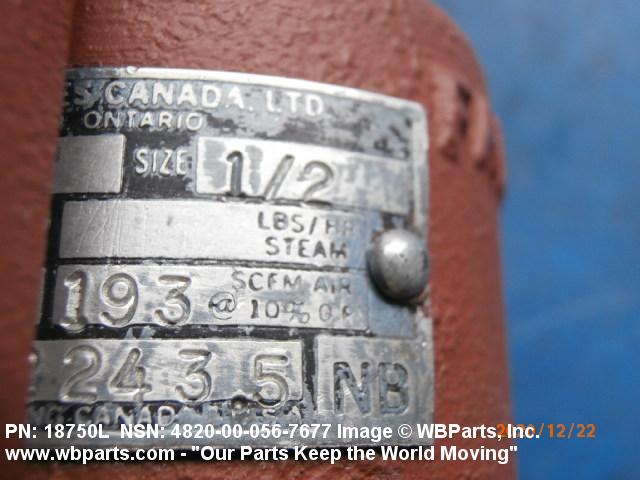

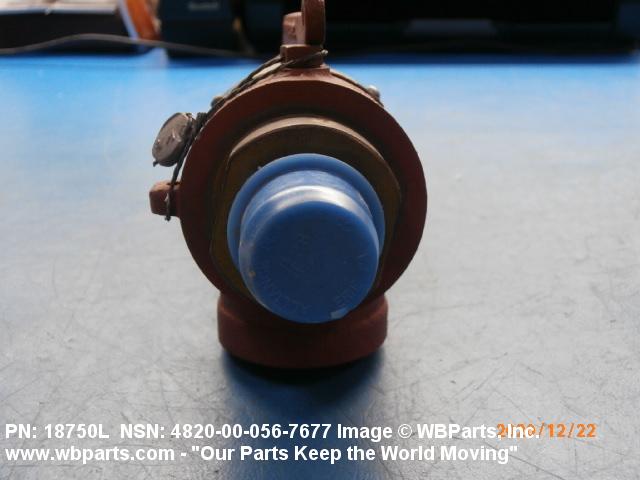

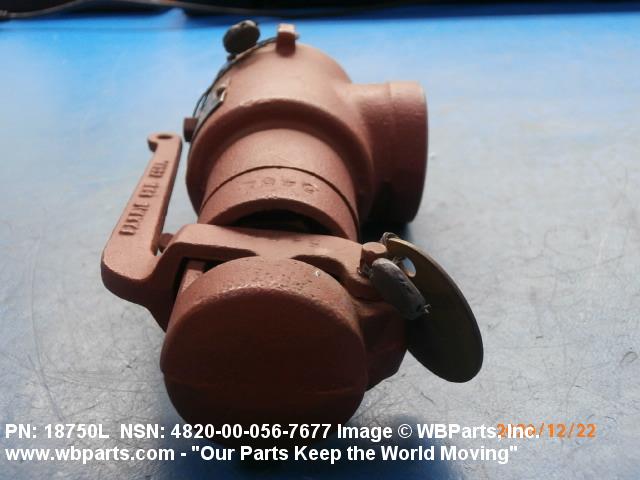

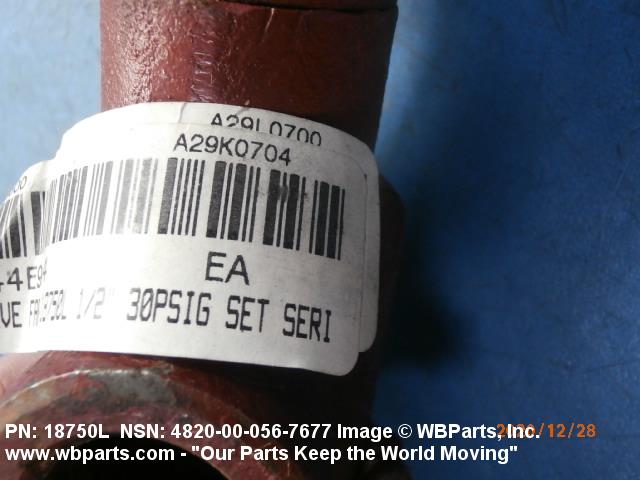

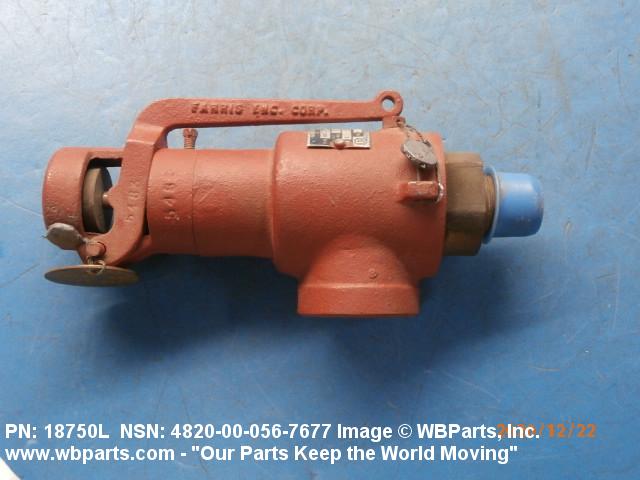

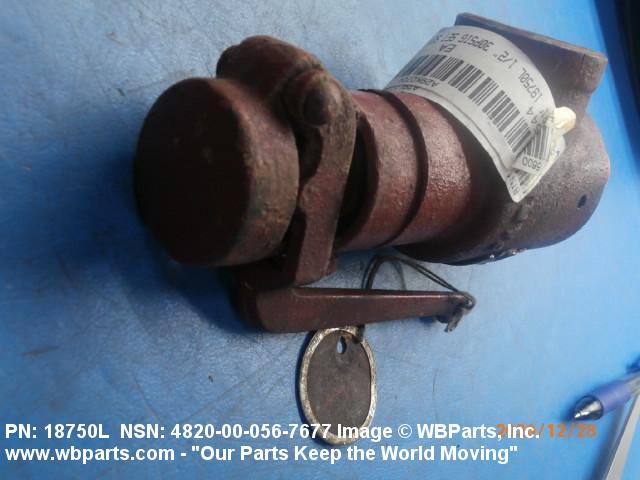

Drawings & Photos | NSN 4820-00-056-7677
Demand History | NSN 4820-00-056-7677
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-056-7677 | 2020-12-344 | 1 | United States |
| 4820-00-056-7677 | 2020-12-344 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-056-7677
Technical Data | NSN 4820-00-056-7677
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY COPPER ALLOY SEAT STEEL CORROSION RESISTING STEM |
| STYLE DESIGNATOR | C1 ANGLE |
| FLOW CONTROL DEVICE | DISK |
| MEDIA FOR WHICH DESIGNED | AIR 1ST RESPONSE STEAM 2ND RESPONSE GAS, NATURAL 3RD RESPONSE |
| MAXIMUM OPERATING PRESSURE | 300.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 450.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE DISCHARGE FLOW RATE | 68.0 CUBIC FEET PER MINUTE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED INTERNAL PIPE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | G9 PLAIN 1ST END G46B PLAIN 2ND END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES 1ST END 0.500 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | NPT 1ST END NPT 2ND END |
| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END 0.500 INCHES 2ND END |
| THREAD DIRECTION | RIGHT-HAND 1ST END RIGHT-HAND 2ND END |
| BONNET TYPE | INSIDE SPRING |
| BONNET ATTACHMENT METHOD | THREADED |
| DISK LOADING METHOD | SPRING |
| OPENING PRESSURE SETTING | 30.0 POUNDS PER SQUARE INCH |
| FEATURES PROVIDED | PRESSURE TIGHT OUTLET SIDE |
Restrictions/Controls & Freight Information | NSN 4820-00-056-7677
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
