NSN 4820-00-065-0215 FE3-PAAH-S03S WITH HANDWHEEL, FE3PAAHS03SWITHHANDWHEEL, 529693
Product Details | FLUID PRESSURE REGULATING VALVE
4820-00-065-0215 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: FE3-PAAH-S03S WITH HANDWHEEL, FE3PAAHS03SWITHHANDWHEEL, 529693, 977358, 0E3PAAHS03S, 0E3-PAAH-S03S, 4820-00-065-0215, 00-065-0215, 4820000650215, 000650215
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 27 JUN 1967 | 00-065-0215 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
Drawings & Photos | NSN 4820-00-065-0215
Cross Reference | NSN 4820-00-065-0215
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0E3-PAAH-S03S | 77521 | BOSCH AUTOMATION TECHNOLOGY |
| 529693 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 529693 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 977358 | 77521 | BOSCH AUTOMATION TECHNOLOGY |
| FE3-PAAH-S03S WITH HANDWHEEL | 77521 | BOSCH AUTOMATION TECHNOLOGY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-065-0215
Technical Data | NSN 4820-00-065-0215
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL |
| FLOW CONTROL DEVICE | DISK |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED INTERNAL PIPE |

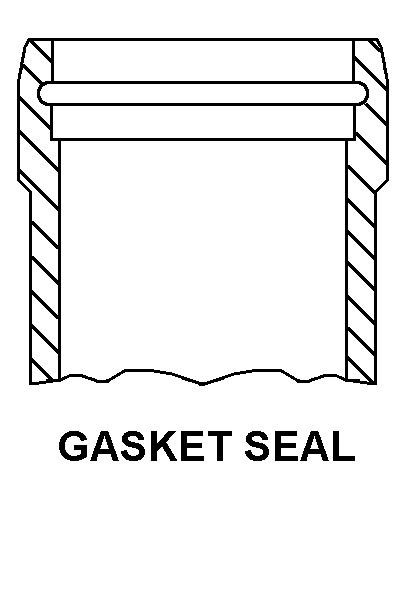

| FIRST END STYLE DESIGNATOR | C12 GASKET SEAL |
| FIRST END FLANGE SHAPE STYLE | 4 RECTANGULAR |
| FIRST END BOLT HOLE QUANTITY | 4 |
| FIRST END FLANGE THICKNESS | 1.000 INCHES NOMINAL |
| FIRST END FLANGE LENGTH | 1.265 INCHES NOMINAL |
| FIRST END FLANGE WIDTH | 3.438 INCHES NOMINAL |
| FIRST END BOLT HOLE DIAMETER | 0.406 INCHES NOMINAL |
| FIRST END CENTER TO CENTER DISTANCE BETWEEN HOLES ALONG LENGTH | 1.688 INCHES NOMINAL |
| FIRST END CENTER TO CENTER DISTANCE BETWEEN HOLES ALONG WIDTH | 2.625 INCHES NOMINAL |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | A4 STRAIGHT THRU |
| CENTER TO CENTER DISTANCE | 1.125 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC OIL |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE LOADING METHOD | SPRING |
| TEMP RATING | 130.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | NOT RATED |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 4820-00-065-0215
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
