NSN 4820-00-176-4762 00-176-4762, 001764762
Product Details | SAFETY RELIEF VALVE
4820-00-176-4762 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: 4820-00-176-4762, 00-176-4762, 4820001764762, 001764762
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 00-176-4762 | 05488 ( VALVE, SAFETY RELIEF ) |

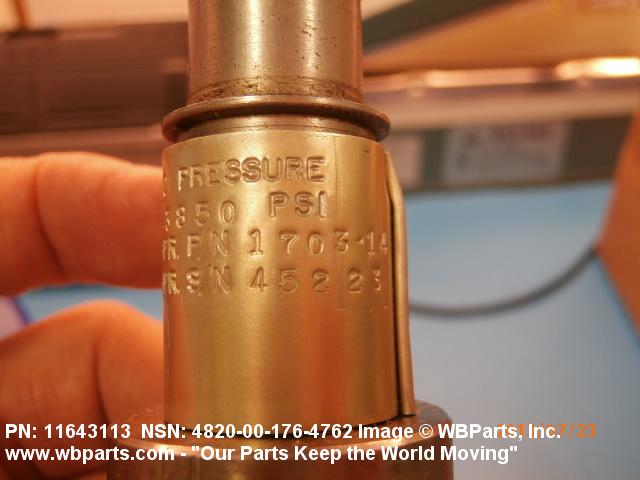

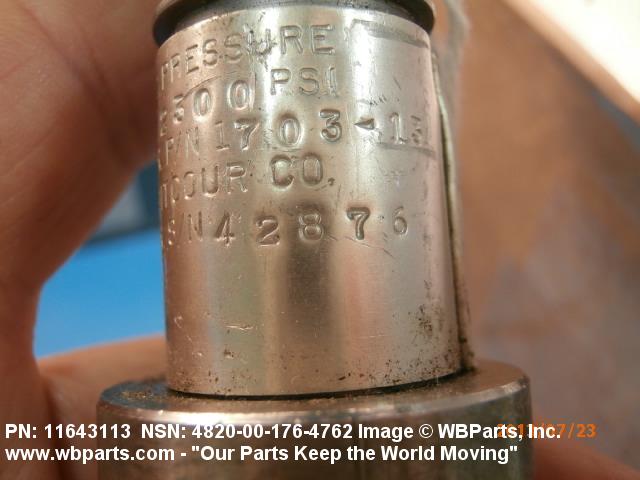

Drawings & Photos | NSN 4820-00-176-4762
Demand History | NSN 4820-00-176-4762
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-176-4762 | 2014-04-119 | 5 | Pakistan |
| 4820-00-176-4762 | 2013-09-252 | 3 | MANUAL |
| 4820-00-176-4762 | 2013-06-165 | 10 | Pakistan |
| 4820-00-176-4762 | 2013-05-135 | 10 | Pakistan |
| 4820-00-176-4762 | 2013-05-124 | 10 | Pakistan |
| 4820-00-176-4762 | 2013-04-91 | 10 | MANUAL |
| 4820-00-176-4762 | 2013-02-35 | 6 | PK |
| 4820-00-176-4762 | 2013-02-35 | 6 | MANUAL |
| 4820-00-176-4762 | 2013-02-33 | 6 | PK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-176-4762
Technical Data | NSN 4820-00-176-4762
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY |
| STYLE DESIGNATOR | C7 STRAIGHT THRU |
| FLOW CONTROL DEVICE | PLUG |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 2850.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 275.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE DISCHARGE FLOW RATE | 12.0 GALLONS PER MINUTE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED INTERNAL BOSS ALL ENDS |
| CONNECTION STYLE | G4 GASKET SEAL ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.750 INCHES ALL ENDS |
| THREAD CLASS | 3B ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| ADJUSTABLE PRESSURE RANGE | 2300.0 TO 3850.0 POUNDS PER SQUARE INCH |
| FEATURES PROVIDED | PRESSURE TIGHT OUTLET SIDE |
Restrictions/Controls & Freight Information | NSN 4820-00-176-4762
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
